AXGM-16

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Cutting tool • Tape • Crimping tool

• Connectors (i.e. butt-connectors, bell caps, etc.)

TABLE OF CONTENTS

Connections

LD-GMOS-26 harness 2 .......................................

LD-GMOS-210 harness 3 ......................................

Installation 4 .............................................................

Programming 4 .........................................................

Cadillac Chime Interface 1997-2006

• Used in amplified systems

• Provides accessory power (12-volt 10-amp)

•

Provides NAV outputs (parking brake, reverse, and speed sense)

• Retains R.A.P. (Retained Accessory Power)

• Prewired AXSWC harness included (AXSWC sold separately)

• Retains chimes

• Retains OnStar®/OE Bluetooth

• Adjustable volume for chimes and OnStar®

•

High level speaker input

• Retains balance and fade

• Micro B USB updatable

• AXGM-16 interface • LD-GMOS-26 harness

• LD-GMOS-210 harness • LD-2NAVAMP harness

APPLICATIONS

Cadillac

Catera 1997-2001 ..............................................................................................

CTS 2003-2006 .................................................................................................

Deville 1998-2005 ............................................................................................

Eldorado 1998-2002 ........................................................................................

Seville 1998-2004 ............................................................................................

SRX (with RPO codes U2R U2S) 2004-2006 ....................................................

Visit

AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

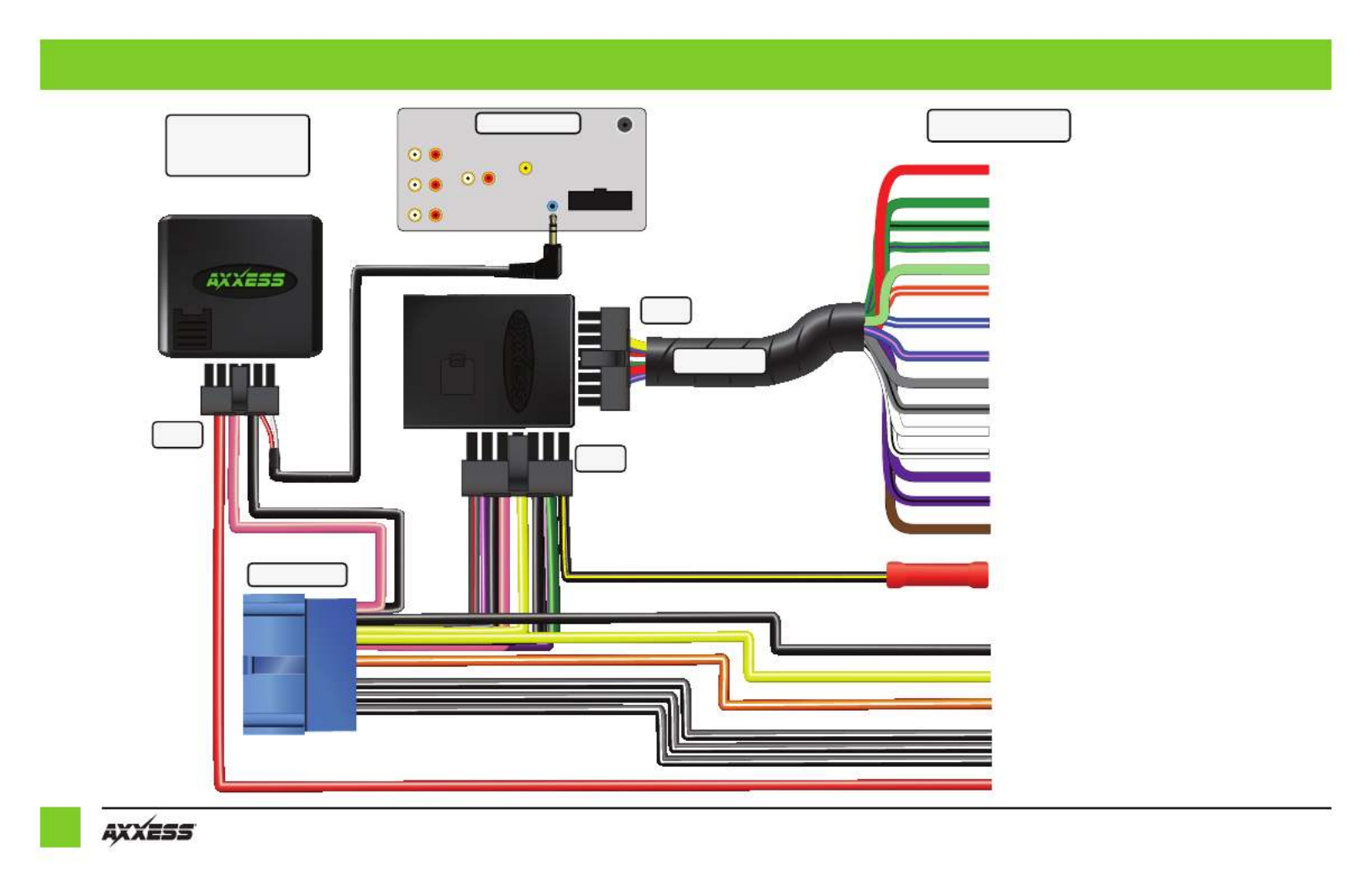

CONNECTIONS: LD-GMOS-26 & LD-2NAVAMP

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

Steering Wheel

Control (AXSWC)

(Sold Separately)

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple

- Reverse backup camera

Light Green - Parking brake

Orange/White - Dimmer

Blue/White Amp turn on

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Brown - Mute

LD-GMOS-26

16-Pin

Radio Connections

14-Pin

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

12-Pin

Black/White - Shield ground

LD-2NAVAMP

Vehicle Connector Black/Yellow - OnStar® level adjustment

Orange/White - Not used

LD-GMOS-26
