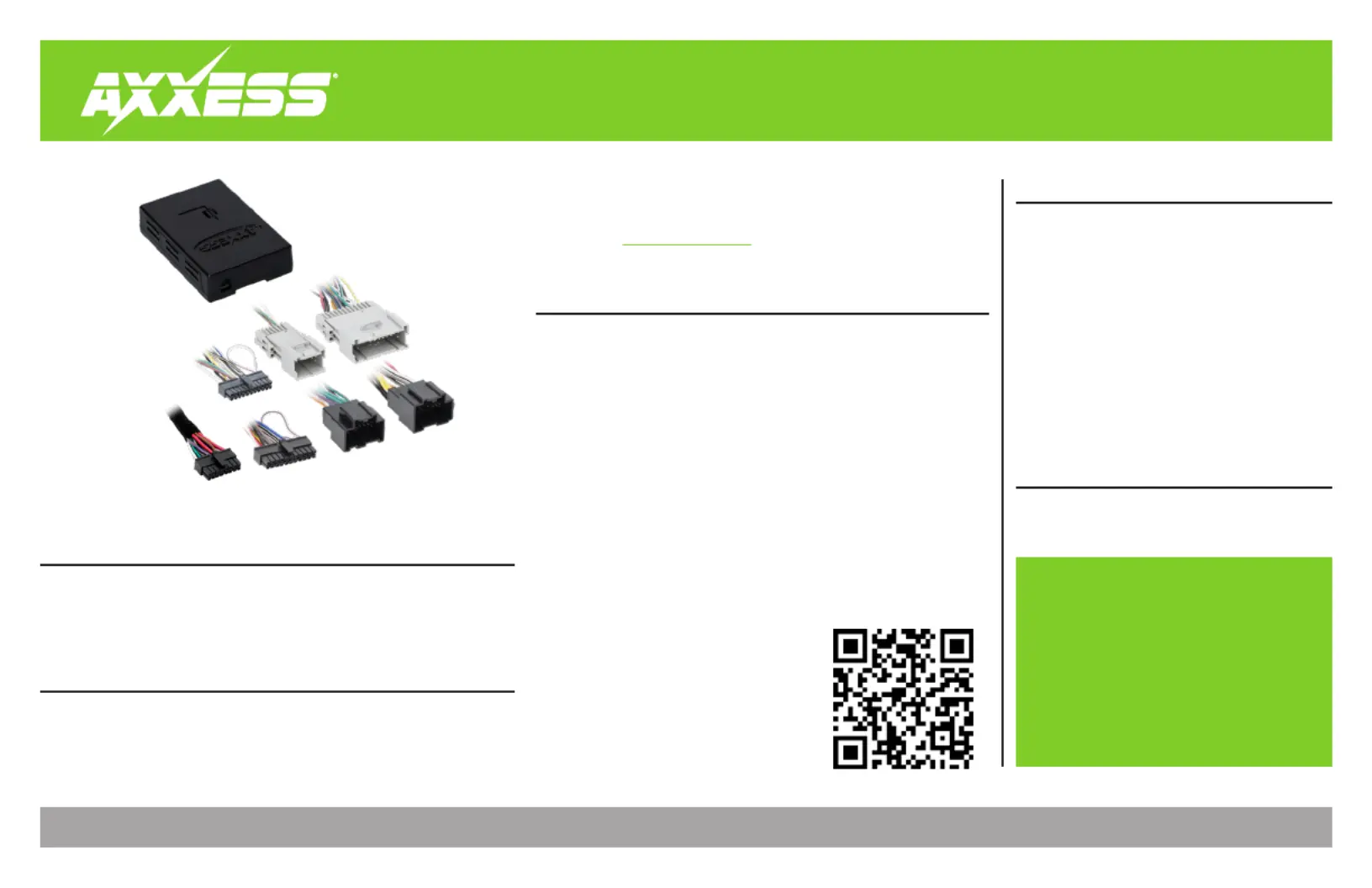

AXGM-17

I N S T A L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Cutting tool • Tape • Crimping tool

• Connectors (i.e. butt-connectors, bell caps, etc.)

TABLE OF CONTENTS

Connections

LD-GMOS-LAN-26 harness 2 ...............................

LD-GMOS-212 harness.......................................3

Brown Wire (Mute/OnStar®)

Installation 4 .............................................................

Programming 4 .........................................................

Adjustments

Chime Level.......................................................5

OnStar® Level Adjustment 5 ....................................

GM Chime Interface 2004-2007

• Designed for non-amplified models with OnStar®

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power) feature

• Retains OnStar®/OE Bluetooth®

• Adjustable volume for OnStar®

• Retains balance and fade

• Micro-B USB updatable

• AXGM-17 interface • LD-GMOS-LAN-26 harness

• LD-GMOS-212 harness • LD-2NAV harness

APPLICATIONS

Saturn

Ion 2004-2007 ...................................................................................................

Vue 2004-2007 ..................................................................................................

Visit for more detailed information

AxxessInterfaces.com

about the product and up-to-date vehicle specific applications

Product Info

CONNECTIONS: LD-GMOS-LAN-26 & LD-2NAV

Radio Connections

Black/Yellow* - OnStar®

level adjustment

Black - Ground wire

Yellow - Battery wire

Orange

/White

- Illumination

Green/Black -- Rear left speaker output

Green + - Rear left speaker output

Purple/Black - - Rear right output

Purple + - Rear right speaker output

Orange - NOT USED

White/Black - Front Left Speaker -

Red - Accessory Power

Green/Purple - Reverse

Light Green - Parking Brake

Blue/Pink - VSS/Speed-Sense

Gray - Front Right Speaker +

Gray/Black - Front Right Speaker -

White - Front Left Speaker +

Brown

** - Mute (Connects to radio’s mute wire)

LD-2NAV

16-Pin

22-Pin

Vehicle Connectors

LD-GMOS-LAN-26

*Refer to Adjustment section on page 5.

**If the aftermarket radio has a mute wire, connect the wire to it. Brown

If the mute wire is not connected, the radio will turn off when OnStar ® is activated.

2006-2007 ION

2006-2007 VUE
