Side 1/8

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

AXGMLN-34

I N S TA L L A T I O N I N S T R U C T I O N S

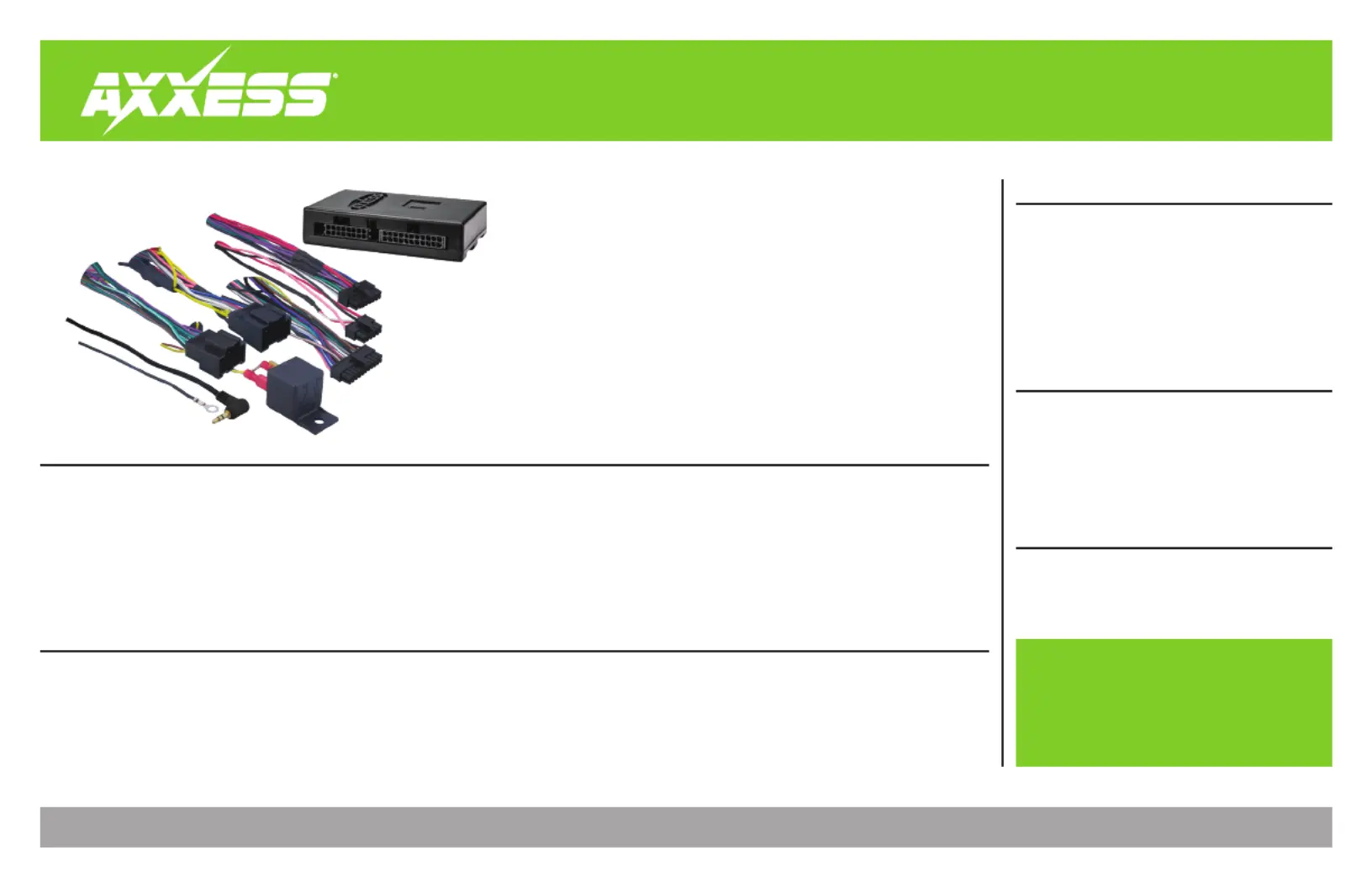

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter •Zip ties

GM LAN-11 OnStar interface 2006-2012

APPLICATIONS

CHEVROLET

Cobalt 2007-2010

HHR 2006-2011

Malibu 2008-2012

PONTIAC

G5 2007-2009

G6 2010

G6* 2009

PONTIAC (CONT)

Solstice 2006-2009

SATURN

Aura 2007-2009

Sky 2006-2009

• AXGMLN-34 interface

• AXGMLN-34 harness

• 16-pin harness with stripped leads

• 4-pin to 4-pin resistor pad harnes

INTERFACE FEATURES

• Provides accessory power (12-volt 10-amp)

• Maintains the retained accessory power (R.A.P.) feature

• Can be used in non-ampliﬁed, or ampliﬁed models

• Retains warning chimes

• Provides NAV outputs (parking brake, reverse, speed sense)

• Pre-wired AXSWC harness (AXSWC sold separately)

• Retains OnStar/OE Bluetooth

• Adjustable volume for chimes and OnStar

• Retains balance and fade

• Micro “B” USB updatable

TABLE OF CONTENTS

Connections to be made ....................................2-3

Installing the AXGMLN-34 ......................................4

Programming the AXGMLN-34 ..............................4

Adjusting the AXGMLN-34 ....................................4

Troubleshooting .....................................................5

* 5th digit of VIN must be a J, K, or L

CONNECTIONS TO BE MADE

From the 16-pin harness with stripped leads to the aftermarket radio:

• Connect the wire to the accessory wire.Red

If installing an AXSWC (sold separately), connect the (2) wires on the AXGMLN-34 Note: Red

harness as well.

• Connect the Orange/White wire to the illumination wire. (If the aftermarket radio has no

illumination wire, tape off the wire).Orange/White

• Connect the wire to the amp turn on wire (this wire must be connected to hear Blue/White

sound from the factory ampliﬁer).

• Connect the Brown wire to the mute wire of the aftermarket radio. If the radio has no mute

wire, tape it off and disregard it.

• Connect the wire to the left front positive speaker output.White

• Connect the wire to the left front negative speaker output.White/Black

• Connect the wire to the right front positive speaker output.Gray

• Connect the Gray/Black wire to the right front negative speaker output.

• Tape off and disregard the following (4) wires, they will not be used in this application:

Green Green/Black Purple Purple/Black, , , .

The following 3 wires are for an aftermarket multimedia/navigation radio that provide these wires

(if not required, tape them off and disregard them):

• Connect the wire to the parking brake wire (if applicable).Light Green

• Connect the wire to the speed sense wire (V.S.S.) (if applicable).Blue/Pink

• Connect the wire to the reverse wire (if applicable).Green/Purple

From the AXGMLN-34 harness to the aftermarket radio:

• Connect the wire to the ground wire.Black

• Connect the Yellow wire to the battery wire.

• If installing an AXSWC (sold separately), connect the (2) wires to accessory power.Red

• The Black/Yellow wire is used for OnStar level adjustment for models that do not come

equipped with steering wheel controls. See OnStar Level Adjustment for further instructions.

• Connect the and RCA jacks to the audio AUX-IN jacks from the aftermarket radio.Red White

Continued on the next page
