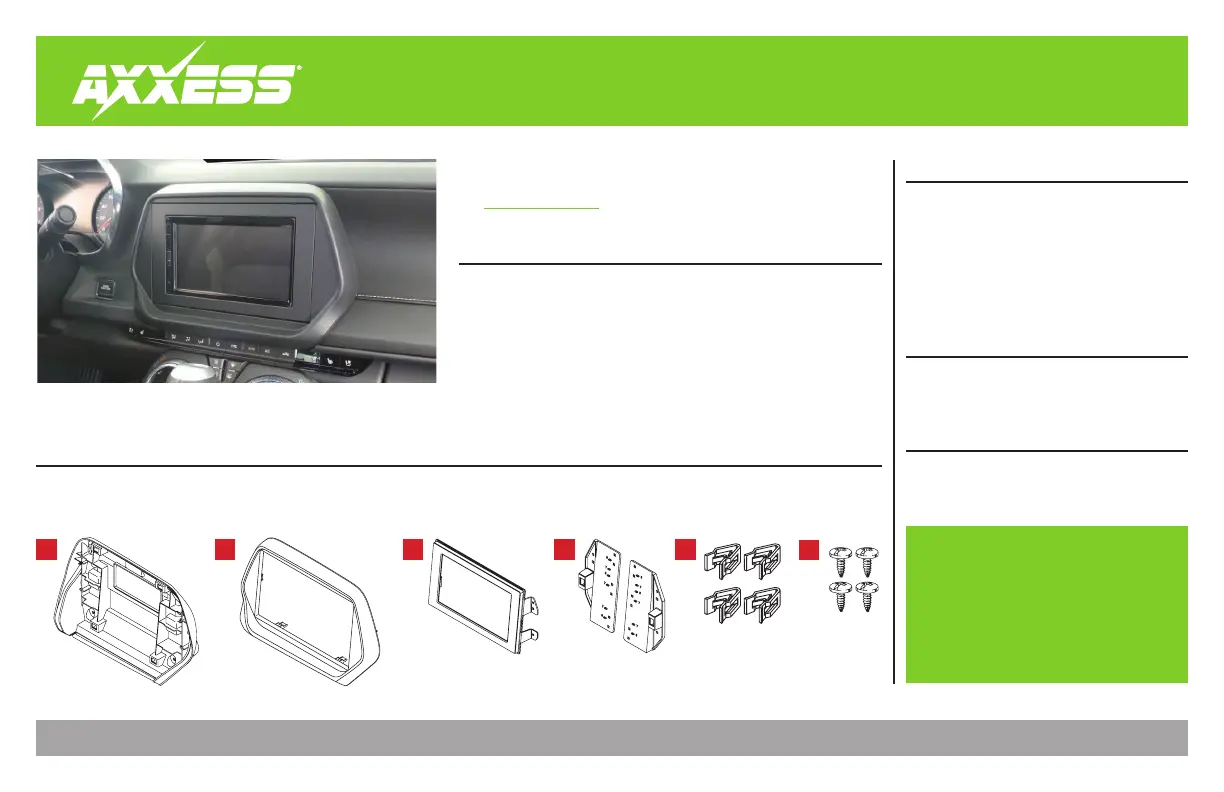

Side 1/24

AXPIO-CAM2

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

TABLE OF CONTENTS

Interface Installation 2 .............................................

Dash Disassembly 2-3 ..............................................

Connections 4-5 ........................................................

Kit Assembly 6 ..........................................................

Radio Operations 7-8 ...............................................

Chevrolet Camaro 2019-UP

KIT FEATURES

• Designed for Pioneer DMH-WC5700NEX receivers

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen

(can not be adjusted via the screen)

(cont. on page 2)

KIT COMPONENTS

• A) Display Screen Housing • B) Display Screen Trim Bezel • C) Display Screen Trim • D) Brackets •E) Panel Clips • F) Phillips Screws (4)

Not Shown: Radio Interface, LD-GM30-PIO, LD-GM31-PIO, AXEXH-GM30, AXEXH-GM31 LD-GMSWC, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA,

LD-AX-SPK, AXUSB-GM6

Visit for more detailed information about the product and

AxxessInterfaces.com

up-to-date vehicle specific applications.

WIRING & ANTENNA CONNECTIONS

•

RGB Extension Cable: Pioneer part # CD-RGB150A

(not sold by Metra)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

A B DC E F

KIT FEATURES (cont. from cover)

• Complete Plug-n-Play installation

• Includes dash kit with Axxess interface and

vehicle-specific T-harness

• Includes a 3' USB/AUX/HDMI replacement

cable with panel

• Includes radio antenna adaptor for GPS

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake,

reverse, speed sense)

•

Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included

off-board speaker

• USB Micro B updatable

•

Dash kit is painted scratch-resistant matte

black to match the factory finish

• Designed for non-amplified vehicles only

KIT FEATURES

(CONT.)

DASH DISASSEMBLY

Models equipped with a 7-inch touchscreen radio:

1. Using the panel removal tool, gently unclip,

unplug, and remove the radio control trim

panel. (Figure A)

2. Remove (4) 9/32" screws securing the

radio, disconnect the wiring, and then

remove the radio. (Figure B)

Continue to Connections

(Figure A)

(Figure B)
