AXPIO-COL2

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

TABLE OF CONTENTS

Speaker Installation...............................................2

Dash Disassembly 2 ..................................................

Connections 3-4 ........................................................

Kit Preparation 5 .......................................................

Kit Assembly 5 ..........................................................

Radio Operations 6-7 ...............................................

Chevrolet GMCColorado/ Canyon 2019-Up

KIT FEATURES)

•

Designed for Pioneer DMH-W4600NEX/W4660NEX or

DMH-WC5700NEX receivers

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot

be adjusted via the screen)

(cont. on page 2)

KIT COMPONENTS

• A) Radio Trim Panel • B) Brackets • C) #8 x 3/8" Phillips pan-head Screws (4)

Not Shown: Radio Interface, LD-GM30-PIO, LD-GM31-PIO, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO/PRO4-PIORCA, LD-AX-SPK

Visit for more detailed information about the product and

AxxessInterfaces.com

up-to-date vehicle specific applications.

WIRING & ANTENNA CONNECTIONS

•

RGB Extension Cable: Pioneer part # CD-RGB150A

(not sold by Metra)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

A B C

KIT FEATURES (cont. from cover)

• Complete Plug-n-Play installation

• Includes dash kit with Axxess interface and

vehicle-specific T-harness

• Includes radio antenna adaptor for GPS

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake,

reverse, speed sense)

• Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included

off-board speaker

• USB Micro “B” USB updatable

• Dash kit is painted scratch-resistant matte

black to match the factory finish

• For non-amplified vehicles only

KIT FEATURES

(CONT.)

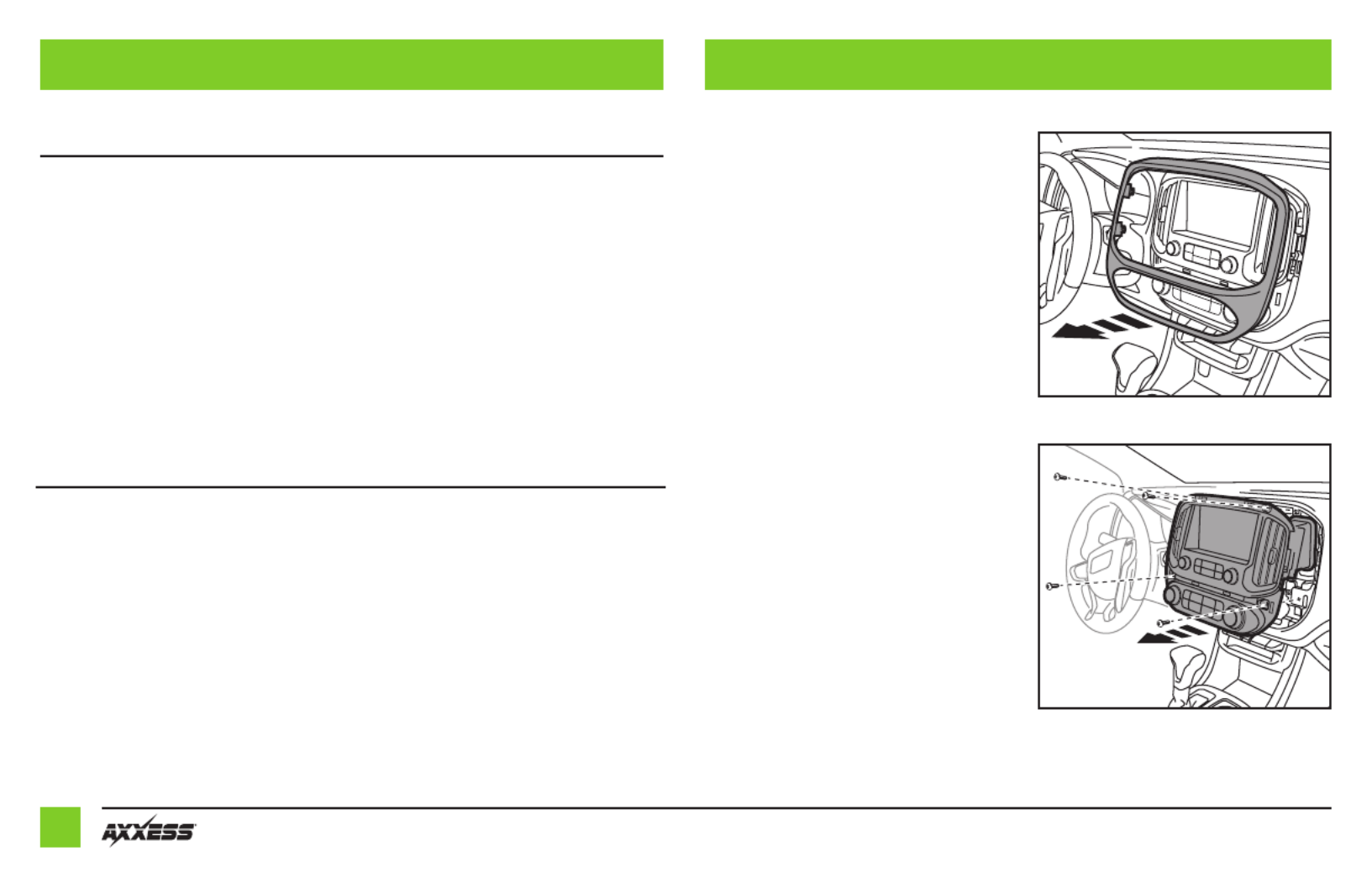

DASH DISASSEMBLY

1. Unclip and remove the trim panel

surrounding the radio/climate control

panel. (Figure A)

2. Remove (4) 9/32" screws securing the

radio/climate control panel. (Figure B)

3. Remove (2) 9/32" screws securing the CD

player then unplug and remove the player.

4. Unclip and slide out the factory tuner

module then unplug and remove it.

5. Unclip and remove the climate controls

from the factory trim panel.

6. Unclip and remove the climate control

vents from the factory trim panel.

Continue to Connections

(Figure A)

(Figure B)

SPEAKER INSTALLATION

Install the provided speaker in the dash prior to assembling the radio components.

Note: Make sure this is mounted in a location suitable for the driver to hear. (Audio level for the

speaker can be changed via the radio, once installed.)
