AXPIO-COM1

I N S T A L L A T I O N I N S T R U C T I O N S

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Panel removal tool • Phillips screwdriver

• Torx screwdrivers • Tape

• Wire cutter • Zip-ties

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

TABLE OF CONTENTS

Dash Disassembly 2 ..................................................

Kit Preparation 2 .......................................................

Kit Assembly 2 ..........................................................

Axxess Interface Installation

Interface Installation 3 ........................................

Dash Assembly 4 ..................................................

Radio Operation 5-6 ............................................

Odometer Type 7 .................................................

Jeep Compass 2017.5-2021

Designed for Pioneer® DMHW4600NEX/W4660NEX or DMH-WC5700NEX receivers

Note: This kit will function in both Single-Zone and Dual-Zone vehicles:

• All HVAC functions will be retained.

• Single-Zone vehicles will only get status feedback of the HVAC functions, while

Dual-Zone vehicles can also be controlled through the radio screen.

• Compass is only retained on vehicles equipped with the UConnect 3 (5" touchscreen).

• The External Speaker is only required in vehicles with safety group features.

(Features continued on next page

)

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Panel clips (7)

Not shown: LD-CH5-PIO, LD-CHRYHAZ2T,

Radio interface, PR04AVIC-PIO or PR04-PIORCA Harness,

External Speaker

A B C

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with Kit

Antenna Adapter: Included with Kit

GPS Antenna Adapter: Included with Kit

Visit AxxessInterfaces.com

for up-to-date vehicle specific applications.

Product Info

IMPORTANT: TPMS will only display on the instrument cluster, not on the Pioneer

Visit for more detailed information about the product and up-to-date MetraOnline.com

vehicle specific applications

DASH DISASSEMBLY

KIT PREPARATION

KIT ASSEMBLY

(Figure A) (Figure A)

(Figure A)

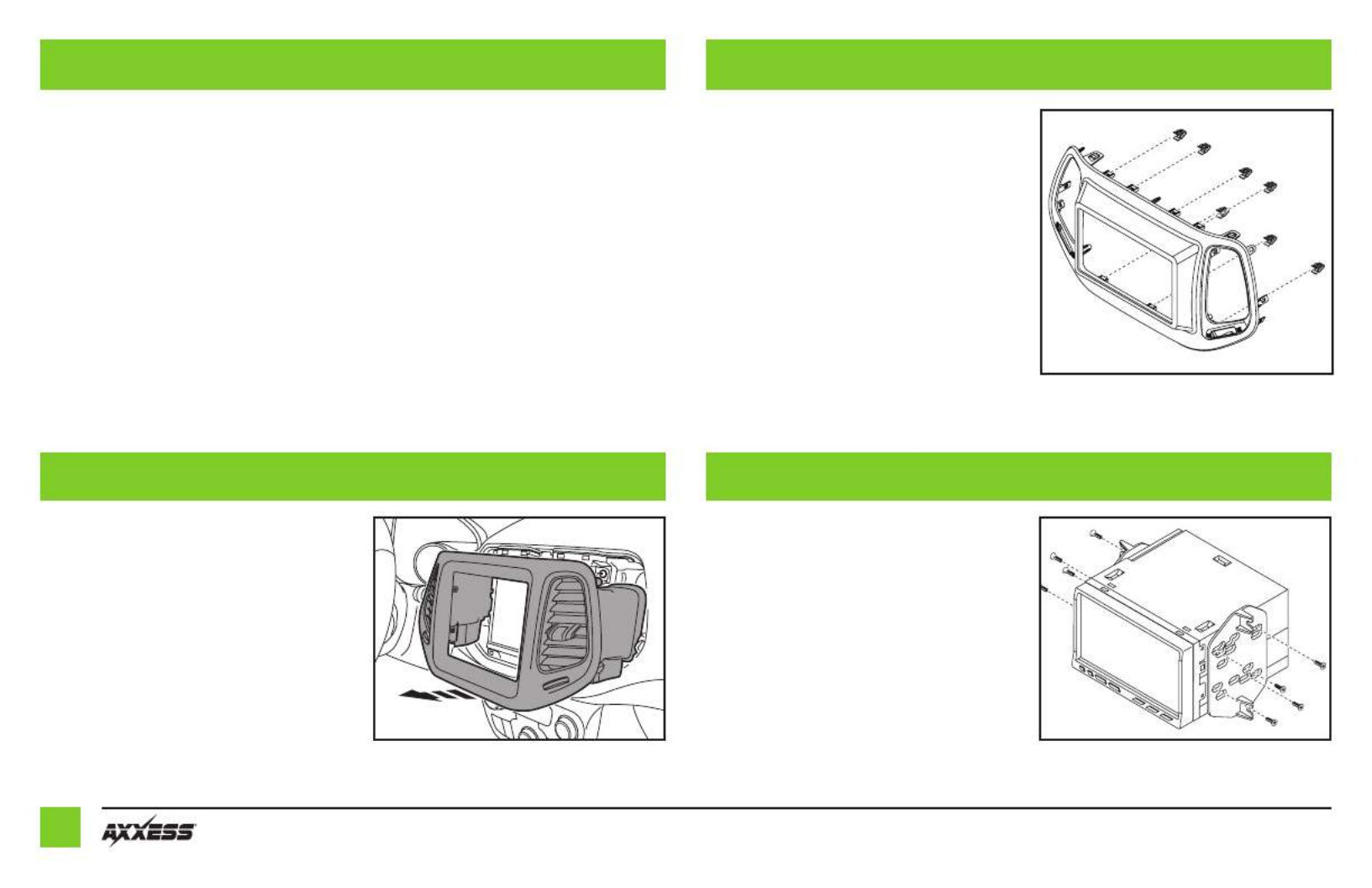

1. Unclip and remove the A/C vent panel

surrounding the radio. (Figure A)

2. Remove (4) 9/32" screws securing the

radio, then unplug and remove the radio.

Continue to Kit Preparation

1. Attach the

(7)

panel clips

to the

radio

trim panel

(Figure A)

Continue to Kit Assembly

ISO DDIN radio provision

1. Attach the

radio brackets

to the radio

using the screws supplied with the radio.

(Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to the

radio. Metra recommends using the proper

mating adapter from Metra and/or Axxess.

3. Test the radio for proper operation.

• Allows for the retention and adjustment of the factory personalization menu through the

Pioneer® radio.

• Complete plug-n-play installation.

• Includes dash kit with Axxess interface and vehicle-specific T-harness.

• Includes radio antenna adaptor for GPS.

• Provides a built-in STOP/START engine override (if equipped).

• Provides accessory power (12V 10-amp).

• Provides NAV outputs (parking brake, reverse, and speed sense).

• Retains audio controls on the steering wheel.

• Works in both single and dual-zone vehicles.

• Dash kit is painted scratch-resistant matte black to match the factory finish.

• Retains safety chimes through an included off-board speaker.

• Designed for non-amplified vehicles. • Micro “B” USB updatable.

FEATURES

(CONT.)
