Side 1/16

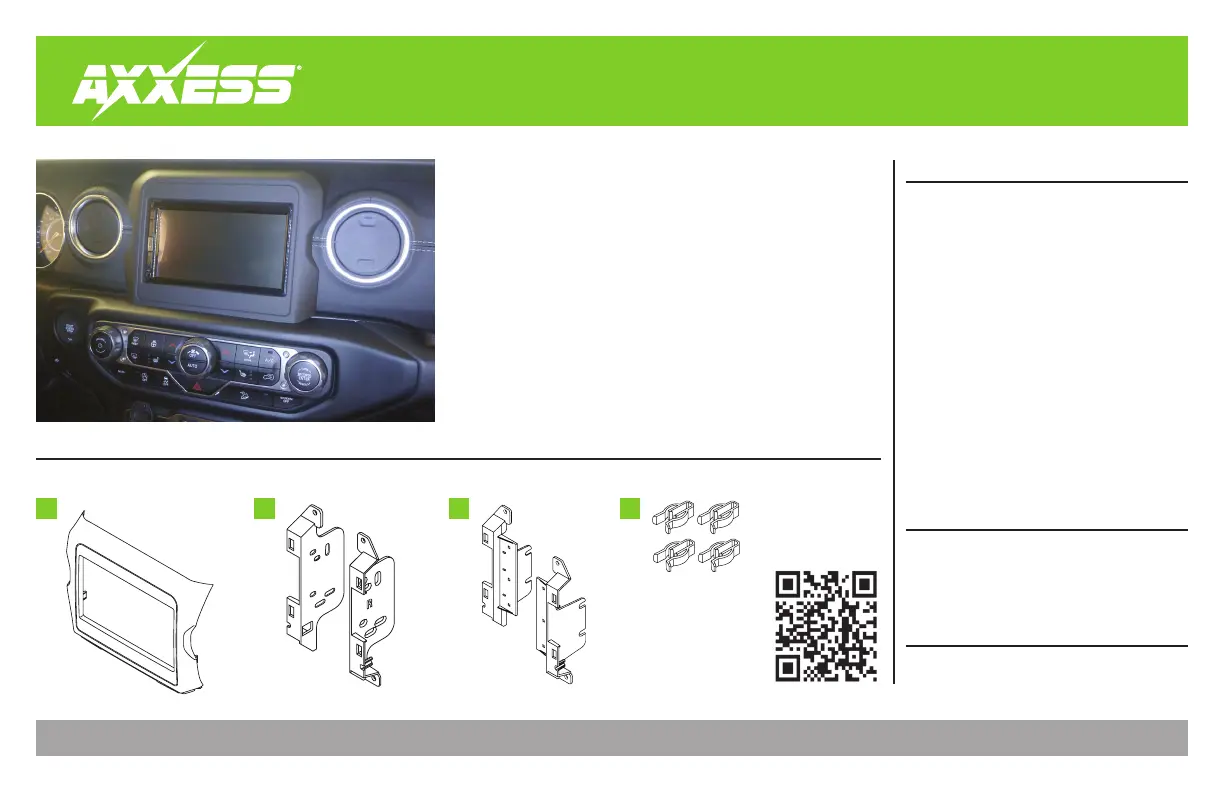

AXPIO-JT1

I N S T A L L A T I O N I N S T R U C T I O N S

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Panel removal tool • Phillips screwdriver

• Torx screwdriver

TABLE OF CONTENTS

Dash Disassembly ..................................................2

Kit Assembly

- Radio provision ...................................................2

- Pioneer Modular DDIN radio provision ..............3

AXXESS Interface Installation ...........................4-16

Jeep

Gladiator JT 2020-Up

Note: This kit will function in both Single-Zone and Dual-Zone vehicles:

• All HVAC functions will be retained.

•

Single-Zone vehicles will only get status feedback of the HVAC functions,

while Dual-Zone vehicles can also be controlled through the radio screen.

• Compass is only retained on vehicles equipped with the UConnect 3

(5" touchscreen).

• The External Speaker is only required in vehicles with safety group features.

Attention! Designed speciﬁcally for Pioneer’s DMH-W4600NEX/WC4660NEX.

Pioneer 9" DMH-WC6600NEX will require the Metra Floating Mount Kit

109-UN02. (sold separately)

KIT COMPONENTS

• A) Radio bezel • B) Shallow mount brackets • C) Modular radio brackets • D) Panel clips (4)

A B C D

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with Kit

Antenna Adapter:

Included with Kit

GPS

Antenna Adapter:

Included with Kit

Visit AxxessInterfaces.com for up-to-date

vehicle speciﬁc applications.

Product Info

DASH DISASSEMBLY KIT ASSEMBLY

1. Unsnap and remove the panel below the

steering column. (Figure A)

2. Using the panel removal tool, carefully

unclip the climate control panel, unplug

the HVAC and start/stop button, and

then set aside. (Figure B)

3. Remove (2) Phillips screws securing the

radio trim panel, then, starting at the

bottom, unclip and remove the panel.

(Figure C)

4. Remove (4) Phillips screws securing the

factory radio, disconnect the wiring, and

then remove the radio.

(Figure A)

(Figure B)

(Figure C)

(Figure A)

(Figure B)

Radio provision

1. Secure the

shallow radio brackets

the radio using screws supplied with the

radio. (Figure A)

2. Locate the factory wiring harness and

antenna connector in the dash and

complete all necessary connections to

the radio. Metra recommends using the

proper mating adapter from Metra and/

or Axxess.

3. Reconnect the negative battery terminal

and test the Pioneer radio for proper

operation.

4. Place the radio into the dash, then

secure using the factory screws.

5. Attach (4)

panel clips

provided with this

kit onto the

radio bezel

, and then snap

the bezel over the radio. (Figure B)

6. Reassemble the dash in the reverse

order of disassembly to complete

the installation.
