AXPIO-REN1

I N S T A L L A T I O N I N S T R U C T I O N S

KIT COMPONENTS

• A) Radio trim panel • B) Radio brackets • C) Panel clips (4)

Not shown: LD-CH5-PIO, LD-CHRYHAZ2T,

Radio interface, AXUSB-RAM1, PR04AVIC-PIO or PR04-PIORCA Harness,

External Speaker

TABLE OF CONTENTS

Dash Disassembly 2 ..................................................

Kit Assembly 3 ..........................................................

Axxess Interface Installation 4-7 ............................

Interface Installation 4 ........................................

Dash Assembly 5 ..................................................

Radio Operation 5-7 ............................................

Odometer Type 7 .................................................

Jeep Renegade 2015-2020

A B C

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with Kit

Antenna Adapter: Included with Kit

GPS Antenna Adapter: Included with Kit

Visit for up-to-date AxxessInterfaces.com

vehicle specific applications.

Product Info

IMPORTANT: TPMS will only display on the instrument cluster, not on the Pioneer

Visit for more detailed information about the product and up-to-date MetraOnline.com

vehicle specific applications

Designed for Pioneer® DMHW4600NEX/W4660NEX or DMH-WC5700NEX receivers

Note: This kit will function in both Single-Zone and Dual-Zone vehicles:

• All HVAC functions will be retained.

• Single-Zone vehicles will only get status feedback of the HVAC functions,

while Dual-Zone vehicles can also be controlled through the radio screen.

• Compass is only retained on vehicles equipped with the UConnect 3 (5” touchscreen).

• Allows for the retention and adjustment of the factory personalization menu

through the Pioneer® radio.

(Features continued on next page

)

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Panel removal tool • Phillips screwdriver

• Torx screwdrivers • Tape

• Wire cutter • Zip-ties

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

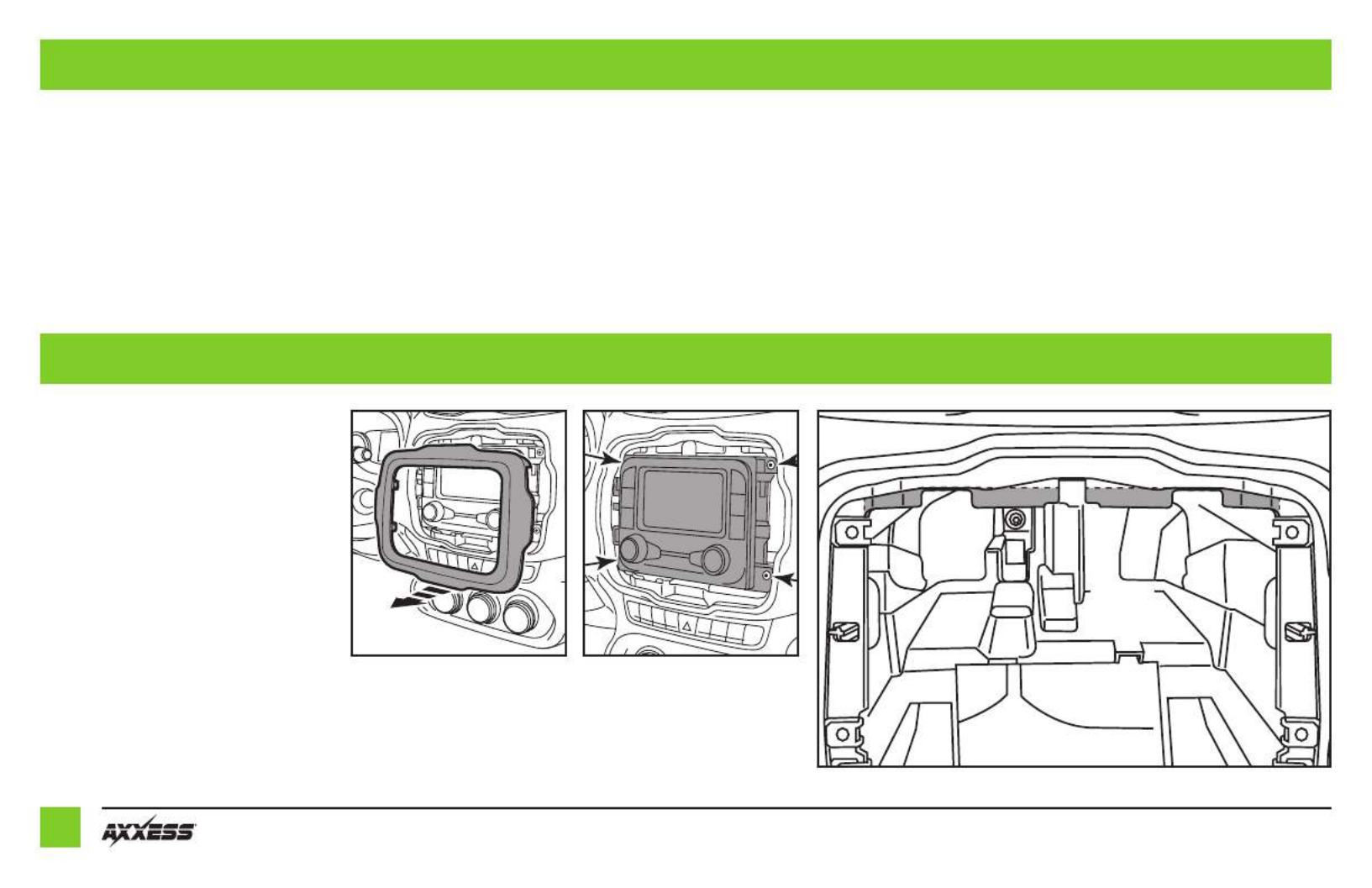

DASH DISASSEMBLY

Using the panel removal tool, carefully

unclip and remove the radio trim panel.

(Figure A)

2. Remove (4) T-20 Torx screws securing the

radio, disconnect the wiring, and then

remove the radio. (Figure B)

3. Cut shaded area at the top of the radio

cavity. (Figure C)

Continue to Kit Assembly (Figure A) (Figure B)

(Figure C)

FEATURES

(CONT.)

• The External Speaker is only required in vehicles with safety group features.

• Provides a visual view of HVAC and gauges on the Pioneer

® screen

• Complete plug-n-play installation

• Includes dash kit with Axxess interface and vehicle-specific T-harness

• Includes radio antenna adaptor for GPS

• Provides a built-in STOP/START engine override (if equipped)

• Provides accessory power (12V 10-amp)

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included off-board speaker

• Designed for amplified or non-amplified vehicles

• Micro “B” USB updatable

• Dash kit is painted scratch-resistant matte black to match the factory finish

Remove

shaded

area
