Side 1/8

AXPIOB-FD2

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

KIT FEATURES

• Designed for select Pioneer receivers

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• All HVAC functions will be retained

• Single-Zone vehicles will only get status feedback of the HVAC functions,

while Dual-Zone vehicles can also be controlled through the radio screen.

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer® radio.

• Complete plug-n-play installation

• Includes radio antenna adaptor for GPS

• Provides a built-in STOP/START engine override (if equipped)

• Provides accessory power (12V 10-amp)

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included off-board speaker

• Designed for non-amplified vehicles

• Micro “B” USB updatable

KIT COMPONENTS

Radio Interface, LD-FD2-PIO, LD-FD54CAM, AD-EU5, 40-GPS-PIO,

PR04AVIC-PIO / PRO4- PIORCA

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

TABLE OF CONTENTS

Axxess Wiring Installation 2 ....................................

Radio Preparation...............................................3-4

Applicable Radio Models........................................5

WIRING & ANTENNA CONNECTIONS

Wiring Harness: Included with Kit

Antenna Adapter and GPS Antenna Adapter:

Included with Kit

RGB Extension Cable: Pioneer part # CD-RGB150E

(not sold by Metra)

Ford Pioneer Package 2011-UP

Visit for more detailed information about the product AxxessInterfaces.com

and up-to-date vehicle specific applications.

www.MetraOnline.com

MetraOnline.com may be used to assist with

dash assembly instructions. Simply enter your

Year, Make, Model vehicle into the vehicle fit

guide and look for the Dash Kit Installation

Instructions.

NOTE: If retaining the B&O amplified system AXA2B-FD1 is needed (sold separately)

NOTE: If retaining the B&O amplified system

AXA2B-FD1 is needed (sold separately)

386.257.1187

MetraOnline.com

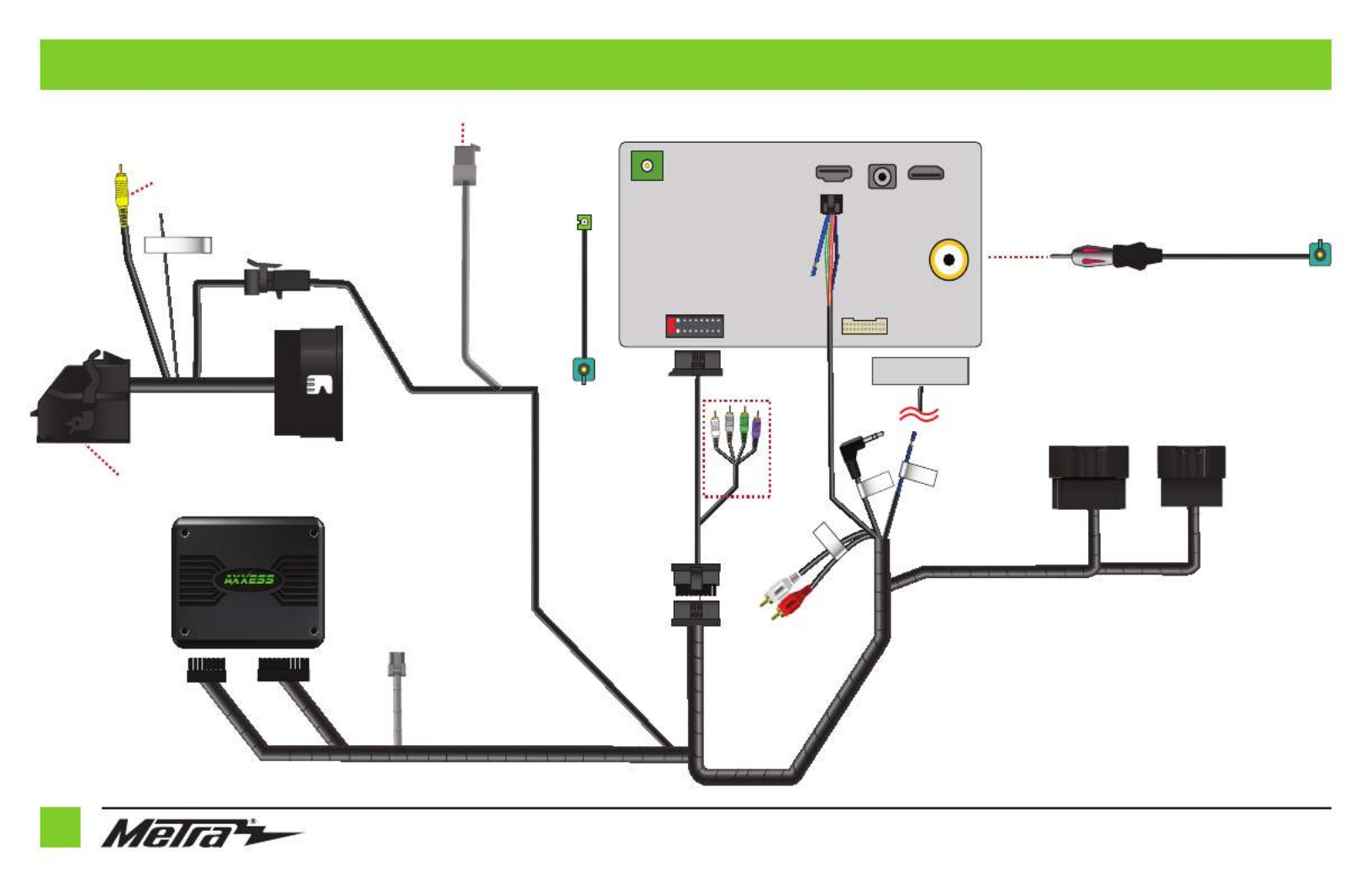

AXXESS WIRING INSTALLATION

ANT

AUX IN

Video Ground

FROM 3.5

(N/A)

AD-EU5

High-Level

PRO4-AVIC-PIO

AXXESS INTERFACE PRO4-PIORCA

Low-Level

AUX (INCL. W/RADIO)

GPS

4-PIN MIC HDMI

ANT

18P (M)

18P (F)

16P 22P

40-GPS-PIO

CAN 2

CAN 3

LD-FD54CAM

NOTE: Used in all applications except

Ford Transit/Transit Connect 2020-up

NOTE: No Connection

STATUS

NOT USED

LD-FD2-PIO

Pioneer Harness

LD-FD2-PIO

Pioneer Harness

NOTE: 54 pin located at OEM

screen location

CARSIDE CONNECTORS
