AXPIOB-GM1
I N S TA L L AT I O N I N S T R U C T I O N S
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 3/15/24 INSTAXPIOB-GM1
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator
lights, are plugged in before reconnecting
the battery or cycling the ignition to test this
product.
NOTE: Refer also to the instructions included
with the aftermarket radio.
TABLE OF CONTENTS
Connections 2 ............................................................
Radio Operations 3-4 ...............................................
Applicable Radio Models........................................5
GM Pioneer Basic Package 2010-2015
KIT FEATURES)
• Designed for select Pioneer receivers
• Designed for non-amplified vehicles only (to retain Bose amplifier
purchase AXM50-GM1)
• Allows for the retention and adjustment of the factory personalization
menu through the Pioneer radio
• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot
be adjusted via the screen)
• Complete Plug-n-Play installation
• Includes radio antenna adaptor for GPS
• Provides accessory power (12-volt 10-amp)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Works in both single and dual-zone vehicles
• Retains safety chimes through an included off-board speaker
• USB Micro B updatable
KIT COMPONENTS
Not Shown: Radio Interface, LD-3010-PIO, AD-EU5, 40-GPS-PIO,
PR04AVIC-PIO / PRO4-PIORCA, LD-AX-SPK
Visit for more detailed information about the product and AxxessInterfaces.com
up-to-date vehicle specific applications.

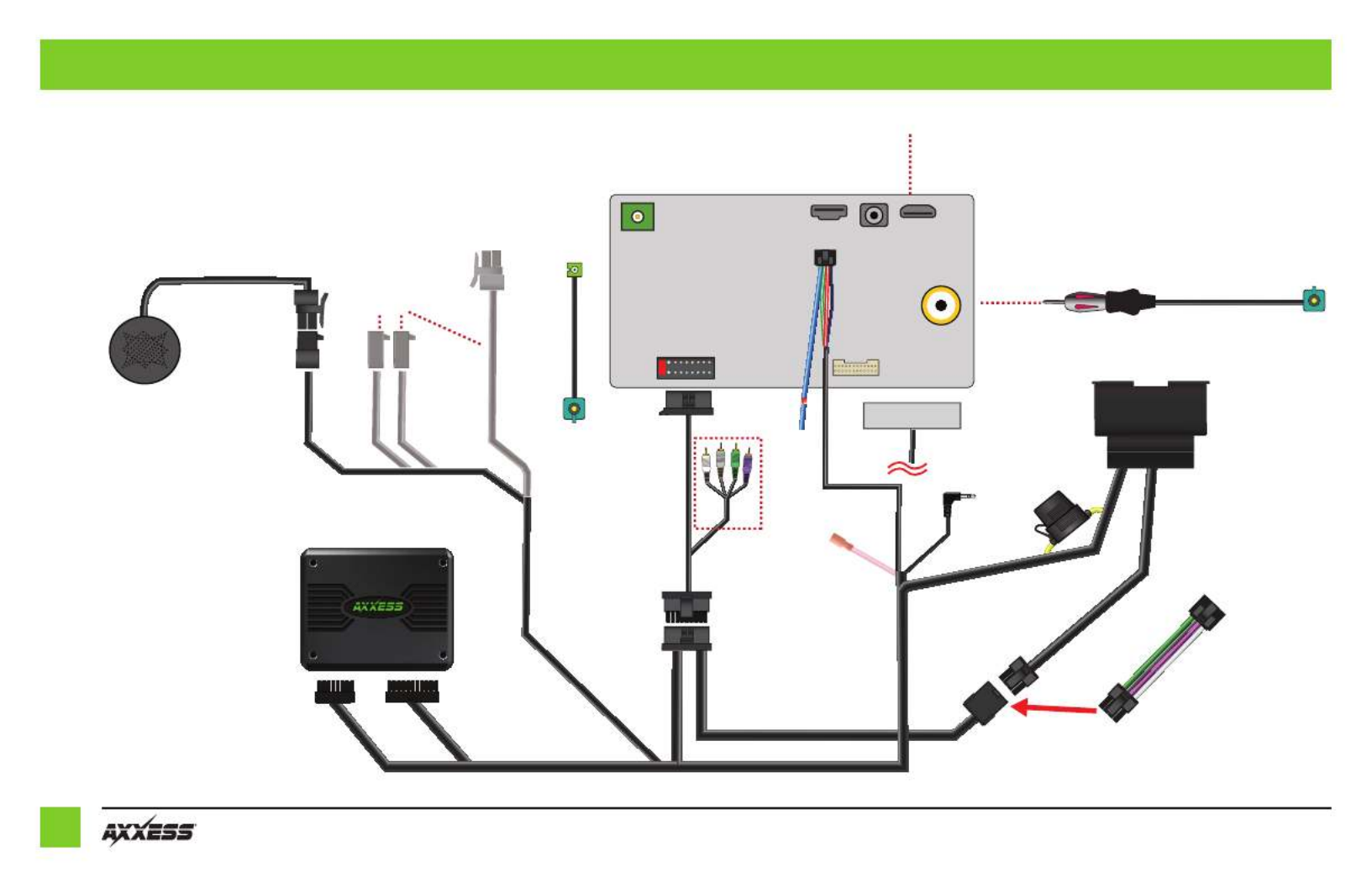

WIRING & ANTENNA CONNECTIONS (sold separately)
•
RGB Extension Cable: Pioneer part # CD-
RGB150E
(not sold by Metra)
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Multimeter
www.MetraOnline.com
MetraOnline.com may be used to assist with
dash assembly instructions. Simply enter your
Year, Make, Model vehicle into the vehicle fit
guide and look for the Dash Kit Installation
Instructions.
