AXPIOB-GM2

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator

lights, are plugged in before reconnecting

the battery or cycling the ignition to test this

product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

TABLE OF CONTENTS

Connections 2-3 ........................................................

Radio Operations 4-5 ...............................................

Applicable Radio Models........................................6

GM Pioneer Basic Package 2014-2020

KIT FEATURES)

• Designed for select Pioneer receivers

• Designed for non-amplified vehicles only (to retain Bose amplifier

purchase AXM50-GM1)

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot

be adjusted via the screen)

• Complete Plug-n-Play installation

• Includes dash kit with Axxess interface and vehicle-specific T-harness

• Includes radio antenna adaptor for GPS

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included off-board speaker

• USB Micro B updatable

KIT COMPONENTS

Not Shown: Radio Interface, LD-GMLAN09-PIO, LD-GMLAN10-PIO,

AXEXH-GM09, AXEXH-GM10, LD-BACKCAM-MOST, LD-GMSWC,

AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA,

LD-AX-SPK

Visit for more detailed information about the product and AxxessInterfaces.com

up-to-date vehicle specific applications.

WIRING & ANTENNA CONNECTIONS (sold separately)

• RGB Extension Cable: Pioneer part # CD-RGB150E

(not sold by Metra)

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

www.MetraOnline.com

MetraOnline.com may be used to assist with

dash assembly instructions. Simply enter your

Year, Make, Model vehicle into the vehicle fit

guide and look for the Dash Kit Installation

Instructions.

EXTERNAL SPEAKER

LD-AX-SPK

Pioneer Harness

LD-GMLAN09-PIO

LD-BACKCAM-MOST

LOOSE ENDED

GREEN/BLACK

SION)

MICRO-HDMI

ADAPTER NEEDED

(N/A)

EXT SPKR

CAN 2

CAN3

“TBA” WIRES

CAMERA (IOB)

AUX (N/A)

High-Level

PRO4-AVIC-PIO

EXH-GM0

*IF USING

LD-LAN09-PIO

CONNECT

LD-GMSWC

LOCATED

AT STEERING

COLUMN

AXXESS INTER CEFA

CONNECT TO

CLIMATE PANEL

CONNECT

TO PLUG REMOVED

FROM CLIMATE

PANEL

PRO4-PIORCA

Low-Level

(IO5 or IO6)

LOCATED

AT HMI

AUX (INCL. W/RADIO)

GPS 4-PIN MIC HDMI

ANT

18P (M)

18P (F)

16P 22P

10P

40-GPS-PIO

ension Ha

ESS

)

ness

(

NNECT VEHICLETO

)

EXTE

O PI

CARSIDE C

NNECT

CT T

(

D-EU5

ECT

(

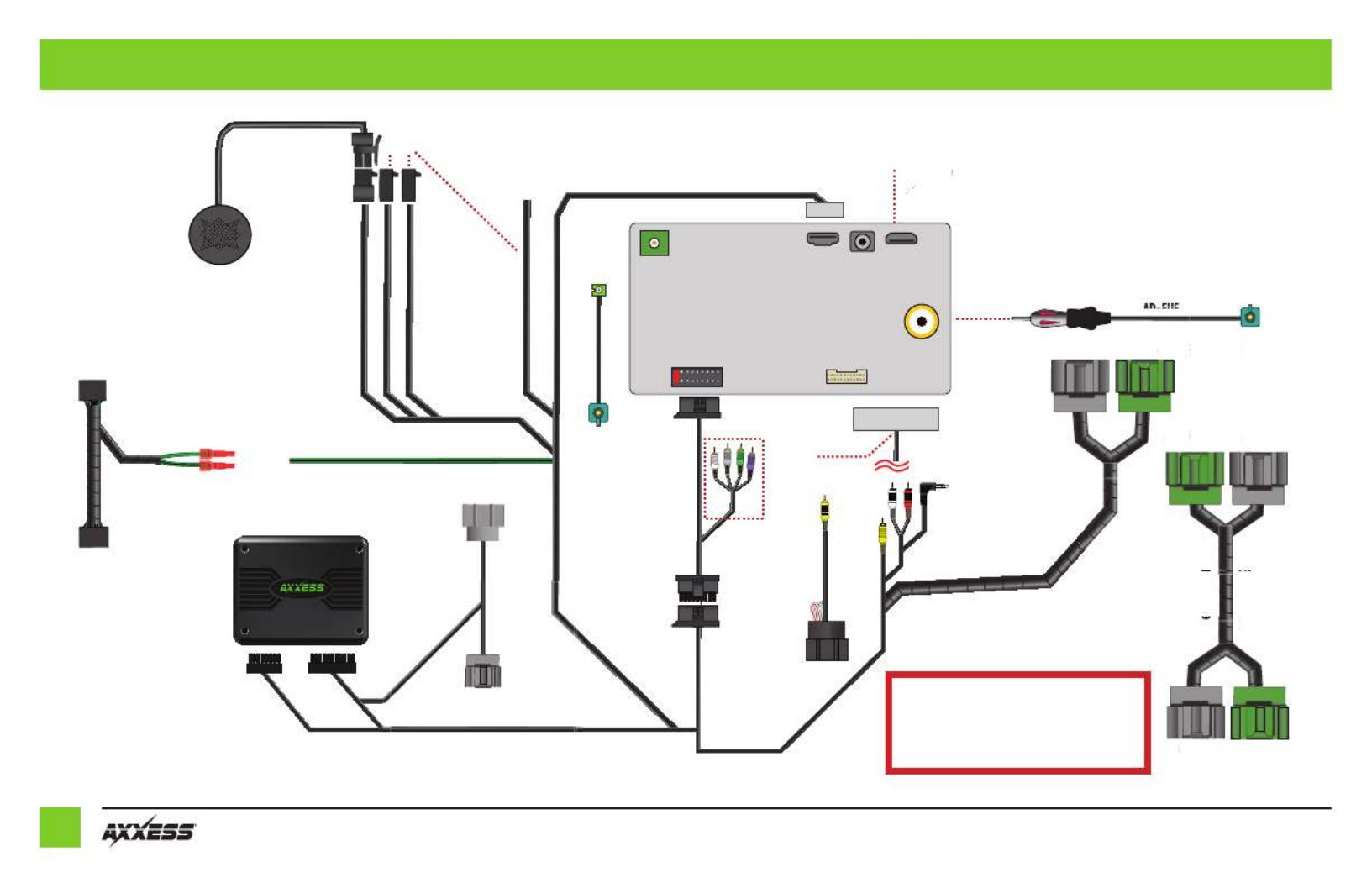

CONNECTIONS

Important: Verify the backup camera

installation, HVAC status & control, Steering

wheel audio controls, and External Speaker

output prior to completing dash assembly.

Refer to QR code located on back

page for tuner locations

Important: Install the provided speaker

in the dash prior to assembling the radio

components.

Note: Make sure this is mounted in a

location suitable for the driver to hear.

(Audio level for the speaker can be

changed via the radio, once installed.)
