AXPIO-GM3

I N S TA L L AT I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

NOTE: Refer to the instructions included with

the aftermarket radio.

TABLE OF CONTENTS

Connections 2-3 ........................................................

Radio Operations 4-5 ...............................................

Applicable Radio Models........................................6

GM Pioneer Basic Package 2019-2023

KIT FEATURES

• Designed for select Pioneer receivers

• Designed for non-amplified vehicles only to retain Bose amplifier

purchase AXM50-GM1

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen

(cannot be adjusted via the screen)

• Complete Plug-n-Play installation

• Includes dash kit with Axxess interface and vehicle-specific T-harness

• Includes radio antenna adaptor for GPS

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included off-board speaker

• USB Micro B updatable

KIT COMPONENTS

Not Shown: Radio Interface, LD-GM30-PIO, LD-GM31-PIO, AXEXH-GM30,

AXEXH-GM31, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA,

LD-AX-SPK

Visit for more detailed information about the product and AxxessInterfaces.com

up-to-date vehicle specific applications.

WIRING & ANTENNA CONNECTIONS (sold separately)

•

RGB Extension Cable: Pioneer part # CD-

RGB150E

(not sold by Metra)

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties • Multimeter

www.MetraOnline.com

MetraOnline.com may be used to assist with

dash assembly instructions. Simply enter your

Year, Make, Model vehicle into the vehicle fit

guide and look for the Dash Kit Installation

Instructions.

EXTERNAL SPEAKER

LD -SPK-AX

Pioneer Harness

LD-GM30-PIO

XTENSION)

MICRO-HDMI

ADAPTER NEEDED

(N/A)

EXT SPKR

“TBA” WIRES

AUX IN

High-Level

PRO4-AVIC-PIO

XEXH-G

AXXESS INTERFACE

PRO4-PIORCA

Low-Level

AUX (INCL. W/RADIO)

GPS

4-PIN MIC HDMI

ANT

18P (M)

18P (F)

16P 22P

40-GPS-PIO

sion Har

TBA

LD-GM30-PIO

CAN 2

CAN3

(

CONNECT TO VEHICLE

)

Ex nte

T T

NNE

AD-E

IDE

NNE

SS)

ess

O PIO

ECT

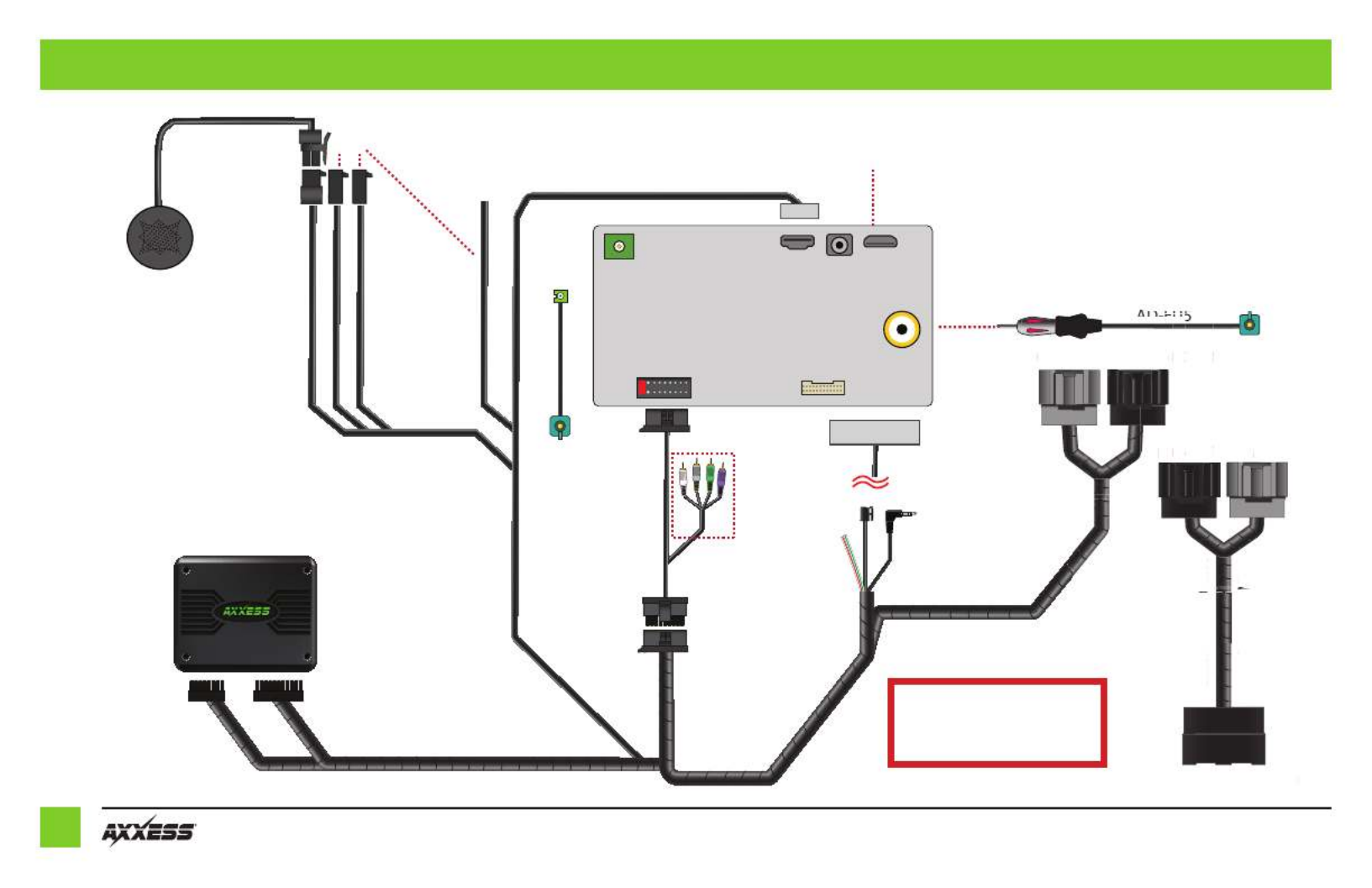

CONNECTIONS

Important: Verify HVAC status

& control, Steering wheel audio

controls, and External Speaker output

prior to completing dash assembly.

Important: Install the provided

speaker in the dash prior to assembling

the radio components.

Note: Make sure this is mounted in a

location suitable for the driver to hear.

(Audio level for the speaker can be

changed via the radio, once installed.)

Note: LD-GM30-PIO Applications will

not retain the factory backup camera.

Refer to QR code located on back

page for tuner locations
