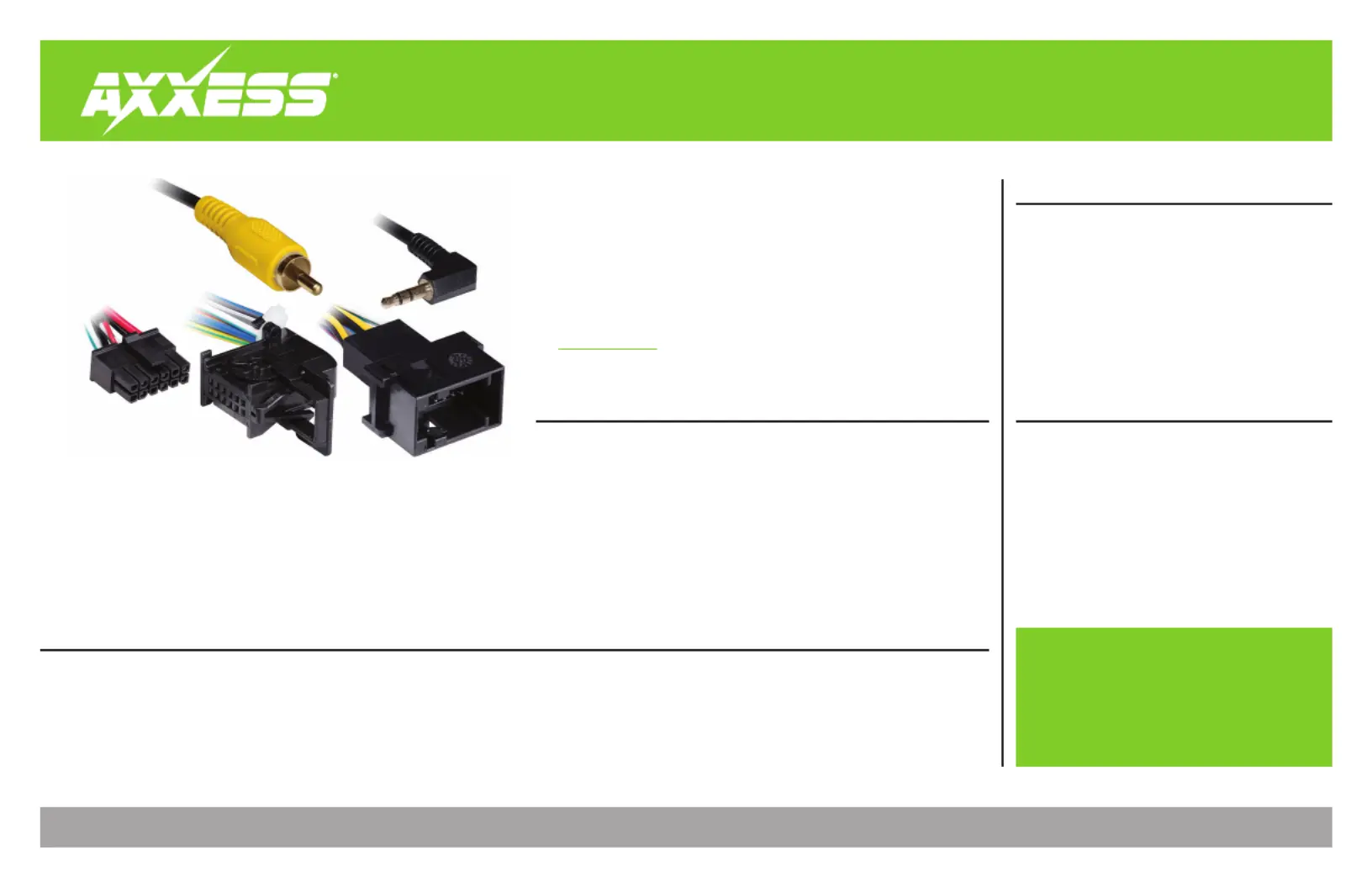

AXSWCH-FD1

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

NOTE: Refer to the instructions included with

the aftermarket radio.

INTERFACE FEATURES

•

Prewired AXSWC harness

•

Retains the factory backup camera

INTERFACE COMPONENTS

• AXSWCH-FD1 harness

• AXSWC interface (sold separately)

TOOLS REQUIRED

• Wire cutter

• Crimp tool and connectors

(example: butt-connectors, bell caps, etc.)

• Solder gun, solder, and heat shrink

• Tape

• Zip-ties

TABLE OF CONTENTS

Connections ............................................................2

Plug and Play Harness for the AXSWC

Ford Fiesta 2011-2016

Ford Focus 2012-2016 (w/o SYNC)

Ford Transit 2012-2016 (w/CD & w/o NAV)

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date vehicle

speciﬁc applications

CONNECTIONS

12-pin pre-wired AXSWCH-FD1 harness:

This harness is a plug and play component that MUST be used with the AXSWC interface in order to retain steering wheel audio controls.

Note: Disregard the harness that comes with the AXSWC kit.

1. Replace the factory interface with the AXSWC interface, AXSWCH-FD1 harness AXSWC interface then plug into the .

2. Black Connect the wire to chassis ground.

3. Connect the Red wire to accessory power.

Important: Cut the Black/Green Green/Orange Black/Greenand wires and tie them off. For the Ford Fiesta, cut the wire only.

4. AXSWCH-FD1 harnessWith all connections complete, connect the to the wiring harness disconnected from the factory display screen.

To retain the factory backup camera:

Connect the Yellow RCA jack to the backup camera input of the aftermarket radio.
