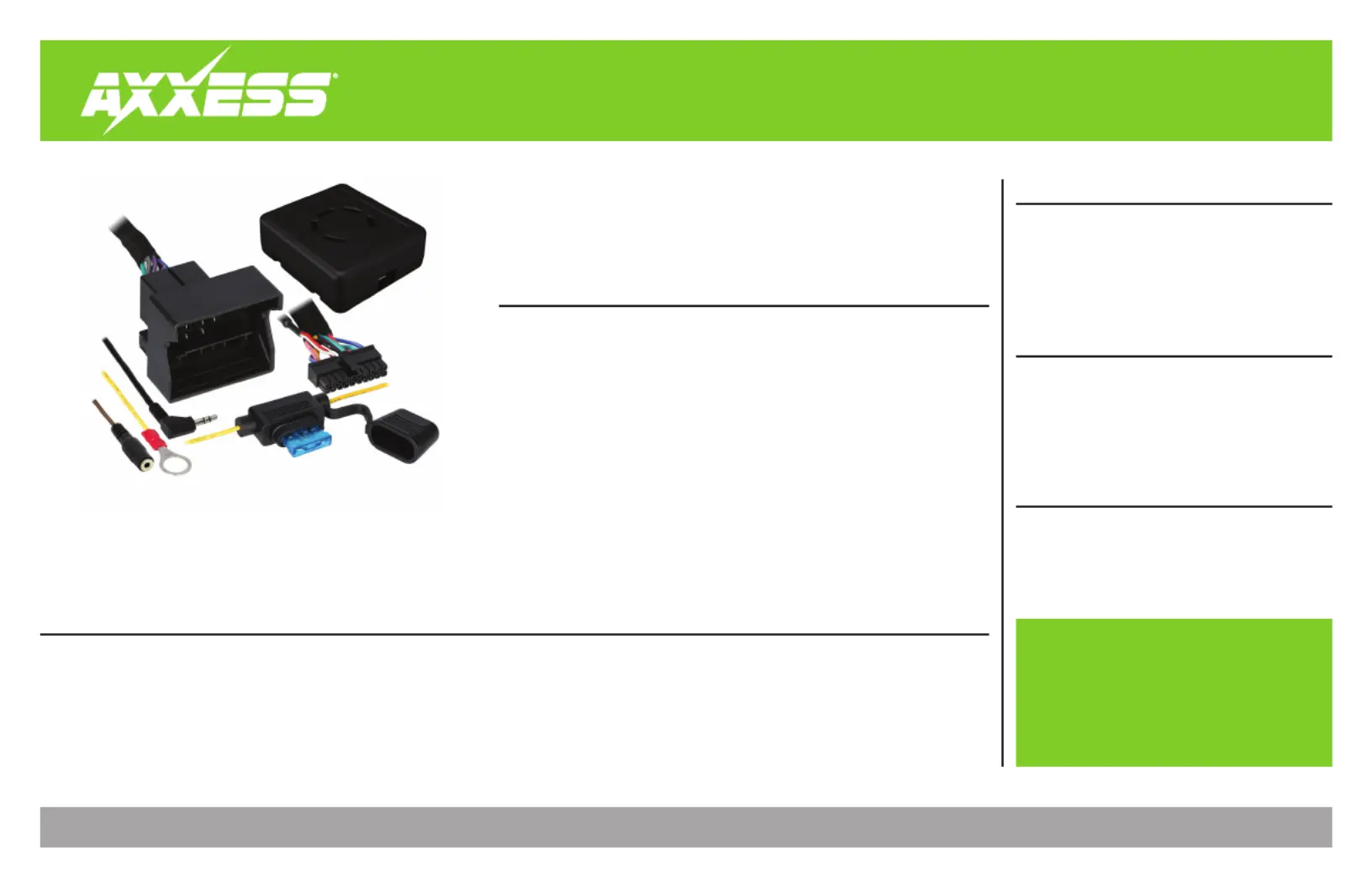

AXTC-BM1

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ............................................................2

Programming .........................................................3

Troubleshooting .....................................................4

BMW / Mini SWC (Steering Wheel Control)

and Data Interface 2006-2012

APPLICATIONS

• Provides accessory power (10-amp)

•

Provides illumination, parking brake,

reverse, and speed sense outputs

• Retains warning chimes through

an onboard speaker

• Retains audio controls on the

steering wheel

• Designed to be compatible with all

major radio brands

• Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection or

interface removal (non volatile

memory)

• Designed for non-ampliﬁed

models, or when bypassing a

factory ampliﬁer

• Retains balance and fade

• Micro-B USB updatable

BMW

1 Series .....................2008-2013

3 Series ...............2012-2013(1)

3 Series......................2007-2011

3 Series .......................2006(2)

M3 ..............................2007-2013

Mini (Cooper)

Clubman (R55) ........2008-2014

Convertible (R57) ....2009-2015

Countryman ....... 2011-2016(3)

Coupe (R58) ..............2012-2015

Hatchback (R56) ......2007-2013

Paceman ............ 2011-2016(3)

Roadster (R59) .........2012-2015

• AXTC-BM1 interface

• AXTC-BM1 harness

• 3.5mm adapter

(1) (2) (3) Excluding sedan models Sedan and Wagon only Without factory NAV

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

NOTE: Refer to the instructions included with

the aftermarket radio.

CONNECTIONS

Front

Rear

Sub

AUX-IN

Rear View

SWC

To Battery

3.5mm Adapter (for vehicles without Steering wheel

controls or aftermarket radios with a wire for SWC)

Boss (with C wire):SW y 1 - Br nKe (Gray) ow

Kenwood / JVC (with SWC wire): Blue/Yellow - Br now

XITE: 2 - Br nSWC- ow

Key-A or 1 - Br n SWC- ow

Key-B or 2 - Br n/WhiteSWC- ow

* After programming, assign dio menuSWC buttons within ra

Universal

Radio*

{

3.5mm Adapter for Vehicles without Steering wheel controls

1) 3.5mm adapter Br n Br From the , tie the ow and own/White wires together

with tape or connector

2) 3.5mm adapterConnect the to the 3.5mm jack from the AXTC-BM1 Harness

3) Program the per the instructions on page 3. DisregarAXTC-BM1 d steps 4 & 5

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Green - Rear left speaker +

Green/Black - Rear left speaker -

Purple - Rear right speaker +

Purple/Black - Rear right speaker -

Blue/Pink - VSS/Speed-Sense

Green/Purple - Reverse signal

Light Green - Parking brake

Blue - Not used

Orange - Illumination

Black - Ground

Red - Accessory power

Yellow - Battery power

Aftermarket Radio

(radio’s features may vary)

Vehicle Connector

Reset Button

LED

Radio Connections
