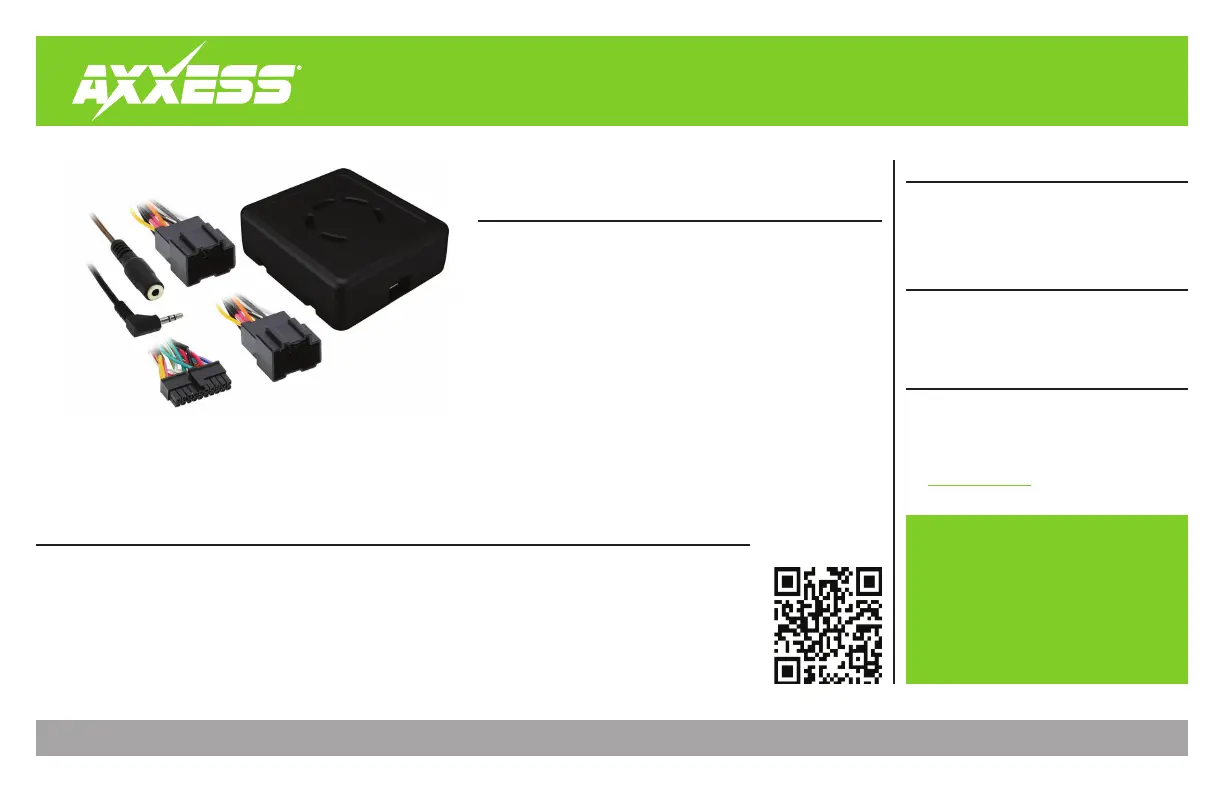

Side 1/4

AXTC-LN11

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections 2 ............................................................

Programming 3 .........................................................

Troubleshooting.....................................................4

GM Data Interface with SWC 2006-2012

APPLICATIONS

• Provides retained accessory

power (10-amp)

• Provides illumination, parking

brake, reverse, and speed sense

outputs

• Retains warning chimes

through an onboard speaker

• Retains audio controls on the

steering wheel

• Designed to be compatible with

all major radio brands

• Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection or

interface removal (non volatile

memory)

• Designed for non-amplified

models, or when bypassing a

factory amplifier

• Retains balance and fade

• Micro-B USB updatable

Chevrolet

Cobalt 2007-2010 ............

HHR 2006-2011 ................

Malibu 2008-2012 ...........

Pontiac

G5 2007-2009 .................

G6 2009 (1) .....................

G6 2010 ............................

Solstice 2006-2009 .........

Saturn

Aura 2007-2009 .............

Sky................2007-2009

• AXTC-LN11 interface

• AXTC-LN11 harness

• 3.5mm adapter

(1) 5th digit of VIN must be a J, K, or L

Product Info

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications.

CONNECTIONS

Front

Rear

Sub

AUX-IN

Rear View

SWC

IFACE ILL

* Only use one wire! IMPORTANT: Orange

If either one of the wires on the Orange

main harnesses are populated on the

factory side, use the unlabeled Orange

wire. If not populated, use the Orange

wire labeled IFACE ILL.

3.5mm Adapter (for vehicles without

Steering wheel controls or aftermarket

radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

* After programming, assign SWC buttons within radio menu

Universal

Radio*

{

1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector

2) 3.5mm adapter AXTC-LN11 HarnessConnect the to the 3.5mm jack from the

3) AXTC-LN11 Program the per the instructions on pages 4 and 5. Disregard steps 4 & 5

3.5mm Adapter for Vehicles without Steering wheel controls

Black - Ground

Yellow - Battery power

Red - Accessory power

Orange - Illumination*

Orange (labeled IFACE ILL) - Illumination *

Blue/White - Amp turn-on

Blue/Pink - VSS/Speed-Sense

Green/Purple - Reverse signal

Light Green - Parking brake

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Green - Rear left speaker +

Green/Black - Rear left speaker -

Purple - Rear right speaker +

Purple/Black - Rear right speaker -

Aftermarket Radio

(radio’s features may vary)

Vehicle

Connectors

Reset Button

LED

Radio Connections
