AXTC-MZ1

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape

• Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections 2 ............................................................

Programming 3 .........................................................

Troubleshooting.....................................................4

Steering Wheel Control and Data Interface

Fits Mazda 2007-2016

APPLICATIONS

MAZDA

CX-5 2013-2016 ..................................................................................................

CX-7 2007-2012 ..................................................................................................

CX-9 2007-2015 ..................................................................................................

INTERFACE COMPONENTS

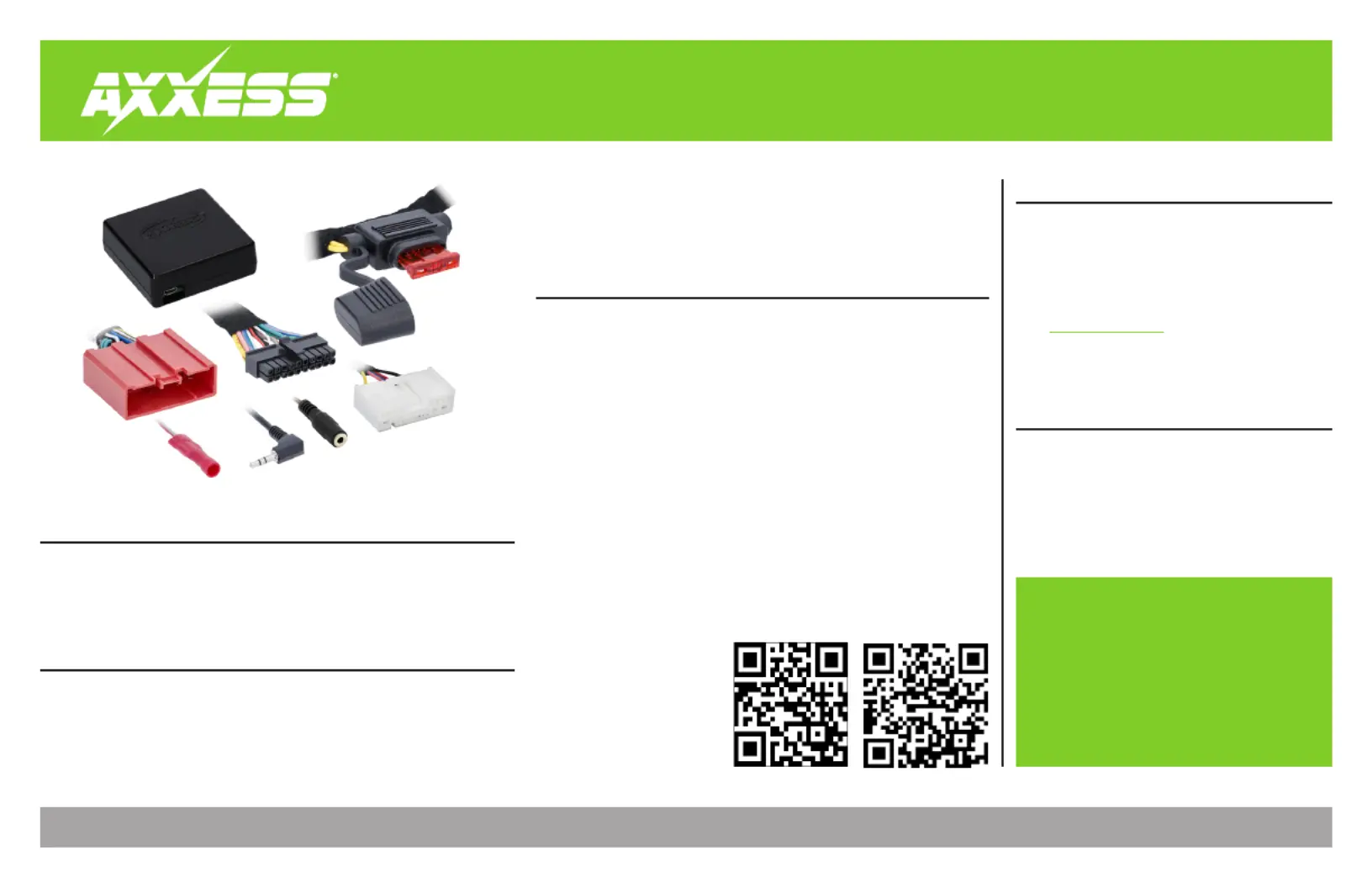

• AXTC-MZ1 interface

• LD-SWCX-MZ1 harness

• 3.5mm adapter

Product Info

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications.

www.MetraOnline.com

MetraOnline.com may be used

to assist with dash assembly

instructions. Simply enter your

Year, Make, Model vehicle into the

vehicle fit guide and look for the

Dash Kit Installation Instructions.

• Designed for amplified and non-amplified models

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Designed to be compatible with all major radio brands

• Auto detects vehicle type, radio connection, and preset controls

• Retains memory settings even after battery disconnection or

interface removal (non-volatile memory)

• Retains balance and fade (excludes amplified models)

• Retains the ability to set the clock via a service harness

• Retains the factory backup camera

• Micro “B” USB updatable

Green - Rear left speaker + output

Green/Black - Rear left speaker - output

Green/Purple

- Reverse Signal

Light Green - Parking brake

Orange - Illumination

Purple - Rear right speaker + output

Purple/Black - Rear right speaker - output

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Blue -Antenna turn on

Red - Accessory power

Yellow - Battery wire

Black - Ground wire

Blue/Pink - VSS/Speed-Sense

Blue/White -

Amp turn on

Grey/Red - SWC2

SWC2

Note: The 2’ long harness with a 24-pin connector

is a service harness for setting the clock with the

factory radio. Run this harness to a location

where it can be easily accessed, yet hidden.

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

*BACK*

LD-SWCX-MZ1

ONLY FOR

2010-2012 CX-7 2010-2015 CX-9&

Connect the SWC2 wireGrey/Red

to the Antenna wire to retain Blue

Bluetooth buttons on steering wheel

20-Pin

Vehicle Connectors

Radio Connections

Interface

LED Light

Reset Button

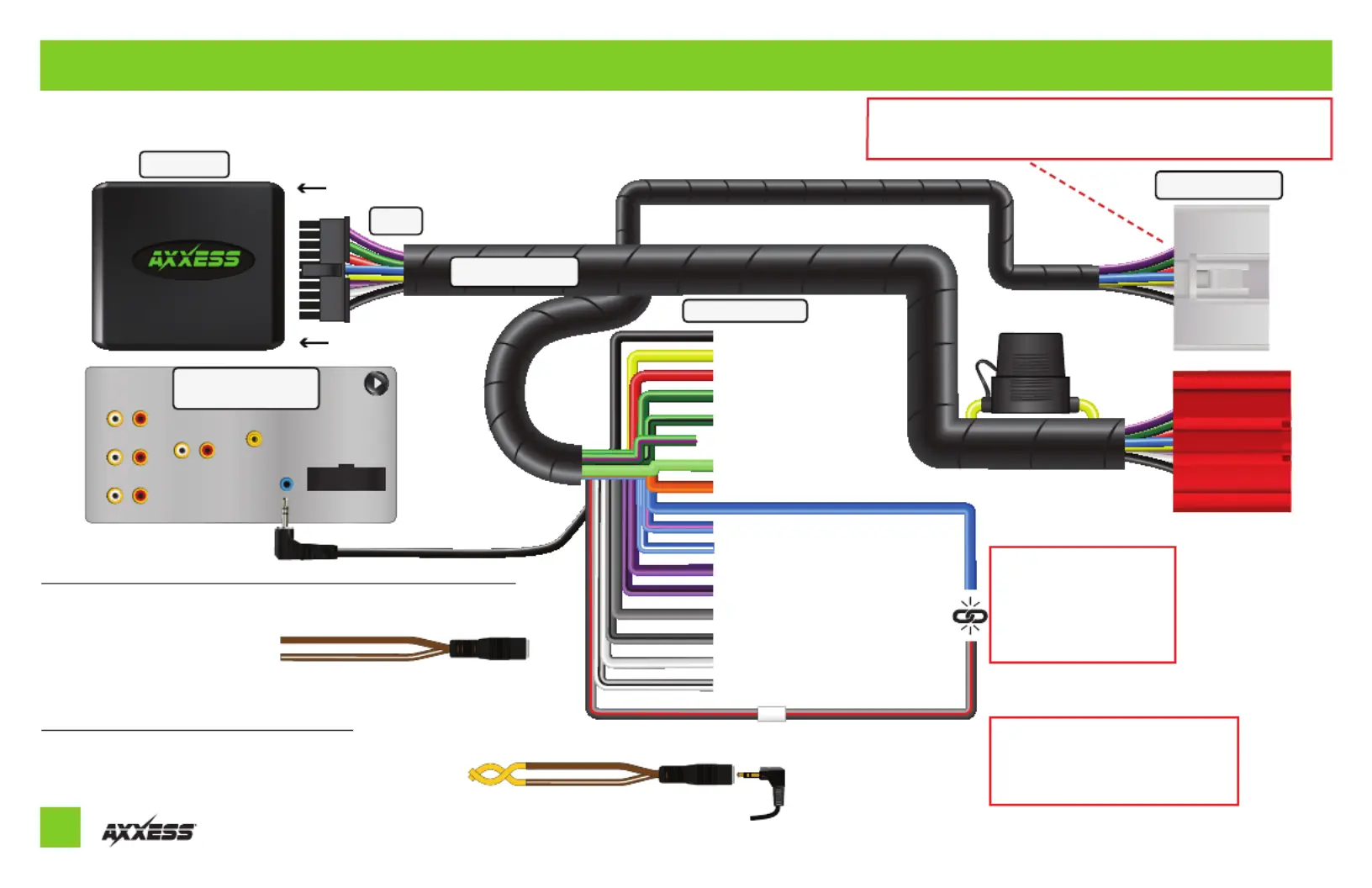

CONNECTIONS: LD-SWCX-MZ1 HARNESS

3.5mm Adapter (for vehicles with Steering wheel controls or aftermarket radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

*After programming, assign SWC buttons within radio menu

Universal Radio*

{

3.5mm Adapter for Vehicles without Steering wheel controls

1) 3.5mm adapter Brown Brown/White From the , tie the and wires together with tape or connector

2) 3.5mm adapter LD- WCX-MZ1 HarnessConnect the to the 3.5mm jack from the S

3) AXTC-MZ1 Program the per the instructions on page 3. Disregard steps 4 & 5.

NOTE: This connector is a service plug to allow the setting of your vehicle’s clock. When you

want to change the clock, plug the white harness into the OEM radio and adjust the clock as

the vehicle’s owner’s manual instructs you to. After clock is set, unplug and hide the harness.
