AXTC-PO1

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties

TABLE OF CONTENTS

Connections: LD-SWCX-PO1 HARNESS 2 ..................

Programming 3 .........................................................

Troubleshooting.....................................................4

Porsche SWC (Steering Wheel Control)

and Data Interface 2010-2016

APPLICATIONS

• Designed for non-amplified

models only

•

Provides accessory power

(12-volt 10-amp)

• Provides wires for multimedia

radios (park brake, reverse,

speed sense)

• Retains audio controls on the

steering wheel

• Designed to be compatible

with all major radio brands

• Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection or

interface removal (non volatile

memory)

• Provides illumination output

•

Retains the factory backup camera

• Micro-B USB updatable

Porsche

911 2011-2016 .......................................................

Cayenne 2011-2016 .............................................

Macan (958) 2015-2016 ......................................

Panamera 2010-2016 ........................................

• AXTC-PO1 interface • AXTC-PO1 harness

• 3.5mm adapter

Product Info

Visit for more detailed information AxxessInterfaces.com

about the product and up-to-date vehicle specific applications.

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this

product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the battery or cycling the ignition to

test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

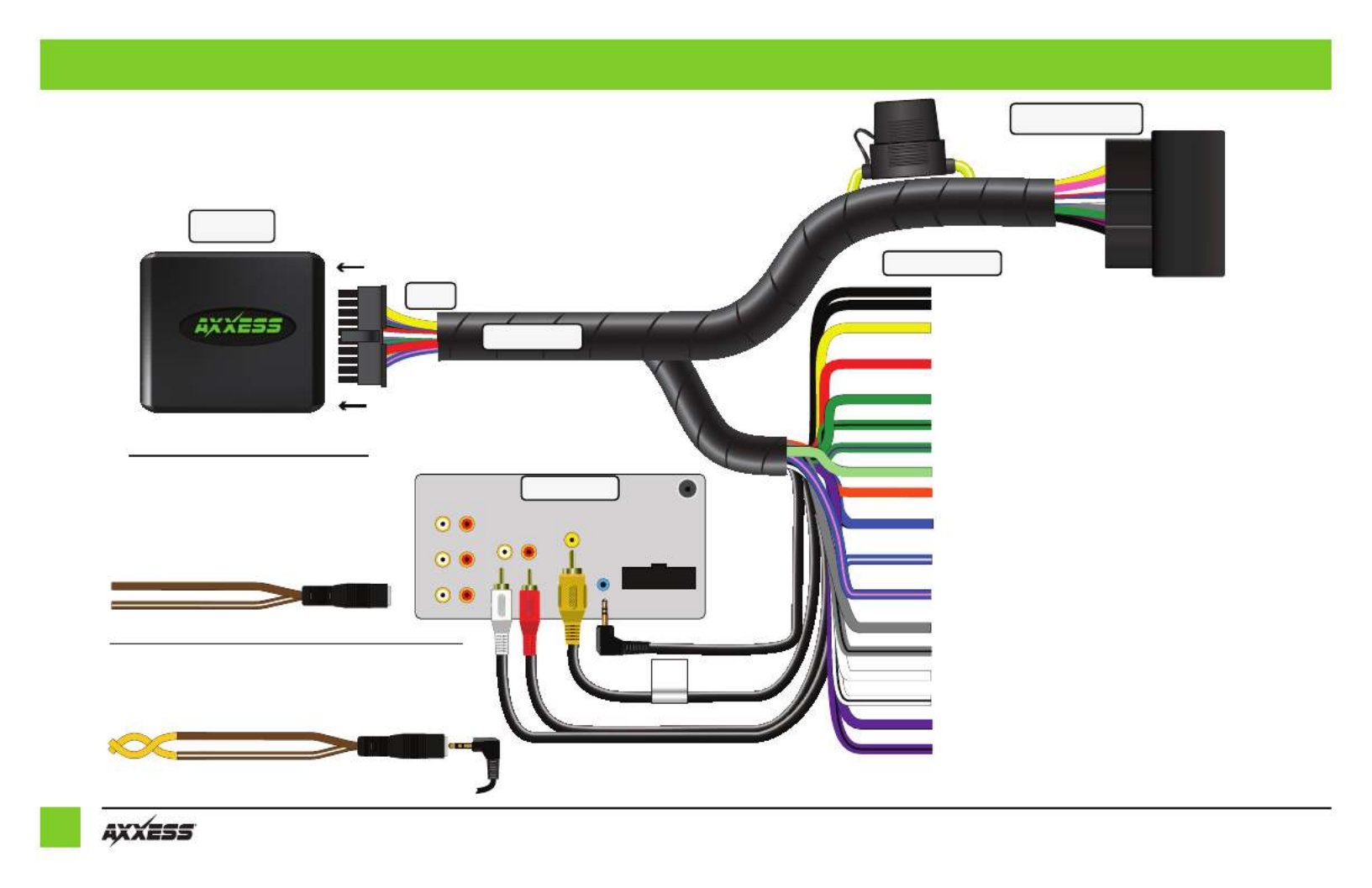

LD-SWCX-PO1

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple - Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue - Antenna turn on

Blue/White - Amp turn on

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

20-Pin

Vehicle Connector

Radio Connections

Interface

BACKUP

CAM

LED Light

Reset Button

3.5mm Adapter (for vehicles with Steering wheel controls

or aftermarket radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

* After programming, assign SWC buttons within radio menu

Universal

Radio*

{

3.5mm Adapter for Vehicles without Steering wheel controls

1) 3.5mm adapter Brown Brown/White From the , tie the and wires together

with tape or connector

2) 3.5mm adapter AXTC-PO1 HarnessConnect the to the 3.5mm jack from the

3) AXTC-PO1 Program the per the instructions on page 3. Disregard steps 4 & 5

CONNECTIONS: LD-SWCX-PO1 HARNESS
