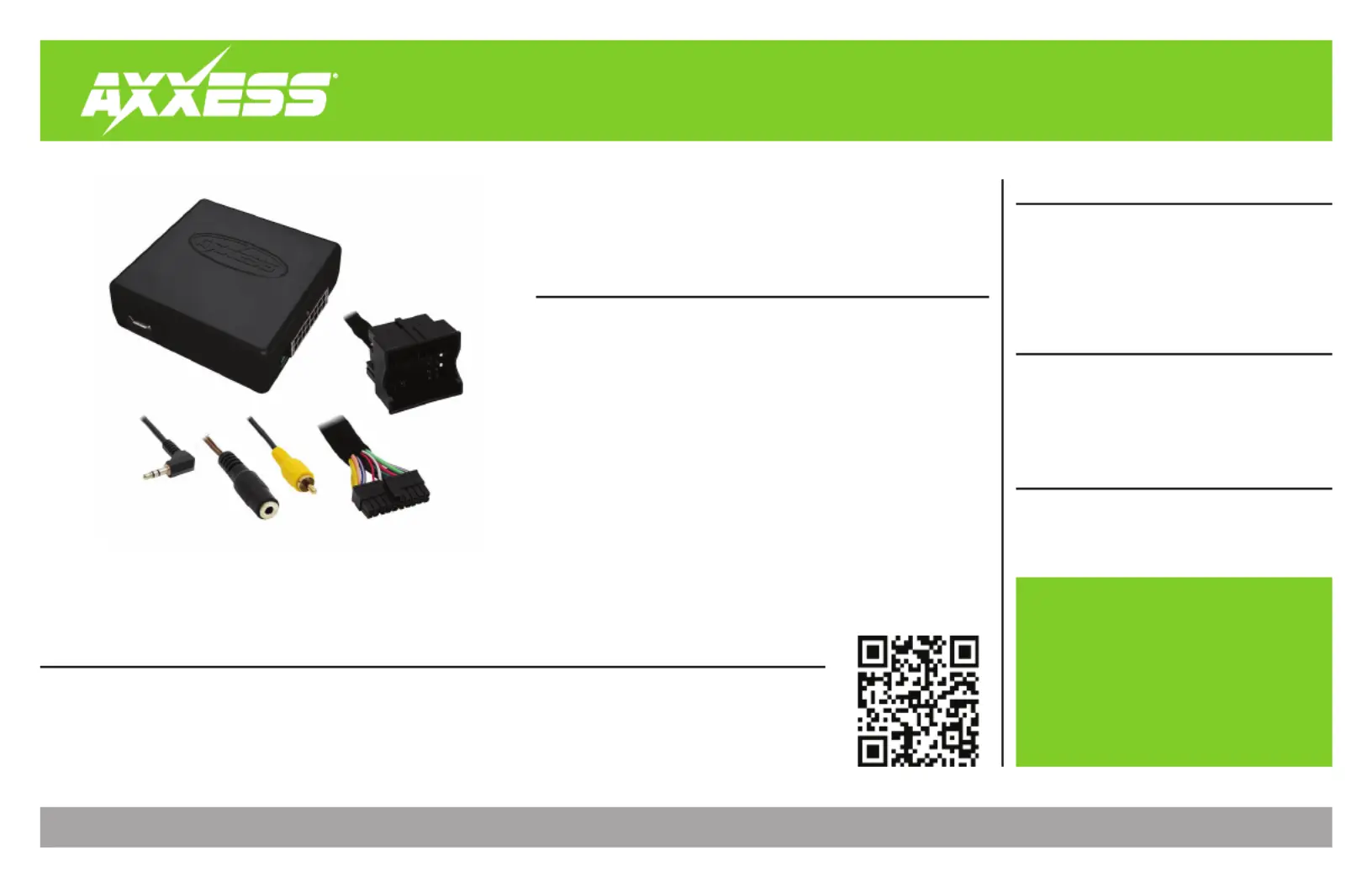

AXTC-VW2

I N S T A L L A T I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections 2 ............................................................

Programming 3 .........................................................

Troubleshooting.....................................................4

Volkswagen SWC (Steering Wheel Control)

and Data Interface 2015-Up

APPLICATIONS

•

Provides accessory power

(10-amp)

• Provides wires for multimedia

radios (park brake, reverse,

speed sense)

• Designed for non-amplified

models only

• Retains audio controls on the

steering wheel

• Designed to be compatible

with all major radio brands

• Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection or

interface removal (non volatile

memory)

• Provides illumination output

•

Retains the factory backup camera

• Micro-B USB updatable

Volkswagen

Beetle 2016-2019 ................................................

Golf Series 2015-Up ............................................

Jetta 2016-2019 ..................................................

Jetta GLI 2016-2018 ............................................

Passat...................................................2016-Up

Tiguan 2016-2017 ...............................................

• AXTC-VW2 interface

• AXTC-VW2 harness

• 3.5mm adapter

Product Info

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

CONNECTIONS

Front

Rear

Sub

AUX-IN

Rear View

SWC

3.5mm Adapter (for vehicles without Steering wheel

controls or aftermarket radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

* After programming, assign SWC buttons within radio menu

Universal

Radio*

{

3.5mm Adapter for Vehicles without Steering wheel controls

1) 3.5mm adapter Brown Brown/White From the , tie the and wires together

with tape or connector

2) 3.5mm adapter AXTC-VW2 HarnessConnect the to the 3.5mm jack from the

3) AXTC-VW2 Program the per the instructions on page 3. Disregard steps 4 & 5

Vehicle Connector

Aftermarket Radio

(radio’s features may vary)

Reset Button

LED Light

Yellow RCA - Rear View

Radio Connections

Black - Ground

Yellow - Battery power

Red - Accessory power

Orange - Illumination

Blue/White - Amp turn-on

Blue/Pink - VSS/Speed-Sense

Green/Purple - Reverse signal

Light Green - Parking brake

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Green - Rear left speaker +

Green/Black - Rear left speaker -

Purple - Rear right speaker +

Purple/Black - Rear right speaker -
