AXTO-MAX

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

OPTIONAL ACCESSORIES (sold separately)

Steering Wheel Control Interface: AXSWC

TABLE OF CONTENTS

Connections 2 ............................................................

Installation 3 .............................................................

Programming 3 .........................................................

Adjustments 3 ...........................................................

Extra Settings 4 .........................................................

Nissan Maxima Amplifier Interface 2016-2018

• Used in amplified applications

• Provides accessory power (12-volt 10-amp)

•

Provides wires for multimedia radios

(park brake, reverse, speed sense)

• 6v camera step down included (AXCSD-6V).

• Pre-wired AXSWC harness (AXSWC sold separately)

• Retains the factory backup camera

• Retains the audible parking sensor warning

• Retains the factory AUX-IN jack

• Adjustable gain control for overall volume

• High level speaker input

• Retains balance

• Micro-B USB updatable

• AXTO-MAX interface

• AXTO-MAX harness

• AXCSD-6V 12-volt to 6-volt converter

Visit for more detailed information about the product and up-to-date

AxxessInterfaces.com

vehicle specific applications

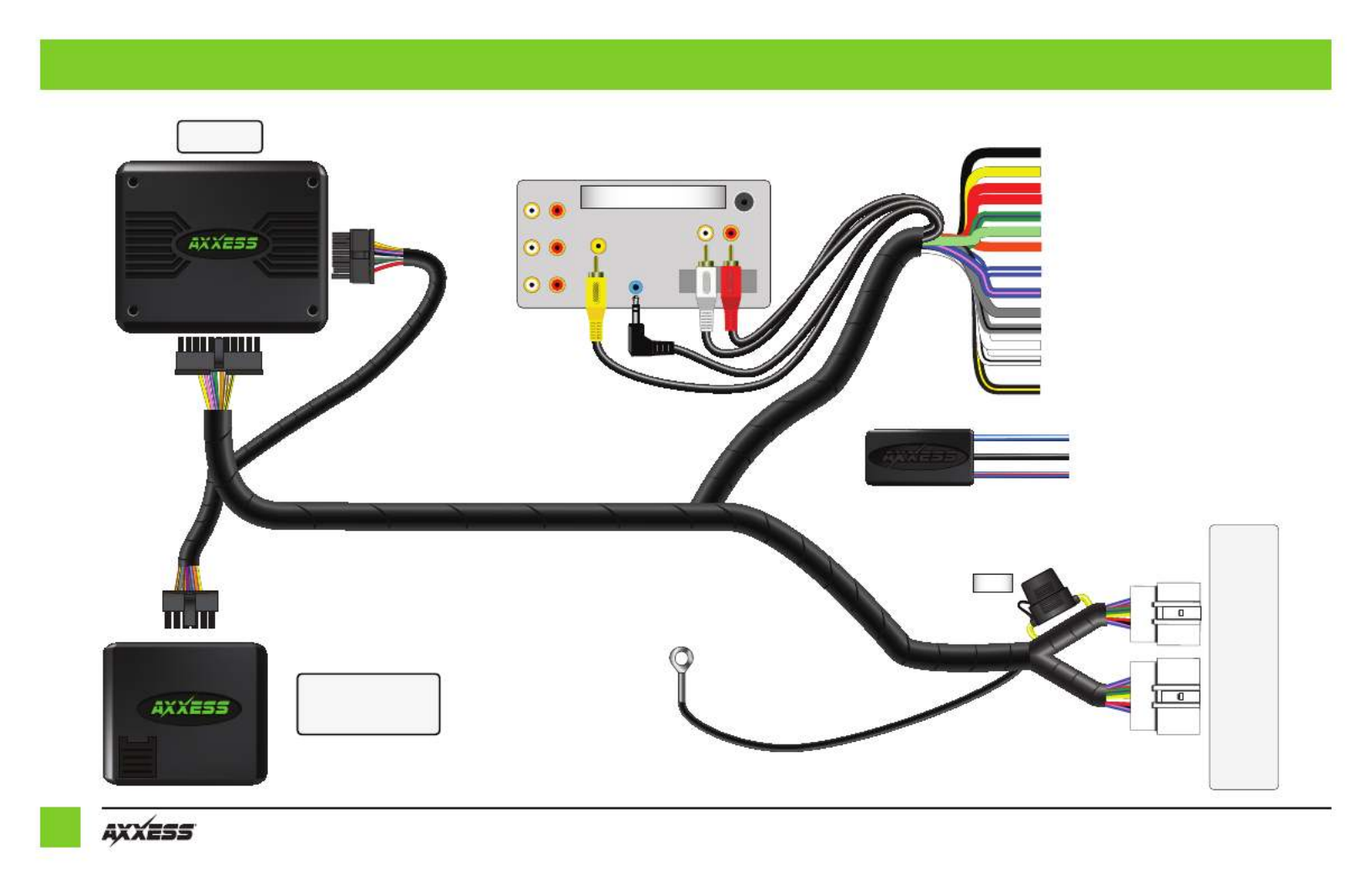

CONNECTIONS: LD-AXTO-MAX

Black - Ground wire

Yellow - Battery wire

Red - Accessory power (6v Camera)

Green/Purple - Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue/White Amp turn on

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Black/Yellow - Chime level adjustment

Front

Rear

Sub

AUX-IN

Rear View

SWC

16 Way

LD-AXTO-MAX

22 Way

12 Way

Fuse

AFTERMARKET RADIO

CARSIDE CONNECTORS

TO CHASSIS GROUND

CAR

Steering Wheel

Control (AXSWC)

(Sold Separately)

Interface

AXCSD-6V

Blue/White - Reverse trigger

Black - Chassis ground

Blue/White - Camera power

Accessory power can also be used if

the radio has the option to monitor

the camera while in motion.
