AXVI-1731

I N S TA L L A T I O N I N S T R U C T I O N S

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell

caps, etc.)

Honda Civic LX Data Interface 2016-Up

APPLICATIONS

• Designed for Non-Amplified vehicles

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Pre-wired AXSWC harness included (AXSWC sold separately)

• Retains the factory backup camera

• Retains balance and fade

• Includes the AXCSD-6V 12-volt to 6-volt converter

• Micro-B USB updatable

HONDA

Civic LX 2016-Up .................................................

• AXVI-1731 interface

• AXVI-1731 harness

• AXCSD-6V 12-volt to 6-volt converter

Visit for more detailed information about the product

AxxessInterfaces.com

and up-to-date vehicle specific applications.

TABLE OF CONTENTS

Connections 2-3 ........................................................

Radio Feedback Legend & Diagram 3 ....................

Installing the AXVI-1731 4 .........................................

Initializing the AXVI-1731 4 .......................................

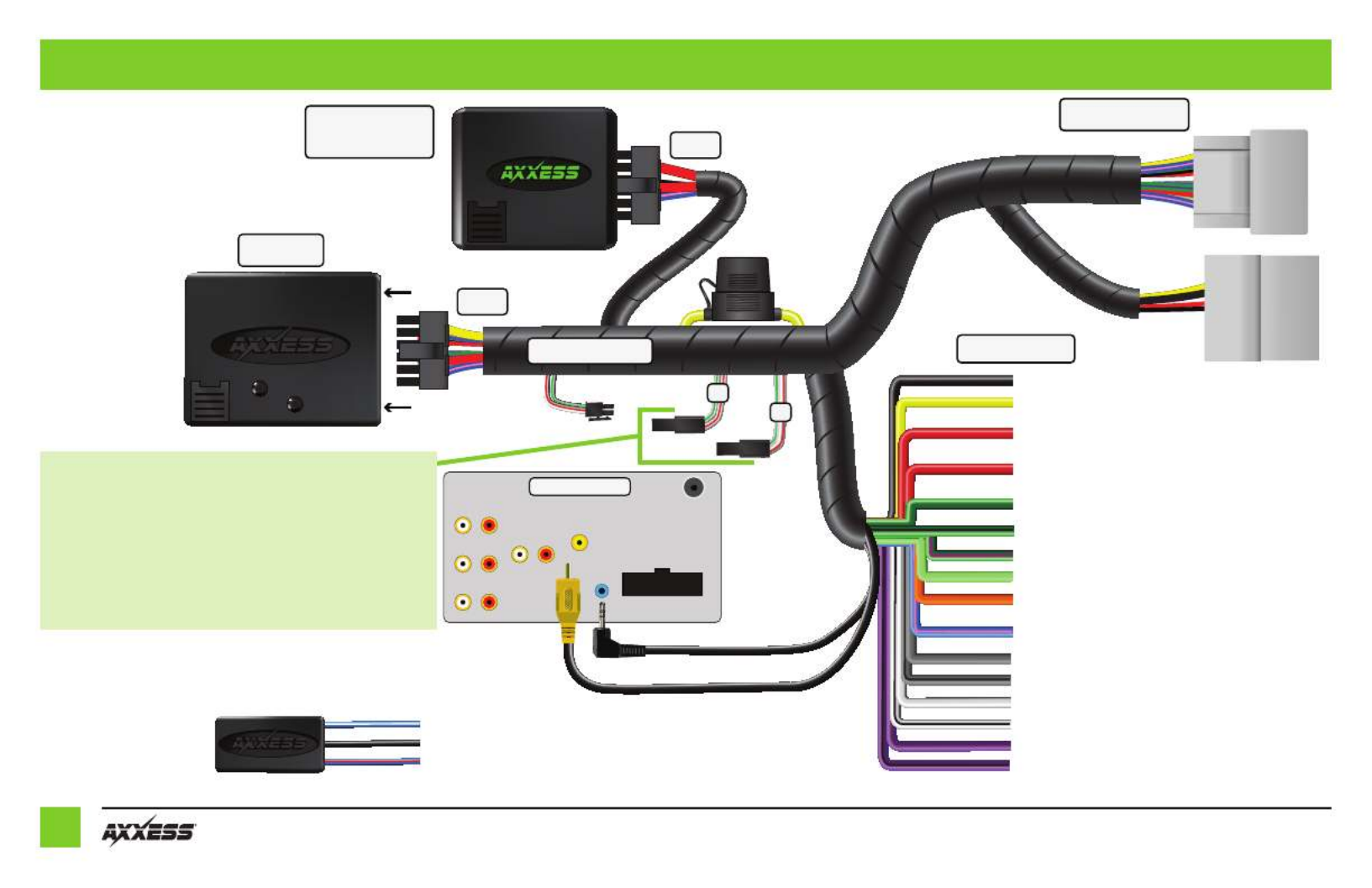

CONNECTIONS: LD-XSVI-1731-NAV HARNESS

Steering Wheel

Control (AXSWC)

(Sold Separately)

Front

Rear

Sub

AUX-IN

Rear View

SWC

(Your radio’s features may vary)

LD-XSVI-1731NAV

AXCSD-6V

Blue/White - Reverse trigger

Black - Chassis ground

Blue/Red - Camera power

*Accessory power can also be used if

the radio has the option to monitor

the camera while in motion.

Aftermarket Radio

12-Pin

Vehicle Connectors

Radio Connections

Interface

12-Pin

Black - Ground wire

Yellow - Battery wire

Red - Camera power 6V

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple - Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

After Interface Has Been Programmed: Notes For 2-Pin Connector (E to E1)

RESET , and let it program to vehicle and aftermarket radio. AXSWC

With all connections made, if you do not get correct controls for aftermarket

radio, go ahead and disconnect your to and connect to instead.2-Pin E E1 E E2

Reset and allow the to detect your aftermarket radio and controls. AXSWC

Make sure you get the following flashes and flashes (1st and 4th Green Red

Green Red longer followed by the correct number of flashes for aftermarket

radio being used. (Refer to on next page.)Radio LED Feedback Legend
