CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

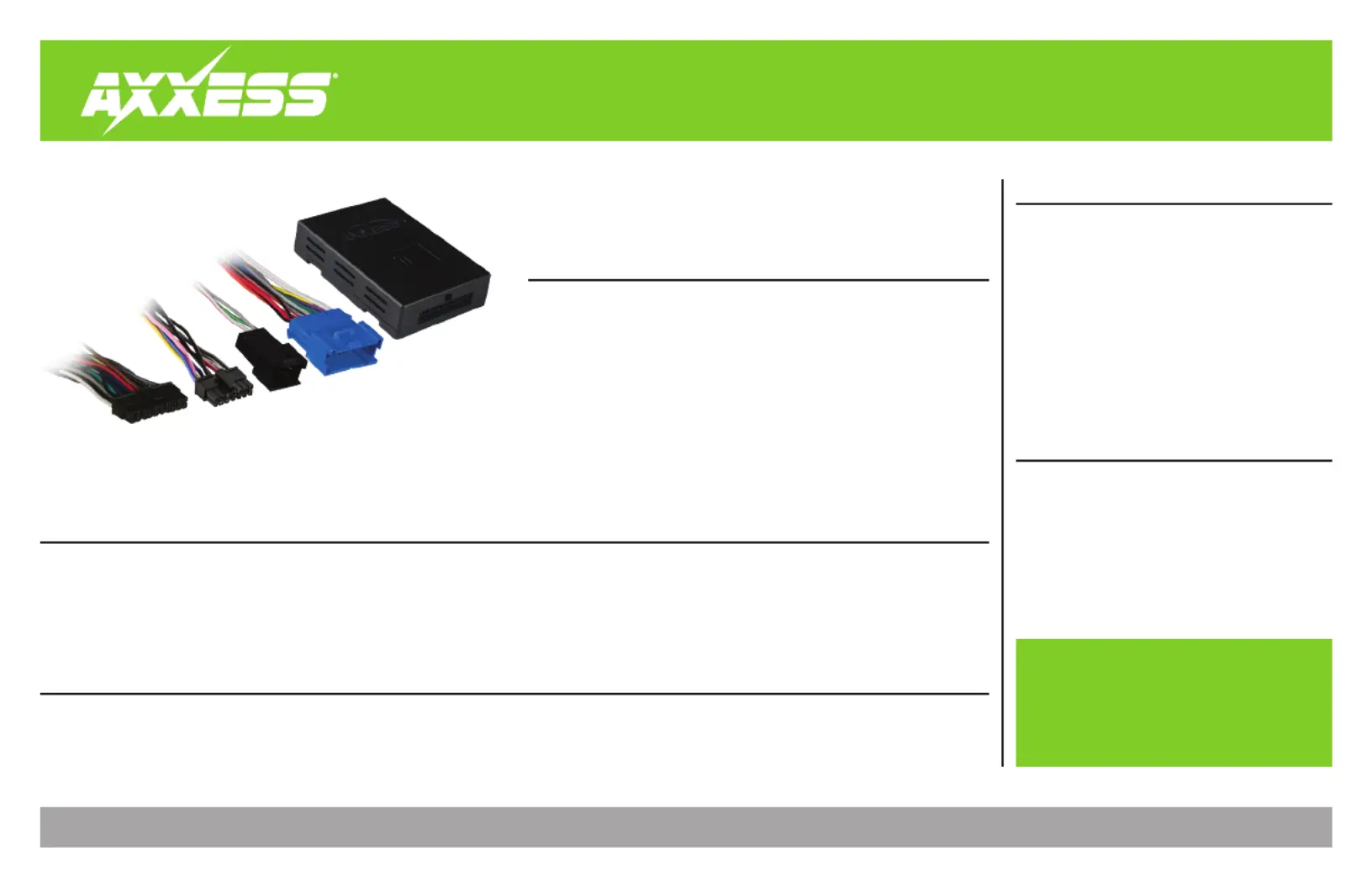

GMOS-12

I N S TA L L AT I O N I N S T R U C T I O N S

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Connections to be made .......................................2

Installing the GMOS-12 ...........................................3

Programming the GMOS-12 ...................................3

Adjusting the GMOS-12 ..........................................3

Troubleshooting .....................................................3

Saturn OnStar interface 2004-2005

APPLICATIONS

• Provides accessory power (12-volt 10-amp)

• Maintains the retained accessory power (R.A.P.) feature

• Retains OnStar/OE Bluetooth

• Adjustable volume for OnStar

• Designed for non-ampliﬁed models with OnStar

• Retains balance and fade

• Micro “B” USB updatable

SATURN

Ion 2004-2005

Vue 2004-2005

• GMOS-12 Interface

• GMOS-12 harness

• 16-pin harness with stripped leads

CONNECTIONS TO BE MADE

From the 16-pin harness with stripped leads:

• Connect the wire to the ignition/accessory wire.Red

• Connect the wire to the left front positive speaker wire.White

• Connect the wire to the left front negative speaker wire.White/Black

• Connect the wire to the right front positive speaker wire.Gray

• Connect the Gray/Black wire to the right front negative speaker wire.

• Connect the Brown wire to the mute wire of the aftermarket radio. If the radio has no mute

wire, tape it off and disregard it.

• Tape off and disregard the following (6) wires, they will not be used in this application:

Orange/White Blue/Pink Green Green/Black Purple Purple/Black, , , , ,

From the GMOS-12 harness to the aftermarket radio:

• Connect the Yellow wire to the 12 volt constant/battery wire.

• Connect the wire to the ground wire.Black

• Connect the wire to the illumination wire of the aftermarket radio. Orange

If no illumination wire is present, tape it off and disregard it.

• Tape off and disregard the wire, it will not be used this application.Orange/White

• Connect the wire to the left rear positive speaker wire.Green

• Connect the wire to the left rear negative speaker wire.Green/Black

• Connect the wire to the right rear positive speaker wire.Purple

• Connect the wire to the right rear negative speaker wire.Purple/Black

• The Black/Yellow wire is for OnStar volume adjustment and will be discussed later

in this manual.
