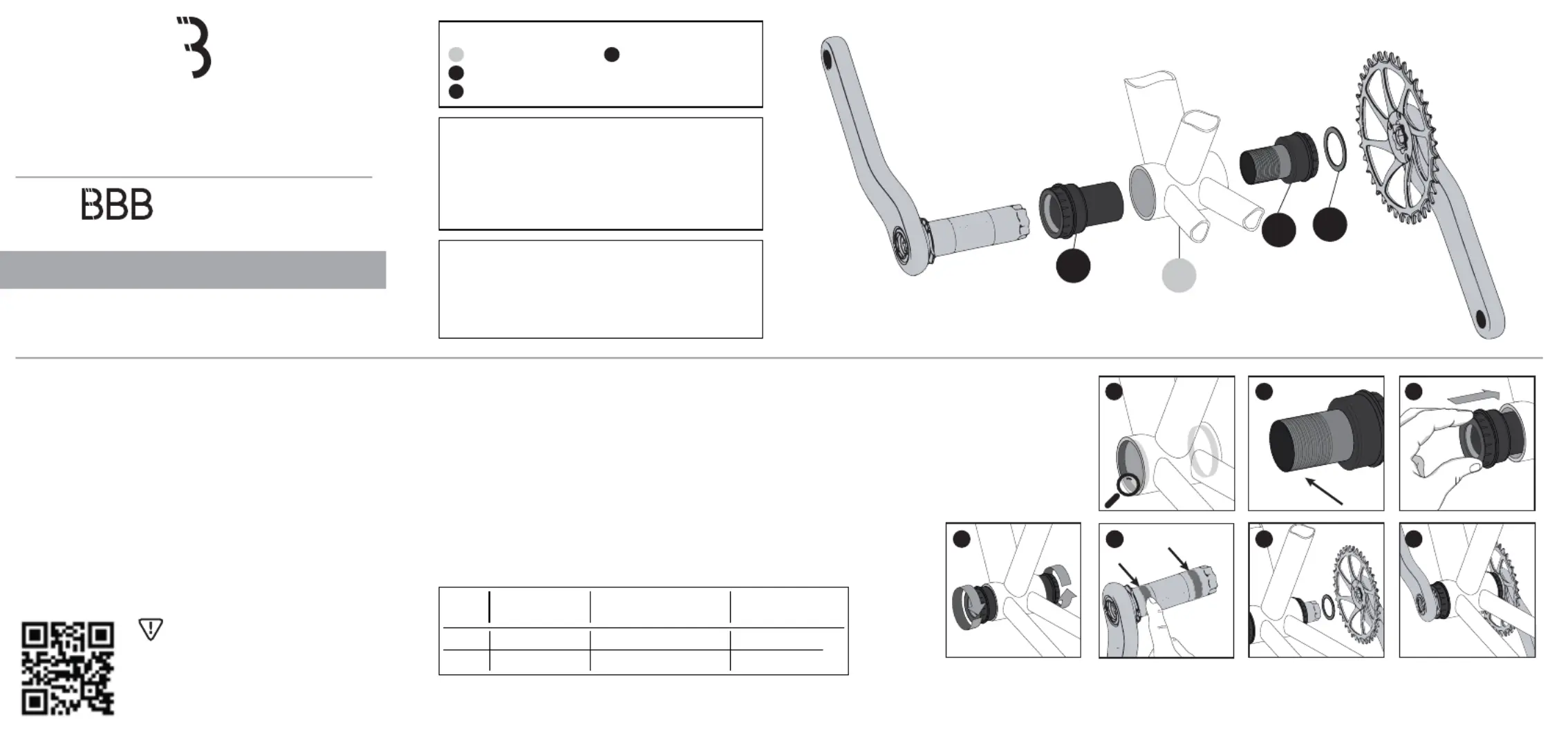

INSTALLATION:
A. After checking BB shell
①
carefully, apply a thin layer of grease, PTFE(for Carbon) or
anti-seize compound (for Ti) on the inside surface of BB shell
①
.
B. Apply a little bit of grease on the drive side cup thread.
C. First insert the drive side cup
②
then insert non-drive side cup
③
until the threads engage.
Make sure you do not cross-threads the cups.
D. Use the BracketPlug cup tools to tighten until the lip of the cups are flush against the BB shell
(Max. 40Nm, for carbon shells lower torque is recommended).
E. Apply grease to the surfaces of the spindle that will contact the bearings.
F. Add spacers
④
as noted below. If binding occurs or the crankset gets loose over time,
try removing spacers.
G. Install crankset following manufacturers specifications.
- BTL-105D BracketPlug x2
(12 notch 46mm cup tool)
- Caliper or ruler
- Grease
- PTFE (for Carbon BB shell)
- Anti-seize (for Ti BB shell)
RECOMMENDED TOOLS
COMPONENTS:
3
2
1
Bottom bracket shell
Non-drive side cup (x1)
Drive side cup (x1)
4
Spacers: - 2 mm x1
- 2.5 mm x1
- 3 mm x1
COMPATIBILITY
BBO-78: PF30-29
- PF30 (68/73 x Ø46mm) + Ø29mm spindle cranksets
BBO-88: BB30-29
- BB30 (68/73 x Ø42mm) + Ø29mm spindle cranksets
ABC
DEFG
EN DE FR NL ES PT MANUAL / HANDBUCH / MANUEL / HANDLEIDING / MANUAL / MANUAL /
IT HU PL CZ MANUALE / HASZNÁLATI UTASÍTÁS / PODRĘCZNIK / UŽIVATELSKÁ PŘÍRUČKA
/ MANUÁL / JP 使用説明書/RU РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / SK NO HÅNDBOK
BBB CYCLING.COM
ROO SEVELTSTRAAT 46, 2321 BM
LEIDEN. THE NETHERLANDS
BOTTOMFIT
/BBO-78/88
BOTTOM BRACKET
CRANK BB SHELL
WIDTH
NON DRIVE SIDE -
SPACER
DRIVE SIDE
SPACER
Road 68 0 mm 3 mm
MTB 73 0 mm 4.5 mm (2+2.5)
Max.
40Nm
BBB has no responsibility for misprints or changed technical content.
4
3
1
2
IMPORTANT:
- Before installing ensure the BB shell
①
is clean and free of
metal chips, dirt and excess paint.
- Inspect the BB shell
①
for width, inner diameter, ovalization or
anything that could cause bearing mis-alignment.
- Always use a calibrated torque wrench to tighten crank bolts.
- BBB Cycling cannot guarantee compatibility with you frame
and/or crank combination.
consult your manufacturer for compatibility.
- BBB Cycling cannot be held responsible for any damage
occured during assembly
.
WARNING
Sold only by professional bicycle dealers.
For proper installation, ask your BBB dealer.
Not following the instructions in this manual
may cause damage to the product not covered
under warranty, damage to the bicycle, or
cause an accident resulting in injury or death.
FIND YOUR TRANSLATION
ON BBBCYCLING.COM
