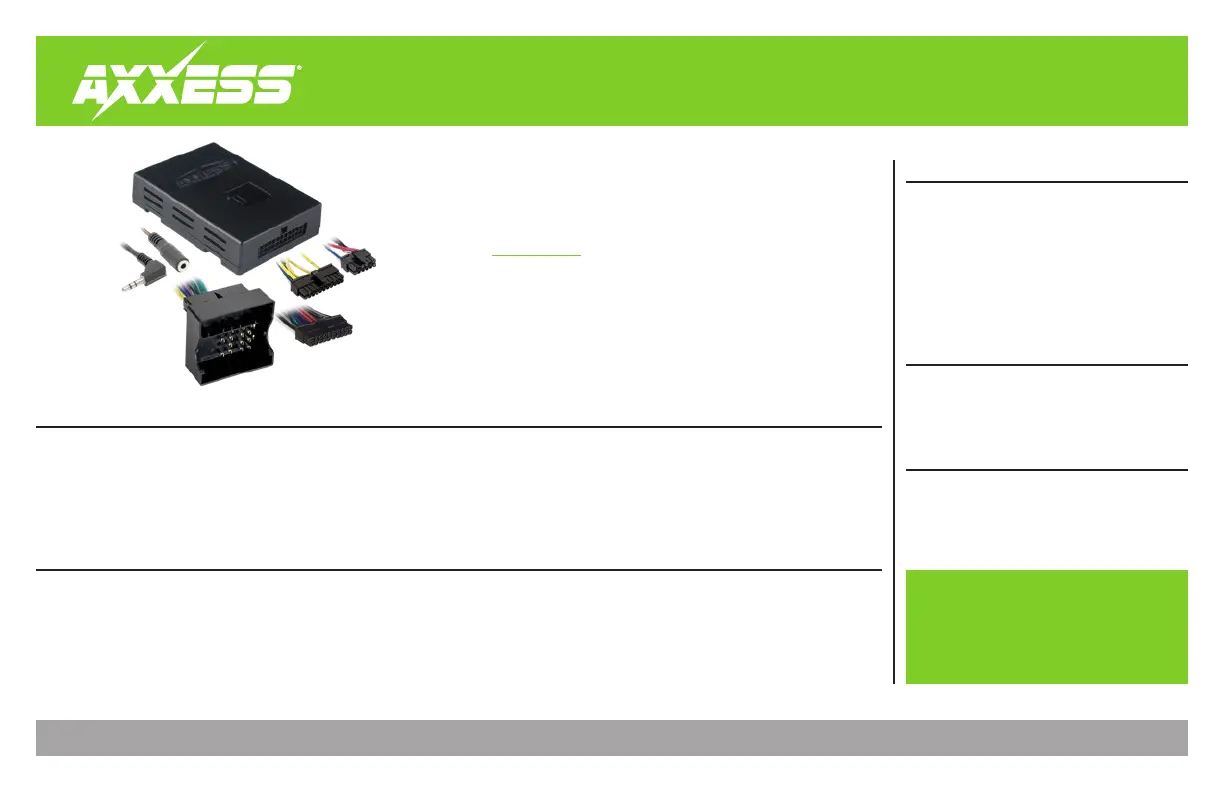

AXTO-VW1

INSTALLATION INSTRUCTIONS

Attention! Let the vehicle sit with the key

out of the ignition for a few minutes before

removing the factory radio. When testing the

aftermarket equipment, ensure that all factory

equipment is connected before cycling the

key to ignition.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Small flat-blade

screwdriver • Tape • Wire cutter • Zip ties

Data Interface with Data Signal Turn-On

Fits Select Volkswagen Models 2012-2015

• Designed for non-amplified and amplified systems

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides NAV outputs (parking brake, reverse, mute, and speed sense)

• Pre-wired AXSWC harness (AXSWC sold separately)

• Fender

system accessory

• Retains balance & fade (fade not retained in Fender

systems)

• Micro “B” USB updatable

• AXTO-VW1 interface • AXTO-VW1 harness

• 16-pin harness with stripped leads

TABLE OF CONTENTS

Connections ............................................................2

Installation .............................................................3

Programming the AXTO-VW1 ...............................3

Adjusting the AXTO-VW1 .......................................3

Troubleshooting.....................................................3

APPLICATIONS

VOLKSWAGEN

Beetle ........................2012-2015

CC ...............................2012-2014

Eos .............................2013-2014

GTI .............................2012-2014

Jetta .........................2012-2014

Passat........................2012-2014

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle specific applications

CONNECTIONS TO BE MADE

From the 16-pin harness to the aftermarket radio:

• Connect the Red wire to the accessory wire.

Note: If installing an AXSWC (sold separately), connect the Red wire on the AXTO-VW1

harness as well.

• Connect the Orange/White wire to the illumination wire. (If the aftermarket radio has no

illumination wire, tape off the Orange/White wire).

• Connect the Blue/White wire to the amp turn on wire (In models with a Fender amp, this

wire must be connected to hear sound from the factory amplifier).

• Tape off and disregard the following (9) wires, they will not be used in this application

Brown, White, White/Black, Gray, Gray/Black, Green, Green/Black, Purple, Purple/Black

The following wires are for aftermarket multimedia/navigation radios that provide these wires

(if not required, tape them off and disregard them):

• Connect the Light Green wire to the parking brake wire (if applicable and not available on

manual transmission).

• Connect the Blue/Pink wire to the speed sense wire (if applicable).

• Connect the Green/Purple wire to the reverse wire (if applicable).

From the AXTO-VW1 harness to the aftermarket radio:

• Connect the Black wire to the ground wire.

• Connect the Yellow wire to the battery wire.

• Connect the White wire to the left front positive speaker output.

• Connect the White/Black wire to the left front negative speaker output.

• Connect the Gray wire to the right front positive speaker output.

• Connect the Gray/Black wire to the right front negative speaker output.

• Connect the Green wire to the left rear positive speaker output.

• Connect the Green/Black wire to the left rear negative speaker output.

• Connect the Purple wire to the right rear positive speaker output.

• Connect the Purple/Black wire to the right rear negative speaker output.

12-pin pre-wired AXSWC harness:

• This harness is to be used along with the optional AXSWC (not included) to retain steering

wheel audio controls. If the AXSWC is not being used, disregard this harness. If it will be

used, please refer to the AXSWC instructions for radio connections and programming.

Disregard the harness that comes with the AXSWC.
