Side 1/2

Berker GmbH & Co. KG - Zum Gunterstal - 66440 Blieskastel/Germany - Tel.: + 49 6842/945-0 - Fax: + 49 6842/945-4625 - E-Mail: info@berker.de - www.berker.com -

Operating and

assembly instructions

8014 11 x0

KNX push button module

1gang

8014 21 x0

KNX push button module

2gang

6LE000414B - 03/2021

6LE000414B

Safety instructions z

Electrical equipment may only be installed and

assembled by a qualiﬁ ed electrician. Always fol-

low the relevant accident prevention regulations

of the country.

Failure to comply with these installation instruc-

tions may result in damage to the device, ﬁ re or

other hazards.

When installing and laying cables, always comply

with the applicable regulations and standards for

SELV electrical circuits.

During renovation work, protect the device from

pollution by paint, wallpaper paste, dust etc. The

device can be damaged.

These instructions are an integral component of

the product and must be retained by the end us-

er.

Design and layout of the device

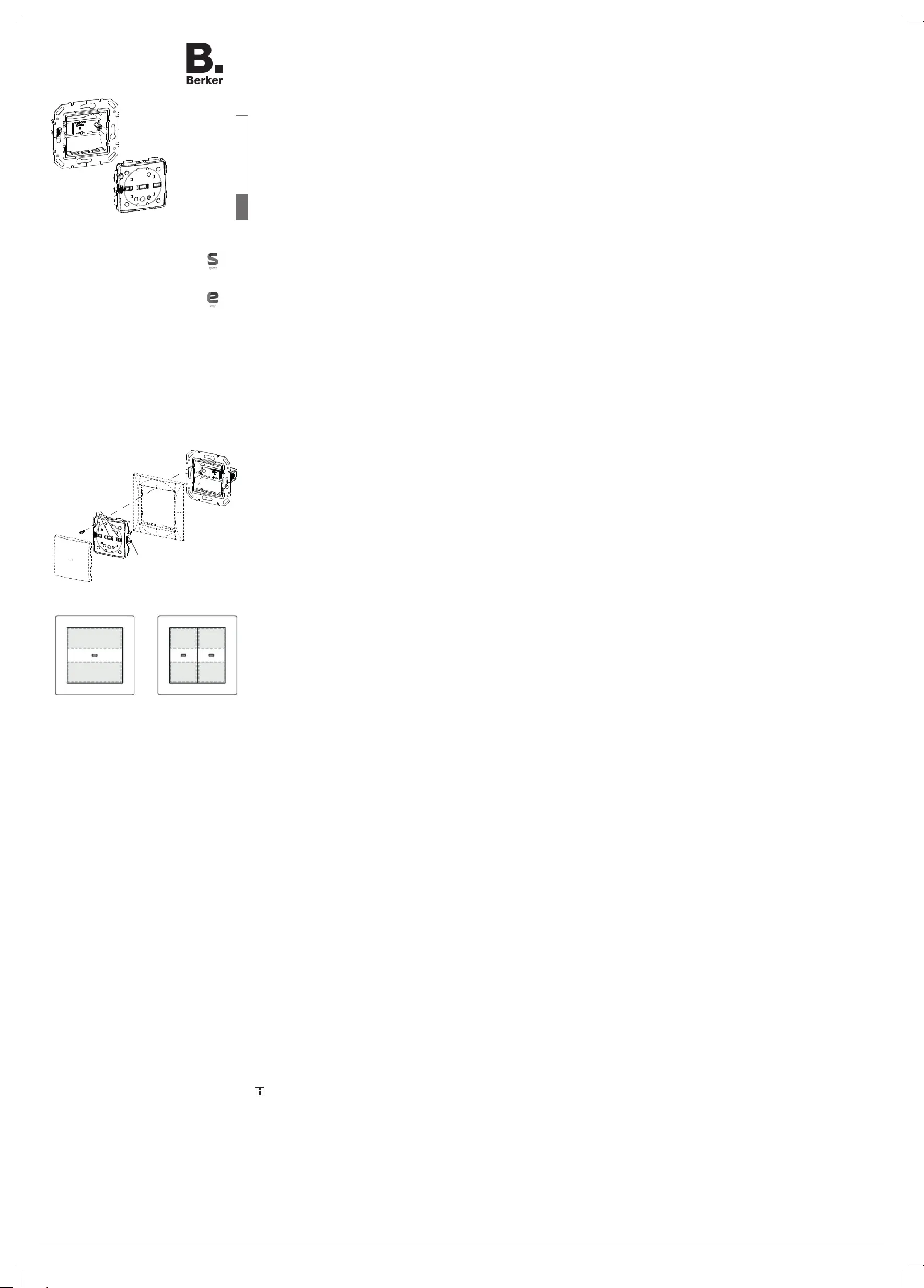

Figure 1: Design and layout of the device

(1) Touch cover (not within scope of delivery)

(2) Push-button module

(3) Fastening clamps

(4) Frame (not within scope of delivery)

(5) Supporting ring with prong connection

(6) Screw for dismantling protection

(7) Status LEDs

Function

System information

This device is a product of KNX system and corre-

sponds to the KNX guidelines. Detailed specialised

knowledge obtained from KNX training courses is

required for comprehension. The planning, installa-

tion and commissioning are carried out with the help

of KNX-certiﬁ ed software.

system link start-up

The function of the device is software-dependent. The

software is to be taken from the product database. You

can ﬁ nd the latest version of the product database,

technical descriptions as well as conversion and addi-

tional support programmes on our website.

easy link start-up

The function of the device is conﬁ guration-de-

pendent. The conﬁ guration can also be done using

devices developed specially for simple setting and

start-up.

This type of conﬁ guration is only possible with devic-

es of the easy link system. easy link stands for easy,

visually supported start-up. Preconﬁ gured standard

functions are assigned to the in/outputs by means of

a service module.

Correct use

- Operation of consumers, e.g. light on/oﬀ , dim-

ming, blind up/down, saving and opening light

scenes, etc.

- Installation into wall box according to DIN 49073

Product characteristics

- Start-up and programming in S-mode and E-mode

- Push-button functions: switching/dimming, blind

control, value transmitter, scene call-up, speciﬁ ca-

tion of the heating operating mode, forced control,

stepping switch and comparator function

- One status LED per rocker

- Function and colour of the status LEDs conﬁ gur-

able for the device

- Integrated bus application unit

Operation

Triggering of functions and operation of electrical

loads takes place via touch surfaces (ﬁ gure 2,

dashed) and can be set individually for each device.

There are two operating modes:

- Single-surface operation:

Switching lighting on/oﬀ and dimming brighter/

darker is carried out alternately by repeated

touching of a touch surface.

- Two-surface operation:

Two superimposed touch surfaces form a function

pair. For example, touching the top surface switch-

es/dims lighting on/makes it brighter, touching the

bottom surface switches it oﬀ /makes it darker.

Operating a function or load

Consumers, such as lighting, blinds, etc., are operat-

ed using the touch surfaces, which are dependent on

the device conﬁ guration.

 Touch a touch surface.

The stored function is executed.

The actuation pulse lasts for the duration of the

actuation. Depending on the function, short and

long touches can trigger diﬀ erent actions, e.g.

switching/dimming.

(1)

(2)

(3)

(4)

(5)

(6)

(7)

Berker GmbH & Co. KG - Zum Gunterstal - 66440 Blieskastel/Germany - Tel.: + 49 6842/945-0 - Fax: + 49 6842/945-4625 - E-Mail: info@berker.de - www.berker.com - 6LE000414B - 03/2021

Information for electricians z

Installation and electrical connection

DANGER!

Touching live parts in the installation

environment can result in an electric

shock.

An electric shock can be lethal!

Disconnect the connecting cables

before working on the device and cover

all live parts in the area!

Connecting and installing the device

 Mount the supporting ring (5) to a wall box in the

correct position. Note marking TOP/OBEN.

 Run the bus cable with the connecting terminal

through the frame and connect it to the push-but-

ton module (2) at the back.

 Attach the push-button module (3) with the frame

(5) to the supporting ring until the fastening brack-

ets (4) engage.

 Fix dismantling protection with screw (6) if desired.

 Reattach touch cover (1) to push-button module

(2).

Dismantling

 Remove touch cover (1) from push-button module.

 Loosen screw for dismantling protection (6).

 Remove push-button module (2) from supporting

ring. Hold on to design frame.

Start-up

The device is connected and ready for operation. In

general the following procedure is recommended.

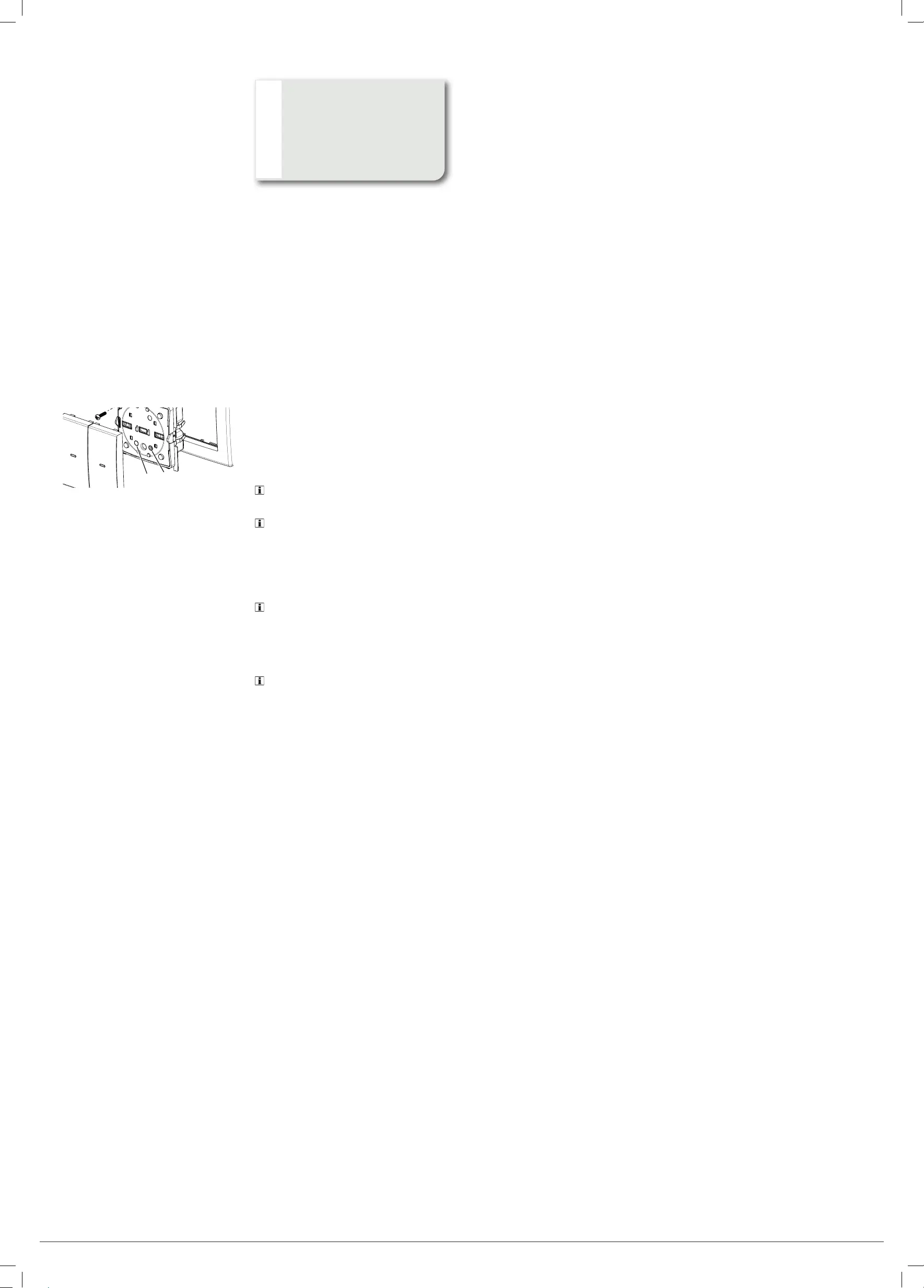

system link - Loading the physical address and

application software (Figure 3)

(8) Programming button

(9) Programming LED

The physical address is only ever assigned for

one device. Only one device can ever be in pro-

gramming mode.

It is advisable to program the physical address

before installation.

 If available, release the touch cover using the

programming button (8).

 Switch on bus voltage.

 Press programming button (8).

The programming LED (9) lights up.

If the programming LED does not light up, no bus

voltage is present.

 Load the physical address into the device.

The programming LED goes out.

 Load application software. Note down the physical

address on the labelling ﬁ eld.

The loading of non-compatible application soft-

ware is indicated by ﬂ ashing of the status LEDs

(7).

 Reattach the touch cover.

easy link

Information on the system conﬁ guration can be taken

from the extensive description of the service module

easy link.

Appendix

Technical data

KNX Medium TP 1

Start-up mode system link, easy link

Rated voltage KNX DC 21 … 32 V SELV

Current consumption KNX typ. 10 mA

Connection mode KNX bus connecting terminals

Dimensions (W x H x D) 71 x 71 x 32 mm

assembling height from supporting ring 11 mm

Degree of protection IP 20

Protection class III

Operating temperature -5 … +45 °C

Storage/transport temperature -20 … +70 °C

Standards EN 60669-2-1; EN 60669-1

EN 50428

Troubleshooting

Bus operation is not possible.

Cause: Bus voltage is not present.

Check bus connection terminals for correct

polarity.

Check bus voltage by brieﬂ y pressing the pro-

gramming button (8), red programming LED (9)

lights up if bus voltage is present.

Accessories

Cover 1gang with lens 8096 02 xx

Cover 2gang with lens 8096 03 xx

Warranty

We reserve the right to make technical and formal

changes to the product in the interest of technical

progress.

Our products are under guarantee within the scope of

the statutory provisions.

If you have a warranty claim, please contact the point of

sale or ship the device postage free with a description of

the fault to the appropriate regional representative.

(8)(9)

Produkt Specifikationer

Mærke:	Berker
Kategori:	Skifte
Model:	80141170
Kode for international beskyttelse (IP):	IP20
Type:	Trykknapkontakt
Vekselstrømsindgangsspænding:	21 - 32 V
Produktfarve:	Grå
Materiale:	Metal, Plastic
Indgangsspænding:	21 - 32 V
Strøm (maks.):	0.01 A
