Side 1/4

}

Berker GmbH & Co. KG - Zum Gunterstal - 66440 Blieskastel, Germany

8016 17 xx, 8014 13 xx

KNX push-button 1gang with labelling

ﬁeld and LED

8016 27 xx, 8014 23 xx

KNX push-button 2gang with labelling

ﬁeld and LED

8016 37 xx, 8014 33 xx

KNX push-button 3gang with labelling

ﬁeld and LED

8016 47 xx, 8014 43 xx

KNX push-button 4gang with labelling

ﬁeld and LED

801x 1x xx

Push-button

6LE000455C

Systemlink start-up

The function of the device is software-de-

pendent. The software is to be taken from

the product database. You can ﬁnd the latest

version of the product database, technical

descriptions as well as conversion and addi-

tional support programmes on our website.

Easylink start-up

The function of the device is conﬁguration-de-

pendent. The conﬁguration can also be done

using devices developed specially for simple

setting and start-up.

This type of conﬁguration is only possible

with devices of the easylink system. Easylink

stands for easy, visually supported start-up.

Preconﬁgured standard functions are

assigned to the in/outputs by means of a ser-

vice module.

Correct use

− Operation of consumers, e.g. light on/

o, dimming, blind up/down, saving and

opening light scenes, etc.

− Installation on bus application unit,

ﬂush-mounted

Product characteristics

− Start-up and programming in S-mode

and E-mode

− Push-button functions: switching/

dimming, blind control, value transmitter,

scene call-up, speciﬁcation of the heating

operating mode, forced control, stepping

switch

− Two status LEDs per push-button

− Function and colour of the status LEDs

conﬁgurable for the device

− A white operation LED

Operation

The functions of the buttons, their opera-

tion and the activation of the loads can be

adjusted individuallay for each device.

There are two operating modes:

− Single-surface operation:

Switching lighting on/o or dimming

brighter/darker is carried out alternately

by repeated touching a button.

− Two-surface operation:

Two adjacent buttons form a function

pair. For example, touching the left-hand

surface switches/dims lighting on/makes

it brighter, touching the right-hand surface

switches it o/makes it darker.

Operating a function or load

Loads, such as lighting, blinds, etc., are

operated using the touch surfaces, which are

dependent on the device programming.

•

Press a button.

The stored function is executed.

Safety instructions

Electrical equipment may only be installed

and assembled by a qualiﬁed electrician.

Always follow the relevant accident pre-

vention regulations of the country.

Failure to comply with these installation

instructions may result in damage to the

device, ﬁre or other hazards.

When installing and laying cables, always

comply with the applicable regulations

and standards for SELV electrical circuits.

These instructions are an integral component

of the product and must be retained by the

end user.

Design and layout of the

device

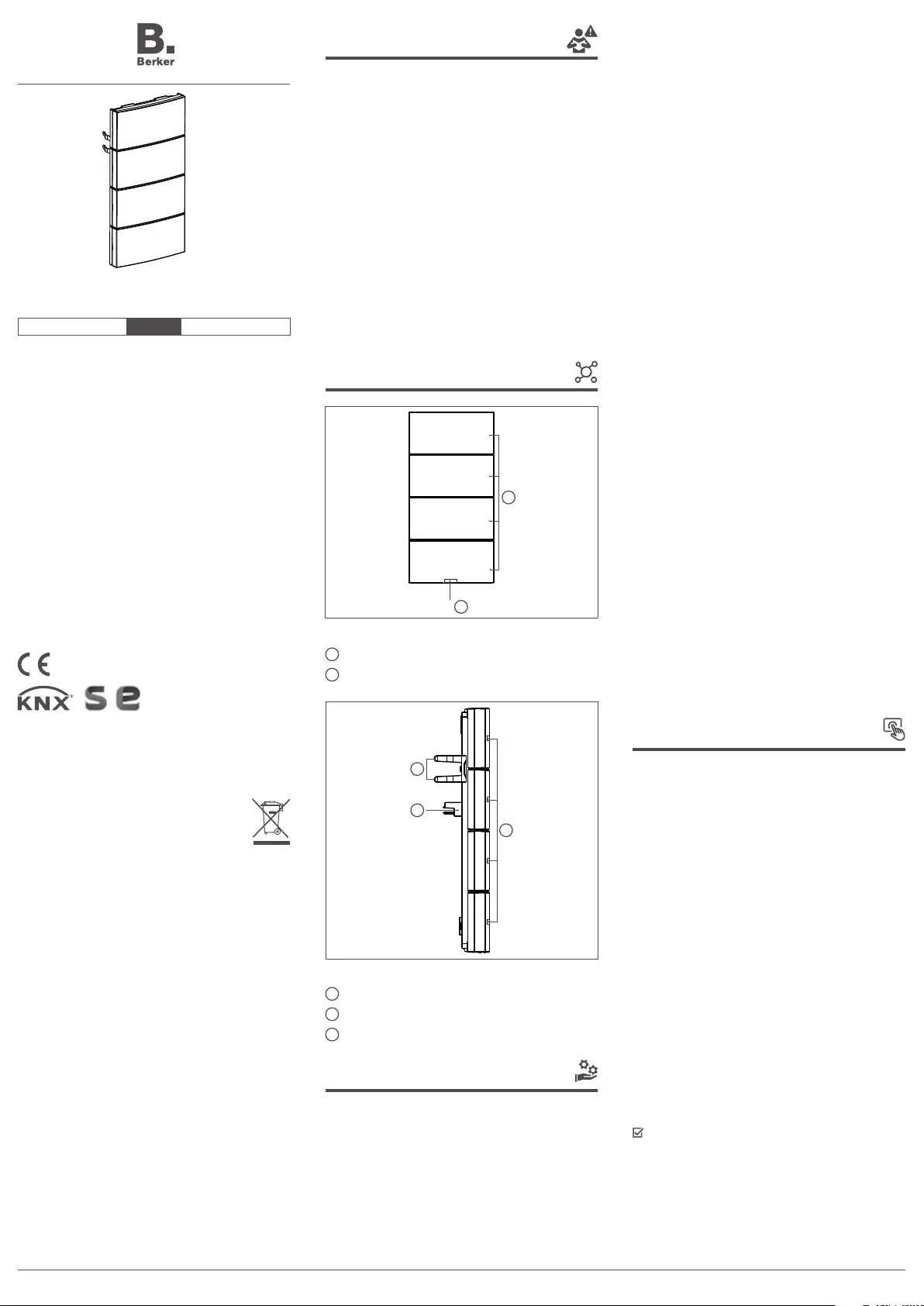

Figure 1: Front view of push-button 4gang

Operation LED

Buttons (number dependent on the variant)

Figure 2: Side view of push-button 4gang

Status LED

Fastening clamps

User interface (AST)

Function

System information

This device is a product of KNX system and

corresponds to the KNX guidelines. Detailed

specialised knowledge obtained from KNX

training courses is required for understand-

ing. The planning, installation and com-

missioning are carried out with the help of

KNX-certiﬁed software.

Correct Disposal of This product

(Waste Electrical & Electronic

Equipment).

(Applicable in the European Union and

other European countries with separate

collection systems).

This marking shown on the product or its

literature indicates that it hould not be dispo-

sed with other household wasted at the end

of its working life. To prevent possible harm

to the environment or human health from

uncontrolled waste disposal, please separate

this from other types of wastes and recycle it

responsibly to promote the sustainable reuse

of material resources.

Household users should contact either the

retailer where they purchased this product,

or their local government oce, for details

of where and how they can take this item for

environmentally safe recycling.

Business users should contact their supplier

and check the terms and conditions of the

purchase contract. This product should not

be mixed with other commercial wastes of

disposal.
