Side 1/2

8016 18 6x

KNX push-button 1gang with

LED

1‘li KNX push-button LED

8016 28 6x

KNX push-button 2gang with

LED

2‘li KNX push-button LED

6LE000417B

Operating and assembly instructions

Kullanım ve montaj kılavuzu

01 Berker GmbH & Co. KG - Zum Gunterstal - 66440 Blieskastel/Germany - Tel.: +49 6842 945 0 - Fax: +49 6842 945 4625 - E-Mail: info@berker.de - www.berker.com 6LE000417B - 11/2021

}

Safety instructions z

Electrical equipment may only be installed and

assembled by a qualied electrician. Always

follow the relevant accident prevention regula-

tions of the country.

Failure to comply with these installation in-

structions may result in damage to the device,

re or other hazards.

When installing and laying cables, always com-

ply with the applicable regulations and stan-

dards for SELV electrical circuits.

These instructions are an integral component

of the product and must be retained by the end

user.

Design and layout of the device

(1)

(2)

(3)

(1)

(2)

(4)

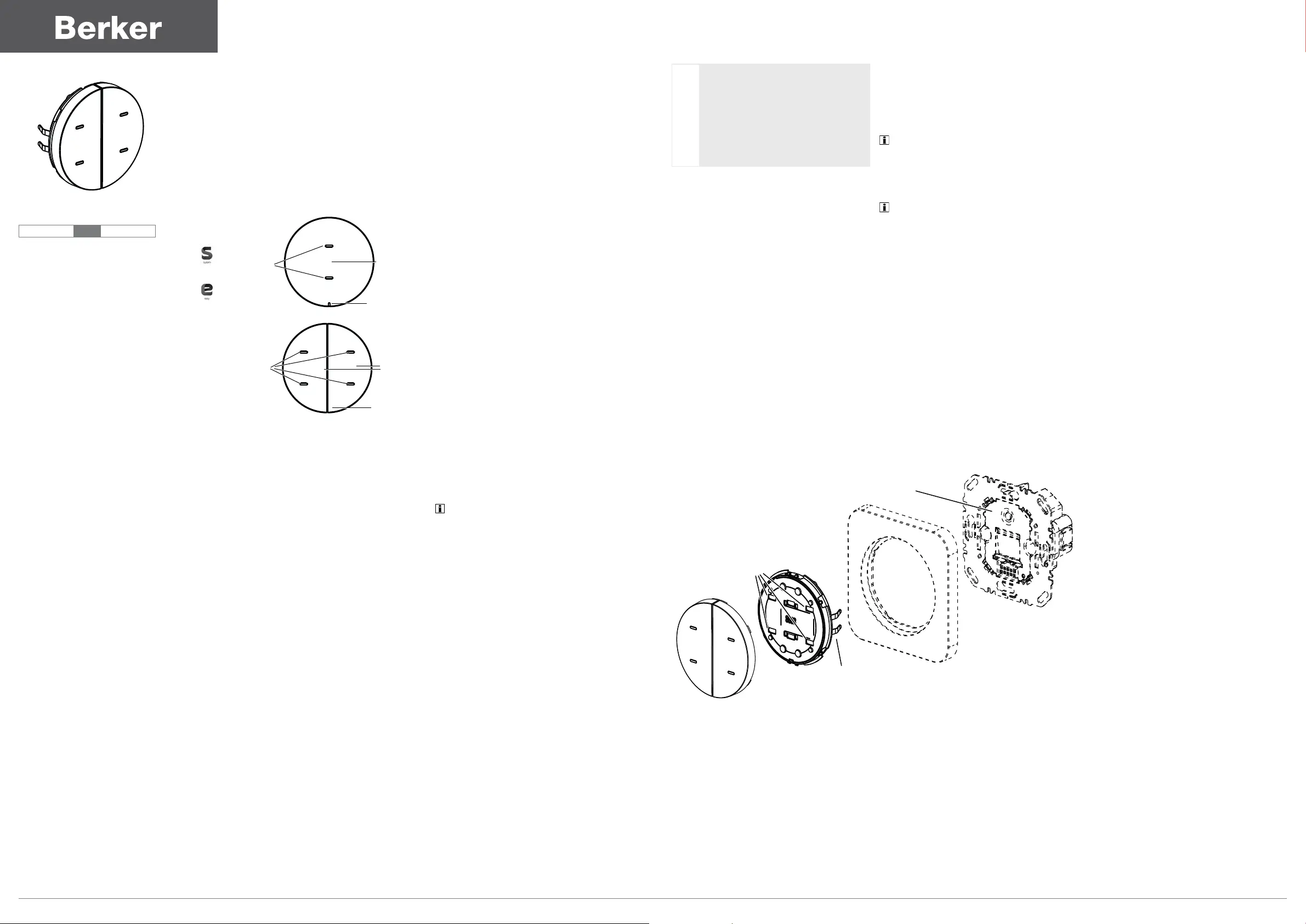

Figure 1: Front view of push-button with LED

(1) Status LED

(2) Operation LED

(3) Cover 1gang with lens

(4) Cover 2gang with lens

Function

System information

This device is a product of KNX system and corre-

sponds to the KNX guidelines. Detailed specialised

knowledge obtained from KNX training courses

is required for comprehension. The planning,

installation and commissioning are carried out with

the help of KNX-certied software.

system link start-up

The function of the device is software-dependent.

The software is to be taken from the product

database. You can nd the latest version of the

product database, technical descriptions as well as

conversion and additional support programmes on

our website.

easy link start-up

The function of the device is conguration-depen-

dent. The conguration can also be done using

devices developed specially for simple setting and

start-up.

This type of conguration is only possible with

devices of the easy link system. easy link stands

for easy, visually supported start-up. Precongured

standard functions are assigned to the in/outputs

by means of a service module.

Correct use

- Operation of consumers, e.g. light on/o󰀨, dim-

ming, blind up/down, saving and opening light

scenes, etc.

- Installation on bus application unit, ush-moun-

ted

Product characteristics

- Start-up and programming in S-mode and E-

mode

- Push-button functions: switching/dimming, blind

control, value transmitter, scene call-up, speci-

cation of the heating operating mode, forced

control, stepping switch and comparator func-

tion

- Two status LEDs per rocker

- Function and colour of the status LEDs congu-

rable for the device

- A white operation LED

Operation

The operation of functions or electrical loads can

be set individually for each device.

Two operating modes are typical:

- Single-surface operation:

Switching lighting on/o󰀨 and dimming brighter/

darker is carried out alternately by repeated

touching of the push-button operation area.

- Two-surface operation:

Two adjacent touch surfaces form a function

pair. For example, touching the top push-button

operation area switches/dims lighting on/makes

it brighter, touching the bottom push-button

operation area switches it o󰀨/makes it darker.

Operating a function or load

Consumers, such as lighting, blinds, etc., are

operated using the touch surfaces, which are

dependent on the device programming.

 Actuate a push-button operation area.

The stored function is executed.

The actuation pulse lasts for the duration of the

actuation. Depending on the function, short and

long touches can trigger di󰀨erent actions, e.g.

switching/dimming.

Information for electricians

Installation and electrical connection

DANGER!

Touching live parts in the installation

environment can result in an electric

shock.

An electric shock can be lethal!

Disconnect the connecting cables

before working on the device and

cover all live parts in the area!

Connecting and installing the device (gure 2)

The bus application unit is mounted and connected

to the KNX bus and installed in a wall box.

 Mount push-button module (5) with design

frame (7) onto the bus application unit (9)

until fastening clamps (6) lock into place. Both

devices are interconnected electrically via the

application interface AST.

 Mount rocker(s) on the push-button.

Dismantling

 Remove push-button (5) from the bus applica-

tion unit.

Start-up

system link - Load application software

Since the application software is loaded into the

bus application unit, it is possible to already load

the application software and assign the physical

address of the bus application unit together. If this

has not taken place, it is also possible to program

later.

 Load application software into the device.

The loading of non-compatible application soft-

ware is indicated by ashing of the status LEDs

(1) in red.

 Mount push-button module (5).

easy link

The device must be mounted on the bus appli-

cation unit for the E mode start-up.

Information on the system conguration can be

taken from the extensive description of the service

module easy link.

Appendix

Technical data

KNX Medium TP 1

Start-up mode system link, easy link

Rated voltage KNX DC 21 … 32 V SELV

Current consumption KNX typ. 20 mA

Power consumption typ. 150 mW

Connection mode KNX bus connection terminal

Degree of protection IP20

Protection class III

Operating temperature -5 … +45 °C

Storage/transport temperature -20 … +70 °C

Troubleshooting

Bus operation is not possible.

Cause: Push-button does not match the program-

med bus application unit. LEDs ash.

Replace push-button module or reprogram.

Accessories

Bus application unit, ush-mounted 8004 00 01

Cover 1gang with lens 7516 18 6x

Cover 2gang with lens 7516 28 6x

Warranty

We reserve the right to make technical and formal

changes to the product in the interest of technical

progress.

Our products are under guarantee within the scope

of the statutory provisions.

If you have a warranty claim, please contact the

point of sale or ship the device postage free with a

description of the fault to the appropriate regional

representative.

(4)

(7)

(6)

(8)

(5)

(9)

(1)

Figure 2: Device assembly

(5) Push-button

(6) Fastening clamps

(7) Frame (not within scope of delivery)

(8) Programming button with programming LED

(9) Bus application unit, ush-mounted (not within scope of delivery)

02  

 }











-

-



-

-



-





(1)

(2)

(3)

(1)

(2)

(4)



(1) 

(2) 

(3) 

(4) 





































 













 





 



 

 









 

 



 











 









 





















 





















-

lara temas edilmesi halinde elektrik



















 











 



 



















 







 













 

 

 

 

 

 

 

 

 

 

















 

 

 





















(4)

(7)

(6)

(8)





(1)












