GUARANTEE

PLEASE KEEP YOUR RECEIPT AS THIS WILL

BE REQUIRED FOR ANY CLAIMS UNDER

THIS GUARANTEE.

• This product is guaranteed for 3 years.

• In the unlikely event of breakdown, please

take it back to the place of purchase, with

your till receipt and a copy of this guarantee.

• The rights and benefits under this guarantee

are additional to your statutory rights which

are not affected by this guarantee.

• Holmes Products Europe undertakes within

the specific period, to repair or replace free of

charge, any part of the appliance found to be

defective provided that:

• We are promptly informed of the defect.

• The appliance has not been altered in any

way or subjected to misuse or repair by a

person other than a person authorised by

Holmes Products Europe.

• No rights are given under this guarantee to a

person acquiring the appliance second hand

or for commercial or communal uses.

• Any repaired or replaced appliance will be

guaranteed on these terms for the remaining

portion of the guarantee.

THIS PRODUCT IS MANUFACTURED TO

COMPLY WITH THE E.E.C. DIRECTIVES

73/23/EEC, 89/336/EEC AND 98/37/EEC.

Waste electrical products should

not be disposed of with Household

waste. Please recycle where

facilities exist.

Check on the following website for

further recycling and WEEE

information:

www.bionaire.com or

e-mail info-europe@jardencs.com

INSTRUCTION MANUAL

BAOF30G

GLASS BASE

DESK

fan

BAOF30GIUK06EM1.qxd 11/16/06 14:51 Page 1

PLEASE READ AND SAVE THESE

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety

precautions should always be taken including

the following:

• Use the fan only for purposes described in the

instruction manual.

• To protect against electrical shock, do not

immerse the fan, plug or mains cable in water

or spray with liquids.

• Close supervision is necessary when any

appliance is used by or near children.

• Unplug from the electrical outlet when not in

use, when moving the fan from one location to

another, before putting on or taking off parts

and before cleaning.

• Avoid contact with any moving parts.

• Do not operate in the presence of explosive

and/or flammable fumes.

• Do not place the fan or any parts near an

open flame, cooking or other heating

appliance.

• Do not operate any appliance with a damaged

mains cable, plug, after the appliance

malfunctions, or has been dropped/ damaged

in any manner.

• The use of attachments not recommended or

sold by the appliance manufacturer may

cause hazards.

• Do not use outdoors.

• Do not let the mains cable hang over the edge

of a table or counter, or come into contact with

hot surfaces.

• To disconnect from the electrical supply,

grip the plug and pull from the wall outlet.

DO NOT pull on the mains cable.

• Always use on a dry, level surface.

• Do not operate without the fan grills properly

in place.

• This product is intended for household use

ONLY and not for commercial or industrial

applications.

• If the supply cord or plug is damaged, it must

be replaced by the manufacturer or its service

agent or a similarly qualified person in order to

avoid hazard.

• The appliance contains no user serviceable

parts and should the product suffer damage

or breakdown it must be returned to the

manufacturer or its service agent.

• Should the appliance stop working, first check

the fuse in the plug (UK only) or fuse/circuit

breaker at the distribution board is operating,

before contacting the manufacturer or service

agent.

NOTE: Use caution when adjusting the tilt

angle of the fan head to ensure that your

fingers do not get caught.

• If the supply cord or plug is damaged, it must

be replaced by the manufacturer or its service

agent or a similarly qualified person in order to

avoid hazard.

MISSING A PART FOR YOUR FAN?

Please call 0800 052 3615 for assistance.

ASSEMBLY INSTRUCTIONS

(see Fig. 1 - 8)

Assembly Time: 10-15 Minutes.

Tools Required: Cross Head Screw Driver.

1. Unscrew Base Nut (C) from Pole (A).

2. Fit the Pole (A) and Rubber Ring (H) over the

opening of the Glass Base (B) and secure

with the Base Nut (C). (Fig. 2 and 3)

3. Unscrew the Rear Grill Nut (D) from the Motor

Housing (E). (Fig. 4)

4. Position the Rear Grill (F) over the Motor

Housing (E). Fit the 2 Prongs (I) into the

holes. The handle should be on top. (Fig. 5)

5. Secure the Rear Grill (F) to the Motor Housing

(E) with the Rear Grill Nut (D). (Fig. 6)

6. Remove the protective sleeve from the Motor

Shaft (G).

7. Slide the Fan Blade (J) over the Motor Shaft

(G) and tighten Blade Screw (L). (Fig. 7)

8. Position the Grill Ring (M) over the Rear Grill

(F) with the Grill Ring Screw (O) positioned at

the bottom. (Fig. 8)

NOTE: You may have to loosen the Grill

Ring Screw (O).

9. Snap the Front Grill (N) into the Grill Ring (M)

with Bionaire logo aligned in horizontal position

and tighten Grill Ring Screw (O). (Fig. 8)

U.K. and IRELAND

OPERATING INSTRUCTIONS (See Fig. 1)

1. Make sure the Speed Control is in the OFF

(0) position.

2. Plug the cord into a suitable outlet.

3. To adjust speed, turn Speed Control (P)

located on top of Motor Housing (E) to the

desired setting:

0- Off

I- Low

II - Medium

III - High

ADJUSTMENT

Tilt adjustment

To change the tilting angle of the fan head,

simply move the fan head to the desired angle.

Oscillation adjustment

To start oscillation, press Oscillation Control (Q).

To stop oscillation, pull (Q).

CLEANING AND MAINTENANCE

• Always unplug the fan before cleaning or

disassembly.

• Do not allow water to drip on or into the fan

motor housing.

FAN STORAGE

It is important to keep the fan in a safe, dry

location.

• We recommend using the original (or

appropriately sized) box.

FITTING A REPLACEMENT PLUG

FOR U.K. AND IRELAND ONLY

If the plug is not suitable for the socket outlets in

your home, it can be removed and replaced by a

plug of the correct type. Please refer to

"Installation of a plug" below.

Installation of a plug Applicable to U.K.

and Ireland.

WARNING - THIS APPLIANCE MUST BE

EARTHED.

The wires in the mains lead are coloured as such:

GREEN AND YELLOW - EARTH

BROWN - LIVE

BLUE - NEUTRAL

Please note that the colour of these mains wires

may not correspond with the colour markings

that identify the terminals in your plug.

Please proceed as follows:

The wire which is coloured GREEN AND YELLOW

must be connected to the terminal which is marked

with the letter 'E' or by the earth symbol or

coloured GREEN or GREEN AND YELLOW.

The BROWN coloured wire must be connected

to the terminal, which is marked with the letter

"L" or is coloured RED.

The BLUE coloured wire must be connected to

the terminal, which is marked with the letter "N"

or is coloured BLACK.

NOTE: If the terminals in the plug are not

marked or if you are unsure or in doubt about

the installation of the plug please contact a

qualified electrician.

If a 13A 3-pin plug is fitted, it must be an ASTA

approved plug, conforming to BS1363 standard.

Replacement 3A fuses must be BSI or ASTA

BS1362 approved.

3 amp

A. Pole

B. Glass Base

C. Base Nut

D. Rear Grill Nut

E. Motor Housing

F. Rear Grill

G. Motor Shaft

Rubber RingH.

J. Fan Blade

K. Notch on Motor Shaft

L. Locking Screw

M. Grill Ring

N. Front Grill

O. Grill Ring Screw

P. Speed Control

Q. Oscillation Control

. PrI ongs

-(2)

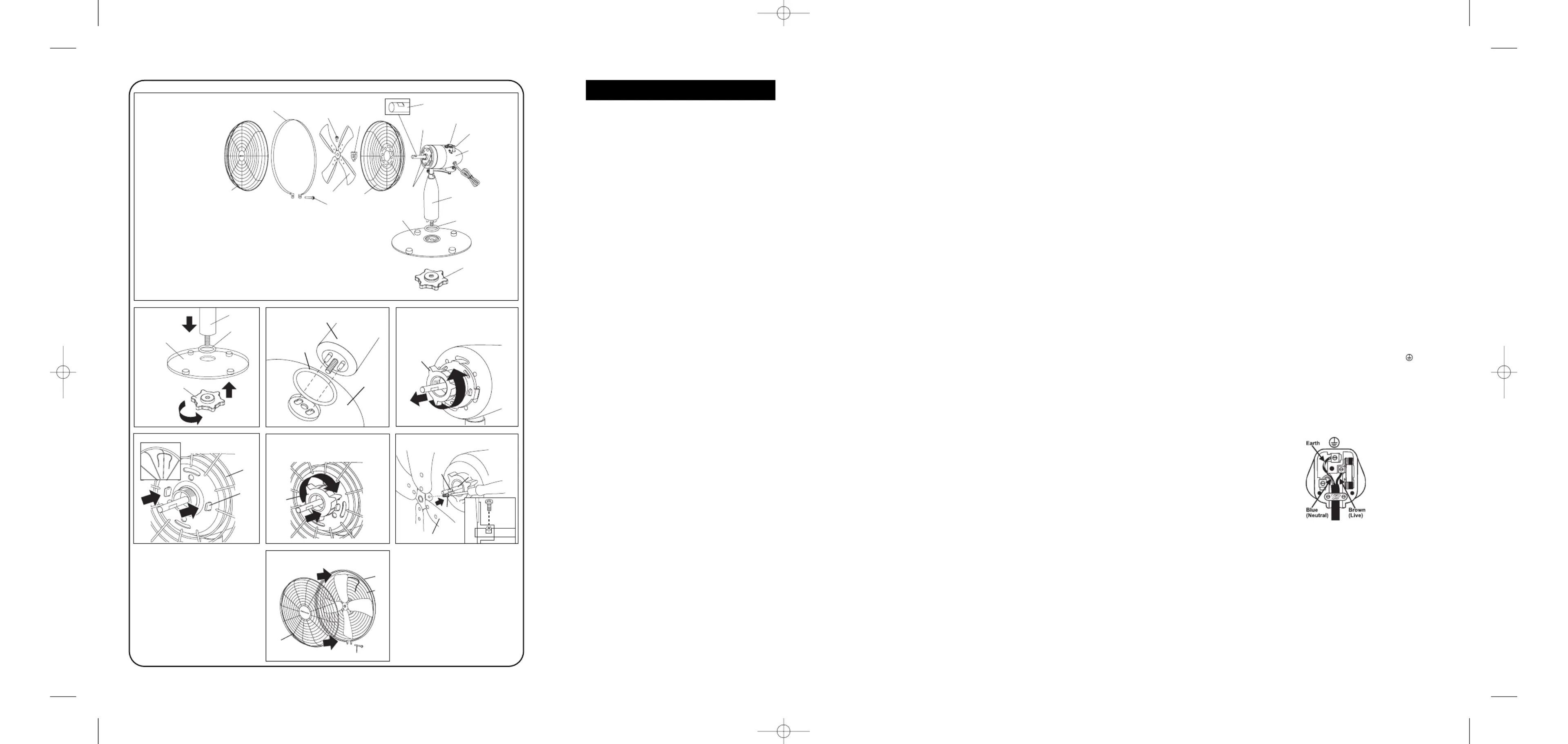

Fig. 1

Fig. 2

Fig. 3

Fig. 4

Fig. 7

Fig. 6

Fig. 5

Fig. 8

BAOF30GIUK06EM1.qxd 11/16/06 14:51 Page 4
