Be sure that the shaft protrudes through the

front of the blade.

3. Position the small fan blade (D) into the hol-

lowed interior of the large blade and press

firmly into place. Also be sure that the shaft

protrudes from the front of the blade.

4. Secure the fan blades onto the motor shaft by

turning the blade cap (C) anti-clockwise and

tighten firmly.

5. Centre the front grill (B) by aligning the Bionaire

logo on the logo plate (A) so that it is horizontal and

parallel with the floor. Then, secure the front and

rear grills completely together by pushing the front

grill onto the clips, whilst holding the clips in place.

Final assembly

1. Insert the fan neck joint into the hollow end of

the top pole and slowly turn the neck joint to

lock in place. Be careful to align the cutaway/

grooves on the neck joint with the two protruding

raised pieces inside the hollow end of the pole.

2. Lastly, insert the tilt adjustment knob (N) into the

neck joint and tighten until it is securely in place.

OPERATING INSTRUCTIONS

1. Set the fan base on a dry level surface.

2. Make sure the Selector (Speed) Control is in

the OFF(0) position. Selector (Speed) Control

is located on the top of the fan motor housing.

3. Plug the cord into a suitable 220-240V. AC outlet.

4. The SPEED is adjusted by turning the Selector

(Speed) Control to the desired setting:

0 - Off

I - Low

II - Med

III - High

5. The OSCILLATION control (L) is located on the

top of the fan motor housing. To start oscillation,

push the control knob down.To stop oscillation,

pull the control knob up.

ADJUSTMENT

Tilt adjustment

1. To change the tilting angle of the fan head,

simply loosen the tilt adjustment knob (N).

2. Move the fan head to the desired angle, then

firmly tighten the knob to lock in place.

Height adjustment

This fan is equipped with two poles which allow

you to adjust the height of the fan for two height

settings. With one pole only, the fan can be used

on a table or floor. With both poles fitted it is a

floor standing fan.

• Small pole 760mm (30")

• Longer pole 910mm (36")

• Both poles 1250mm (50")

Floor to table conversion

1. Remove the fan head by turning it anti-clockwise

and lifting off the pole. Remove one of the poles,

(see above for heights available).

2. Refit the fan head as detailed in "Final assembly".

CLEANING AND MAINTENANCE

Follow these instructions to correctly and safely

care for your Bionaire

TM fan. Please remember:

• Always unplug the fan before cleaning or assembly.

• Do not allow water to drip on or into the fan

motor housing.

• Be sure to use a soft cloth, moistened with a

mild soap solution.

• Do not use any of the following as a cleaner:

petrol, thinners or benzene.

Fan Blade cleaning

(See instructions for fan head assembly)

1. To access the fan blade, remove the front grill

and securing screw.

2. Clean the fan blade, front and rear grills with

a soft moist cloth.

3. Replace the fan blade, tighten screw and

securely fasten the front grill.

Fan head, base and pole cleaning

Using a soft, moist cloth, with or without a mild

soap solution, carefully clean the fan base, pole

and head. Please use caution around the motor

housing area. Do not allow the motor or other

electrical components to be exposed to water.

FAN STORAGE

Your fan can be stored either partially disassembled

or assembled.

It is important to keep it in a safe, dry location.

• If stored disassembled, we recommend using

the original (or appropriately sized) box.

• If stored assembled or partially assembled,

remember to protect the fan head from dust.

For U.K. and Ireland only:

If the plug is not suitable for the socket outlets in

your home, it can be removed and replaced by

a plug of the correct type. Please refer to

"Installation of a plug" below.

Installation of a plug Applicable to U.K.

and Ireland.

NOTE: If the terminals in the plug are not marked

or if you are unsure or in doubt about the instal-

PLEASE READ AND SAVE THESE

INSTRUCTIONS

IMPORTANT INSTRUCTIONS

When using electrical appliances, basic safety

precautions should always be taken including

the following:

• Use the fan only for purposes described in the

instruction manual.

• To protect against electrical shock, do not

immerse the fan, plug or cord in water or

spray with liquids.

• Close supervision is necessary when any

appliance is used by or near children.

• Unplug from the electrical outlet when not in

use, when moving the fan from one location to

another, before putting on or taking off parts

and before cleaning.

• Avoid contact with any moving parts.

• Do not operate in the presence of explosive

and/or flammable fumes.

• Do not operate fan until fully assembled with

all parts properly in place.

• To avoid fire hazard, NEVER place the cord

under rugs or any parts near an open flame,

cooking or other heating appliance.

• Ensure that the fan is switched off from the

supply mains before removing the guard.

• Do not operate any appliance with a damaged

cord, plug, after the appliance malfunctions, or

has been dropped/damaged in any manner.

• The use of attachments not recommended or sold

by the appliance manufacturer may cause hazards.

• Do not use outdoors.

• Do not let the cord hang over the edge of a table

or counter, or come into contact with hot surfaces.

• To disconnect from the electrical supply, grip

the plug and pull from the wall outlet. DO NOT

pull on the cord.

• Always use on a dry, level surface.

• Do not operate without the fan grills properly in place.

• This product is intended for household use ONLY

and not for commercial or industrial applications.

• Should the fan stop working, first check the fuse

in the plug (UK only) or fuse/circuit breaker at

the distribution board is operating, before con-

tacting the manufacturer or service agent.

• If the supply cord or plug is damaged, it must be

replaced by the manufacturer or its service agent or

a similarly qualified person in order to avoid hazard.

• This appliance is not intended for use by per-

sons (including children) with reduced physi-

cal, sensory or mental capabilities, or lack of

experience and knowledge, unless they have

been given supervision or instruction concern-

ing use of the appliance by a person responsi-

ble for their safety. Children should be super-

vised to ensure that they do not play with the

appliance.

MISSING A PART FOR YOUR FAN?

Please call 0800 052 3615 for assistance.

ASSEMBLY INSTRUCTIONS

(Fig. 1)

Base assembly

You will need the base cover (S,T), weighted

insert (U), 1 pole (R) (either can be used as they

are interchangeable) and base nut (V). IMPOR-

TANT: Unscrew the nut underneath the weight

and discard the removable plastic plug from the

centre of the base.

1. Insert one pole through the base cover and twist

pole clockwise to lock in position. Be careful to

align the cutaway grooves on the threaded joint

(male end) with the two protruding raised pieces

inside the hollow end of the base cover.

2. Now turn the base cover upside down (pole

facing floor) and place the weighted insert into

the base cover. The pole threads will be exposed

as they protrude through the base insert.

3. Hold the pole, base cover and weighted insert

in one hand, place the base nut on the thread-

ed section and hand tighten the base nut with

the other hand.

NOTE: Do not use a tool to tighten the base nut.

Pole assembly

You will need the second pole (O) (The poles are

interchangeable).

1. Insert the pole with the threaded joint (male

end), into the hollow end of the second pole

until both poles meet. Be careful to align the

cutaway/grooves on the threaded joint (male

end) with the two protruding pieces inside the

hollow end of the second pole (female end) (P).

2. Now slowly turn the pole with the threaded

joint clockwise to lock it securely in place.

Fan head assembly

You are now ready to assemble the fan head.

1. Position the rear grill (G) over the motor shaft

(I) making certain that the 2 notches at the top

and bottom of the rear grill, fit over the 2

prongs on the motor housing (J,M).Please

make sure the rear grill sits securely against

the motor housing.

2. Secure the rear grill in its place using the rear

grill mounting nut (F). Turn this nut clockwise

and tighten firmly. Position the large fan blade

(E), with the hollowed interior of the blade fac-

ing towards the rear grill, firmly onto the motor

shaft. Align the motor shaft pin with the

recessed groove on the back of the fan blade.

ENGLISH

60º

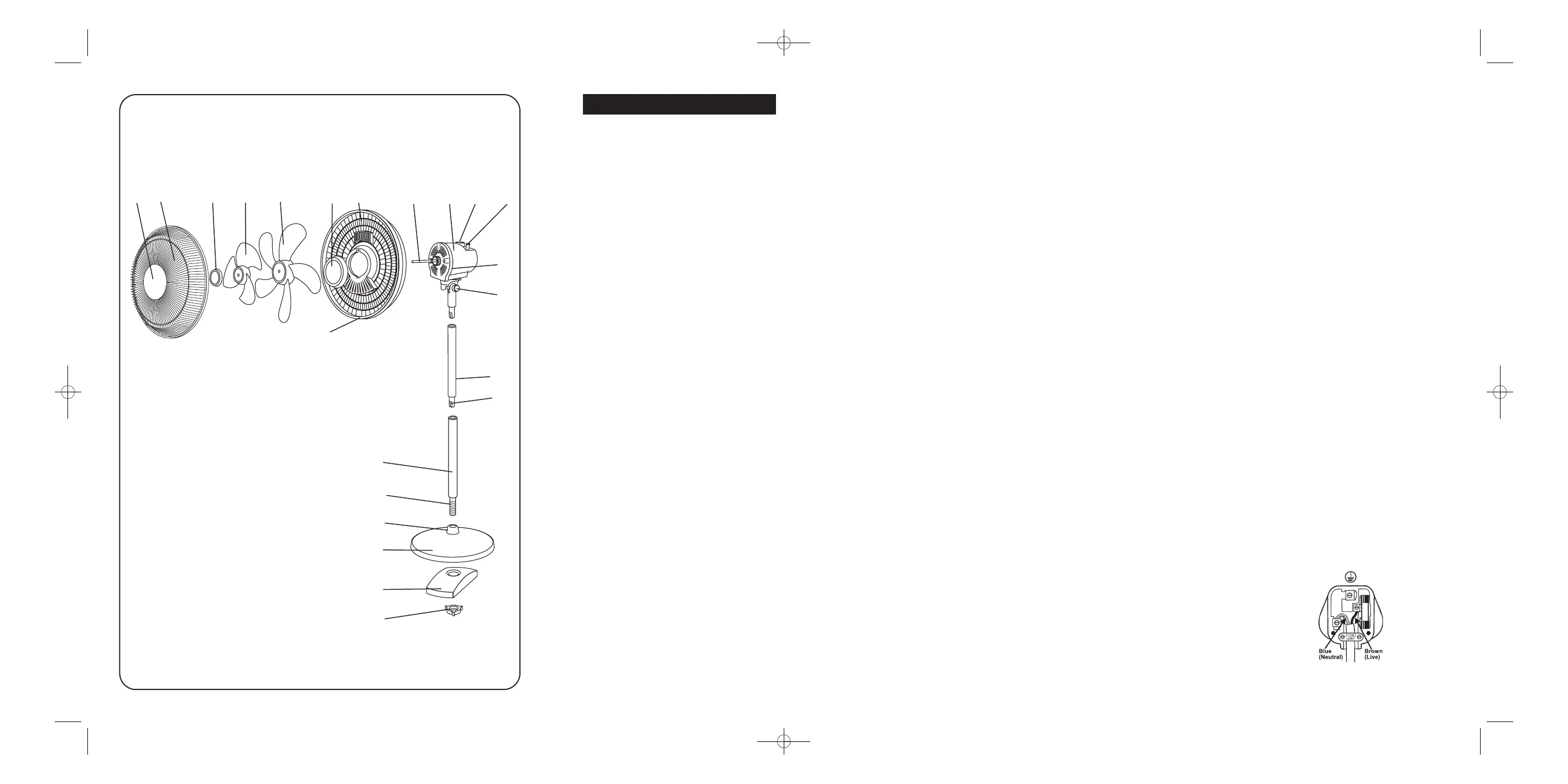

AB C D E F G

I J K L

Figure 1

BASF1016G-I_08MLM1.qxd:BASF1016-I_07MLM1.qxd 7/24/08 4:08 PM Page 4

Produkt Specifikationer

Mærke:	Bionaire
Kategori:	Ventilator
Model:	BASF1016G

Har du brug for hjælp?

Hvis du har brug for hjælp til Bionaire BASF1016G stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ventilator Bionaire Manualer

Bionaire BW2300 Manual

5 September 2024

Bionaire BT46R Manual

5 September 2024

Bionaire BT90R Manual

5 September 2024

Bionaire BAOF30G Manual

5 September 2024

Bionaire BAC14-I Manual

5 September 2024

Bionaire BASF1016G Manual

5 September 2024

Bionaire BBLF01 Manual

20 August 2024

Bionaire BMT014D Manual

20 August 2024

Bionaire BMT50-I Manual

20 August 2024

Bionaire BT 14 Manual

20 August 2024

Ventilator Manualer

Nyeste Ventilator Manualer

Mirpol Bise Manual

19 Juni 2025

Yamazen FCT-D409 Manual

19 Juni 2025

Lasko Whirlwind APDC215 Manual

19 Juni 2025

Yamazen FCR-D409 Manual

19 Juni 2025

Javalo Elf JE-CF002V Manual

19 Juni 2025

Essentiel B EVP 403c Manual

19 Juni 2025

Essentiel B EVT-T 30 Manual

19 Juni 2025

Yamazen YAR-W304 Manual

18 Juni 2025

Essentiel B EVT2238n Manual

18 Juni 2025

Philips ACP620 Manual

18 Juni 2025
