GUARANTEE
PLEASE KEEP YOUR RECEIPT AS THIS WILL
BE REQUIRED FOR ANY CLAIMS UNDER THIS
GUARANTEE
• This product is guaranteed for 3 years.
• In the unlikely event of breakdown, please take
it back to the place of purchase, with your till
receipt and a copy of this guarantee.
are additional to your statutory rights which are
not affected by this guarantee.
• Holmes Products Europe undertakes within the
specific period, to repair or replace free of
charge, any part of the appliance found to be
defective provided that:-
• We are promptly informed of the defect
• The appliance has not been altered in any
way or subjected to misuse or repair by a
person other than a person authorised by
Holmes Products Europe.
• No rights are given under this guarantee to a
person acquiring the appliance second hand or
for commercial or communal uses.
• Any repaired or replaced appliance will be
guaranteed on these terms for the remaining
portion of the guarantee.
THIS PRODUCT IS MANUFACTURED TO
COMPLY WITH THE E.E.C. DIRECTIVES
73/23/EEC, 89/336/EEC and 98/37/EEC.
Waste electrical products should
not be disposed of with
Household waste. Please recycle
where facilities exist. Check on
the following website for further
recycling and WEEE information:
www.bionaire.com or e-mail:
info-europe@theholmesgroup.com
9100010006460
BASF1314/1714IUK05EM1
Holmes Products (Europe) Ltd
1 Francis Grove
London SW19 4DT
England
Fax: +44 (0)20 8947 8272
Email: info-europe@theholmesgroup.com
Website address: www.bionaire.com
UK - Free phone Customer Service Helpline – 0800 052 3615
© 2006 JCS/THG, LLC
Bionaire
®
and the Bionaire logo
®
are registered trademarks of JCS/THG, LLC.
PEDESTAL
stand fan
BASF1314/1714
INSTRUCTION MANUAL
BASF1314/1714IUK05EM1.qxd 11/30/05 16:56 Page 1
PLEASE READ AND SAVE THESE
INSTRUCTIONS
IMPORTANT INSTRUCTIONS
When using electrical appliances, basic safety
precautions should always be taken including
the following:-
• Use the fan only for purposes described in
the instruction manual.
• To protect against electrical shock, do not
immerse the fan, plug or cord in water or
spray with liquids.
• Close supervision is necessary when any
appliance is used by or near children.
• Unplug from the electrical outlet when not in
use, when moving the fan from one location
to another, before putting on or taking off
parts and before cleaning.
• Avoid contact with any moving parts.
• Do not operate in the presence of explosive
and/or flammable fumes.
• Do not place the fan or any parts near an open
flame, cooking or other heating appliance.
• Do not operate any appliance with a damaged
cord, plug, after the appliance malfunctions,
or has been dropped/damaged in any manner.
• The use of attachments not recommended or
sold by the appliance manufacturer may
cause hazards.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table
or counter, or come into contact with hot surfaces.
• To disconnect from the electrical supply, grip
the plug and pull from the wall outlet.
DO NOT pull on the cord.
• Always use on a dry, level surface.
• Do not operate without the fan grills properly
in place.
• This product is intended for household use ONLY
and not for commercial or industrial applications.
MISSING A PART FOR YOUR FAN?
Please call 0800 052 3615 for assistance.
ASSEMBLY INSTRUCTIONS (See Fig 1.)
Base/Pole assembly
You will need the base cover (O), round
weighted insert (P), pole (K,M), pole ring (N)
washer (S) and L-shaped locking lever (Q).
1. Slide the bottom end of the pole through the
pole ring.
2. Turn the base cover upside down and place
the round weighted insert into the base cover.
3. Insert the threaded end of the L-shaped
locking lever into the hole of the washer, round
weighted insert and through the base cover.
4. Whilst holding the base cover and round
weighted insert with one hand, connect the
pole to the base, sliding the L-shaped locking
lever into the bottom of the pole with you other.
5. Turn the L-shaped locking lever clockwise to
securely attach the pole to the base.
6. Set the base on the floor, weight side down.
Push the pole ring down until it sits directly on
the base.
Fan head assembly
You are now ready to assemble the fan head
1. Unscrew rear grill mounting nut (D) before
positioning the rear grill (F) over the motor
shaft (G) making certain that the notches at
the top and bottom of the rear grill, fit over the
prongs on the motor housing (H).
2. Secure the rear grill in its place using the rear
grill mounting nut (D). Turn this nut clockwise
and tighten firmly.
3. Slide the fan blade (B) with the hollowed
interior of the blade facing toward the rear
grill, firmly onto the motor shaft. The top of the
motor shaft should lie even with the centre of
the fan blade.
4. Now use the securing screw (C) (already
attached to the Fan Blade) to lock the blade
into place. Tighten the screw into the side hole
of the fan blade, against the motor shaft, until
both the blade and screw are secure.
5. Centre the front grill (A) by aligning the Bionaire
®
logo on the logo plate so that it is horizontal
and parallel with the floor. Then, holding the
front grill against the rear grill, push the black
grill ring (E) into place at the top and bottom of
the fan. (Push directly on the black grill ring,
not on the grills themselves). Finish securing
the grill ring in the same manner until both
grills are joined underneath the black ring.
Final assembly
1. Slide the inner pole extension (K) up from the
outer pole (M). Insert the pole locking knob (L)
into the hole on the outer pole, to securely
hold this position.
2. Place the fan head assembly into this extension
pole, inserting the neck of the fan into the pole
opening. Turn the fan head's neck until the
head is securely locked into place.
3. Add the tilt adjustment knob (J) to the hole in
the fan head's neck. Tighten when the fan head
is in your desired position.
Converting to a table fan -
Model BASF1314 only: On model BASF1314
an additional short pole (R) is supplied which
allows the fan to be converted into a table fan.
To change to this short pole, remove the fan
head assembly from its position on top of the
U.K. and IRELAND
inner pole and unscrew the L-shaped locking
lever at the base. Remove the long pole,
replace with the short pole and reassemble as
detailed above.
OPERATING INSTRUCTIONS
1. Set the fan base on a dry level surface
2. Make sure the Selector (Speed) Control is in
the OFF position. Selector (Speed) Control is
located on the top of the fan motor housing.
3. Plug the cord into a suitable 220-240V. AC outlet.
4. The SPEED is adjusted by turning the Selector
(Speed) Control to the desired setting:-
O-III-II-I.
5. The OSCILLATION control is located on the
top of the fan motor housing. To start
oscillation, push the control knob down.
To stop oscillation, pull the control knob up.
ADJUSTMENT
Tilt adjustment
Follow these instructions to tilt the fan head for
upward angle air movement.
1. To change the tilting angle of the fan head,
simply loosen the tilt adjustment knob (J)
2. Move the fan head to the desired angle, then
firmly tighten the knob to lock in place.
Height adjustment
Follow these instructions to adjust the height of
the fan.
1. Turn the pole locking knob (L) anti-clockwise
to loosen the pole.
2. Adjust the pole to the desired height and
firmly tighten the locking knob in a clockwise
direction.
CLEANING AND MAINTENANCE
Follow these instructions to correctly and safely
care for your Bionaire
®
fan. Please remember:-
• Always unplug the fan before cleaning or
assembly.
• Do not allow water to drip on or into the fan
motor housing.
• Be sure to use a soft cloth, moistened with a
mild soap solution.
• Do not use any of the following as a cleaner:
petrol, thinners or benzene.
Fan Blade cleaning
(See instructions for fan head assembly)
1. To access the fan blade, remove the front grill
and securing screw.
2. Clean the fan blade, front and rear grills with
a soft moist cloth.
3. Replace the fan blade, tighten screw and
securely fasten the front grill.
Fan head, base and pole cleaning
Using a soft, moist cloth, with or without a mild
and head. Please use caution around the motor
housing area. Do not allow the motor or other
electrical components to be exposed to water.
FAN STORAGE
Your fan can be stored either partially disassembled
or assembled.
It is important to keep it in a safe, dry location.
• If stored disassembled, we recommend using
the original (or appropriately sized) box.
• If stored assembled or partially assembled,
remember to protect the fan head from dust.
FITTING A REPLACEMENT PLUG (UK ONLY)
The wires in this mains lead are coloured in
accordance with the following code:
Blue - Neutral
Brown - Live
This appliance is fitted with a 13 amp plug.
The fuse should be rated at 3 amps and ASTA
approved to BS1362.
However if the plug is unsuitable, it should be
removed from the supply cord and an
appropriate plug fitted as detailed below:
As the colours of the wires in the mains lead of
this appliance may not correspond with the
coloured markings identifying the terminals in
your plug, proceed as follows:-
The wire which is coloured Blue must be
connected to the terminal which is marked with
the letter N or coloured Black.
The wire which is coloured Brown must be
connected to the terminal which is marked with
the letter L or coloured Red.
NB. Neither wire should be connected to the
terminal in your plug which is marked with the
letter E or by the Earth symbol or coloured
Green or Green and Yellow. If in doubt consult a
qualified electrician.
If any other plug is used, a 3 amp fuse must be
fitted either in the plug or adaptor or at the
distribution board.
BASF1314/1714

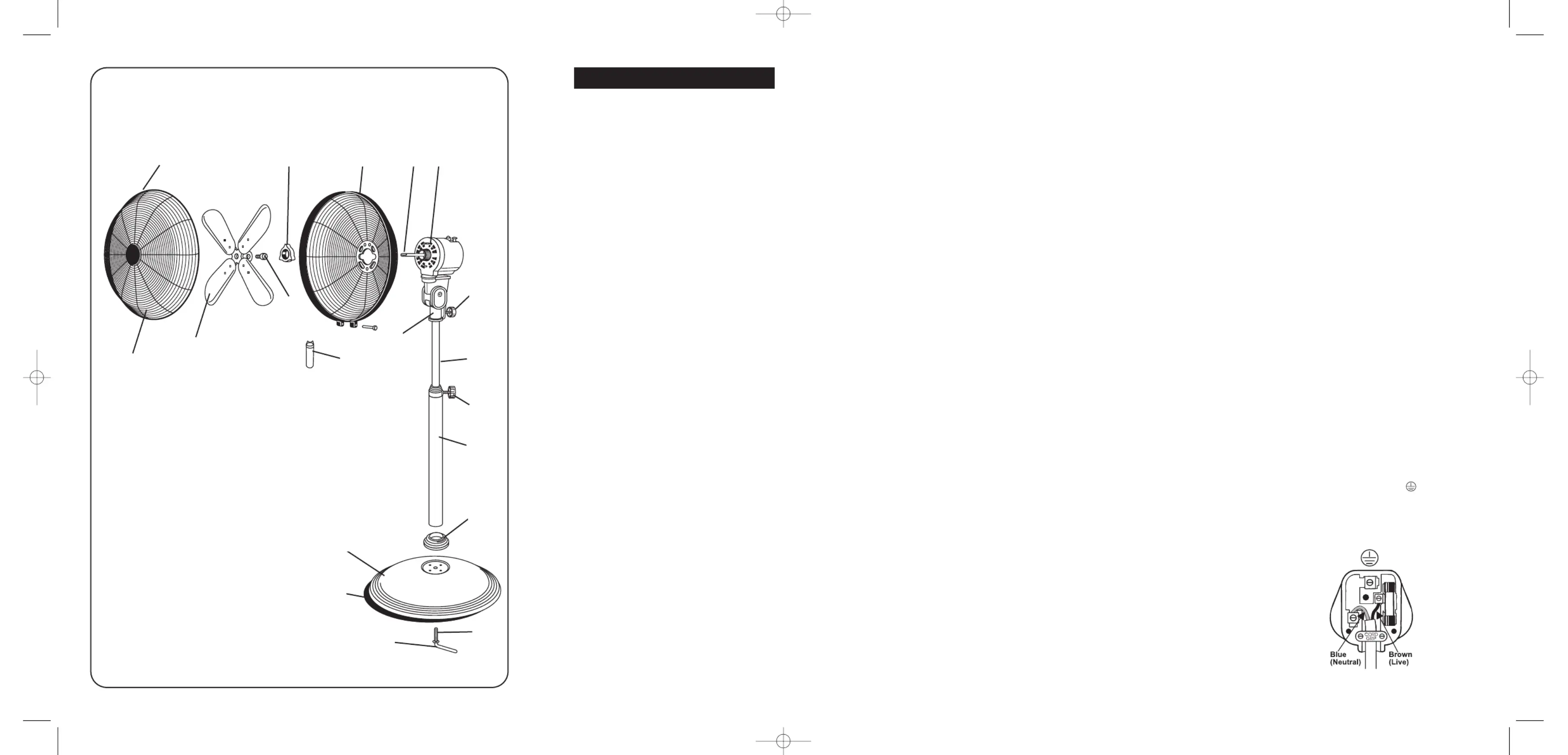

Fig. 1
A
B
I
C
R
DE F G H
J
K
L
M
N
O
P
Q
S
3 amp
BASF1314/1714IUK05EM1.qxd 11/30/05 16:56 Page 4

Produkt Specifikationer

Mærke: Bionaire
Kategori: Ventilatorer
Model: BASF1314
Produktfarve: Sølv
Antal hastigheder: 3
Strømforbrug (typisk): 35 W
Husmateriale: Nikkelstål

Har du brug for hjælp?

Hvis du har brug for hjælp til Bionaire BASF1314 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ventilatorer Bionaire Manualer

Bionaire

Bionaire BASF1415 Manual

5 Oktober 2022
Bionaire

Bionaire BT19 Manual

5 Oktober 2022
Bionaire

Bionaire BT150R Manual

5 Oktober 2022
Bionaire

Bionaire BASF40W Manual

5 Oktober 2022
Bionaire

Bionaire BAC19 Manual

5 Oktober 2022
Bionaire

Bionaire BAC14 Manual

5 Oktober 2022
Bionaire

Bionaire BT18 Manual

5 Oktober 2022
Bionaire

Bionaire BASF1314 Manual

5 Oktober 2022

Ventilatorer Manualer

Nyeste Ventilatorer Manualer

Emerio

Emerio FN-111745.4 Manual

5 Oktober 2022
Honeywell

Honeywell HO-5500RE Manual

5 Oktober 2022
Mesko

Mesko MS 7311 Manual

5 Oktober 2022
Proklima

Proklima FAN-111544.1 Manual

5 Oktober 2022
Honeywell

Honeywell HT-216E Manual

5 Oktober 2022
Nedis

Nedis FNFL11FYW30 Manual

5 Oktober 2022
Honeywell

Honeywell HT-700WBE Manual

5 Oktober 2022
Severin

Severin VL 8630 Manual

5 Oktober 2022
Severin

Severin VL 8632 Manual

5 Oktober 2022
Nedis

Nedis FNTR13CWT40 Manual

5 Oktober 2022
