Blizzard Komply DMX-24 Manual

Blizzard Ikke kategoriseret Komply DMX-24

Læs gratis den danske manual til Blizzard Komply DMX-24 (1 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 20 personer og har en gennemsnitlig bedømmelse på 4.8 stjerner ud af 10.5 anmeldelser. Har du et spørgsmål om Blizzard Komply DMX-24, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/1

I . Main description:

Working temperature: -20-60 Input Supply Voltage: DC12V~24V ℃

External dimension: L 0*W 2*H57 34 14 Output : 24-CMOS open-drain output

Connection mode: common anode

Output current: 2A/channel

II Function:．

2. DMX signal can be received when coding switch FUN (10) = OFF (ON is set 0)

3. When coding switch that FUN (10) is ON, its function is as follows:

Coding switch

Function

switch1-9 is off

black

Switch1=ON

red

Switch2=ON

green

Switch3=ON

blue

Switch4=ON

yellow

Switch5=ON

purple

Switch6=ON

cyan

Switch7=ON

white

Switch8=ON

seven-color jumpy changing (8 step speed)

Switch9=ON

seven-color gradual changing (8 step speed)

4. If coding switch is 8 or 9, from 1 to 7 is the choice for speed, there are 8 steps in all, the description is as follows:

Coding switch

Function

switch1-7 is off

0 steps

Switch1=ON

1 steps

Switch2=ON

2 steps

Switch3=ON

3 steps

Switch4=ON

4 steps

Switch5=ON

5 steps

Switch6=ON

6 steps

Switch7=ON

7 steps (the greatest speed)

5. There are several switches is ON at the same time, the great value is standard.

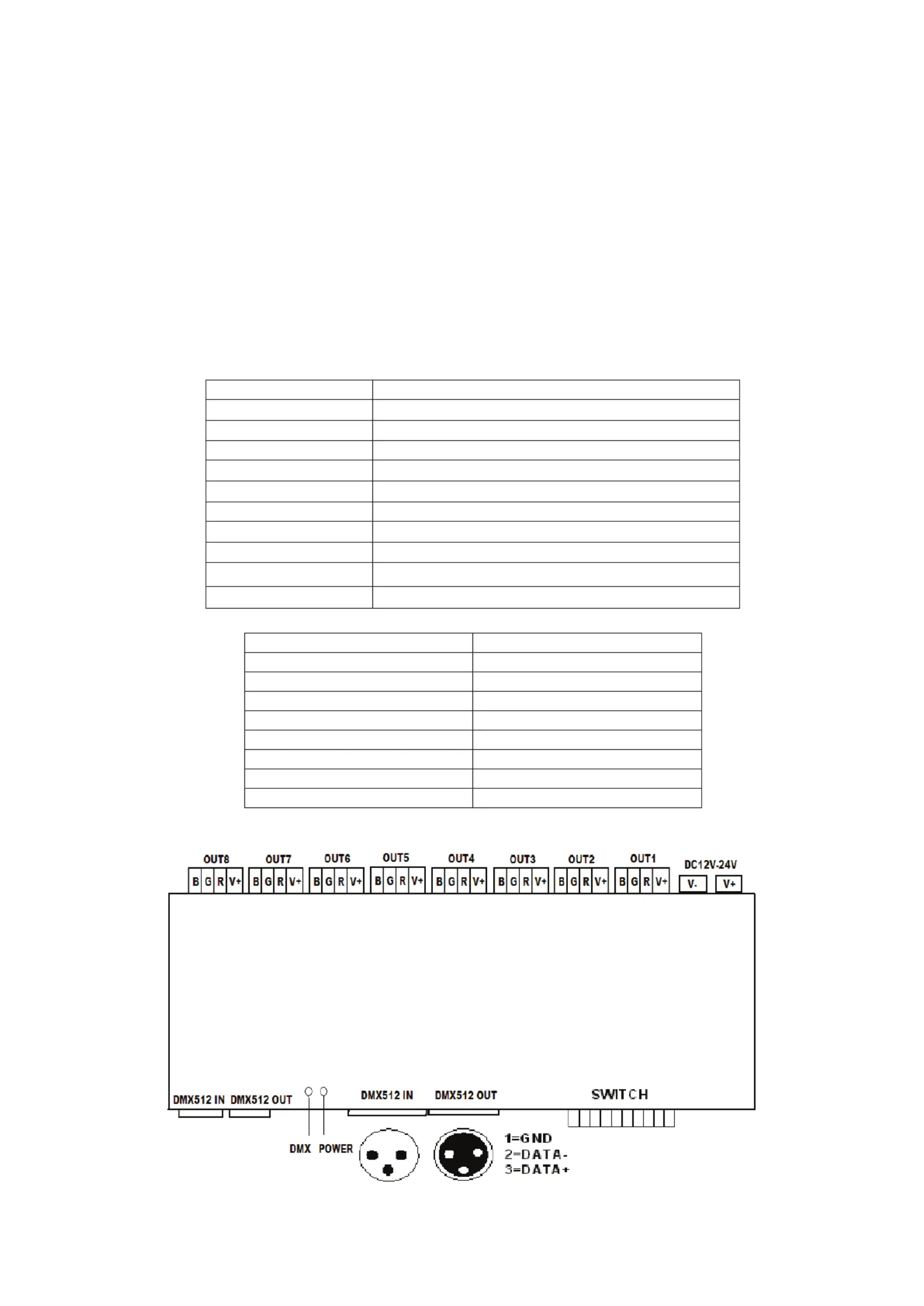

III. Interface diagram:

IV Attention: ．

1. Supply voltage of this product is DC12V~24V，other higher voltages would most probably destroy it.

2. Lead wire should be connected correctly according to colors that connection drawing offers.

Blizzard Lighting - Komply™ DMX-24

24CH DMX512 Decoder

the

Each Komply DMX-24 controller occupies 24 DMX addresses. Each coding switch can set address code from 1

to 9, 1 is the lowest, and 9 is the highest. A combination of 511 address codes are possible. DMX original

address code is the total value of the coding switch value from 1 to 9. Dial the coding switch upward (ON is set

to 1) to set the bit value (by default the bit value is 0). For example: if you want to set 37 as the address code,

you can only dial down the first, the third, and the sixth code switch, the total value of coding switch from 1 to

9 is 32+4+1. The default address code of DMX512 is 37.
