Features

Ceiling Speaker

Grille Assemblies

• 4-watt capacity

• 8" cone speaker for excellent audio quality

• 6 different power taps available (4, 2, 1 1, /2, 1/4, 1/8 W)

• T725 4-watt transformer

• Off-white enamel over steel grille (“W” versions)

• Bright white enamel over steel grille (“U” versions)

• Pre-assembled for faster installation

• Works with both 70V and 25V amplifier outputs

• Available with volume control – recessed or with

knob (VR and VK models only)

• Screw terminals (BR models only)

• 6 oz. or 0 oz. magnet weights1

Specifications subject to change without notice.

54-7777-08A 0808

S86T725PG8WBR

Description

Bogen’s Ceiling Speaker Assemblies consist of an 8" Cone Speaker (S86 or S81 10) pre-assembled onto a 3"

steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assem-

blies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal

strip for power taps (BR).

S86T725PG8WVK

Technical

Specifications

Model

Power Taps

(in Watts)

Frequency

Response

Sensitivity

(4 ft./1W)

Magnet Weight

No Volume

Control

Recessed Volume

Control (VR)

Volume Control

w/Knob (VK)

Screw Terminals

(BR)

Off-White (W)

Bright White (U)

Shipping Weight

(6/Carton)

Dimensions

S86T725PG8W

4, 2, 1 1, /2, /4, /81 1

@ 25 & 70V

50 Hz-

12 kHz

dBspl 6 oz.

●●

27 lb. /

carton

13" Dia x

3-1/4" D

S86T725PG8WVR ● ●

S86T725PG8WVK ● ●

S86T725PG8WBR ● ● ●

28 lb. /

carton

S86T725PG8WBRVR ● ● ●

S86T725PG8WBRVK ●●●

S86T725PG8U ● ●

27 lb. /

carton

S86T725PG8UVR ● ●

S86T725PG8UVK ● ●

S86T725PG8UBR ● ● ●

28 lb. /

carton

S86T725PG8UBRVR ●●●

S86T725PG8UBRVK ● ● ●

S8 0T725PG8W1

70 Hz-

15 kHz

dBspl 10 oz.

● ●

30 lb. /

carton

S810T725PG8WVR ● ●

S810T725PG8WVK ● ●

S8 0T725PG8U1● ●

S810T725PG8UVR ● ●

S810T725PG8UVK ● ●

S86T725PG8W & Variations The loudspeaker assembly shall be a Bogen model S86T725PG8W (or

S86T725PG8WVR S86T725PG8WVK S86T725PG8WBR S86T725PG8WBRVR, , , , or

S86T725PG8WBRVK), or equivalent, 8" cone-type loudspeaker, having a frequency response of at least 50

Hz to 12 kHz. Axial sensitivity shall be 95 dB, measured at -watt/4 feet. The loudspeaker shall have a 6 oz.1

ceramic magnet and a 3/4" voice coil. A transformer, capable of matching an 8-ohm loudspeaker to a 25-volt or

70-volt line, and providing power taps of 4, 2, 1 1, /2, 1/4, and /8 watts shall be included. The loudspeaker shall1

be assembled on a 3" steel ceiling grille, finished in off-white semi-gloss enamel. Assembly depth shall be 3-1 1/4".

(For S86T725PG8WVR add) A recessed volume control shall be included.

(For S86T725PG8WVK add) A volume control knob shall be accessible from the front of the grille.

(For S86T725PG8WBR add) A terminal strip shall be included for connection of the audio line.

(For S86T725PG8WBRVR add) A terminal strip shall be included for connection of the audio line.

A recessed volume control shall be included.

(For S86T725PG8WBRVK add) A terminal strip shall be included for connection of the audio line. A vol-

ume control knob shall be accessible from the front of the grille.

S86T725PG8U & Variations The loudspeaker assembly shall be a Bogen model (orS86T725PG8U

S86T725PG8UVR S86T725PG8UVK S86T725PG8UBR S86T725PG8UBRVR, , , , or

S86T725PG8UBRVK), or equivalent, 8" cone-type loudspeaker, having a frequency response of at least 50

Hz to 12 kHz.Axial sensitivity shall be 95 dB, measured at 1-watt/4 feet.The loudspeaker shall have a 6 oz.ceram-

ic magnet and a 3/4" voice coil.A transformer, capable of matching an 8-ohm loudspeaker to a 25-volt or 70-volt

line, and providing power taps of 4, 2, ,1 1/2, 1/4, and 1/8 watts shall be included.The loudspeaker shall be assem-

bled on a 3" steel ceiling grille, finished in bright white semi-gloss enamel. Assembly depth shall be 3-1 1/4".

(For S86T725PG8UVR add) A recessed volume control shall be included.

(For S86T725PG8UVK add) A volume control knob shall be accessible from the front of the grille.

(For S86T725PG8UBR add) A terminal strip shall be included for connection of the audio line.

(For S86T725PG8UBRVR add) A terminal strip shall be included for connection of the audio line.

A recessed volume control shall be included.

(For S86T725PG8UBRVK add) A terminal strip shall be included for connection of the audio line. A volume

control knob shall be accessible from the front of the grille.

S810T725PG8W & Variations The loudspeaker shall be a Bogen model S810T725PG8W (or

S8 S810T725PG8WVR, or 10T725PG8WVK), or equivalent, 8" cone-type loudspeaker, having a frequen-

cy response of at least 70 Hz to 5 kHz. Axial sensitivity shall be 96 dB, measured at -watt/4 feet. The loud-1 1

speaker shall have a 0 oz. ceramic magnet and a " voice coil. A transformer, capable of matching an 8-ohm1 1

loudspeaker to a 25-volt or 70-volt line, and providing power taps of 4, 2, 1 1, /2, 1/4, and /8 watts shall be1

included. The loudspeaker shall be assembled on a 3" steel ceiling grille, finished in off-white semi-gloss enamel.1

Assembly depth shall be 3-1/4".

(For S810T725PG8WVR add) A recessed volume control shall be included.

(For S810T725PG8WVK add) A volume control knob shall be accessible from the front of the grille.

S810T725PG8U & Variations The loudspeaker shall be a Bogen model S810T725PG8U (or

S8 S810T725PG8UVR, or 10T725PG8UVK), or equivalent, 8" cone-type loudspeaker, having a frequency

response of at least 70 Hz to 5 kHz. Axial sensitivity shall be 96 dB, measured at -watt/4 feet. The loudspeaker1 1

shall have a 0 oz. ceramic magnet and a " voice coil. A transformer, capable of matching an 8-ohm loudspeaker1 1

to a 25-volt or 70-volt line, and providing power taps of 4, 2, 1 1, /2, 1/4, and /8 watts shall be included. The1

loudspeaker shall be assembled on a 3" steel ceiling grille, finished in bright white semi-gloss enamel. Assembly1

depth shall be 3-1/4".

(For S810T725PG8UVR add) A recessed volume

control shall be included.

(For S810T725PG8UVK add) A volume control

knob shall be accessible from the front of the grille.

Architect

and Engineer

Specifications

50 Spring Street, Ramsey, NJ 07446, U.S.A.

Tel: 201-934-8500; FAX: 20 -934-9832; www.bogen.com1

Ceiling Speaker

Assembly

Variations

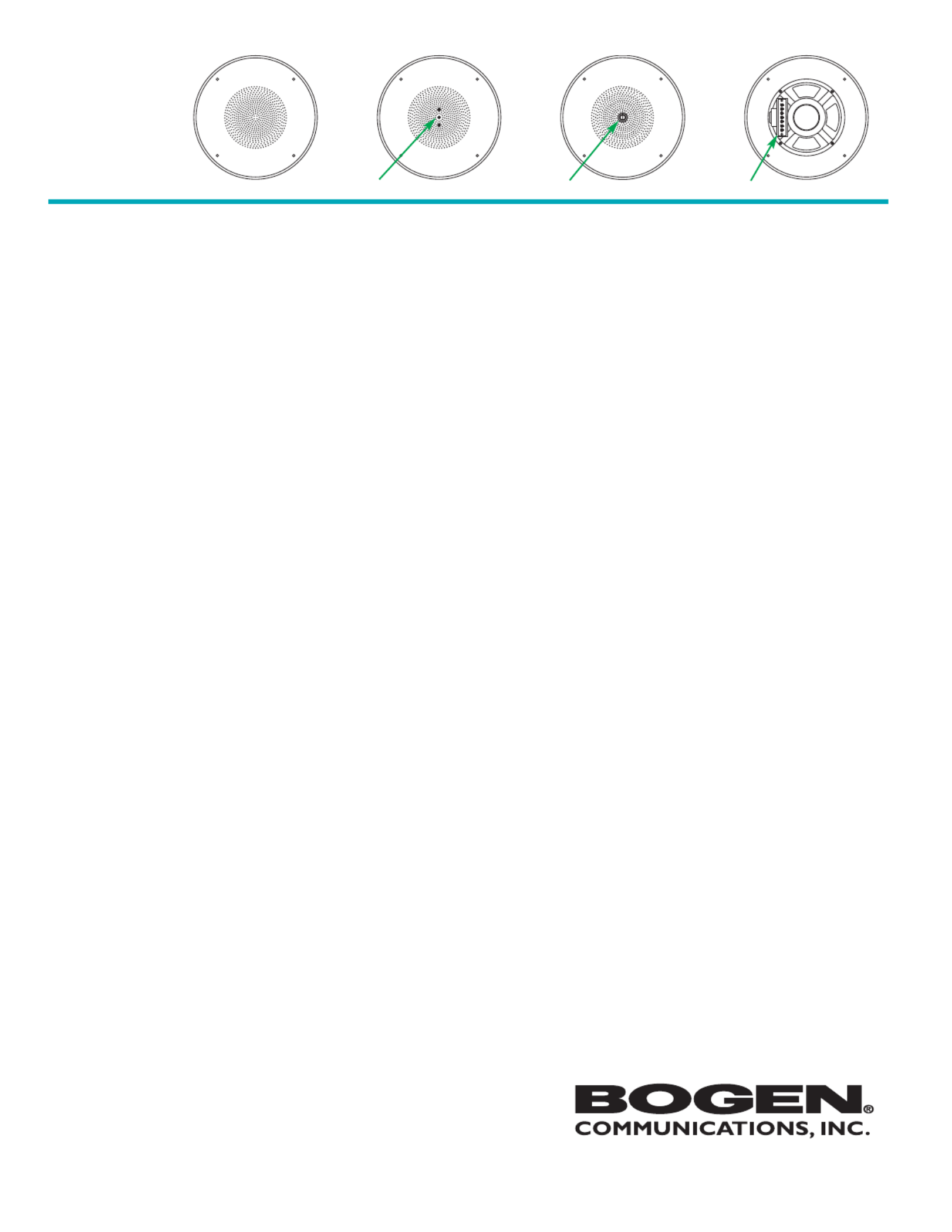

No Volume Control RecessedVolume Control - (VR suffix) Volume Control Knob - (VK suffix) Screw Terminal Strip - (BR suffix)

Rear View
