Side 1/12

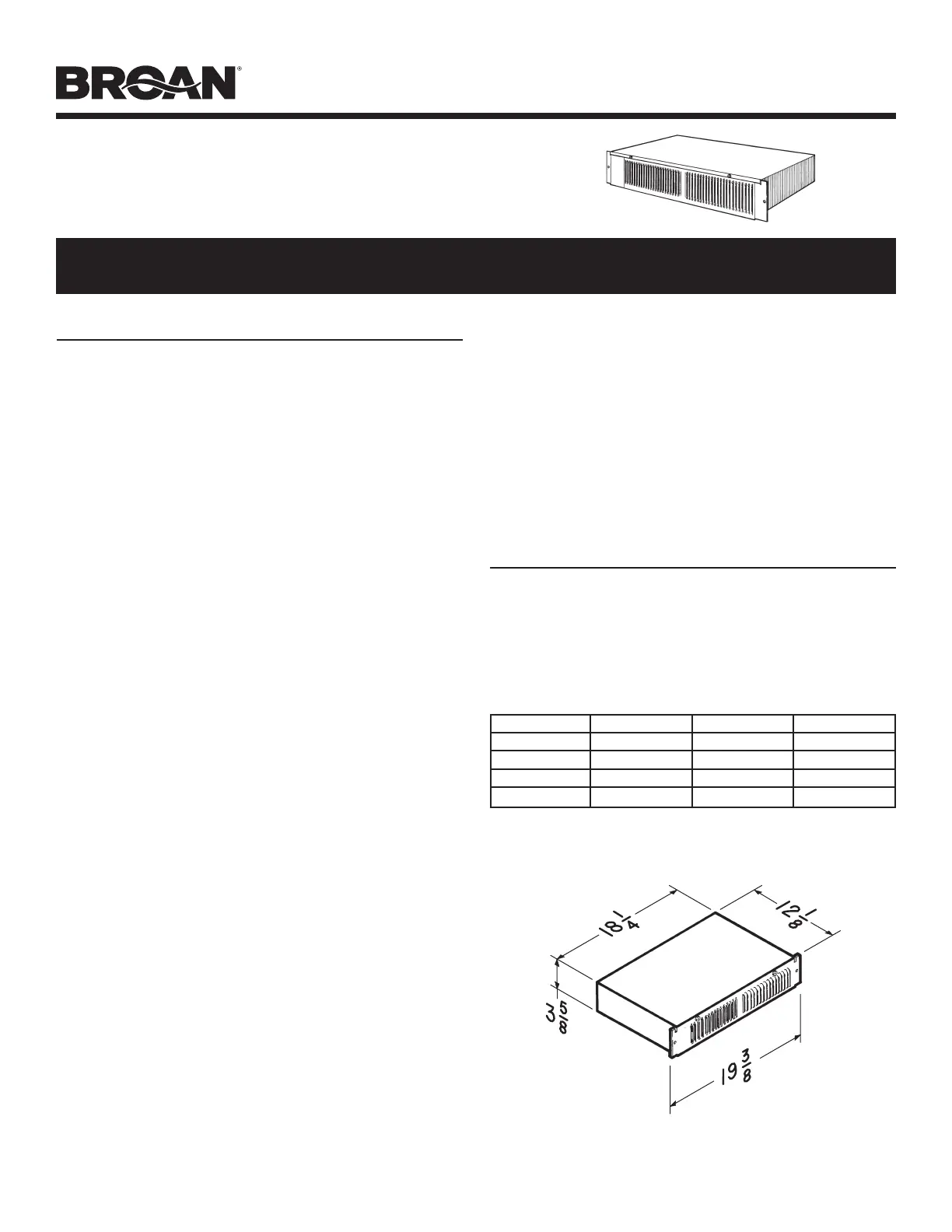

Page 1

MODEL 114

KICKSPACE HEATER

Factory Wired 240/208 V.A.C.

READ AND SAVE THESE INSTRUCTIONS

VOLTS WATTS AMPS BTU/HR

240 1500 6.3 5120

208 1125 5.4 3840

120* 1500 12.5 5120

120* 750 6.3 2560

PLANNING

This heater is designed for installation in an enclosed space such

as under a counter or kickspace to provide warm, gentle heat at

the floor level. Reread Safety Notes 3 through 8 for guidelines in

planning the installation.

The Model 114 is factory wired for 240/208 V.A.C. operation. It offers

a choice of heat outputs and can be internally connected for multiple

wattages at different voltages shown in the table below.

All ratings are 1‑Phase, 60 Hertz.

*See “FIELD CONVERSION TO 120 V.A.C.” section.

IMPORTANT INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE

INSTALLING OR USING THIS HEATER.

To reduce the risk of fire, electric shock, or injury to persons,

observe the following:

1. Use this unit only in the manner intended by the manufacturer.

If you have questions, contact the manufacturer at the address

or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service

panel and lock the service disconnecting means to prevent

power from being switched on accidentally. When the service

disconnecting means cannot be locked, securely fasten a

prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a

qualified person(s) in accordance with all applicable codes

and standards, including fire‑rated construction codes and

standards.

4. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

5. This heater is hot when in use. To avoid burns, do not let bare

skin touch hot surfaces. Keep combustible materials, such as

furniture, pillows, bedding, papers, clothes, etc. and curtains at

least 3 feet (0.9 m) from the front of the heater.

6. Extreme caution is necessary when any heater is used by

or near children or invalids and whenever the heater is left

operating and unattended.

7. Do not operate any heater after it malfunctions. Disconnect

power at service panel and have heater inspected by a

reputable electrician before reusing.

8. Do not use outdoors.

9. To disconnect heater, turn controls to off, and turn off power

to heater circuit at main disconnect panel (or operate internal

disconnect switch, if provided).

10. Do not insert or allow foreign objects to enter any ventilation or

exhaust opening, as this may cause an electric shock or fire, or

damage the heater.

11. To prevent a possible fire, do not block air intakes or exhaust in

any manner.

12. A heater has hot and arcing or sparking parts inside. Do not

use it in areas where gasoline, paint, or flammable vapors or

liquids are used or stored.

13. Use this heater only as described in this manual. Any other use

not recommended by the manufacturer may cause fire, electric

shock, or injury to persons.

14. To avoid electrical shock: Do not install unit in a tub or shower

enclosure or any location where it may come in contact with

water. Never place a switch where it can be reached from a tub

or shower.

15. Do not connect heater to dimmer switch or speed control.

16. Do not install heater upside down or sideways. Heater must be

located in the horizontal position.

17. Do not recess louvered face of the heater more than three inches

from the vertical face of any overhang (cabinet).

18. Provide this heater with a separate electrical circuit following

directions under “Wiring” section.

19. This product is equipped with a thermostat which may start it

automatically. Turn off power at service entrance before cleaning

or servicing.

20. This heater includes a visual alarm to warn that parts are getting

excessively hot. If the alarm lights are activated, immediately

turn the heater off and inspect for any objects on or adjacent

to the heater that may cause high temperatures.

21. This product must be grounded.

SAVE THESE INSTRUCTIONS

Cutout dimension: 18‑3/8” x 3‑5/8”

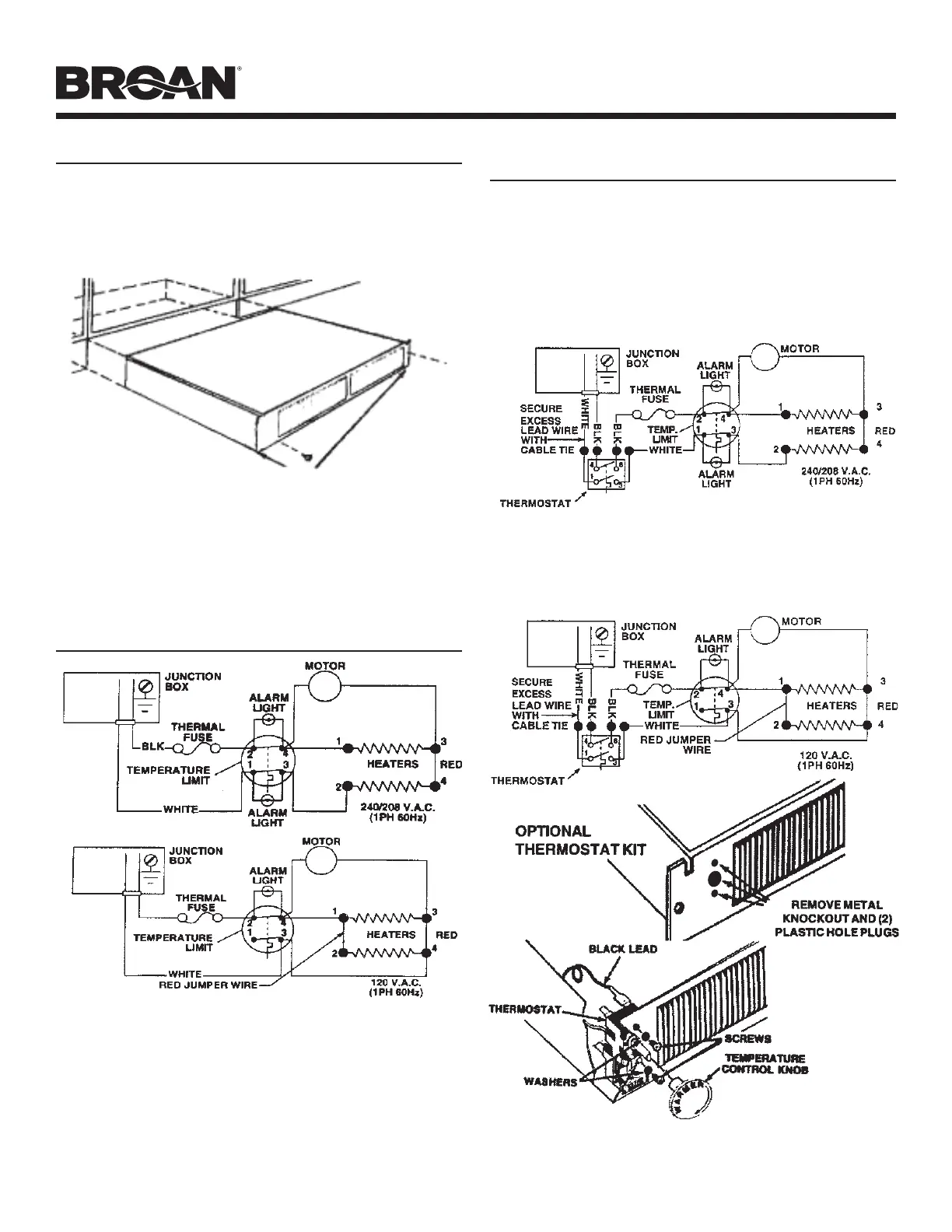

Page 2

MODEL 114

INSTALLATION

WARNING: To reduce the risk of fire, do not store or use gaso-

line or other flammable vapors and liquids in the vicinity of

the heater.

CAUTION: High temperature, risk of fire, keep electrical cords,

drapery, furnishings, and other combustibles at least 3 feet (0.9

m) from the front of the heater and away from the side and rear.

1. Mark the intended mounting location in the base plate under the

counter or kickspace, and remove required material to provide

for easy insertion and removal of the heater cabinet.

2. The unit will be secured in place with screws through the side

angle support brackets. Provide adequate material behind side

angle support for secure mounting.

FIELD CONVERSION TO 120 V.A.C.

If a 120 V.A.C. circuit is to be used, make wiring changes as follows:

1. Disconnect white wire from heater element terminal “2” and

connect it to terminal “4.” The heater will now operate at 120

V.A.C., 750W, 6.3A.

2. For 120 V.A.C, 1500W, 12.5A operation, add the short red jumper

wire (provided) between terminals “1” and “2”.

3. Remove alarm light wire leads from terminals “1” and “3” of

the high temperature limit. Remove white wire lead from limit

terminal “1” and reconnect at limit terminal “3”. Secure wire leads

with wire tie so there is no interference with unit operation.

NOTE: Terminal numbers are marked on the side of the blower

housing, above the heater elements.

THERMOSTAT INSTALLATION

NOTE: The thermostat control circuit must be wired prior to the

wiring of the heater unit.

This heater may be thermostatically controlled by either a line volt‑

age wall‑mounted thermostat (Model 86W), or an optional built‑in

thermostat accessory kit (Model 90). Model 90 thermostat kits are

designed for easy installation with this heater. Instructions for in‑

stalling thermostats are provided below and are also supplied with

each thermostat kit.

OPTIONAL LINE VOLTAGE WALL-MOUNT THERMOSTAT

1. Locate thermostat on an inside wall away from all drafts and

approximately 4‑5 feet above the floor.

2. Route all wiring through the thermostat first and then to the

heater.

OPTIONAL (MODEL 90) UNIT-MOUNT THERMOSTAT

1. Remove the top cover from the heater.

2. Remove the 5/8” knockout located on the left side of the front

panel (use a screwdriver to remove the knockout). Also remove

the two plastic hole plugs (see illustration).

SIDE ANGLE

SUPPORT BRACKETS
