INSTALLATION INSTRUCTIONS

READ & SAVE THESE INSTRUCTIONS!

Wall Heaters

9810WH, 9815WH SERIES

READ ALL INSTRUCTIONS BEFORE INSTALLING OR

USING THIS HEATER.

To reduce the risk of fire, electric shock, or injury to persons,

observe the following:

1. Use this unit only in the manner intended by the

manufacturer. If you have questions, contact the

manufacturer at the address or telephone number listed

in the warranty.

2. Before servicing or cleaning unit, switch power off at

service panel and lock the service disconnecting means

to prevent power from being switched on accidentally.

When the service disconnecting means cannot be

locked, securely fasten a prominent warning device,

such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by

a qualified person(s) in accordance with all applicable

codes and standards, including fire-rated construction

codes and standards.

4. When cutting or drilling into wall or ceiling, do not damage

electrical wiring and other hidden utilities.

5. This heater is hot when in use. To avoid burns, do not

let bare skin touch hot surfaces. Keep combustible

materials, such as furniture, pillows, bedding, papers,

clothes, etc. and curtains at least 3 feet (0.9 m) from the

front of the heater.

6. Extreme caution is necessary when any heater is used

by or near children or invalids and whenever the heater

is left operating and unattended.

7. Do not operate any heater after it malfunctions.

Disconnect power at service panel and have heater

inspected by a reputable electrician before reusing.

8. Do not use outdoors.

9. To disconnect heater, turn controls to off, and turn off

power to heater circuit at main disconnect panel (or

operate internal disconnect switch, if provided).

10. Do not insert or allow foreign objects to enter any

ventilation or exhaust opening, as this may cause an

electric shock or fire, or damage the heater.

11. To prevent a possible fire, do not block air intakes or

exhaust in any manner.

12. A heater has hot and arcing or sparking parts inside. Do

not use it in areas where gasoline, paint, or flammable

vapors or liquids are used or stored.

13. Use this heater only as described in this manual. Any

other use not recommended by the manufacturer may

cause fire, electric shock, or injury to persons.

14. Install heater at least 6 inches from floor or any adjacent

wall.

15. To avoid electrical shock: Do not install unit in a tub or

shower enclosure or any location where it may come in

contact with water. Never place a switch where it can be

reached from a tub or shower.

16. This product may ONLY be installed vertically in a wall.

Do not mount in any other position.

17. Do not connect heater to dimmer switch or speed control.

18. This product must be grounded.

SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS

SAFETY INSTRUCTIONS

• Carefully read all instructions and product labels before

beginning installation.

• Only mount the heater in a vertical position.

• Mount the heater at least 6” above the finished floor.

• Do not mount the heater over a bathtub or in a shower stall

enclosure.

• When mounted, the heater should not be closer than

12” to an adjacent wall.

• Do not block the wall heater — i.e., by mounting under a

towel rack, behind a door, etc.

ELECTRICAL SPECIFICATIONS

NOTE: See wiring label on heater housing. The heater

may be wired for either 120V or 240V operation and

requires a separate circuit.

UNIT DIMENSIONS

Housing: 12

/2” high x 10

/2” wide x 3

/8” deep.

Grille: 14

/4” high x 11

” wide x 1” deep.

Wall Cutout: 12

/8” high x 10

/8” wide.

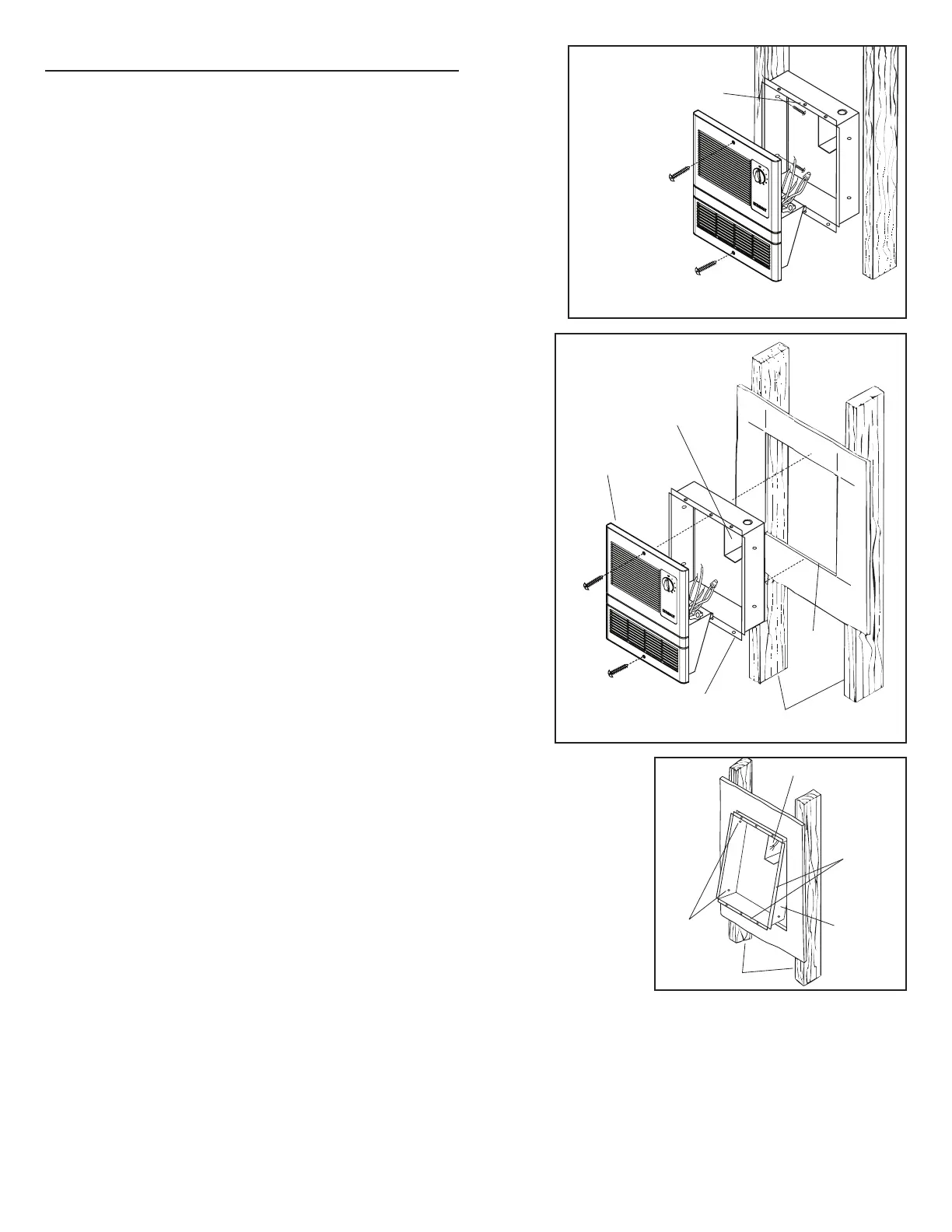

FIGURE 2

MOUNTING THE HOUSING

(New Construction)

Refer to Figure 1.

1. Choose heater location. Make sure the heater will not be

mounted closer than 12” from a vertical surface or 6”

from

the floor.

2. Using nails or screws, mount one side of housing to wall

stud. The flange must be flush to the stud.

3. Run wiring from circuit breaker or fuse box to heater

location.

4. Install box connector into wiring entrance hole in housing’s

junction box.

5. Pull wiring through entrance hole and secure cable to box

connector. Allow 6” of wiring to make connections.

6. Finished wall opening should be 12

/8” high x 10

/8” wide.

JUNCTION BOX

ROUGH-IN FRAME

WALL

CUTOUT

WALL STUDS

←

”

→

← 12

/8” →

FIGURE 1

EXISTING

CONSTRUCTION

NEW CONSTRUCTION

MOUNTING THE HOUSING

(Existing Construction)

1. Choose heater location. Make sure the heater will not be

mounted closer than 12” from a vertical surface or 6”

from the floor.

2. Refer to Figure 2. Make wall cutout next to a wall stud.

Cutout size: 12

/8” high x 10

/8” wide.with frame.)

3. Run wiring from circuit breaker or fuse box to heater

location.

4. Install box connector into wiring entrance hole in housing’s

junction box.

5. Pull wiring through cutout and secure cable to box

connector. Allow 6” of wiring to make connections.

6. Refer to Figure 3. Insert TOP of housing into cutout first

so that box connector clears the wall. Then, insert bottom

of housing into cutout. The flange must be flush with the

wall.

7. Use nails or screws to mount one side of housing to wall

stud.

FIGURE 3

WALL STUDS

JUNCTION BOX

HEATER ASSMBLY

FLANGE

MOUNTING

HOLES

ROUGH-IN

BOX

“B” UNIT MOUNTING HOLE

- TOP AND BOTTOM

INSTALLATION

WARNING: To reduce the risk of fire, do not store or use

gasoline or other flammable vapors and liquids in the

vicinity of the heater.

CAUTION: High temperature, risk of fire, keep electrical

cords, drapery, furnishings, and other combustibles at

least 3 feet (0.9 m) from the front of the heater and away

from the side and rear.
