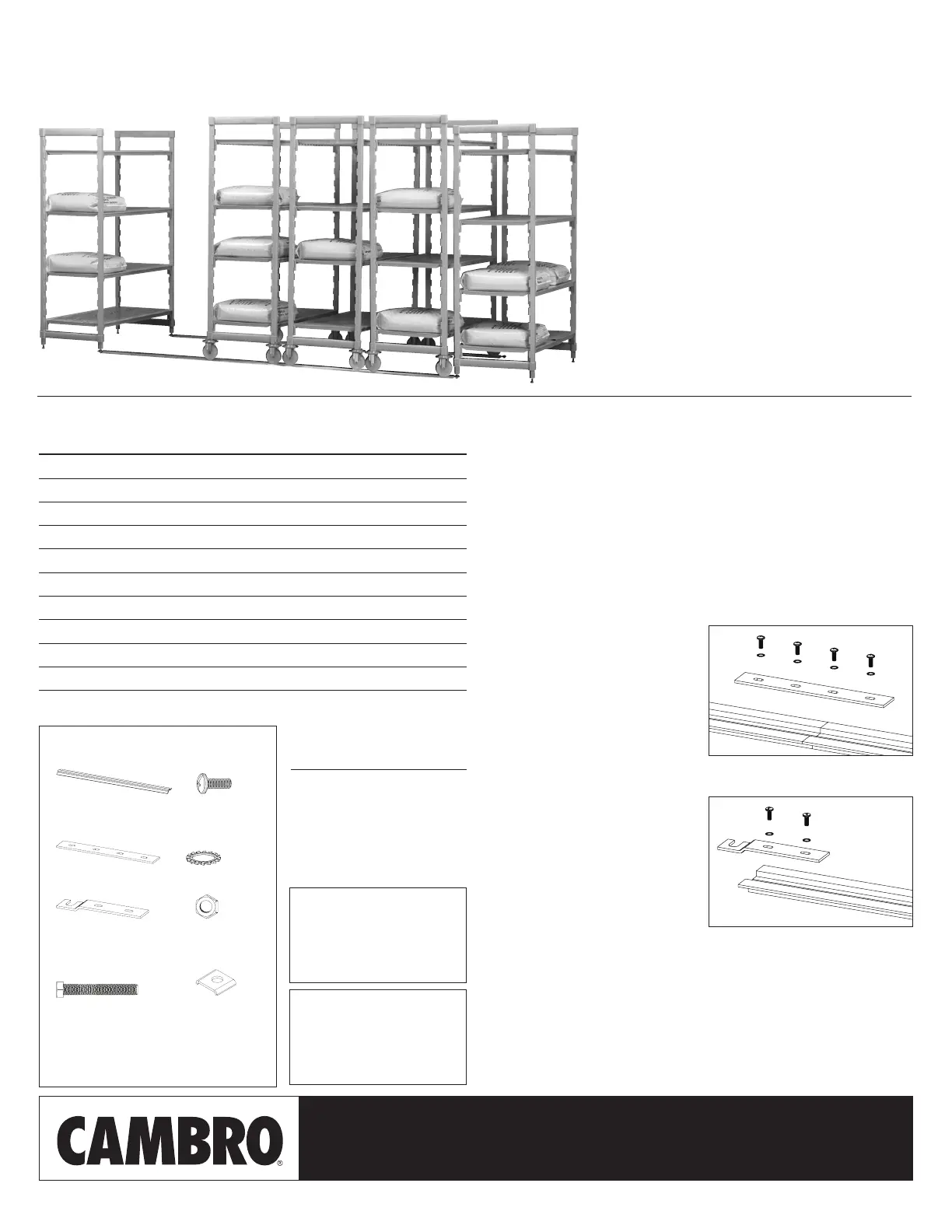

CAMSHELVING

HIGH DENSITY STORAGE SYSTEM

Assembly Instructions, Product Line & General Usage Guide

NOTICE: Follow instructions included with

Camshelving Starter Units to build Stationary

and High Density Mobile Starter Units. Use a

Rubber Mallet ONLY to secure Traverses and

Casters onto Camshelving Units. Do NOT use

hard plastic or metal mallets, as they may

cause product damage.

NOTE: ALL Camshelving Units MUST BE 24"

(61 cm) wide only to provide stability. Unit

length may be 36" (91 cm), 42" (107 cm)

or 48" (122 cm) maximum. Select 64" (163

cm) or 72" (183 cm) high Stationary Starter

Units and 67" (170 cm) or 75" (191 cm) high

Mobile Starter Units.

PARTS CHECKLIST

CSHDTK10

10' (3,05 m)

Track Kit

CSHDTK12

12' (3,66 m)

Track Kit

CSHDTK145

14.5' (4,42 m)

Track Kit

4.5' (1,38 m) Track Rail – – 2

5' (1,53 m) Track Rail 4 – 4

6' (1,83 m) Track Rail – 4 –

Track Rail Joiner 2 2 4

Track Rail Stationary End Plate 4 4 4

Pan Head Screw 16 16 24

Star Washer 16 16 24

Stainless Steel Leveling Foot 8 8 8

Track Rail Stationary Plate Cap 4 4 4

½" (1,3 cm) Hex Nut 4 4 4

Total Pieces 58 58 78

All specs are subject to change without prior notice.

High Density Camshelving

Storage System

Track Kits

CSHDTK10 10' (3,05 m) Track Kit for

3 Mobile Units

CSHDTK12 12' (3,66 m) Track Kit for

4 Mobile Units

CSHDTK145 14.5' (4,42 m) Track Kit for

5 Mobile Units

The High Density Camshelving Storage System utilizes all available

space by eliminating aisles. Increases storage capacity by 30% - 40%.

High Density Camshelving is easy to order and assemble. Camshelving

Stationary Units act as the system anchor. High Density Mobile Units

with exclusive High Density Casters and Track Kits complete the system.

2009 Cambro Manufacturing Company 5801 Skylab Road, Huntington Beach, CA 92647-2056, U.S.A.

Telephone 714 848 1555 Toll Free 800 854 7631 Customer Service Hot Line 800 833 3003 Printed in USA

1. Before you begin to assemble, please refer to the parts checklist to identify and count all of

the parts. If anything is missing, please contact your Cambro Sales Representative, or Cambro

Customer Service at 1-800-833-3003 or 1-714-848-1555 to request missing parts.

2. Lay out sections of track rail end to end with the groove side up, to form two tracks of equal

length.

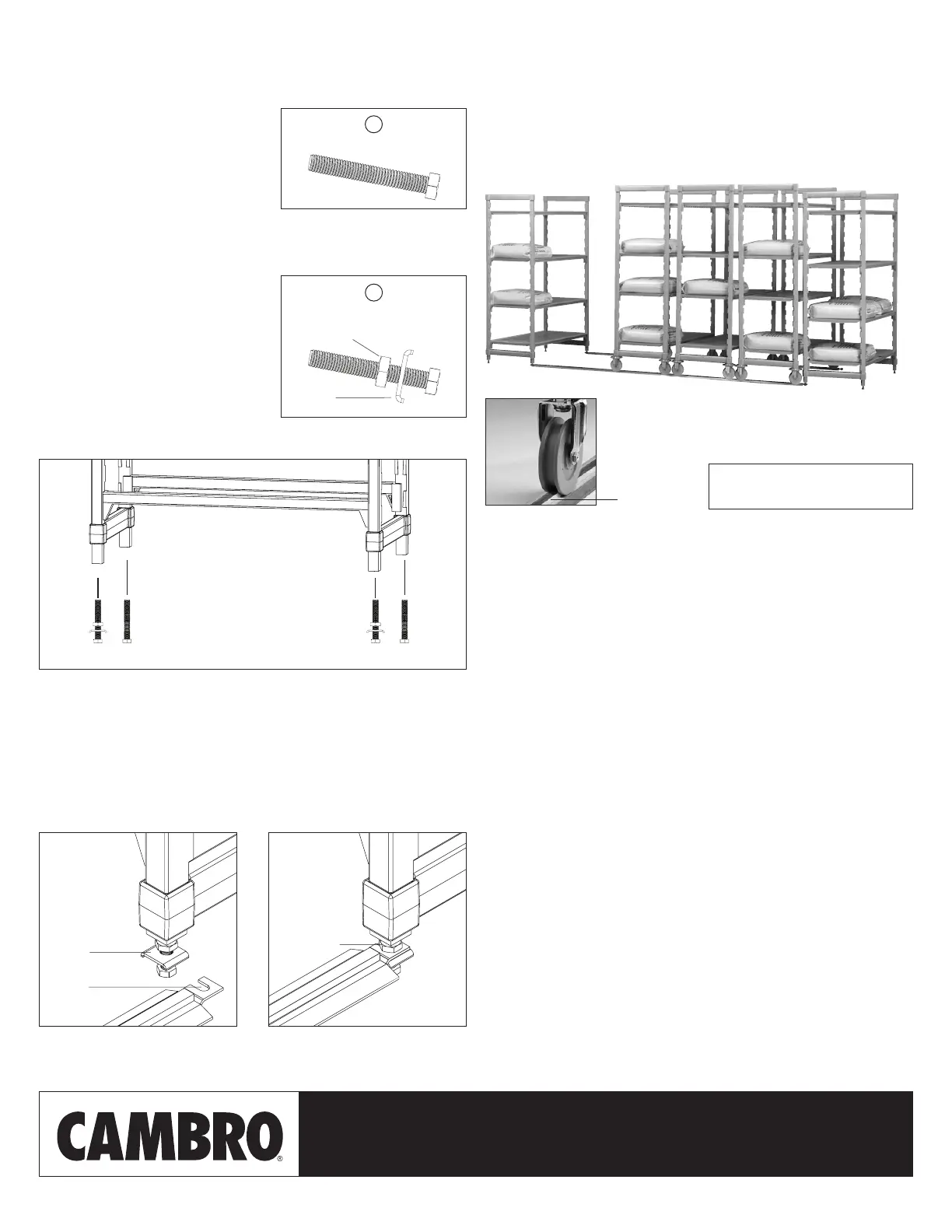

High Density Camshelving

Storage System Assembly Instructions

3. Secure Track Rails together using Track

Rail Joiners. Place a Track Rail Joiner down

into the groove and line it up with the screw

holes in the Track Rails. Secure 4 each Pan

Head Screws and Star Washers using a

Phillips Head Screwdriver. Repeat for 2

set.

(See Fig. 1)

Fig. 1

4. Attach one Track Rail Stationary End Plate,

at each end of run of track. Place each

Track Rail Stationary End Plate down into

the groove, and line it up with the screw

holes in the Track Rails. Secure 2 each

Pan Head Screws and Star Washers using

a Phillips Head Screwdriver. Repeat for 2

set. (See Fig. 2)

Fig. 2

6. Assemble two each Camshelving Stationary Starter Units per instructions included with each

unit. Carefully lay each unit on its side and unscrew and remove the plastic leveling feet.

5. Flip Track Rails over so raised Caster Rail Guide is facing upwards. Place the tracks parallel,

the proper distance apart, and in the intended location.

Track Rail

Stationary End Plate

⁄2" (1,3 cm

Hex Nut

Pan Head ScrewTrack Rail 4.5' (1,38 m),

5' (1,53 m), 6' (1,83 m)

Track Rail

Stationary Plate Cap

Stainless Steel

Leveling Foot

Track Rail Joiner Star Washer

PARTS DESCRIPTION

Tools Required: Phillips Head Screwdriver,

Crescent Wrench, Rubber Mallet

This Side Up

10. Assemble High Density Camshelving Mobile Units per instructions included in each kit.

Carefully lift and place each High Density Mobile Camshelving Unit (requires 2 people) onto

the tracks, ensuring the casters roll smoothly on each raised Track Guide.

11. Finish by adding Shelf Plates to Stationary and Mobile Units.

9. Place a Stationary Unit at each end of the track with the front facing the tracks. Adjust all of

the leveling feet so the unit sits flat on the floor surface. Slide the Track Rail Stationary End

Plate underneath the Track Rail Stationary Plate Cap (See Fig. 6). Secure in place and tighten

the

⁄2" (1,3 cm) Hex Nuts with a Crescent Wrench. This secures the Stationary Unit to the

tracks. (See Fig. 7).

Stationary Unit, Front

Track Rail Stationary

Plate Cap

Track Rail Stationary

End Plate

Fig. 6

⁄2" Hex Nut

Fig. 7

High Density Camshelving

Storage System Assembly Instructions

7. Screw in two Stainless Steel Leveling Feet (See

Fig. 3) to the back of each unit. (As shown in

Fig. 5)

Back Leveling Foot

Fig. 3

8. Place one Track Rail Stationary Plate Cap, with

the curved ends facing down to the base of the

foot, onto a Stainless Steel Leveling Foot. Add a

⁄2" (1,3 cm) Hex Nut. (See Fig. 4) Repeat for the

2nd Stainless Steel Leveling Foot. Screw each

one into the posts on the front of the unit. (See

Fig. 5) IMPORTANT: Do not adjust or tighten at

this time.

Fig. 4

½" Hex Nut

Track Rail Stationary

Plate Cap

Front Leveling Foot

A AB B

Fig. 5

MAXIMUM WEIGHT BEARING CAPACITY

Camshelving Stationary Units

24" (61 cm) Wide x 36" (91 cm), 42" (107 cm),

48" (122 cm) Long x 64" (163 cm) or 72" (183cm) High

800 lbs. per shelf

3200 lbs. per unit

High Density Camshelving Mobile Units with High Density Casters

750 lbs. (340 kg) per unit.

WARNING: DO NOT EXCEED maximum weight bearing capacity.

General Manufacturer’s Warranty

Cambro warrants to the original buyer a three-year pro-rated guarantee. If product proves

defective during this time, Cambro grants a pro-rated credit of the original price toward

replacement product. The warranty applies on all Cambro products only when used under

normal food service industry conditions.

Cleaning and Maintenance

Wipe clean with damp cloth.

UMHDTK

DURABILITY THAT MAKES A DIFFERENCE

Telephone 714 848 1555 Toll Free 800 854 7631 Customer Service Hot Line 800 833 3003 Printed in USA

MC_D11086 HD shelving Manual_1208 (US)

All specs are subject to change without prior notice.

CAUTION: Two people are required to lift

Mobile Unit onto Track Guide.

Track Guide
