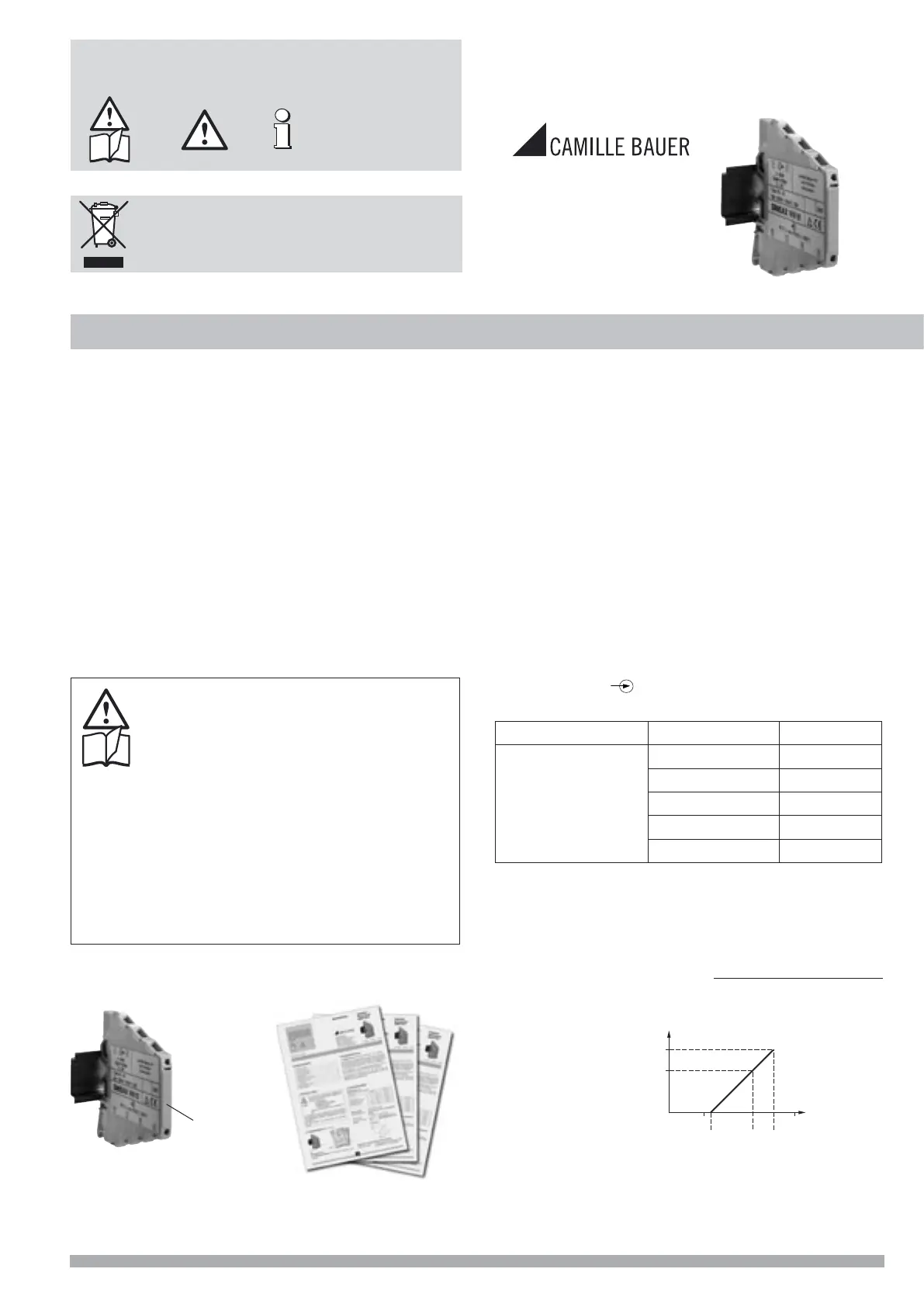

Side 1/4
Fig. 1
Transmitter (1)
1 Operating Instructions (2) each in German, French and
English
Open and short-circuit sensor circuit supervision
Signalling mode: Output signal at open and short-circuit
sensor circuit on 21.6 mA
V 610 Be 151 952-01 08.05
2. Scope of supply (Figs. 1 and 2)
Contents
1. Read first and then … .......................................................1
2. Scope of supply .................................................................1
3. Brief description .................................................................1
4. Technical data ....................................................................1
5. Mounting ............................................................................2
6. Electrical connections ........................................................2
7. Commissioning ..................................................................3
8. Maintenance .......................................................................3
9. Releasing the transmitter ...................................................3
10. Dimensional drawings ........................................................4
11. Declaration of conformity ...................................................4
3. Brief description
The is a two-wire transmitter. SINEAX V 610
It is used for measuring temperature in conjunction with a
resistance thermometer. Thermocouple non-linearities are au-
tomatically compensated. The output signal is a current in the
range 4 … 20 mA.
The sensor circuit is monitored for open and short-circuits and
the output responds in a defined manner if one is detected.
The power supply of 12…30 V DC is connected together with
the signal by the two leads connected to the measurement
output (loop powered).
(1)
4. Technical data
Measuring input
Input variable and measuring range
Input variables Measuring ranges Order No.
Temperatures with
resistance thermometers
for wire connectionthree-
Pt 100, IEC 60 751
0 100 °C 154 823
0 150 °C 154 831
0 200 °C 154 849
30 … + 70 ºC 154 857
– 50 … + 150 °C 154 865
Measuring output (output/powering circuit)
Output signal IA: Impressed DC current,
linear with temperature
Standard range: 4…20 mA, 2-wire technique
External resistance R ext max. =Power supply [V] – 12 V
(load): [k ] Max. output current [mA]
900
12 24
36
0
600
Load max. [ ] with
20 mA output
Power supply [V]
30
10
Subject to change without notice
Temperature
Transmitter
SINEAX V610
The following symbols in the Operating Instructions indicate safety
precautions which must be strictly observed:
Camille Bauer LTD
Aargauerstrasse 7
CH-5610 Wohlen/Switzerland
Phone +41 56 618 21 11
Fax +41 56 618 35 35
e-mail: info@camillebauer.com
http://www.camillebauer.com
Operating Instructions
The instruments must only be disposed of in the
correct way!
1. Read first and then …
The proper and safe operation of the device as-
sumes that the Operating Instructions are read
and the safety warnings given in the various
Sections
5. Mounting
6. Electrical connections
7. Commissioning
are .observed
The device should only be handled by appropriately trained
personnel who are familiar with it and authorised to work in
electrical installations.
Unauthorized repair or alteration of the unit invalidates the
warranty!
Fig. 2
6. Electrical connections
The leads are connected to the screw terminals for max. 0 to
4mm2 (single wire) and 0 to 2.5 mm2 (fine wire) on the front of
the transmitter. The applicable enclosure Protection Class for
the terminals is IP 20 according to EN 60 529.
Also note that, ...
... the data required to carry out the prescribed
measurement must correspond to those marked
on the nameplate (Fig. 7) of SINEAX V 610.
... the total loop resistance connected to the
output (receiver plus leads) ex-doesnot
ceed the m aximu m permissib l e value
Rext. , see in Section Measuring output
“4. Technical data”!
… the measurement input and output cables should
be twisted pairs and run as far as possible away
from heavy current cables!
In all other respects, observe all local regulations
when selecting the type of electrical cable and
installing them!
When deciding where to install the transmitter
(measuring location), take care that the limits
of the operating temperature are kept:
25 and + 55 °C
Fig. 3. Mounting onto top-hat rails 35 15 or 35 7.5 mm.× ×
Simply clip the device onto the top-hat rail (EN 50 022) (see
Fig. 3).
Fig. 4. Mounting onto rail «G».
Power supply
DC voltage: Supply 12 … 30 V DC
max. residual ripple 1% p.p.
(supply must not fall below 12 V)
Protected against wrong polarity
Accuracy data
Reference value: Measuring span
Basic accuracy: Error limits ± 0.2% at reference con-
ditions
Linearity: 0.1%
Reference conditions
Ambient temperature: 23 °C
Power supply: 18 V DC
Output burden: 250
Additional errors (additive)
Low measuring ranges:
Resistance
thermometer ± 0.3 K at measuring spans < 400 °C
Standards
Electromagnetic
compatibility: The standards EN 50 081-2 and
EN 50 082-2 are observed
Protection acc. to
IEC 529 resp.
EN 60 529: Housing IP 40
Terminals IP 20
Electrical standards: Acc. to IEC 1010 resp. EN 61 010
Environmental conditions
Operating temperature: –25 to +55 ºC
Storage temperature: –40 to +80 ºC
Humidity relative: 75%, no moisture condensation
Altitude: 2000 m max.
Indoor use statement
Simply clip the device onto the rail «G» EN 50 035-G32 (see
Fig. 4).
5. Mounting
The SINEAX V 610 can be mounted on a top-hat rail or on a
rail «G».
