Side 1/10
Page 1 of 6
M-CNPD100-3 11/24
MODELS: CNPD100-3
The purpose of this manual is to aid in the proper installation and operation of the CNPD100-3 exhaust fan. These instructions are
intended to supplement good general practices and are not intended to overwrite local codes and ordinances.
IT IS THE RESPONSIBILITY OF THE PURCHASER TO ENSURE THAT THE INSTALLATION AND MAINTENANCE OF THIS
EQUIPMENT IS HANDLED BY QUALIFIED PERSONNEL.
Inspect all shipments carefully for damage. THE RECEIVER MUST NOTE ANY DAMAGE ON THE CARRIER’S BILL OF LADING AND
FILE A CLAIM IMMEDIATELY WITH THE FREIGHT COMPANY.
For quiet and efficient operation, long life, and attractive appearance - lower or remove grille and vacuum interior of unit with the dusting
brush attachment.
Use this unit only in the manner intended by the manufacturer. If you have questions, 1.
contact the manufacturer at the address or telephone number listed in the warranty.
Before servicing or cleaning unit, switch power off at service panel and lock the service 2.
disconnecting means to prevent power from being switching on accidentally. When the
service disconnecting means cannot be locked, securely fasten a prominent warning
device, such as a tag, to the service panel.
Installation work and electrical wiring must be done by a qualified person(s) in accordance 3.
with all applicable codes and standards, including fire-rated construction codes and
standards.
Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to 4.
prevent backdrafting. Follow the heating equipment manufacturer’s guideline and safety standards such as those published by the
National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. 5.
Ducted fans must always be vented to the outdoors. 6.
Acceptable for use over a tub or shower when connected to a GFCI (Ground Fault Circuit Interrupter) - protected branch circuit. 7.
This unit must be grounded. 8.
For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors. 9.
This product is designed for installation in ceilings up to a 12/12 pitch (45 degree angle). Duct connector must point up. 10.
To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit. 11.
Please read specification label on product for further information and requirements. 12.
Please follow all applicable national, state/provincial and local codes. All of them will supersede this manual. 13.
Failure to follow the safety instructions in this manual may cause serious injury or death due to electrical shock or high 14.
speed rotating parts.
GENERAL SAFETY
CLEANING AND MAINTENANCE
OPERATION INSTRUCTIONS AND PARTS MANUAL
PLEASE READ AND SAVE THESE INSTRUCTIONS
CNPD100-3
ULTRA QUIET COMPACT
EXHAUST FANS
OPERATION INSTRUCTIONS AND PARTS MANUAL
PLEASE READ AND SAVE THESE INSTRUCTIONS

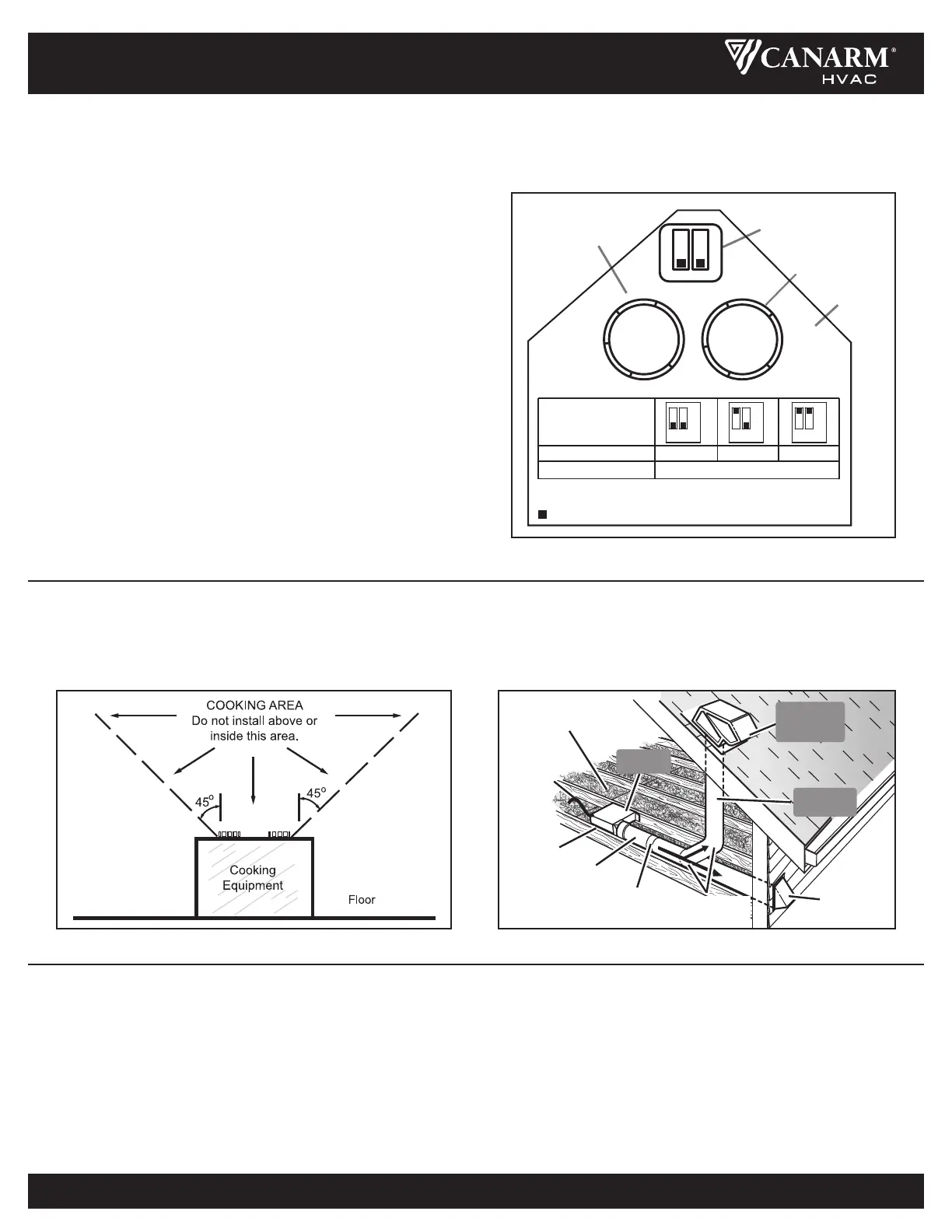

Page 2 of 6
M-CNPD100-3 11/24
CNPD100-3
ULTRA QUIET COMPACT EXHAUST FANS
See Electrical Wiring Connection section for wiring and switch details.
The control box, located inside the fan housing, has four settings:
The low airflow knob adjusts the lower airflow from 30 CFM up to 1.
the air flow rate of the high fan speed determined by the toggle
switch setting. The low speed is de-activated when set between
OFF-30 CFM (factory set to OFF).
The time delay knob is adjustable from 5 to 60 minutes and will 2.
switch the fan to the low speed setting after the switch 2 is turned
off for the set period of time. The time delay setting is de-activated
when set between OFF-5 mins (factory set to OFF).
The toggle switches will adjust the fan speed setting from 80 to 3.
140CFM (factory set to 110 CFM).
Fan will run at the user-adjustable airflow rate continually.
Turn on the switch - fan will turn to high speed.
Turn off the switch - fan will continue to run at the certified airflow rate
until the user-adjustable time delay has passed, and then will
automatically change to the user-adjustable airflow rate.
OPERATION
1. Do not use in a cooking area.
2. Two ways to connect ductwork to a factory-shipped unit.
PLAN THE INSTALLATION
1. Housing mounted to I-joists - start at Assembly Instructions 1.
2. Housing mounted to joists - start at Assembly Instructions 1.
3. Housing mounted to truss - start at Assembly Instructions 2.
TYPES OF TYPICAL INSTALLATIONS
ROUND
DUCT*
WALL CAP*
(with built-in
damper)
* Purchase
separately
POWER
CABLE*
INSULATION*
(Place around and
over Fan Housing.)
Seal gaps
around
Housing.
ROUND
ELBOW(S) *
Seal duct
joints with
tape.
ROOF CAP*
(with built-in
damper)
Keep duct
runs short
FAN
HOUSING
50 80 100
1212
12
Switch
position
Duct diameter
Airflow(CFM)
4"
T(min)
S
12
Low
airflow
knob
Time
delay
knob
Toggle
switch
Control
box
To change the pre-selected airflow,adjust
the control switches as per the table above.
is the position of switch
30
2
1
OFF
3
12
Max.
30
CFM
OFF
50%
70%
