Side 1/8

Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.

Catalog No. 04-53330022-01 Printed in U.S.A. Form 33CS-22SO Pg 1 8-11 Replaces: New

Owner’s Manual

Part Number 33CSCPACHP-01

SAFETY CONSIDERATIONS

Read and follow manufacturer instructions carefully. Fol-

low all local electrical codes during installation. All wiring

must conform to local and national electrical codes. Improper

wiring or installation may damage thermostat.

Recognize safety information. This is the safety alert sym-

bol . When the safety alert symbol is present on equipment

or in the instruction manual, be alert to the potential for person-

al injury.

Understand the signal words DANGER, WARNING, and

CAUTION. These words are used with the safety alert symbol.

DANGER identifies the most serious hazards which will result

in severe personal injury or death. WARNING signifies a haz-

ard which could result in personal injury or death. CAUTION

is used to identify unsafe practices which would result in minor

personal injury or property damage.

GENERAL

Carrier’s Comfort Pro programmable thermostats are wall-

mounted, low-voltage thermostats which maintain room tem-

perature by controlling the operation of a heating and/or air

conditioning system. This thermostat can be used with a heat

pump, air conditioner or water source heat pump operation. A

variety of features are provided including battery operation,

separate heating and cooling set points, auto changeover, key-

pad lockout, and backlighting. Programming is available for ei-

ther 2 or 4 periods per day. The programming interface is a one

touch interface, with the Comfort selections Occupied, Unoc-

cupied, and Limit (Energy Savings Mode). The user can adjust

the heating and/or cooling set points for each of the three com-

fort selections.

OPERATION

Thermostat Button Identification — The follow-

ing buttons are located on the thermostat display. See Fig. 1 for

button locations.

• FAN (1) — Selects whether the fan operates continu-

ously (on) or only when needed for heating or cooling

(auto)

• HOLD/RUN (2) — Holds the currently selected temper-

ature or runs the scheduled program

• MODE (3) — Selects whether thermostat is set for heat-

ing, cooling, emergency heat, auto (heat and cool as

needed), or off

• UP (4) — Increases the temperature or adjusts the screen

selection up when setting advanced programming

features

• DOWN (5) — Decreases the temperature or adjusts the

screen selection down when setting advanced program-

ming features

• DONE (6) — Saves settings when completing a set-up

or programming step

• LIMIT (7) — Indicates occupied heating and cooling

settings for the program period which are predefined and

more energy efficient

• UNOCC (8) — Activates heating and cooling settings

for the unoccupied program period

• OCC (9) — Activates heating and cooling settings for

the occupied program period

• D/H/M SET CLOCK (10) — Activates clock set mode

day/hour/minutes settings

• START TIME (11) — Activates the programming menu,

displaying the programmed start times

• PERIOD (12) — Activates the programming menu, dis-

playing the programmed time periods

• DAYS (13) — Activates programming menu, displaying

three options - all days, weekdays and weekends

Thermostat On-Screen Indicators — The follow-

ing on-screen indicators can be displayed on the thermostat dis-

play. See Fig. 2 for location of indicators.

• Clock (1)

• Fan mode - on or auto (2)

• Selected heating set point; "on" indicates system is in

heating mode (3)

• System is in auxiliary (supplemental) mode (4)

• Current temperature (5)

• Thermostat mode is either off or using emergency heat

(Em Heat) (6)

• Fahrenheit units (7)

• Keypad is locked (no padlock means unlocked) (8)

OCC LIMITUNOCC

push and hold to set

set

schedule days period start time set

clock

d/h/m

mode

fan done

o

heat

fan

auto

fan

aux

heat

on cool

on:

°F

°C

temporary

hold all days

weekdays

weekend

actual temp

start

10111213

hold

run

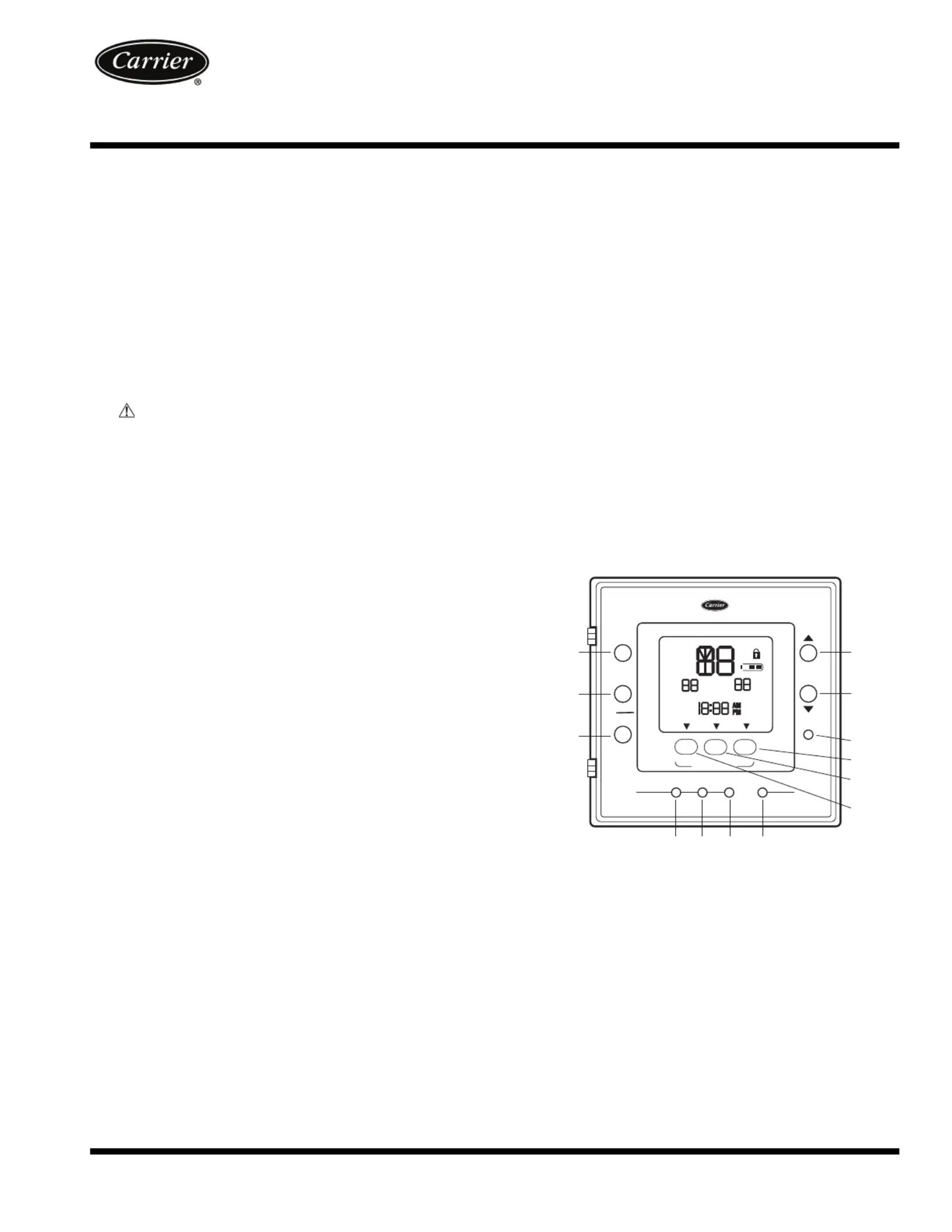

Fig. 1 — Thermostat Button Identification

(Door Open)

a33-9220

Comfort™ Pro

Programmable

Commercial Thermostat

• Celsius units (9)

• Battery strength indicator (10)

• Selected cooling set point; "on" indicates system is in

cooling mode (first stage of cooling) (11)

• Second stage of cooling (12)

• Day of the week for programming mode (13)

• System is using Limit settings (14)

• AM or PM indicator for current time (15)

• System is using unoccupied settings (16)

• System is in hold (17)

• System is in temporary hold override (18)

• System is using occupied settings (19)

Setting Time and Day of Week — The user must set

the time and date before the thermostat’s programming features

can be used. Perform the following procedure:

1. Open the thermostat front panel door.

2. Press the d/h/m button located on the lower right under

the display screen. The hours will be displayed and will

flash.

3. Press the up or down button located to the right of the

display to change the hours. Rotate through the hours to

change AM and PM.

4. Press the d/h/m button again and the minutes will flash

on the display.

5. Press the up or down button to change the minutes. Stop

on the correct number.

6. Press the d/h/m button again and the day of the week will

flash on the display.

7. Press the up or down button to change the day of the

week. Stop on the correct day.

8. Press the done button or close the thermostat front panel

door.

Setting Cooling and Heating Temperatures —

The thermostat is installed with preset cooling and heating

temperature settings. The user can use these settings or change

them. Perform the following procedure to change temperature

settings:

1. Open the thermostat front panel door.

2. Press the up or down button located on the right side of

the display. The preset temperature settings for cooling

and heating are displayed. The word “cool” will flash.

3. Press the up or down button to change the cool setting.

Stop on the correct setting.

NOTE: The temporary hold icon will be displayed for 15

minutes. See page 3 for more information on Temporary

Hold Override.

4. To change the heating set point, press the mode button

until the heat icon begins to flash.

5. Press the up or down button to change the heat setting.

Stop on the correct setting.

6. For automatic switching from the cooling cycle to the

heating cycle or from heating to cooling, both the cooling

and heating settings must be displayed. If cooling only is

desired, only the cooling set point should be shown. If

heating only is required, only the heating set point should

be shown in the display. To change which modes are dis-

played, continue to press the mode button until the de-

sired modes of operation are displayed.

7. Press the hold/run button to save these settings.

Using OCC, UNOCC and LIMIT Buttons —

When the user presses the OCC, UNOCC, or LIMIT button,

the preset temperature settings will be viewed and a triangle

icon will appear above the OCC, UNOCC, or LIMIT button

indicating which presets are being used.

The LIMIT button is used for an occupied period with set-

tings that are less conditioned than the Occupied settings but

more conditioned than the unoccupied settings. This is used as

an occupied energy savings function.

The default set points for the Comfort settings OCC, UN-

OCC and LIMIT are listed in Table 1.

Table 1 — OCC, UNOCC, and LIMIT Settings

The set points for the OCC, UNOCC, and LIMIT One-

Touch functions can be modified from their factory defaults us-

ing the following procedure:

1. Open the thermostat front panel door. The heat or cool

icon flashes indicating to the user that pressing the up and

down buttons will change the set point value next to the

flashing icon.

2. Change the setpoint of the flashing mode by pressing the

up or down button. The heat or cool icon and the triangle

icon above the OCC, UNOCC, and LIMIT button will

flash.

3. If desired, change the set point of the opposite mode by

pressing the mode button until the opposite mode icon is

flashing. The opposite mode icon and the triangle icon

above the OCC, UNOCC, and LIMIT button flashes.

4. Press the up or down button to change the opposite mode

set point.

5. Then press and hold either OCC, UNOCC, or LIMIT

button for 3 seconds. The triangle icon above the OCC,

UNOCC, or LIMIT button will stop flashing and remain

on. The heat and/or cool set point will flash once when

complete.

NOTE: The thermostats are shipped with fully accessible

keypads. The installer has the option to change the access

to the keypad. This function will not be allowed if keypad

lock 2 or 3 is enabled. This will be allowed if the keypad

lock is disabled or set to 1.

6. Close thermostat door.

7. Repeat at Step 1 to program set points for another period,

if desired.

OCC LIMITUNOCC

push and hold to set

o

heat

fan

auto

fan

aux

heat

on cool

on:

°F

°C

temporary

hold all days

weekdays

weekend

start

actual temp

141516171819

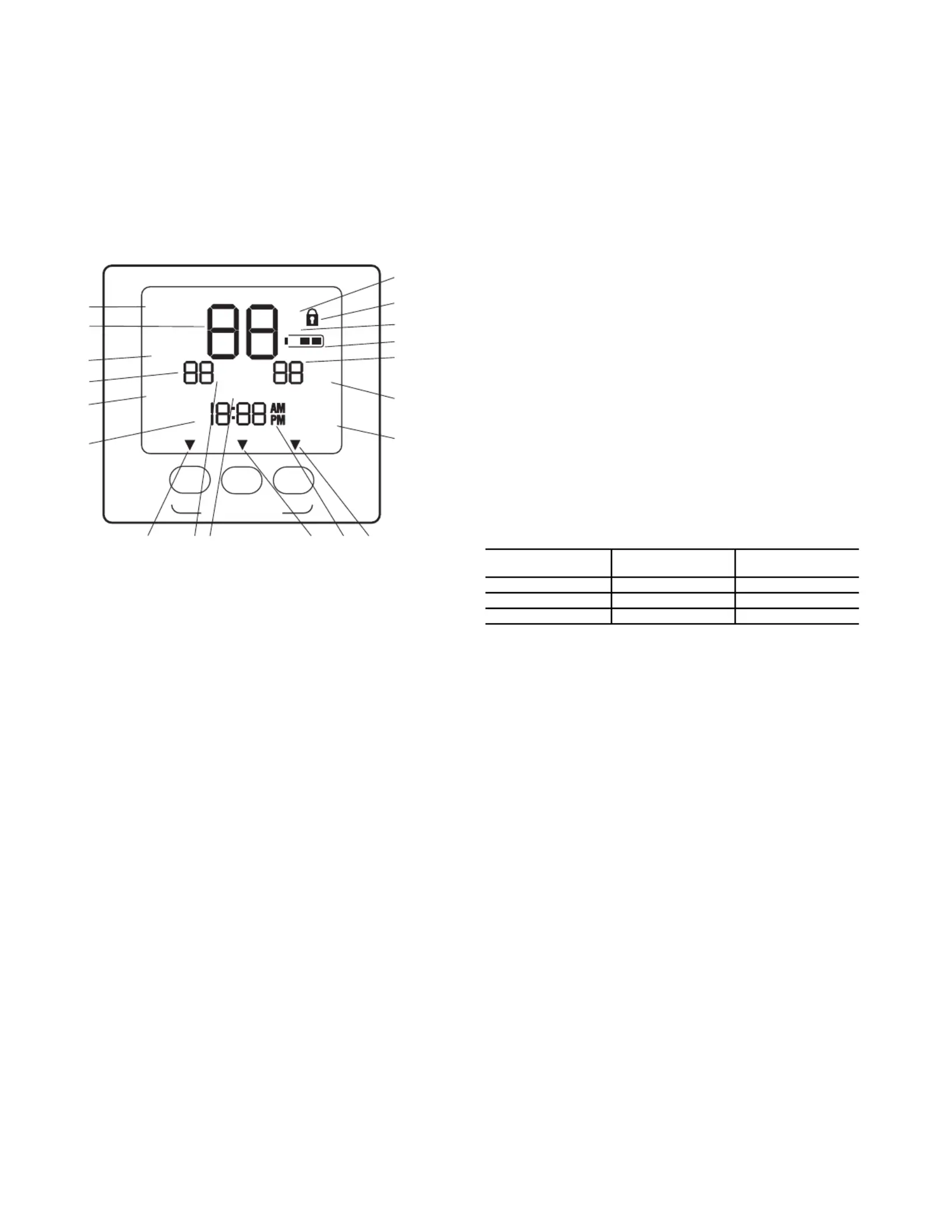

Fig. 2 — Thermostat On-Screen Indicators

a33-9218

ONE-TOUCH

SETTING

HEAT

SET POINT

COOL

SET POINT

OCC 68 78

UNOCC 60 85

LIMIT 66 80
