ENG

Design Pat. Pending

HLEL570GRC-200924

WARNING!!!

•

Make sure the illumination angle will not dazzle oncoming traffic,

and never position the visor to the bottom of the headlight.

• Before your trip, please make sure the light is firmly mounted

to the bracket and it lights up.

• Always attention to the remaining battery power by checking

the indicator periodically while using.

CAUTION!

• Do not place it within children’s reach.

• In preparation for unexpected battery shutoff, we recommend

you carry a spare cartridge battery and light.

• Do not attach the cartridge battery if water droplets, dust, or

other foreign matter is attached to the unit. Also, do not touch

the terminals.

• This device is rated IPX4 based on JIS C0920. Do not immerse

the device in water. Doing so may cause a malfunction. Wipe

off any moisture after using the device in rainy weather.

• If the light unit or parts become dirty with mud, etc., clean

with a soft cloth which is moistened with mild soap. Never

apply paint thinner, benzine or alcohol; damage will result.

LITHIUM-ION BATTERIES

Cautions on recharging

•

Avoid charging in direct sunlight or in a vehicle parked under

direct sunlight, and make sure to charge only when the

ambient temperature is between 41°F and 104 °F (5 and 40°C).

• Before charging, be sure that no dust or other foreign objects

attach to the USB plug.

•

Do not subject the light to vibrations while charging.

•

Once charging is complete, be sure to disconnect the USB plug.

Cautions in use

• Charging, discharging, and storing in high temperatures will

cause the rechargeable battery to deteriorate faster. Do not

place the light inside a vehicle or near a heater.

• If the illumination time is significantly reduced even after

proper charging, the rechargeable battery may be nearing the

end of its service life. Dispose of the battery as described in

“Cautions for dispose”.

Cautions on storage

Cool and dry storage is recommended. For long period storage,

it is important to charge the battery 30 minutes every 6 months.

Cautions for dispose

Dispose of used cartridge batteries appropriately according to

local regulations.

Before using the light, read this manual thoroughly

and keep it for future reference.

HOW TO CHARGE

SWITCH OPERATION

SPECIFICATIONS

Light source High-brightness multi-white LED

Battery type Li-ion 3.6 v - 3400 mAh

Charge Micro USB plug

Operating time High : Approx. 1.5 hours

Middle : Approx. 3 hours

Low (Eco) : Approx. 15 hours

* Average runtime at 68˚F (20˚C).

Standard charging time Approx. 3.5 hours (1.5 A)

Temperature range Charging : 41˚F – 104˚F (5˚C – 40˚C)

Operating : 14˚F – 104˚F (-10˚C – 40˚C)

Recharge/

About 300 times

discharge number of times

(until the rated capacity drops to 70%)

Waterproof IPX4

Dimensions/weight

5” x 2-9/64” x 1-51/64” (127.0 x 54.5 x

45.5 mm) / 64 oz (181.5 g) (Light unit only)

* The specifications and design are subject to change without notice.

K 1808

RECHARGEABLE HEADLIGHT

HL-EL570G RC

Manual

GVOLT100 FEATURES

The GVOLT100 includes a visor to direct the light distribution, allowing the unit to be

mounted on the top or bottom of the handlebar. See “Mounting above or below the

handlebar” for how to change the mounting position of the headlight and the cartridge

battery. The cartridge battery can also be replaced with the optional E-Bike adapter for

connection to the E-Bike drive unit.

See “USING THE E-BIKE ADAPTER (OPTIONAL)” for more information.

CAUTION!:

•

Always charge the product before use.

•

Once charging is completed, securely

close the charging port cover.

•

Do not remove the cartridge battery

while charging or when the light is on.

• Do not press and hold the switch on

the cartridge battery if the battery is

not mounted to the headlight.

* When your PC is in sleep state, the unit

cannot be charged.

* We recommend using 1.5+A USB battery

charger.

Charging and lighting times are approximate

values, and will vary by environmental and

user conditions.

To PC or USB battery charger

Remaining battery capacity

The switch (indicator) will flash red if the remaining battery

power is low. Charge the product as soon as possible.

Switch

Constant orange light

Constant red light

Flashing red light

Remaining battery power

Approx. 60 to 50 %

Approx. 50 to 30 %

Less than Approx.30 %



When turning the light on, it lights up in the mode that

was used last time. (Mode memory function)



If the bicycle is stationary for a certain period of time,

brightness is reduced to prevent the temperature from rising.

Press and hold

OFF

Light unit USB cable

(

MICRO USB

)

FlexTight™ bracket

(

H-34N

)

Headlight

Cartridge battery

Charging port cover

USB cable

Switch

(indicator)

 ：

Charging status

Constant red light

 ：

Charging

Constant orange light

：

Approx. 60 − 40 %

Constant green light

：

Charging is completed

Approx.

3,5St (1.5A)

Standard

charging time

Low (Eco)MiddleHigh

Switching the lighting mode

Click

Switch

(indicator)

USB

Removing

Mounting

USB

NO!

USB

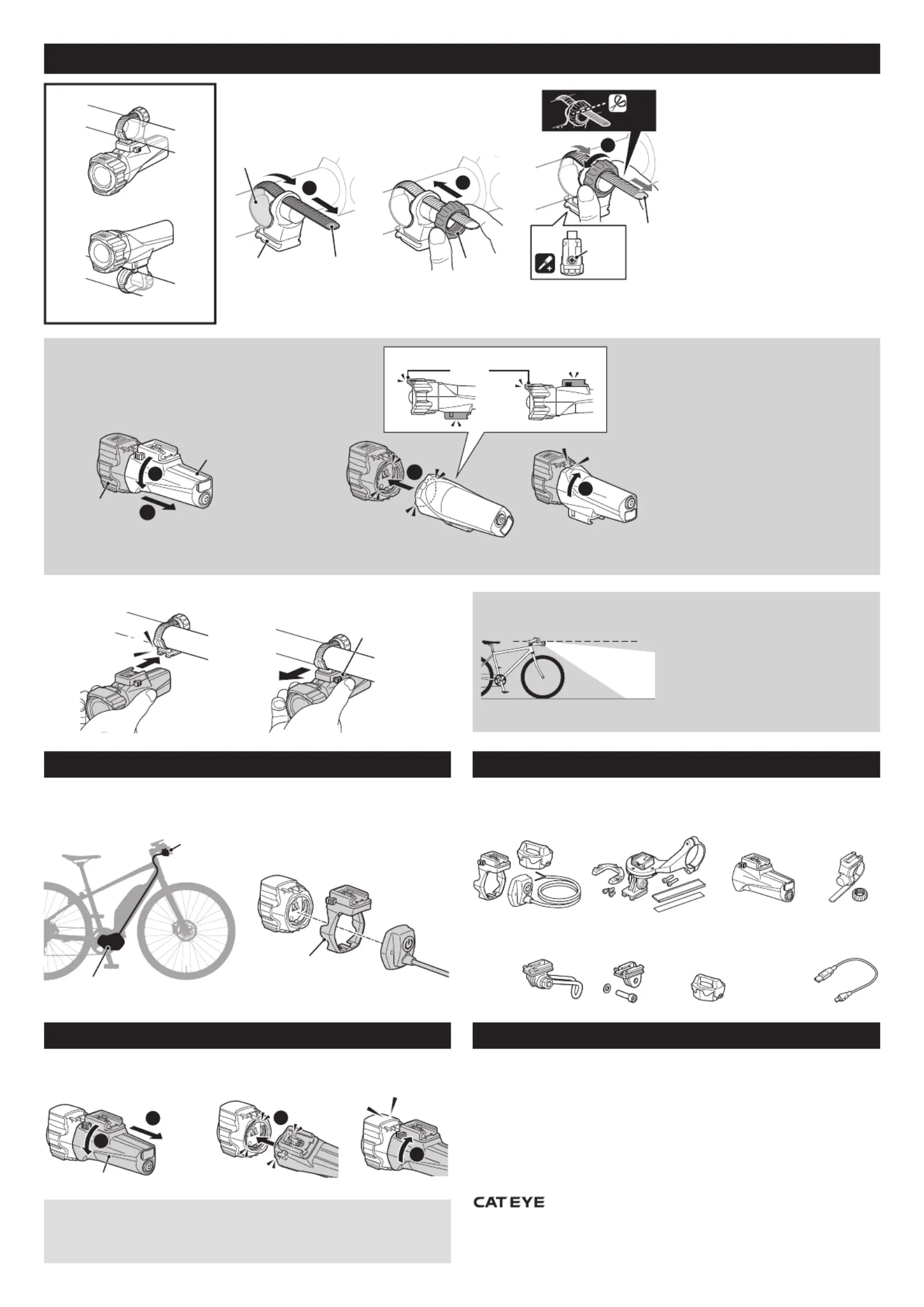

HOW TO MOUNT TO A BICYCLE

Cartridge battery

2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan

Attn: CATEYE Customer Service Section

Phone : (06)6719-6863 Fax : (06)6719-6033

E-mail : support@cateye.co.jp URL : https://www.cateye.com

., LTD.

Mounted below

Mounted above

Mounting the bracket

2. Mounting above or below the handlebar

3. Attaching/removing the light

Wrap the strap around

the handlebar.

Attach the dial.

Securely tighten the dial.

Cut

Click

Turn the cartridge battery counterclock-

wise to remove it from the headlight.

Align the grooves and turn clockwise until the cartridge battery stops.

Mounting height

: 400 – 1200 mm

* This section explains how to mount the light unit

below the handlebar.

Rubber pad

Bracket

Strap

Dial

Screw

CAUTION!:

• Be sure to tighten the dial by hand.

When you tighten it too hard with a

tool, the screw thread may be

stripped.

• Check the dial and screw (*3) on

the bracket periodically, and use

them without any loosening.

• Round off the cut edge of the

bracket strap to prevent injury.

The head unit can be mounted on either above or below the

handle by positioning the visor of the head unit to the top.

Removing

Headlight

Cartridge battery

Mounted below Mounted above

Visor

Mounting

RemovingMounting

CAUTION!:

• When attaching or removing the

cartridge battery, be sure to hold

the headlight to prevent it from

dropping and becoming damaged.

• Do not attach the cartridge battery

if water droplets, dust, or other

foreign matter is attached to the

unit, and do not touch the

terminals.

• Never position the visor to the

bottom of the headlight. Doing so

will dazzle oncoming traffic.

Release button

Slide

Press and hold

When mounting the light unit,

ensure that the light will not

dazzle other road users. To adjust

the angle, loosen the dial or the

screw (*3) to the point that the

bracket moves slightly, make the

adjustment, and then tighten the

screw to fix the light unit in place.

HOW TO REPLACE THE CARTRIDGE BATTERY

SPARE/OPTIONAL PARTS

LIMITED WARRANTY

USING THE E-BIKE ADAPTER

(OPTIONAL)

You can use this light with your E-Bike by combining the light module with the

optional E-Bike adaptor (sold separately).

2-year Warranty: Light unit only

(excludes battery deterioration)

CatEye products are warranted to be free of defects from materials and workman-

ship for a period of 2 years from original purchase. If the product fails to work

during normal use, CatEye will repair or replace the defect at no charge. Service

must be performed by CatEye or an authorized retailer. To return the product, pack

it carefully and enclose the warranty certificate (proof of purchase) with instruction

for repair. Please write or type your name and address clearly on the warranty

certificate. Insurance, handling and transportation charges to CatEye shall be borne

by person desiring service.

Follow the procedure below to attach or remove the cartridge battery.

CAUTION!:

Be sure to hold the headlight to make sure the cartridge battery is

securely attached or removed.

Drive unit

Light unit

E-Bike adapter

Bracket holder

To drive unit

5342730

USB cable

(MICRO USB)

5336840

Cartridge

battery

(BA-3.4DS)

5338827N

FlexTight™

bracket

(H-34N)

5342440

Center fork

bracket

(CFB-100)

5445340

GP bracket

5336920

E-Bike adapter

(Min 5.5V-Max 14.5V)

1604110

Out-front bracket 2

(OF-200)

5336860

Protective

cover

Horizontal
