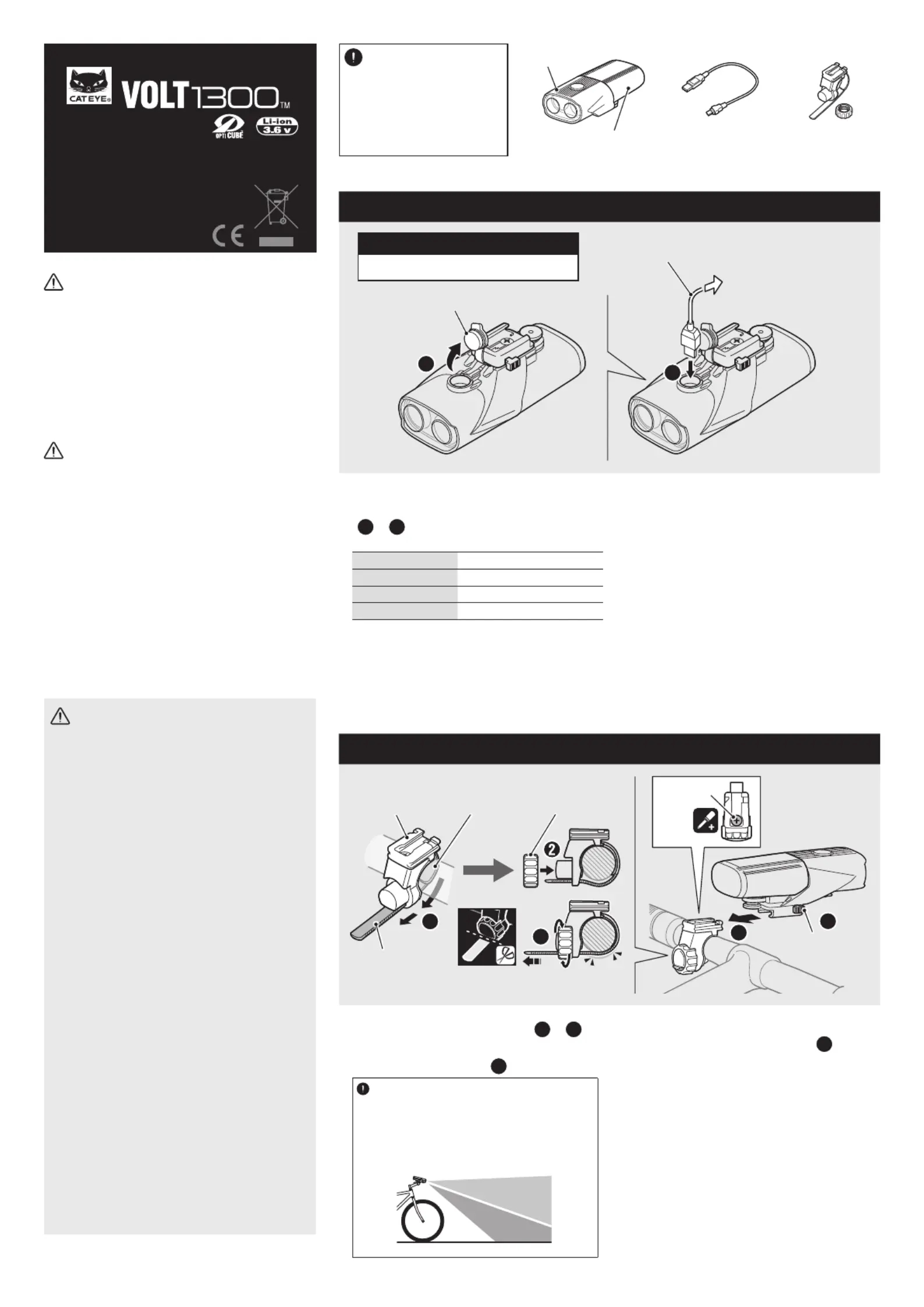

RECHARGEABLE HEADLIGHT
HL-EL1025RC
Before using the light, read this
manual thoroughly and keep it for
future reference.
Manual
WARNING!!!
• This light emits an extremely powerful beam equiva-
ous situation depending on the beam angle used.
Be sure to direct the light beam downward so the
driver approaching does not get dazzled.
• Before your trip, please make sure the light is fi rmly
mounted to the bracket and it lights up.
• Always attention to the remaining battery power by
checking the indicator periodically while using.
CAUTION!
• Do not stare at the light when it is illuminating.
Otherwise it may damage your eyesight.
• Do not place it within children’s reach.
• In preparation for unexpected battery shutoff, we rec-
ommend you carry a spare cartridge battery and light.
• Mounting the light unit too close to a wireless comput-
er may adversely affect the reading of the computer.
• This product is water-resistant under normal daily use
and can be used in the rain. However, do not inten-
tionally submerge it in water.
• If the light unit or parts become dirty with mud, etc.,
clean with a soft cloth which is moistened with mild
soap. Never apply paint thinner, benzine or alcohol;
damage will result.
LITHIUM-ION BATTERIES
Cautions on recharging
• Avoid charging in direct sunlight or in a vehicle
parked under direct sunlight, and make sure to
charge only when the ambient temperature is
between 41°F and 104 °F (5 and 40°C).
• Before charging, be sure that no dust or other
foreign objects attach to the USB plug.
• Do not subject the light to vibrations while charging.
• Once charging is complete, be sure to disconnect
the USB plug.
Cautions in use
• Charging, discharging, and storing in high tem-
peratures will cause the rechargeable battery to
deteriorate faster. Do not place the light inside a
vehicle or near a heater.
• When the operating time decreases signifi cantly,
the battery life is close to an end. Replace the
cartridge battery with a new one.
Cautions on storage
• Cool and dry storage is recommended. For long
period storage, it is important to charge the battery
30 minutes every 6 months.
• When you store the cartridge battery alone, be sure
to install the cap.
Otherwise, damage or a fi re may be caused by
short circuit.
Cautions for dispose
Dispose of used cartridge batteries appropriately
according to local regulations.
Before Initial Use
This unit is shipped with a small
charge to check the light.
Be sure to charge it before use,
according to the instructions
“HOW TO CHARGE” and
“Cautions on recharging”.
1. Connect the light unit to your PC or a commercial
USB battery charger using the USB cable.
(
1
–
2
)
The switch lights up, and charging starts.
Switch button light State (charging rate)
Illuminated in red Charging (less than 50%)
Illuminated in orange
Charging (more than 50% )
Illuminated in green Charging is completed
* When your PC is in sleep state, the unit cannot
be charged.
* Use a USB battery charger of 500mAh (USB2.0)
or more. The cartridge can be fast-charged with
high capacity USB battery charger.
2. After charging is completed, remove the USB cable,
and install the charge jack cover.
* The battery charges to about 80% after approxi-
mately 9 hours.
* Charging time is approximate values, and will vary
depending on the environmental and usage condi-
tions.
Standard charging time
Approx.
4.5 – 12 h
1. Mount the bracket to the handlebar. (
1
–
3
)
2.
Insert the light unit into the bracket until it clicks,
and adjust the beam angle. (
4
)
Beam angle adjustment
Turn on the light on a smooth road at night,
and loosen the dial slightly to move the bracket.
Adjust the beam angle so it does not direct to
a driver approaching and then tighten the dial
fi rmly to fi x the bracket.
3. To remove the light unit, pull out it forward while
pressing down on the release button (
5
).
CAUTION!:
• Be sure to tighten the dial by hand. When you
tighten it too hard with a tool, the screw thread
may be stripped.
• Check the dial and screw (*1) on the bracket pe-
riodically, and use them without any loosening.
• Round off the cut edge of the bracket strap to
prevent injury.
2 HOW TO MOUNT TO A BICYCLE
1 HOW TO CHARGE
OK
NO!
5
4
1
3
2
1
Cartridge battery
(BA-5.2TF)
FlexTight™ bracket
(H-34N)
USB cable
(MICRO USB)
Light unit
ENG
USB cable
Charge jack cover
To PC or USB battery
charger
DialRubber padBracket
Strap
Release button
Screw
*1
Design Pat. Pending
Copyright© 2018 CATEYE Co., Ltd.
EL1025RC-180514 1
SPECIFICATIONS
Light source High-intensity LED x 2
Cartridge battery BA-5.2TF : Li-ion 3.6v 5200 mAh
Charge Micro USB plug
Operating time
High : Approx. 2 hours
Middle : Approx. 5 hours
Low : Approx. 15 hours
Daytime HyperConstant : Approx. 12 hours
Flashing : Approx. 150 hours
* Average runtime at 20˚C.
Standard charging time Approx. 4.5 – 12 hours
Temperature range
Charging : 41˚F – 104˚F (5˚C – 40˚C)
Operating : 14˚F – 104˚F (-10˚C – 40˚C)
Recharge /
discharge number of times
About 300 times
(until the rated capacity drops to 70%)
Dimensions / weight
4-45/64" x 2-13/64" x 1-55/64" (119.3 x 56 x 47.3 mm) /
9.01 oz (255.5 g) (Including the cartridge battery)
* The specifi cations and design are subject to change without notice.
LIMITED WARRANTY
2-year Warranty : Light unit only
(Deterioration of the cartridge battery is out of warranty)
CatEye products are warranted to be free of defects from materials and
workmanship for a period of 2 years from original purchase. If the product
fails to work during normal use, CatEye will repair or replace the defect at no
charge. Service must be performed by CatEye or an authorized retailer. To
return the product, pack it carefully and enclose the warranty certifi cate (proof
of purchase) with instruction for repair. Please write or type your name and
address clearly on the warranty certifi cate. Insurance, handling and transporta-
tion charges to CatEye shall be borne by person desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place of
purchase. This does not affect your statutory rights.
SPARE / OPTIONAL PARTS
CO
.,LTD.
2-8-25, Kuwazu, Higashi Sumiyoshi-ku,
Osaka 546-0041 Japan
Attn: CATEYE Customer Service Section
Phone : (06)6719-6863
Fax : (06)6719-6033
E-mail : support@cateye.co.jp
URL : http://www.cateye.com
[For US Customers]
CATEYE AMERICA, INC.
2825 Wilderness Place Suite 1200,
Boulder CO 80301-5494 USA
Phone : 303.443.4595
Toll Free : 800.5.CATEYE
Fax : 303.473.0006
E-mail : service@cateye.com
4
HOW TO REPLACE THE CARTRIDGE BATTERY
Remove the cartridge battery according to the procedure. (
1
–
2
)
To install the cartridge, reverse the procedure.
CAUTION!: Make sure the lock pin fi ts fi rmly into the cartridge battery.
If not locked fi rmly, the cartridge battery may drop off and it may
cause sudden turn off.

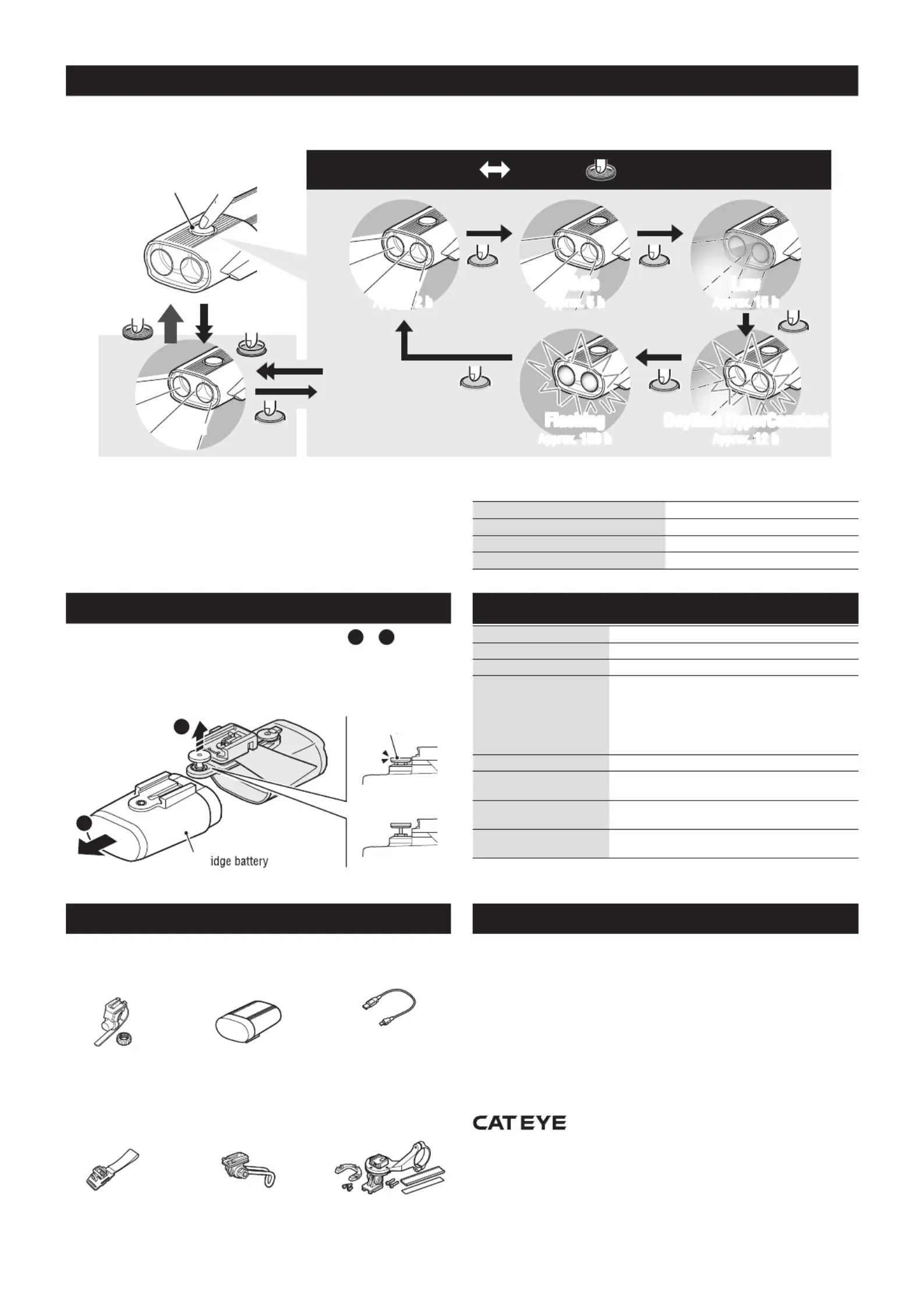

3 SWITCH OPERATION (SWITCHING THE LIGHTING MODE)
WARNING!!!: Do not use this light on a public road.
The ON / OFF and lighting modes are selected using a switch.
5341831N
Helmet mount
5342440
Center fork bracket
1604110
Out-front bracket 2
5342730
USB cable
5343200
Cartridge battery
(Li-ion 3.6v 6800 mAh)
5338827N
FlexTight™ bracket
(MICRO USB)
(OF-200)
(BA-6.8TF)(H-34N)
*2 When you turn the light on, it lights up in the last lighting mode you used.
(Mode memory function)
* The light unit may get hot depending on the condition the light is used in
but it is not a malfunction. When it gets hot, protection circuit activates and
it automatically lowers brightness level. One it is cooled down, the light
recovers the previous brightness level.
Remaining battery capacity (Battery indicator)
When the switch lights up, there is little remaining battery power.
Switch button light Remaining battery power
Illuminated in orange 50 - 30 %
Illuminated in red 30 - 15 %
Flashing in red Less than 15%
1
2
Lock pin
Cartr
OK
NO!
Switch (Indicator)
Double-click
*2
Press and hold
OFF
Switch
Press and hold
OFF ON
*2
ON
Click
Click
High
High
Approx.
2 h
Middle
Approx.
5 h
Low
Approx.
15 h
Daytime HyperConstant
Approx.
12 h
Flashing
Approx.
150 h
