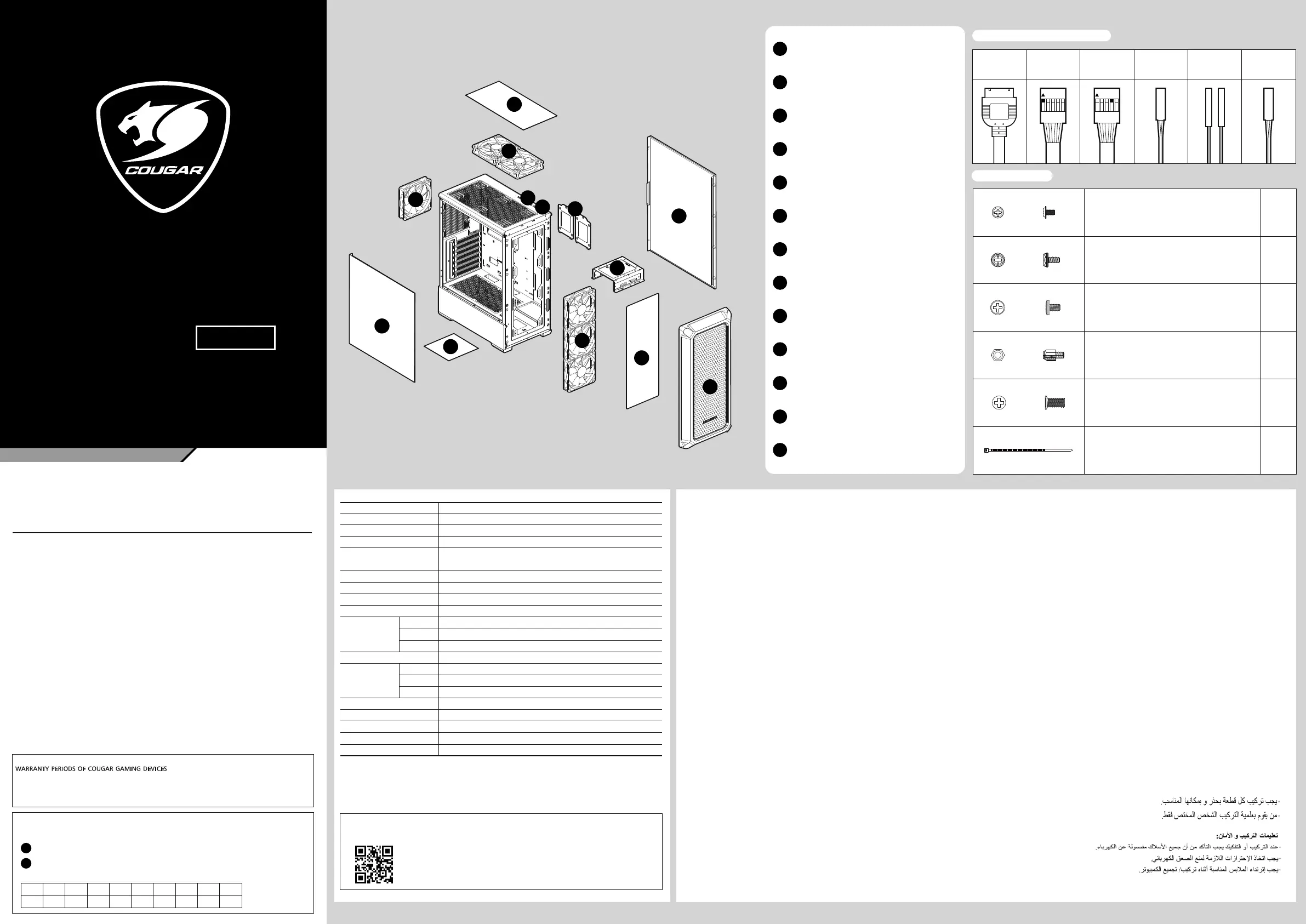

Assembly Drawing

CGR-5CC5B-MESH-RGB/CGR-5CC5W-MESH-RGB

Mid Tower

210 (W) x 470 (H) x 380 (D) mm

8.3 (W) x 18.5 (H) x 15 (D) in

Mini ITX / Micro ATX / ATX

120mm x 1

6 Max.

*360mm / 280mm / 240mm / 140mm / 120mm

120mm

*160 (mm) / 6.3 in

2+1 (converted from 3.5" drive bay) / (2 SSD trays included)

120mm x 3 / 140mm x 2 (120mm ARGB fan x 3 pre-installed)

120mm x 2 / 140mm x 2

USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, RGB Button

Model No.

ARCHON 2 MESH RGB (BLACK)/(WHITE)

Model Name

Case Form Factor

Motherboard Type

Dimensions (WxHxD)

I/O Panel

3.5" Drive Bay

2.5" Drive Bay

Expansion Slots

Cooling Fan

Support

Water Cooling

Support

Maximum Number of Fans

Max. Graphics Card Length

Max. CPU Cooler Height

Max. PSU Length

315 (mm) / 12.4 in

Transparent Left Panel

3mm Tempered Glass

RGB Sync with M/B

Yes

170 (mm) / 6.7 in

Rear

Front

Top 240mm / 120mm

Rear

Front

Top

*When install a 360mm radiator at the front, the maximum PSU length is 140mm.

Specifications might vary depending on the country or region of sale.

ENGLISH

• Mesh front panel with powerful airflow

• Integrated RGB system with 5V ARGB motherboard

synchronization

• Support for ATX motherboards

• Massive tempered glass side window

• Up to 315mm graphics cards

• Up to six fans and 170mm CPU cooler

• Up to a 360mm water cooling radiator

POLISH

• Przedni panel z siateczki z silnym przepływem powietrza

• Zintegrowany system RGB z synchronizacją płyty głównej 5 V

ARGB

• Obsługa płyt głównych ATX

• Masywna szyba boczna z hartowanego szkła

• Karty graficzne do 315 mm

• Do sześć wentylatorów i 170 mm chłodzenie procesora

• Do 360 mm chłodnicy wody chłodzącej

ITALIA

• Pannello frontale in mesh con potente flusso d'aria

• Sistema RGB integrato con sincronizzazione scheda madre 5V

ARGB

• Supporto per schede madri ATX

• Massiccio finestrino laterale in vetro temperato

• Schede grafiche fino a 315 mm

• Fino a sei ventole e dispositivo di raffreddamento della CPU da

170 mm

• Radiatore di raffreddamento ad acqua fino a 360 mm

PORTUGUÊS

• Painel frontal em malha com fluxo de ar poderoso

• Sistema RGB integrado com sincronização da placa-mãe

5V ARGB

• Suporte para placas-mãe ATX

• Janela lateral de vidro temperado maciço

• Placas gráficas de até 315 mm

• Até seis ventiladores e cooler para CPU de 170 mm

• Radiador de refrigeração de água de até 360 mm

РУССКИЙ

• Сетчатая передняя панель с мощным воздушным потоком.

• Интегрированная система RGB с синхронизацией

материнской платы 5V ARGB

• Поддержка материнских плат ATX.

• Массивное боковое окно из закаленного стекла.

• Видеокарты до 315 мм

• До шесть вентиляторов и 170-мм кулер для процессора

• Радиатор водяного охлаждения диаметром до 360 мм.

DEUTSCH

• Mesh-Frontpanel mit starkem Luftstrom

• Integriertes RGB-System mit 5V ARGB-Motherboard-

Synchronisation

• Unterstützung für ATX Motherboards

• Massives Seitenfenster aus gehärtetem Glas

• Bis zu 315 mm Grafikkarten

• Bis zu sechs Lüfter und 170 mm CPU-Kühler

• Bis zu 360 mm Wasserkühler

ESPAÑOL

• Panel frontal de malla con potente flujo de aire

• Sistema RGB integrado con sincronización de placa base

ARGB de 5 V

• Soporte para placas base ATX

• Ventana lateral de vidrio templado masivo

• Tarjetas gráficas de hasta 315 mm

• Hasta seis ventiladores y enfriador de CPU de 170 mm

• Radiador de refrigeración por agua de hasta 360 mm

FRANÇAIS

• Panneau avant en mesh avec flux d'air puissant

• Système RVB intégré avec synchronisation de la carte mère

ARGB 5V

• Prise en charge des cartes mères ATX

• Vitre latérale massive en verre trempé

• Cartes graphiques jusqu'à 315 mm

• Jusqu'à six ventilateurs et refroidisseur de processeur de 170 mm

• Jusqu'à un radiateur de refroidissement par eau de 360 mm

• 铁网面板带来强大的散热气流

• RGB整合系统支援5V ARGB主机板灯效同步控制功能

• 支持ATX主板

• 全景钢化玻璃侧窗

• 最高支持 315mm 显卡

• 最高支持6个风扇和170mm CPU散热器

• 最高支持360mm 水冷排

中文

• 강력한 공기 흐름이있는 메시 전면 패널

• 5V ARGB 마더 보드 동기화를 지원하는 통합 RGB 시스템

• ATX마더 보드 지원

• 대형 강화 유리 측면 창

• 최대 315mm 그래픽 카드

• 최대 6 개의 팬과 170mm CPU 쿨러

• 최대 360mm 수냉 라디에이터

한국어

• 強力なエアフローを備えたメッシュフロントパネル

• 5V ARGBマザーボード同期を備えた統合RGBシステム

• ATXマザーボードのサポート

• 巨大な強化ガラスのサイドウィンドウ

• 最大315mmのグラフィックカード

• 最大6つのファンと170mmのCPUクーラー

• 最大360mmの水冷ラジエーター

日本語

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.

После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,

и означают год, последующие две цифры – месяц изготовления.

Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.

●

Например,

AG = 17 = 2017 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A B C D E F G H I J

1 2 3 4 5 6 7 8 9 0

ACCESSORY KIT

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR ARCHON 2 MESH RGB

Warranty : 1 Year

●

This warranty gives you specific legal rights. You may also have other rights granted under local law.

These rights may vary.

●

Only for electrical components.

Front panel

Right side panel

Power button / RGB button

USB 3.0 / USB 2.0 / HD audio ports

Tempered glass side panel

2.5" HDD/SSD trays

3.5" HDD cage (compatible for 2.5" HDD/SSD)

3 x 120mm / 2 x 140mm fans for front panel

(120mm ARGB fans x 3 pre-installed)

1 x 120mm fan for rear panel (optional)

2 x 120mm / 2 x 140mm fans for top panel

(optional)

Air filter for top panel

Air filter for bottom panel

Air filter for front panel

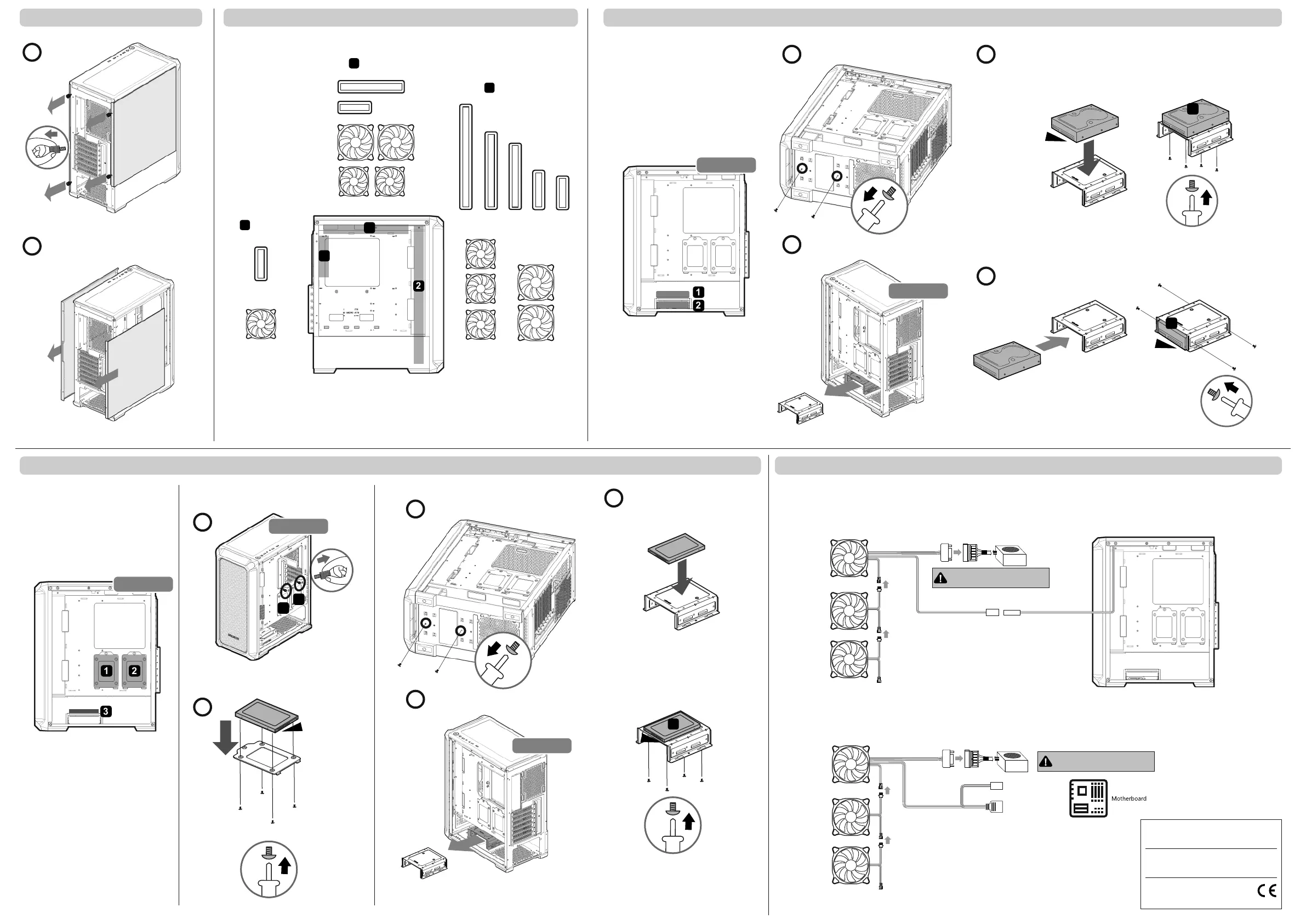

Installing the Front I/O Connectors

БЪЛГАРИЯ

• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg

България QR код

HD AUDIO

USB 2.0

USB

POWER SW

POWER LED

POWER LED +

POWER LED

USB 3.0 H.D.D LED

H.D.D LED

USB3.0

X 8

X 3

Fan screws

X 21

Motherboard screws & 2.5" SSD screws

X 6

Power supply screws

Stand-off for motherboard

X 83.5" HDD screws

Cable ties X 5

ELEGANT ARGB MID TOWER CASE WITH POWERFUL MESH INTAKES

Archon 2 Mesh RGB sports an attractive and elegant design with three ARGB fans at the front

panel. The integrated lighting button allows it to display amazing lighting effects. Powerful

airflow, mighty support for up a 360mm radiator, a 315mm graphic card, and a 170mm CPU

cooler deliver superior value for you.

ELEGANT LOOKS WITH SUPERIOR AIRFLOW

Archon 2 Mesh RGB’s front panel combines with excellent appearance and unobstructed airflow. The

breathable steel mesh brings powerful cooling performance while keeping dust from getting in through.

INCREDIBLE RGB LIGHTING

Archon 2 Mesh RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects

with the dedicated RGB button. The ARGB fans are also adaptable with any compatible motherboards’ 5V

ARGB connection for system-wide lighting synchronization.

TOP-NOTCH COOLING

Archon 2 Mesh RGB’s compact layout allows you to install six fans, a 360mm water cooling radiator,

and a 170mm CPU cooler. This immense cooling potential will enable you to choose components freely.

GREAT SUPPORT FOR COMPONENTS

Its advanced support for up to 315mm-long graphics cards, which allows you to enjoy the latest games

with smooth framerates.

CLEAN AND TIDY LOOKS

Unlike most massive tempered glass panels, the full-length PSU shroud presents a distinctive view

of divided design. The full-length PSU cover also allows you to hide the cables, improve the internal

airflow, and showcase a clean build!

ARCHON 2

MESH

RGB

Controlling lighting modes

Installing 2.5" SSDs /HDDs

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C

Tel:+886-6-356-0606

Service E-Mail:service@cougargaming.com

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail: rma@compucaseusa.com

https://cougargaming.com/support/contact/upload/

For more information, please visit

Compucase Enterprise Co.,Ltd.

www.cougargaming.com

Made in China

Removing the side panels

Installing 3.5" HDDs

120

140

120

(Top)

(Rear)

120

280

*360 240 140 120

120

240

120

140

(Front)

Installing water cooling radiators & cooling fans

Connectors

1 2

Connectors

(Please don't remove the

SATA connector from the PSU)

(Please don't remove the

SATA connector from the PSU)

Connectors

RIGHT

●

First Mode: Several Lighting Effects

Please connect the power cable of the WH120-M fan to a SATA connector from the PSU.

You can use the top panel’s RGB SW button to switch various beautiful lighting effects we have preset for you.

※

If you press and hold the RGB SW button for 3 second. The lights of the fans will be turned off.

●

Second Mode: Motherboard Synchronization

Please use the included adapter to connect to a compatible motherboard’s 3-pin 5V Addressable RGB header and

enjoy system-wide ARGB synchronization.

※

If you unplug the adapter, the fans will be returned to the first mode.

WH120-M

WH120-S

Power suppy

Power connector

RGB lights switch cable

WH120-M

WH120-S

Power suppy

Power connector

RESET SW

RESET SW CH Cable

5V Addressable Header Adapter

for Compatible Gigabyte

Motherboards

for Compatible Asus or MSI

Motherboards

VDG

* When install a 360mm radiator at the front,

the maximum PSU length is 140mm.

* When the 5V Addressable Header Adapter is connected

to motherboard, the RGB SW button is nonfunctional.
