Assembly Drawing

MX430 MESH

CGR-51C6B-MESH-RGB /CGR-51C6G-MESH-RGB

Mid Tower

217 (W) x 467 (H) x 371 (D) mm

8.5 (W) x 18.4 (H) x 14.6 (D) in

Mini ITX / Micro ATX / ATX

120mm x 1 / 140mm p1-x1 (120mm ARGB fan x 1 pre-installed)

6 Max.

280mm / 240mm / 140mm / 120mm

140mm / 120mm

160 (mm) / 6.3 in

3+1 (converted from 3.5" drive bays) / (1 SSD tray included)

120mm x 3 / 140mm x 2 (120mm ARGB fan x 2 pre-installed)

120mm x 2 / 140mm x 2

USB 3.0 x 2, USB 2.0 x 1, Mic x 1 / Audio x 1, Reset Button, RGB Button

Model No.

MX430 MESH RGB (BLACK) / (IRON-GRAY)

Model Name

Case Form Factor

Motherboard Type

Dimensions (WxHxD)

I/O Panel

3.5" Drive Bay

2.5" Drive Bay

Expansion Slots

Cooling Fan

Support

Water Cooling

Support

Maximum Number of Fans

Max. Graphics Card Length

Max. CPU Cooler Height

Max. PSU Length

320 (mm) / 12.6 in

Transparent Left Panel

4mm Tempered Glass

Onboard Lighting System

Yes

RGB Sync with M/B

Yes

175 (mm) / 6.9 in

Rear

Front

Top 240mm / 120mm

Rear

Front

Top

Specifications might vary depending on the country or region of sale.

COMPACT ARGB MID TOWER CASE WITH POWERFUL MESH INTAKES

We’ve made COUGAR PC cases even better. The mesh front panel creates a stunning outlook

for your amazing build. Powerful airflow, mighty support for up a 280mm radiator, a 320mm

graphic card, and a 175mm CPU cooler deliver superior value for you.

ENGLISH

• Mesh front panel with powerful airflow

• Integrated RGB system with 5V ARGB motherboard

synchronization

• Support for ATX motherboards

• Massive tempered glass side window

• Up to 320mm graphics cards

• Up to six fans and 175mm CPU cooler

• Up to a 280mm water cooling radiator

POLISH

• Przedni panel z siateczki z silnym przepływem powietrza

• Zintegrowany system RGB z synchronizacją płyty głównej 5 V

ARGB

• Obsługa płyt głównych ATX

• Masywna szyba boczna z hartowanego szkła

• Karty graficzne do 320 mm

• Do sześć wentylatorów i 175 mm chłodzenie procesora

• Do 280 mm chłodnicy wody chłodzącej

ITALIA

• Pannello frontale in mesh con potente flusso d'aria

• Sistema RGB integrato con sincronizzazione scheda madre

5V ARGB

• Supporto per schede madri ATX

• Massiccio finestrino laterale in vetro temperato

• Schede grafiche fino a 320 mm

• Fino a sei ventole e dispositivo di raffreddamento della CPU

da 175 mm

• Radiatore di raffreddamento ad acqua fino a 280 mm

PORTUGUÊS

• Painel frontal em malha com fluxo de ar poderoso

• Sistema RGB integrado com sincronização da placa-mãe

5V ARGB

• Suporte para placas-mãe ATX

• Janela lateral de vidro temperado maciço

• Placas gráficas de até 320 mm

• Até seis ventiladores e cooler para CPU de 175 mm

• Radiador de refrigeração de água de até 280 mm

РУССКИЙ

• Сетчатая передняя панель с мощным воздушным потоком.

• Интегрированная система RGB с синхронизацией

материнской платы 5V ARGB

• Поддержка материнских плат ATX.

• Массивное боковое окно из закаленного стекла.

• Видеокарты до 320 мм

• До шесть вентиляторов и 175-мм кулер для процессора

• Радиатор водяного охлаждения диаметром до 280 мм.

DEUTSCH

• Mesh-Frontpanel mit starkem Luftstrom

• Integriertes RGB-System mit 5V ARGB-Motherboard-

Synchronisation

• Unterstützung für ATX Motherboards

• Massives Seitenfenster aus gehärtetem Glas

• Bis zu 320 mm Grafikkarten

• Bis zu sechs Lüfter und 175 mm CPU-Kühler

• Bis zu 280 mm Wasserkühler

ESPAÑOL

• Panel frontal de malla con potente flujo de aire

• Sistema RGB integrado con sincronización de placa base

ARGB de 5 V

• Soporte para placas base ATX

• Ventana lateral de vidrio templado masivo

• Tarjetas gráficas de hasta 320 mm

• Hasta seis ventiladores y enfriador de CPU de 175 mm

• Radiador de refrigeración por agua de hasta 280 mm

FRANÇAIS

• Panneau avant en mesh avec flux d'air puissant

• Système RVB intégré avec synchronisation de la carte mère

ARGB 5V

• Prise en charge des cartes mères ATX

• Vitre latérale massive en verre trempé

• Cartes graphiques jusqu'à 320 mm

• Jusqu'à six ventilateurs et refroidisseur de processeur de

175 mm

• Jusqu'à un radiateur de refroidissement par eau de 280 mm

• 铁网面板带来强大的散热气流

• RGB整合系统支援5V ARGB主机板灯效同步控制功能

• 支持ATX主板

• 全景钢化玻璃侧窗

• 最高支持 320mm 显卡

• 最高支持6个风扇和175mm CPU散热器

• 最高支持280mm 水冷排

中文

• 강력한 공기 흐름이있는 메시 전면 패널

• 5V ARGB 마더 보드 동기화를 지원하는 통합 RGB 시스템

• ATX마더 보드 지원

• 대형 강화 유리 측면 창

• 최대 320mm 그래픽 카드

• 최대 6 개의 팬과 175mm CPU 쿨러

• 최대 280mm 수냉 라디에이터

한국어

• 強力なエアフローを備えたメッシュフロントパネル

• 5V ARGBマザーボード同期を備えた統合RGBシステム

• ATXマザーボードのサポート

• 巨大な強化ガラスのサイドウィンドウ

• 最大320mmのグラフィックカード

• 最大6つのファンと175mmのCPUクーラー

• 最大280mmの水冷ラジエーター

日本語

EXCELLENT LOOKS WITH SUPERIOR AIRFLOW

MX430 Mesh RGB’s front panel combines with excellent appearance and unobstructed airflow. Three

pre-installed fans with airflow and lighting display the unique effect of ARGB through the clear tempered

glass panel to create mesmerizing light effects.

INCREDIBLE RGB LIGHTING

MX430 Mesh RGB comes with 3 ARGB fans. You are freely to control several amazing lighting effects

with the dedicated RGB button. The built-in LED controller also adaptable with any compatible

motherboards’ 5V ARGB connection for system-wide lighting synchronization. The stunning light come

out of a stylish panel helps reinforce the RGB effects.

TOP-NOTCH COOLING

MX430 Mesh RGB’s compact layout allows you to install six fans, a 280mm water cooling radiator,

and a 175mm CPU cooler. This immense cooling potential will enable you to choose components freely.

GREAT SUPPORT FOR COMPONENTS

Its advanced support for up to 320mm-long graphics cards, which allows you to enjoy the latest games

with smooth framerates.

CLEAN AND TIDY LOOKS

The PSU cover extends the color from the front panel. Unlike most massive tempered glass panels, it

presents a distinctive view of divided design. The full-length PSU cover also allows you to hide the cables,

improve the internal airflow, and showcase a clean build!

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H1702000001 означает, что товар был произведен в феврале 2017 года.

После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,

и означают год, последующие две цифры – месяц изготовления.

Например, S/N: DAG02REVI000001 означает, что товар был произведен в феврале 2017 года.

●

Например,

AG = 17 = 2017 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A B C D E F G H I J

1 2 3 4 5 6 7 8 9 0

ACCESSORY KIT

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR MX430 MESH RGB

Warranty : 1 Year

●

This warranty gives you specific legal rights. You may also have other rights granted under local law.

These rights may vary.

●

Only for electrical components.

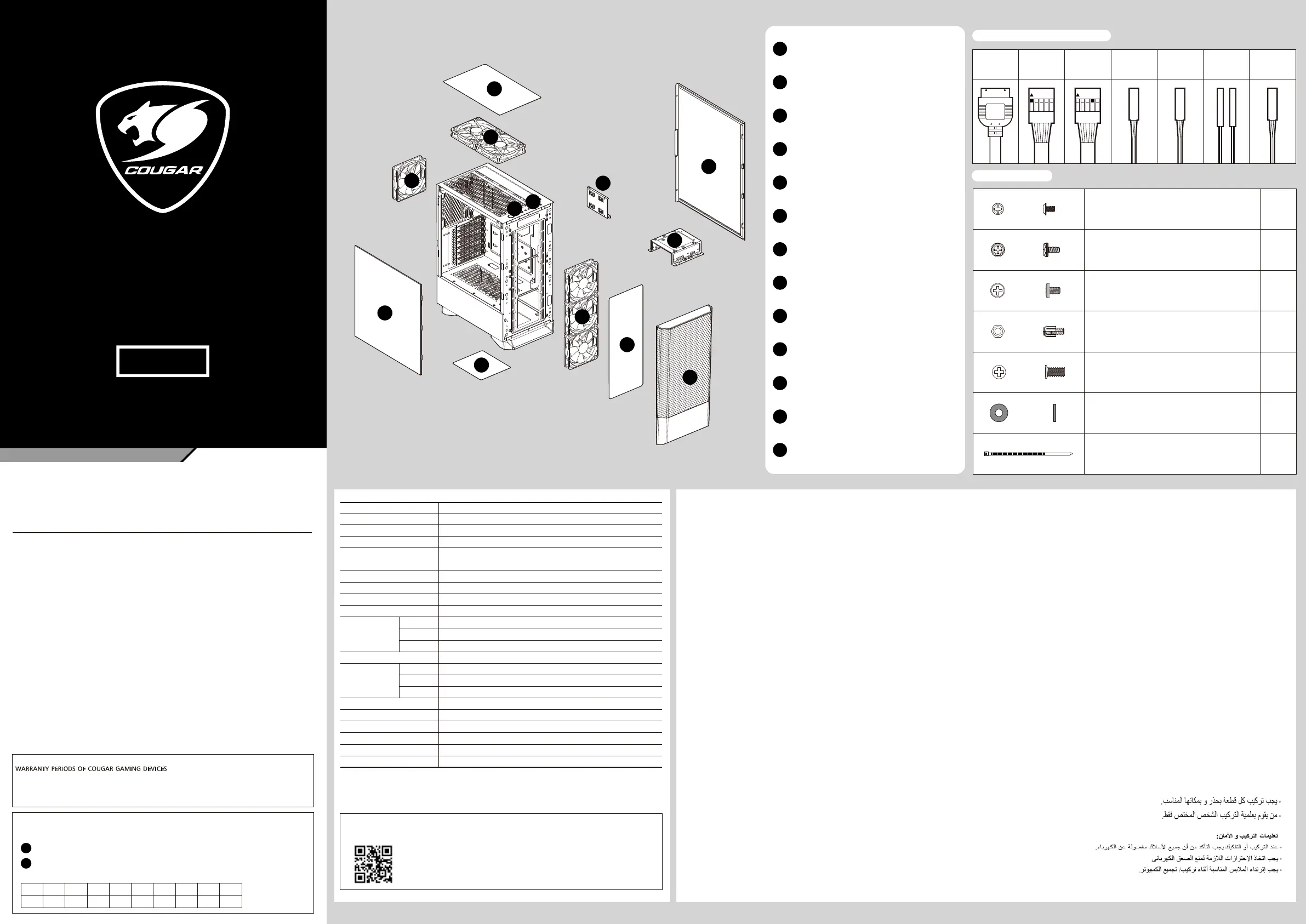

Front panel

Right side panel

Power button / RGB button / Reset button

USB 3.0 / USB 2.0 / HD audio ports

Tempered glass side panel

2.5" HDD/SSD tray

3.5" HDD cage (compatible for 2.5" HDD/SSD)

3 x 120mm / 2 x 140mm fans for front panel

(120mm ARGB fans x 2 pre-installed)

1 x 120mm / 1x 140mm fan for rear panel

(120mm ARGB fan pre-installed)

2 x 120mm / 2 x 140mm fans for top panel

(optional)

Air filter for top panel

Air filter for bottom panel

Air filter for front panel

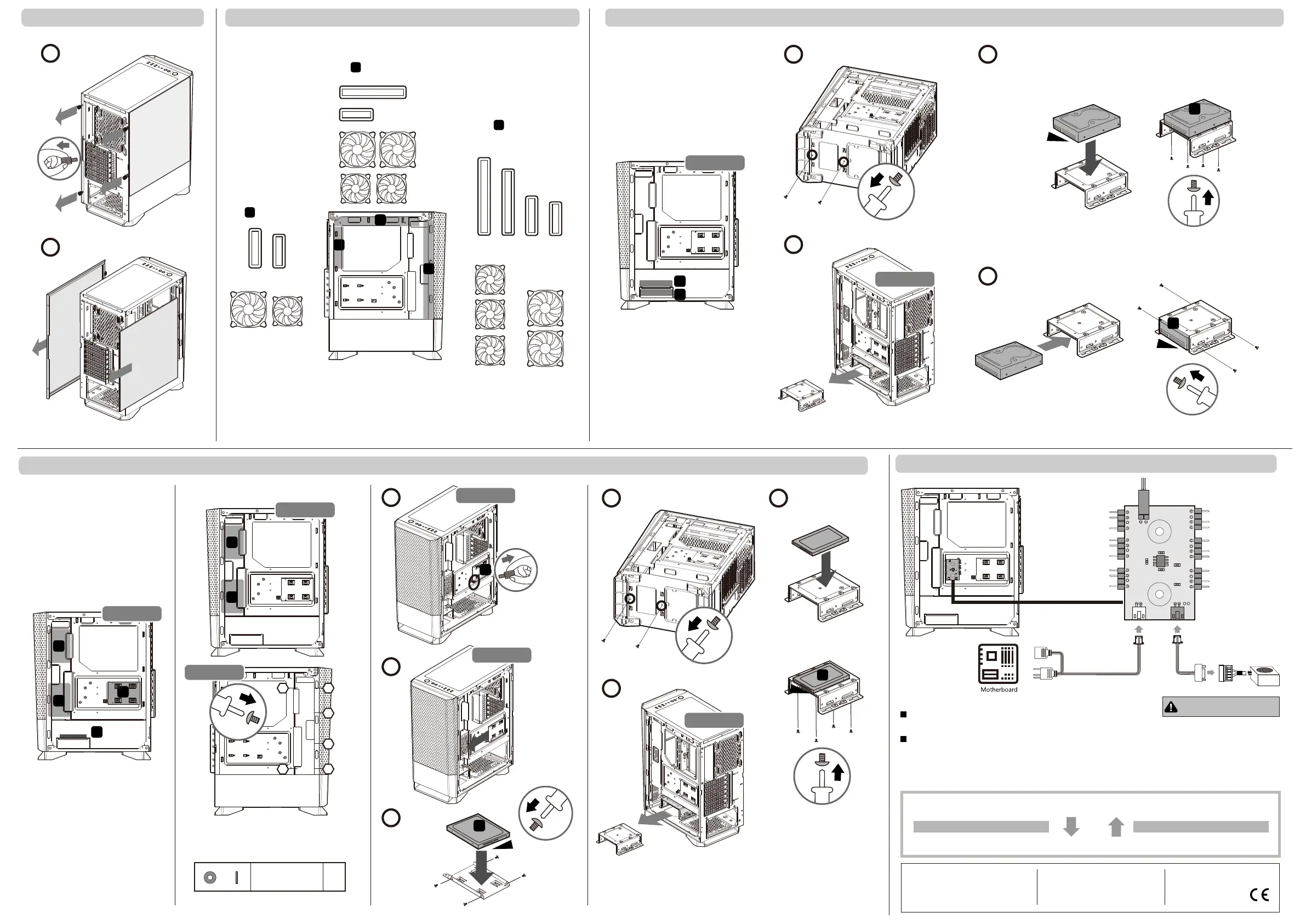

Installing the Front I/O Connectors

RGB

БЪЛГАРИЯ

• Подробни инструкции за употреба изтеглете от: https://cougargaming.com/bg

България QR код

HD AUDIO

USB 2.0

USB

POWER SW

RESET SW

POWER LED

POWER LED +

POWER LED

USB 3.0

H.D.D LED

USB3.0

X 8

X 25

X 4

X 3

Fan screws

Motherboard screws & 2.5" SSD screws

Power supply screws

Stand-off for motherboard

X 83.5" HDD screws

Cable ties X 5

X 82.5”HDD / SSD EVA washers

RGB & Fan control system

Installing 2.5" SSDs /HDDs

Connectors

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C

Tel:+886-6-356-0606

Service E-Mail:service@cougargaming.com

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail: rma@compucaseusa.com

https://cougargaming.com/support/contact/upload/

For more information, please visit

Compucase Enterprise Co.,Ltd.

www.cougargaming.com

Made in China

Removing the side panels

Installing 3.5" HDDs

120

140

(Rear)

120

280 240 140 120

140 120

140

(Front)

Installing water cooling radiators & cooling fans

Connectors

X 8

2.5" HDD / SSD

EVA washers

RIGHT

LEFT

RIGHT

Connectors

5V Addressable

RGB Connector - 6

5V Addressable

RGB Connector - 1

RGB SW Button

LED

5V Addressable

RGB Connector - 2

5V Addressable

RGB Connector - 3

5V Addressable

RGB Connector - 5

5V Addressable

RGB Connector - 4

(Please don't remove the

SATA connector from the PSU)

First Mode: Several Lighting Effects

You can use the front panel’s RGB SW button to switch various beautiful lighting effects we have preset for you.

Second Mode: Motherboard Synchronization

Please use the included adapter to connect to a compatible motherboard’s 3-pin 5V Addressable RGB header.

Then, press and hold the RGB SW button for 3 seconds.

※

If you press and hold the RGB SW button for 3 second again.

It will be returned to the First mode: Several Lighting Effects.

First Mode: Several Lighting Effects

Second Mode: Motherboard Synchronization

Press and hold the RGB button for 3 seconds Press and hold the RGB button for 3 seconds

Power suppy

Power Connector5V Addressable RGB Adapter

120

140

(Top)

240

120

* Please install 2.5" SSD first,

and then front fans/radiators.

* Please stick EVA washers on SSD holes

before installing 2.5" SSD.

* Please install PSU first, and then 3.5" HDDs.
