功能与操作 , 功能與操作

The indication is only lit when the ”Source Input” is capturing the HDMI source.

当「Source Input」在撷取 HDMI 信号时，指示灯才会亮起。

當「Source Input」在擷取 HDMI 訊號時，指示燈才會亮起。

The Microphone port is connected to the Host PC by Type-C Port, not linked with “SOURCE INPUT.”

Microphone連接經由 Type-C連接到主機 PC，而非“SOURCE INPUT”連接。

Microphone连接经由 Type-C连接到主机 PC，而非“SOURCE INPUT”连接。

The Speaker port is connected to the Host PC by Type-C Port, not linked with “SOURCE INPUT.”

喇叭连接经由 Type-C连接到主机 PC，而非“SOURCE INPUT”连接。

喇叭連接經由 Type-C連接到主機 PC，而非“SOURCE INPUT”連接。

Light Indication

3.5mm Microphone

3.5mm Speaker

Connect to the Capture Host PC.

连接至影像撷取PC。

連接至影像擷取PC。

Connect the HDMI SOURCE, such as PS or XBOX.

连接HDMI输入源，如PS或XBOX。

連接HDMI輸入源，如PS或XBOX。

Connect to the Monitor.

连接萤幕。

連接螢幕。

Type-C Port

Source input

Loop out

影像输出 , 影像輸出

FUNCTION & OPERATION

规格 , 規格

影像输入与输出至屏幕

影像輸入與輸出至螢幕

3.5mm喇叭音讯采样率

3.5mm喇叭音訊取樣率

影像格式與擷取解悉度

(需在至少USB Type-C 3.0連接)

影像格式与撷取解悉度

(需在至少USB Type-C 3.0连接)

SPECIFICATION

系统需求 , 系統需求

SYSTEM REQUIREMENT

Note

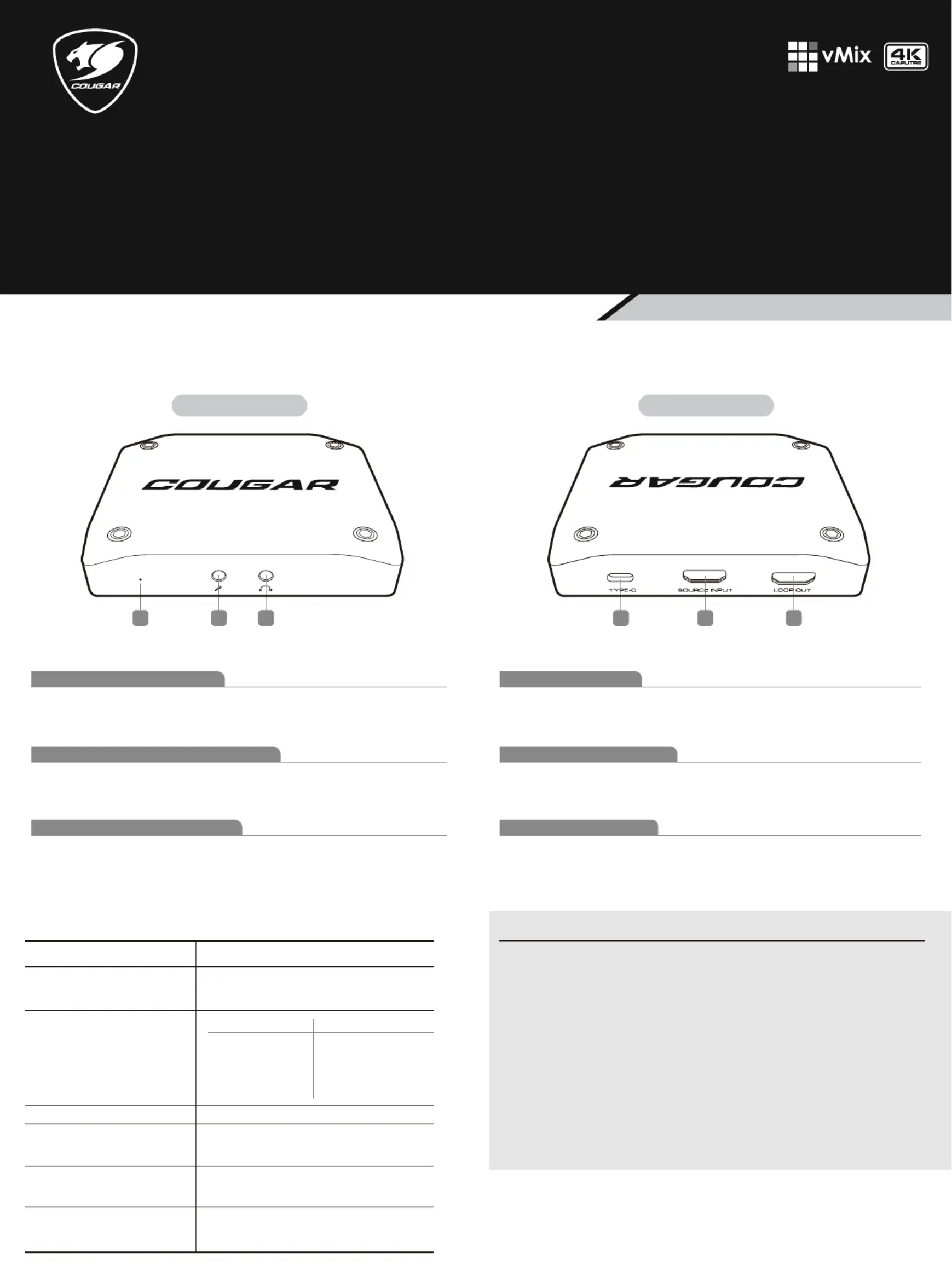

Front

正面 , 正面

Back

背面 , 背面

USB Type-C

In/output Loop-through Monitor

Video Format & Capture Resolution

(Under at least USB Type-C 3.0

Connection)

3840 x 2160p / 30Hz

2560 x 1440p / 60Hz

1920 x 1080p / 120 Hz

2560 x 1440p / 50Hz

1920 x 1080p / 60 Hz

Up to 3840 x 2160p / 60Hz or 1920x1080p / 240Hz

Windows 10/11

MacOS-11.0 or above

NV12

HDMI

3.5mm Speaker Sampling Rate

音讯连接

音訊連接

尺寸

Audio Connector

Dimension(mm)

2.0

48KHz/16bit

3.5mm Microphone and Stereo Headphone

93.5 x 115 x 21

YUYV

USB 3.2 Gen 1

1. To achieve rated performance, it is highly recommended that you connect the USB Type-C port directly

from the motherboard or laptop with the exclusive cable from the package.

2. The 4K, 3840 x 2160p, resolution “capture” or “loop-out” only recognized and operable when the monitor

you connected featured the 4K, 3840 x 2160p speciﬁcation. Otherwise, the display will maintain the

maximum resolution from your monitor.

3. Any malfunction from the adaptor or customized cable is not sanctioned according to the Warranty policy.

注意：

1. 为达到额定性能，强烈建议使用包装中的专用线材，直接从主机板或笔电的USB端子连结。

2. 当您连接的萤幕达4K画质(3840 x 2160)解悉度时，4K画质能才被「撷取」与「输出」。否则，显示内容将保持

萤幕的最大解悉度。

3. 使用转接器或客制线材产品的不良，将不在保固政策的约束。

注意：

1. 為達到額定性能，強烈建議使用包裝中的專用線材，直接從主機板或筆電的USB端子連結。

2. 當您連接的螢幕達4K畫質(3840 x 2160)解悉度時，4K畫質能才被「擷取」與「輸出」。否則，顯示內容將保持

螢幕的最大解悉度。

3. 使用轉接器或客製線材產品的不良，將不在保固政策的約束。

ENVISION

STREAMING & VIDEO CAPTURE

Envision连接方式 , Envision連接方式

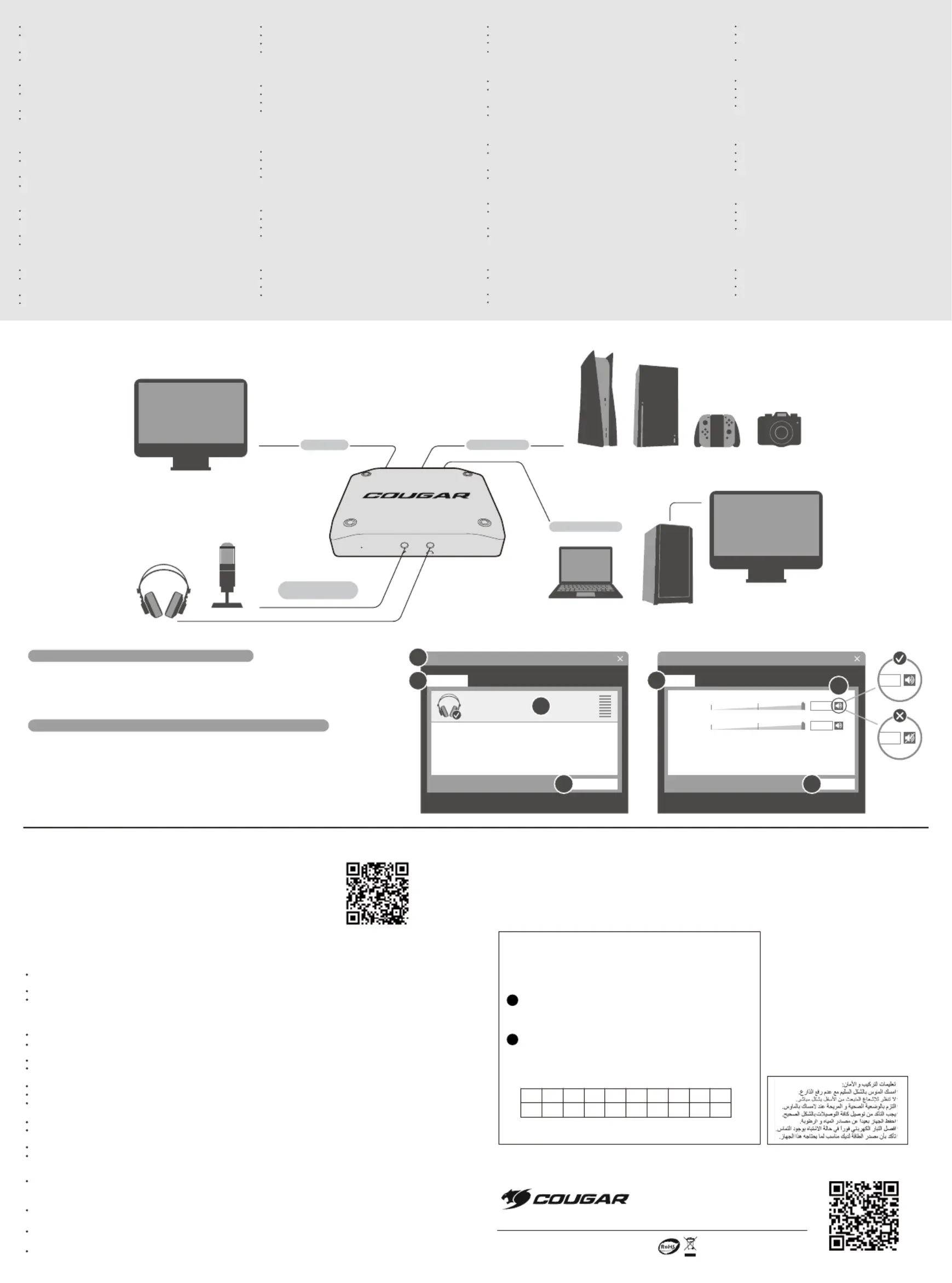

THE FLOW OF ENVISION

ENGLISH

Simple & Elegant Device to Stream Your Content

In/output Loop-through up to 3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

Video Captures Resolution up to 4K/30Hz or 2K/60Hz

Aluminum Alloy Decreases the Heat Accumulation

Support 3.5mm Headphone and Mic. Connectors

Compatible with Mainstream Third-party Applications

Supported VRR Mode to Reduce Tearing Display

Supported USB Type-C 3.2

DEUTSCH

Einfaches und elegantes Gerät zum Streamen und Aufnehmen

Ein-/Ausgang Loop-Through bis zu 3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

Videoaufnahmen mit einer Auﬂösung von bis zu 4K/30Hz or 2K/60Hz

Aluminiumlegierung verringert die Wärmeansammlung

Unterstützt 3,5-mm-Kopfhörer- und Mikrofonanschlüsse

Kompatibel mit Mainstream-Anwendungen von Drittanbietern

Unterstützter VRR-Modus zur Reduzierung des Tearing-Displays

Unterstützt USB Type-C 3.2

ESPAÑOL

Dispositivo simple y elegante para transmisión y grabación

Bucle de entrada/salida hasta 3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

Resolución de capturas de video de hasta 4K/30Hz or 2K/60Hz

La aleación de aluminio disminuye la acumulación de calor

Admite conectores de micrófono y auriculares de 3,5 mm

Compatible con aplicaciones convencionales de terceros

Modo VRR compatible para reducir el desgarro de la pantalla

Compatible con USB tipo C 3.2

PORTUGUÊS

Dispositivo simples e elegante para streaming e gravação

Loop de entrada/saída até 3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

Resolução de capturas de vídeo de até 4K/30Hz or 2K/60Hz

A liga de alumínio diminui o acúmulo de calor

Suporta conectores de fone de ouvido e microfone de 3,5 mm

Compatível com aplicativos de terceiros convencionais

Modo VRR suportado para reduzir a exibição de rasgos

Compatível com USB Type-C 3.2

FRANÇAIS

Appareil simple et élégant pour le streaming et l'enregistrement

Entrée/sortie en boucle jusqu'à 3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

Résolution de capture vidéo jusqu'à 4K/30Hz or 2K/60Hz

L'alliage d'aluminium diminue l'accumulation de chaleur

Prise en charge des connecteurs casque et micro 3,5 mm

Compatible avec les applications tierces grand public

Mode VRR pris en charge pour réduire l'afﬁchage des déchirures

Prise en charge USB Type-C 3.2

RUSSIAN

Простое и элегантное устройство для потоковой передачи и записи

Вход/выход Проходной до 3840 x 2160(4K)/60Гц или 2560 x

1440(2K)/144Гц

Разрешение видеозахвата до 4K/30Гц или 2K/60Гц

Алюминиевый сплав снижает накопление тепла

Поддержка разъемов для наушников и микрофона 3,5 мм

Совместимость с основными сторонними приложениями

Поддерживаемый режим VRR для уменьшения разрывов

изображения

Поддерживаемый USB Type-C 3.2

日本語

シンプルでエレガントな見た目、簡単に使用できる

入力/出力ループスルー最大解像度：3840x2160(4K)/60Hzor2560x

1440(2K)/144Hz

ビデオキャプチャ最大解像度：4K/30Hz or 2K/60Hz

アルミニウム合金で熱の蓄積を減らします

3.5mmヘッドフォンとマイクジャックに対応

主流のソフトウェアとの高い互換性

テアリングを軽減するVRRモード

USB Type-C 3.2に対応

KOREAN

콘텐츠를 스트리밍하는 쉽고 컴팩트한 장치

최대 입출력 Loop-through 해상도: 3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

최대 캡쳐 해상도: 4K/30Hz or 2K/60Hz

열 방출에 효과적인 알루미늄 합금 소재

3.5mm 헤드폰 및 마이크 지원

메인스트림 소프트웨어와 호환 가능

VRR 모드 지원으로 화면 찢어짐 감소

USB Type-C 3.2 지원

繁中

容易又簡練的設備，為你傳輸內容

最高輸入/輸出 Loop-through 解析度：3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

最高擷取解析度：4K/30Hz or 2K/60Hz

鋁合金材質減少熱量累積

支援 3.5mm 耳機與麥克風

兼容主流軟體

支援 VRR 模式，減少畫面撕裂

支援 USB Type-C 3.2

简中

容易又简练的设备，为你传输内容

最高输入/输出 Loop-through 解析度：3840 x 2160(4K)/60Hz or 2560 x

1440(2K)/144Hz

最高撷取解析度：4K/30Hz or 2K/60Hz

铝合金材质减少热量累积

支援 3.5mm 耳机与麦克风

兼容主流软体

支援 VRR 模式，减少画面撕裂

支援 USB Type-C 3.2

詳細保固條件

請掃描Qr Code

Tested to comply with FCC standards

FOR HOME OR OFFICE USE

MANUFACTURER CONTACT

LEGAL NOTICES

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR ENVISION

Warranty : Please refer to our ofﬁcial website.

( https://cougargaming.com/us/support/warranty/ )

DISCLAIMERS

COUGAR does not authorize or endorse the user of COUGAR products as a part of, together with, or connected to, life

support devices, medical equipment in general, military equipment, trafﬁc or transportation-related equipment or disaster

prevention systems.

COUGAR is not liable for any damage, expense, loss, cost, injury or any other result derived from the use of COUGAR

products not speciﬁcally for PC gaming in the compatible operative systems indicated by COUGAR.

COUGAR is not liable for any damage, expense, loss, cost, injury or any other result due to use of COUGAR products not in

strict accordance with the instructions provided by COUGAR in the instruction manual.

Software, instruction manuals, consumables (for example mouse pads, mouse feet, etc.), boxes or other external packaging

are not covered by the warranty.

This manual was created by Compucase Enterprise and may not be completely or partially copied, passed on,

distributed or stored without written consent by Compucase Enterprise.

COUGAR® is a registered brand of Compucase Enterprise Other product and company names mentioned in this

documentation may be brands or trademarks of their respective owners.

Compucase Enterprise reserves the right to make changes concerning the contents of the manual and the

technical data of the product without previous announcement.

WARRANTY AGREEMENT

If the product has defects in material or manufacture, COUGAR will provide product repair and replacement service within the

warranty period.

Our warranty service is based on the date of the invoice or warranty card (must be afﬁxed with the store stamp).

If you lose the aforementioned evidence, we will apply the original shipping date of the product as the beginning date of

warranty period. The shipping date will be identiﬁed by the product serial number(S/N).

CONDITIONS WHERE FREE MAINTENANCE IS NOT PROVIDED

Any fault or damage caused by natural disasters (including storm, ﬁre, ﬂood, thunder, earthquake, etc).

Any fault or damage caused by accidental factors and man-made reasons (including hit, scrape, crash, moving, compression,

stain, corrosion, use of incurred on unsuitable voltage, computer virus, riot, misuse, malicious damage, etc).

Use in an improper operating environment (including high temperature, high humidity, water inﬂow, etc).

Inability to provide the product warranty card, purchase receipt or invoice to prove the product is still within the warranty

period and the shipping date of the product is out of warranty.

The warranty card or product serial number has been altered or its number is hard to identify.

The warranty period has expired.

Any fault or damage caused by non-compliance with regulations stated on the user manual or improper, rough and careless

treatment.

Any fault or damage caused by use of parts not certiﬁed by COUGAR original manufacturer.

The problem is caused by improper repair or adjustment by the buyer or any manufacturer without authorization from

COUGAR.

The product is not acquired from an authorized distributor of the company or is acquired from illicit sources.

Paper carton, instruction and other accessories are not warranted.

全球保固條款 / 全球保固政策

Compucase Enterprise Co., Ltd.

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail:rma@compucaseusa.com

www.cougargaming.com

Off ici al web sit e

год и месяц изготовления продукции указаны в серийном

номере продукта.

(существует 2 способа определения даты изготовления,

оба способа описаны ниже)

После S/N: первые две цифры означают год,

вторые две – месяц изготовления.

Например, S/N: H 000001 означает, что товар был 1702

произведен в феврале 2017 года.

После S/N: если указаны буквы, то две буквы представляют

цифры из таблицы ниже, и означают год, последующие

две цифры – месяц изготовления.

Например, S/N: D REVI000001 означает, AG02

что товар был произведен в феврале 2017 года.

●

Например, AG = 17 = 2017 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A D G HB C E F I J

1 3 4 5 6 8 9 02 7

This warranty gives you speciﬁc legal rights. You may also have other

rights granted under local law.

Monitor for HDMI SOURCE

Instant Display

3.5mm Audio Card

(From HOST)

HOST

Monitor for HOST

HDMI SOURCES

保固政策：中国地区购买，请参考中国地区官方网站。

( http://cougargaming.com.cn/support/warranty/ )

3.5mm音讯选择 , 3.5mm音訊選擇

3.5mm Audio Selection

After connecting the Type-C port to the Host PC, select “COUGAR ENVISION” in Output

and Input from the audio control panel.

当Type-C连接到主机PC后，在音讯的控制面板输入与输出中选择「COUGAR ENVISION」。

當Type-C連接到主機PC後，在音訊的控制面板輸入與輸出中選擇「COUGAR ENVISION」。

HDMI信号音量选择 , HDMI訊號音量選擇

HDMI Source Input Sound Selection

2. Make sure Step #6, the HDMI output, is not mute, otherwise, the input sound is not captured.

1. Sound→Playback→Headphone (Cougar Envision) →Properties→Levels→HDMI：unmute icon →OK

1. 声音→播放→耳机 (Cougar Envision) →内容→等级→HDMI：非静音符号→确定

2. 确认步骤#6，HDMI 输出非选择静音，否则输入声音不会被撷取。

1. 聲音→播放→耳機 (Cougar Envision) →內容→等級→HDMI：非靜音符號→確定

2. 確認步驟#6，HDMI 輸出非選擇靜音，否則輸入聲音不會被擷取。

LOOP OUT SOURCE INPUT

TYPE-C (To HOST)

(Playstation , XBOX , Switch , Camera , or other HDMI Device)

(Laptop or PC)

Sound

Playback

Headphone Properties

Levels

Headphone

Properties OK

Computer

100

HDMI

100

Produkt Specifikationer

Mærke:	Cougar
Kategori:	Ikke kategoriseret
Model:	Envision

Har du brug for hjælp?

Hvis du har brug for hjælp til Cougar Envision stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Cougar Manualer

Cougar Auric Manual

14 August 2025

Cougar Armor Air Manual

13 August 2025

Cougar GEC 550 Manual

13 August 2025

Cougar Bunker Manual

13 August 2025

Cougar GES 750 Manual

13 August 2025

Cougar Envision Manual

13 August 2025

Cougar GES 850 Manual

13 August 2025

Cougar DH07 Manual

13 August 2025

Cougar GEX PRO 650W Manual

13 August 2025

Cougar GLE 1200W Manual

13 August 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Rowenta Studio Dry 2100 CV5330 Manual

14 August 2025

American Audio DCD-PRO610 Manual

14 August 2025

Conair InfinitiPRO 1000 Manual

14 August 2025

Philips Uv Sanitizer HX6907 Manual

14 August 2025

Rowenta SuperGrill GR451B Manual

14 August 2025

Daikin ALB05RBSNADBT01 Manual

14 August 2025

Philips SWS3685S Manual

14 August 2025

Crestron C2N-IRGW-1G Manual

14 August 2025

American Audio Epsilon Manual

14 August 2025

Voltcraft VC-OBD-9770 Manual

14 August 2025
