Warranty and information of the manufacturer

For further information of the warranty terms, please read the information of

“Guarantee Terms and conditions for COUGAR Power Supply Units (PSU) of the

VTE X2-Series”.

This product is not to be disposed in the regular household waste and must be

brought to a collection-point for electrical and electronic devices for recycling. The

symbol to the left refers to that and can be found on the product, in the manual or on

the packaging. Materials can be recycled according to their description. With the

reuse, the recycling or other forms of reutilization of old devices you make an

important contribution to the protection of our environment. Please inquire the

appropriate location of disposal from your local administration.

Trouble shooting

WARNING:

Never work on the PSU yourself. Even long time after its deactivation,

life-threatening voltages can still be present in the PSU. Repairs should only be made

by authorized specialists.

Working at power sources can lead to life-threatening injuries. If there is smoke,

cable damage or intrusion of liquids the PSU has to be immediately disconnected

from the power network and must not to be put into operation anymore afterwards.

Never open the PSU. It contains components, which can show high voltages even

after long periods of deactivation.

Again, repairs should only be done by authorized specialists!

Problem: After the installation of the new PSU the system does not start.

Possible solutions:

●

Check the power code and the power supply of the wall socket and/or multiple

socket strip. Also check whether the multiple socket strip can supply the

necessary power.

●

Check all connections within the PC; maybe not all cables are correctly connected.

●

Check the internal cable of the I/O-switch of the PC case to the mainboard.

●

Check the components for possible short-circuits or defects.

Please also check the other components for compatibility. Often mainboard chipsets

are not compatible with all memory and/or graphics card solutions. Contact the

manufacturer of the component to get more information.

If your PSU still does not function even though you have checked sources of errors

mentioned above, please get in touch with our customer service.

Introduction

Dear customer:

Thank you for choosing a COUGAR

power supply unit. Before the installation

please read the manual below carefully. If you have any questions, please contact

our customer service:

Warnings and safety notes

Never open the PSU cover. There is potential danger of life due to high voltage inside.

The PSU should only be opened by an authorized technician. The manufacture

warranty will be void, if the PSU is opened by an unauthorized person.

Do not work on the PSU or the PC as long as the main voltage is still connected.

Switch the I/O button to position "0" and disconnect the power plug from the power

network.

Protect the PSU against moisture.

The PSU is suitable for operation at 100-240V 50-60Hz.

The ambient temperature should not exceed 50°. Please pay attention to the power

de-rating on all models with a decrease of 1%/°C starting at an ambient temperature

of 25°C. Please ensure that there is sufficient ventilation of the entire system.

Make sure during the installation of the PSU that the ventilation slots are not covered.

Do not clog the ventilation slots of the PSU. Keep your PC away from direct heat

sources such as radiators.

When using an extension cord and/or multiple sockets pay attention to the maximum

through-connection ability in order to avoid short-circuits.

If you want to clean your PSU, disconnect the power plug from the power network

and remove it from the PC case. Before the removal make sure that you are not

statically charged, (e.g. through carpets or wool sweaters).Only clean the PSU on the

outside, always using dry cloth, never water or detergent.

During the operation of the PSU pay attention to the maximum loads. The single

loads and the total loads must not exceed to cross the values shown in output power

table. Avoid the use of adapters, such as 4Pin Molex to 6+2Pin PCI-Express.

Technical details and special features

●

EXTREMELY HIGH EFFICIENCY

Up to 88% of efficiency.

●

COMPATIBLE WITH THE LATEST PC-TECHNOLOGY

Created for use with current and next-generation multi-core CPU platforms.

●

SUPPORT MULTI-GPU TECHNOLOGY

Supports PCI Express 4.0 next-generation graphics cards with 8(6+2) pin

PCI-E connector.

●

MASSIVE SINGLE +12V DC OUTPUT

Extreme Performance for Powerful Graphics Systems.

●

INTEGRATED AIR INLET DESIGN

Optimal aerodynamic design that provides more silent operation.

●

ACTIVE POWER FACTOR CORRECTION (ACTIVE PFC)

PF value up to 99% : Clean and reliable power.

●

FULL PROTECTIONS WITH SCP, OVP, UVP, OPP & OCP

Installation/accessories

Before you begin with the installation, please read the section

”Warnings and safety notes.”For the arrangement only use the supplied screws since

these have the correct thread. You need a screwdriver for the correct arrangement.

The following parts are included within the delivery:

●

Screws for the PSU assembly

●

Power cord (Please only use the power cord which is included; low-quality cords can

damage your PSU and your PC-system.)

●

Brief instruction incl. Information about the warranty

●

Place the PSU into its designated place within the case and fix it with the supplied screws.

●

First insert the plugs for the mainboard supply (20/24 pin, 4 pin and possibly

8 pin – according to mainboard layout) into the respective slots.

●

Connect the disk drives and if necessary the graphics cards to the PSU.

●

Close the PC and ensure that the PSU power switch is set to the position "0".

●

Connect the PSU to the power network using the supplied power cord. Using only

the power cord provided in the package. Low quality power cord may damage the

PSU and PC system!

●

Turn on the PSU and then start your PC.

Safety functions

●

UVP (Undervoltage protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU

automatically switches off.

●

OVP (Overvoltage protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU

automatically switches off.

●

SCP (Short-circuit protection)

In the case of a short-circuit this feature prevents damage to the core components

of the PSU and its system components.

●

OPP (Overload protection)

If the system is oversized and requires more power from the PSU than it can

perform, this protection function is activated.

●

OCP (Overcurrent protection)

If the current on a single line is higher than indicated,the PSU automatically switches off.

Specifications

●

Operating conditions

Working temperature: +10°C ~ +40°C

(Please note the de-rating condition in Warnings and safety notes)

Storage temperature: -40°C~+70°C

Operating humidity (without condensation water): 20%~85% relative humidity

Storage humidity (without condensation water): 5%~95% relative humidity

VTE X2

600/650/700/750

●

Output power

●

Connectors

Main CPU

24(20+4) Pin 8(4+4) Pin

Peripheral S-ATA PCI-E

Connector

5 Pin 8(6+2) Pin4 Pin

1 2 6 21

VTE X2 600

1 2 6 21

VTE X2 650

1 3 8 41

VTE X2 700

1 3 8 41

VTE X2 750

+3.3V

20A

130W 600W

0.3A 3A

3.6W 15W

600W

20A 50A

+5V +12V Total

100-240V~

50-60Hz

12A

100-240V~

50-60Hz

15A

-12V +5Vsb

AC inputModel Name

DC output

130W 649.2W

0.3A 3A

650W

20A 20A 54.1A

140W 699.6W

0.3A 3A

650W

22A 22A 58.3A

VTE X2

600

CGR VX-600

3.6W 15W140W 750W

0.3A 3A

750W

22A 22A 62.5A

VTE X2

650

CGR VX-650

VTE X2

700

CGR VX-700

VTE X2

750

CGR VX-750

Manufacturer contact:

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, Sec. 2 An Ho Road.,

749 Tainan City, Taiwan

Tel:+886-6-356-0606

Service E-Mail: service@cougargaming.com

More information you will find at

cougargaming.com

Compucase Enterprise Co.,Ltd.

Legal notices

This manual was created by COMPUCASE ENTERPRISE CO., LTD. and may not be

completely or partially copied, passed on, distributed or stored without written

consent by COMPUCASE ENTERPRISE CO., LTD.

COUGAR is a registered brand of COMPUCASE ENTERPRISE CO., LTD. Other

product and company names mentioned in this documentation may be brands or

trademarks of their respective owners.

COMPUCASE ENTERPRISE CO., LTD. reserves the right to make changes concerning

the contents of the manual and the technical data of the product without previous

announcement.

Where the product warranty according to local laws and regulations extends to less than 24

months after the date of purchase, Compucase will provide an extended limited warranty

starting the day in which the implied warranty (according to local laws and regulations) ends

and finishing 24 months after the date of purchase. If the local laws and regulations establish

a warranty period of 24 or more months, no extended limited warranty shall be provided.

During this period, defects in material or workmanship will be repaired or restored with

spare parts. In case of a guarantee service, the customer should claim the COUGAR PSU

at the retailer, where the PSU was bought, accompanied by a copy of the invoice and an

error description. Compucase will only support directly if the retailer is not reachable

repeatedly.

In case of direct support by Compucase , the end user has to assure that the goods are

packed properly and that p2-he is in charge of all transportation costs.

Compucase’s warranty does not cover any of the following:

●

Damages due to acts of nature (e.g. Lightning, Water, Fire and so on)

●

Accessory or consequential damages that happened by using or not using the PSU

●

Damages caused by misuse of the PSU or caused by negligence

●

Loss of information or data, software or applications

●

Damages caused by opening or modifying the PSU without previous accordance

●

Damages caused by using or installing the PSU under conditions outside of the technical

specifications which are described in the attached manual

This warranty is valid only for the first end user or consumer and is restricted to the above named period.

Guarantee Terms and conditions for

COUGAR Power Supply Units (PSU) of the VTE X2 Series

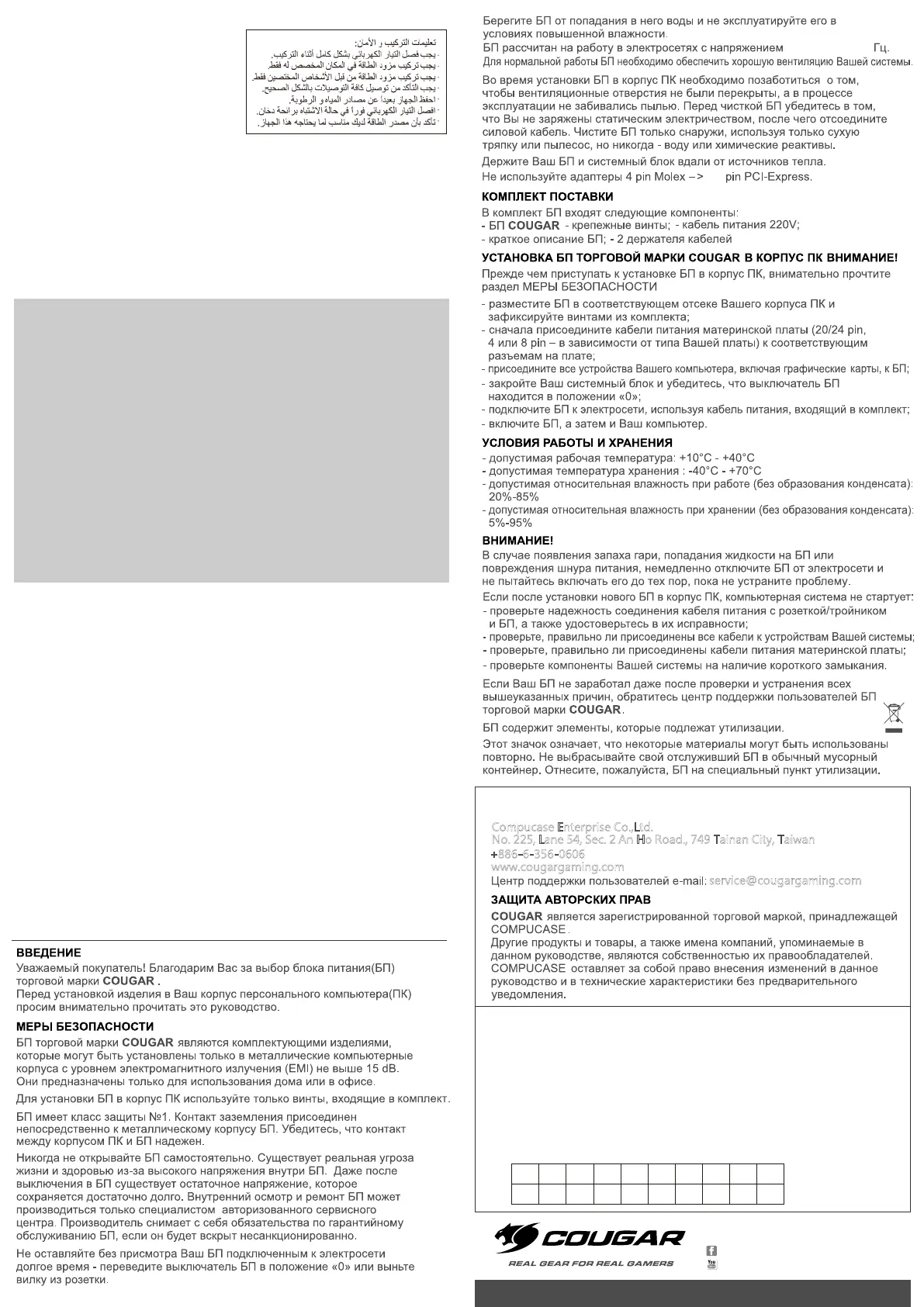

РУССКИЙ ЯЗЫК

www.cougargaming.com

facebook.com/cougargaming

youtube.com/user/COUGARGLOBAL

www.cougargaming.com

6+2

100-240V 50-60

www.cougargaming.com

service@cougargaming.com

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, Sec. 2 An Ho Road., 749 Tainan City, Taiwan

+886-6-356-0606

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H

1702000001 означает, что товар был произведен в

феврале 2017 года.

После S/N: если указаны буквы, то две буквы представляют цифры из

таблицы ниже, и означают год, последующие две цифры – месяц

изготовления.

Например, S/N: D

AG02

REVI000001 означает, что товар был произведен в

феврале 2017 года.

●

Например,

AG = 17 = 2017 год

Дата изготовления продукции

A B C D E F G H I J

1 2 3 4 5 6 7 8 9 0

ИНФОРМАЦИЯ О МЕЖДУНАРОДНОМ СЕРВИСНОМ ЦЕНТРЕ

ТОРГОВОЙ МАРКИ COUGAR:

PORTUGUÊS

●

EFICIÊNCIA EXTREMAMENTE ALTA - Até 88% de eficiência.

●

COMPATÍVEL COM A MAIS RECENTE TECNOLOGIA DE PC Criado para uso com

plataformas de CPU multi-core atuais e de próxima geração.

●

SUPORTE A TECNOLOGIA DE MULTI-GPU Oferece suporte a placas gráficas PCI Express 4.0

de última geração com conector PCI-E de 8 (6 + 2) pinos.

●

Saída maciça única + 12 V DC - Desempenho extremo para sistemas gráficos poderosos

●

PROTEÇÕES COMPLETAS COM SCP, OCP, OVP, UVP, OPP

●

Correção do fator de potência ativa (PFC ativo) - valor PF de até 99%: energia limpa e

confiável

ESPAÑOL

● EXTREMADAMENTE ALTA EFICIENCIA - Hasta un 88% de eficiencia.

● COMPATIBLE CON LA ÚLTIMA TECNOLOGÍA DE PC Creado para su uso con plataformas

de CPU de múltiples núcleos actuales y de próxima generación.

● SOPORTE TECNOLOGÍA MULTI-GPU Admite tarjetas gráficas PCI Express 4.0 de próxima

generación con conector PCI-E de 8 (6 + 2) pines.

● Salida única masiva de +12 V CC: rendimiento extremo para sistemas gráficos potentes

● PROTECCIONES COMPLETAS CON SCP, OCP, OVP, UVP, OPP

● Corrección del factor de potencia activa (PFC activo): valor de FP de hasta 99%: energía

limpia y confiable

Produkt Specifikationer

Mærke:	Cougar
Kategori:	Ikke kategoriseret
Model:	VTE X2

Har du brug for hjælp?

Hvis du har brug for hjælp til Cougar VTE X2 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Cougar Manualer

Cougar VTE X2 Manual

10 September 2025

Cougar Turbo Manual

10 September 2025

Cougar XTC ARGB DIGITAL Manual

9 September 2025

Cougar GES 2025W Manual

9 September 2025

Cougar GLE 750W Manual

9 September 2025

Cougar GST 2024W Manual

28 August 2025

Cougar SC 650W Manual

27 August 2025

Cougar GR 650 Manual

27 August 2025

Cougar LX500 Manual

27 August 2025

Cougar XTC Manual

27 August 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Blizzard TOURnado RGBALC Manual

10 September 2025

Hortus 111-388 Manual

10 September 2025

Faber RB1200 Manual

10 September 2025

AVPro Edge AC-MXNET-1G-D Manual

10 September 2025

HP Pro 1005 Manual

10 September 2025

Camille Bauer SINEAX F534 Manual

10 September 2025

VOREL 80062 Manual

10 September 2025

HP Pro Tower 480 G9 Manual

10 September 2025

Keter Premier 757 Manual

10 September 2025

Fanvil i51W Manual

10 September 2025
