Introduction

Dear customer:

Thank you for choosing a COUGAR

power supply unit. Before the installation please read the

manual below carefully. If you have any questions, please contact our customer service at

http://cougargaming.com/customersupport/

Warnings and safety notes

The COUGAR® power supply units (PSUs) are built-in devices for computers, which may

only be used in metal cases with a sufficient EMI shielding of at least 15 dB. The PSUs are only

intended for home or office usage. For the installation in a PC case please use screws of the

type 6#-32*6L only, which are provided in the package.

The PSU is protection class 1. The protective grounding conductor is connected directly to the

metal case of the PSU. Make sure that the grounding conductor is fully connected to the

system grounding (the PC case).

Never open the PSU cover. There is potential danger of life due to high voltage inside. The PSU

should only be opened by an authorized technician. The manufacture warranty will be void, if

the PSU is opened by an unauthorized person.

Do not work on the PSU or the PC as long as the main voltage is still connected.

Switch the I/O button to position "0" and disconnect the power plug from the power network.

Protect the PSU against moisture.

The PSU is suitable for operation at 100-240V~/50-60 Hz and thus universally usable. The

ambient temperature should not exceed 50°. Please ensure that there is sufficient ventilation of

the entire system.

The leakage current must not exceed 3.5 mA.

Make sure during the installation of the PSU that the ventilation slots are not covered. Do not

clog the ventilation slots of the PSU. Keep your PC away from direct heat sources such as

radiators.

When using an extension cord and/or multiple sockets pay attention to the maximum

through-connection ability in order to avoid short-circuits.

During the operation of the PSU pay attention to the maximum loads. The single loads and the

total loads must not exceed to cross the values shown in output power table. Avoid the use of

adapters, such as 4Pin Molex to 6+2Pin PCI-Express.

Technical details and special features

●

Operating conditions

Working temperature: +10°C ~ +40°C

Storage temperature: -40°C~+70°C

Operating humidity (without condensation water): 20%~85% relative humidity

Storage humidity (without condensation water): 5%~95% relative humidity

●

COMPACT SIZE: FOR ALL PC CASES

Its 140mm length suits most cases

●

FULLY MODULAR POWER SUPPLY UNIT

Connect only the cables you need for less clutter and better airflow

●

HDB FAN POWERED

Hydro Dynamic Bearing fan: Extended durability and lower noise levels

●

FAN CURVE FINE TUNING

Advanced technology for better cooling quality

●

IMPRESSIVE OPERATION AT 40°C

Powerful performance at 40°C/104°F ambient temperature

●

80-PLUS BRONZE CERTIFIED

Efficiency up to 88% power conversion for reducing your electricity bill

●

COMPLIANT WITH ErP Lot 2013

Energy consumption in standby is <0.5W: Extremely eco-friendly

●

SUPPORT FOR MULTI-GPU TECHNOLOGY

Supports PCI Express 3.0 graphic card with 6+2pin PCI-E connector

●

ULTRA STABLE VOLTAGE OUTPUTS

DC to DC technology for enhanced voltage stability

●

SINGLE +12V DC SOURCE

Massive outputs for high power devices

●

STRONG SAFEGUARDS: OCP, OPP, OVP, UVP & SCP

Maximum safety for your key system components

●

OPTIMIZED OVER CURRENT PROTECTIONS

Your components will operate stably and protected from any harm

Installation/accessories

Before you begin with the installation, please read the section „Warnings and safety notes.”

For the arrangement only use the supplied screws since these have the correct thread. You need

a screwdriver for the correct arrangement.

The following parts are included within the delivery:

●

Screws for the PSU assembly

●

Power cord (Please only use the power cord which is included; low-quality cords can damage

your PSU and your PC-system.)

●

Brief instruction including Information about the warranty

Installation of the COUGAR

PSU:

●

Place the PSU into its designated place within the case and fix it with the supplied screws.

●

First insert the plugs for the mainboard supply (20/24 pin for MotherBoard, 4 pin and / or

possibly 8 pin for CPU) into the respective slots.

●

Connect the disk drives and if necessary the graphics cards to the PSU.

●

Close the PC and ensure that the PSU power switch is set to the position "0".

●

Connect the PSU to the power network using the supplied power cord. Using only the power

cord provided in the package. Low quality power cord may damage the PSU and PC system!

●

Turn on the PSU and then start your PC.

Protections

●

OCP (Overcurrent protection)

If the current on a single line is higher than indicated, the PSU automatically switches off.

●

UVP (Under voltage protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU automatically

switches off.

●

OVP (Over voltage protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU

automatically switches off.

●

SCP (Short-circuit protection)

In the case of a short-circuit this feature prevents damage to the core components of the PSU

and its system components.

●

OPP (Over power protection)

If the system is overloaded and requires more power from the PSU than it can perform, this

protection function is activated.

●

Output power

●

Connectors

Main

Connector

CPU

Connector

24(20+4)Pins 8(4+4)Pins

Peripheral

Connector

S-ATA

Connector

PCI-E

Connector

8(6+2)Pins

5 Pins4 Pins

1 3 6 4

1 3 5 2

LX500

LX600

+3.3V +5V +12V

Total

100-240Vac

50-60Hz 8-4A

500W

-12V +5Vsb

24A 20A

120W 480W

40A

0.3A 3A

AC inputModel Name

DC output

600W

24A 20A

130W 588W

49A

0.3A 3A

LX500

CGR BX-500

LX600

CGR BX-600

100-240Vac

50-60Hz 10-5A

Trouble shooting

Never work on the PSU yourself. Even long time after its deactivation, life-threatening

voltages can still be present in the PSU. Repairs should only be made by authorized specialists.

Working at power sources can lead to life-threatening injuries. If there is smoke, cable damage

or intrusion of liquids the PSU has to be immediately disconnected from the power network and

must not to be put into operation anymore afterwards.

Never open the PSU. It contains components, which can show high voltages even after long

periods of deactivation.

Again, repairs should only be done by authorized specialists!

Problem: After the installation of the new PSU the system does not start.

ULTRA-COMPACT FULLY MODULAR POWER SUPPLY

Compucase gives an extended limited warranty of 12 months on COUGAR LX-Series

Power Supply Units (PSU), beginning from the date the implied warranty (24 months) ends.

During this period, defects in material or workmanship will be repaired or restored with

spare parts. In case of a guarantee service, the customer should claim the COUGAR PSU at

the retailer, where the PSU was bought, accompanied by a copy of the invoice and an error

description. Compucase will only support directly if the retailer is not reachable repeatedly.

In case of direct support by Compucase, the end user has to assure that the goods are

packed properly and that p2-he is in charge of all transportation costs.

Compucase’s warranty does not cover any of the following:

●

Damages due to acts of nature (e.g. Lightning, Water and Fire)

●

Accessory or consequential damages that happened by using or not using the PSU

●

Damages caused by misuse of the PSU or caused by negligence

●

Loss of information or data, software or applications

●

Damages caused by opening or modifying the PSU without previous accordance

●

Damages caused by using or installing the PSU under conditions outside

of the technical specifications

This warranty is valid only for the first end user or consumer and is restricted to the above

named period.

Warranty Terms and Conditions for

COUGAR Power Supply Units

facebook.com/cougargaming

youtube.com/user/COUGARGLOBAL

www.cougargaming.com

Made in China

Possible solutions:

●

Check the power code and the power supply of the wall socket and/or multiple socket strip.

Also check whether the multiple socket strip can supply the necessary power.

●

Check all connections within the PC; maybe not all cables are correctly connected.

●

Check the internal cable of the I/O-switch of the PC case to the mainboard.

●

Check the components for possible short-circuits or defects.

Please also check the other components for compatibility. Often mainboard chipsets are not

compatible with all memory and/or graphics card solutions.

Contact the manufacturer of the component to get more information.

If your PSU still does not function even though you have checked sources of errors mentioned

above, please get in touch with our customer service.

Advice

This product is not to be disposed in the regular household waste and must be brought to a

collection-point for electrical and electronic devices for recycling. The symbol to the left refers to

that and can be found on the product, in the manual or on the packaging. Materials can be

recycled according to their description. With the reuse, the recycling or other forms of

reutilization of old devices you make an important contribution to the protection of our

environment. Please inquire the appropriate location of disposal from your local administration.

Warranty and information of the manufacturer

For further information of the warranty terms, please read the information of “Guarantee Terms

and conditions for COUGAR Power Supply Units (PSU) of the LX-Series”.

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C

Tel:+886-6-356-0606

Service E-Mail: service@cougargaming.com

More information you will find at cougargaming.com

Compucase Enterprise Co.,Ltd.

Legal notices

This manual was created by COMPUCASE ENTERPRISE CO., LTD. and may not be completely or

partially copied, passed on, distributed or stored without written consent by COMPUCASE

ENTERPRISE CO., LTD.

COUGAR® is a registered brand of COMPUCASE ENTERPRISE CO., LTD. Other product and

company names mentioned in this documentation may be brands or trademarks of their

respective owners.

COMPUCASE ENTERPRISE CO., LTD. reserves the right to make changes concerning the contents

of the manual and the technical data of the product without previous announcement.

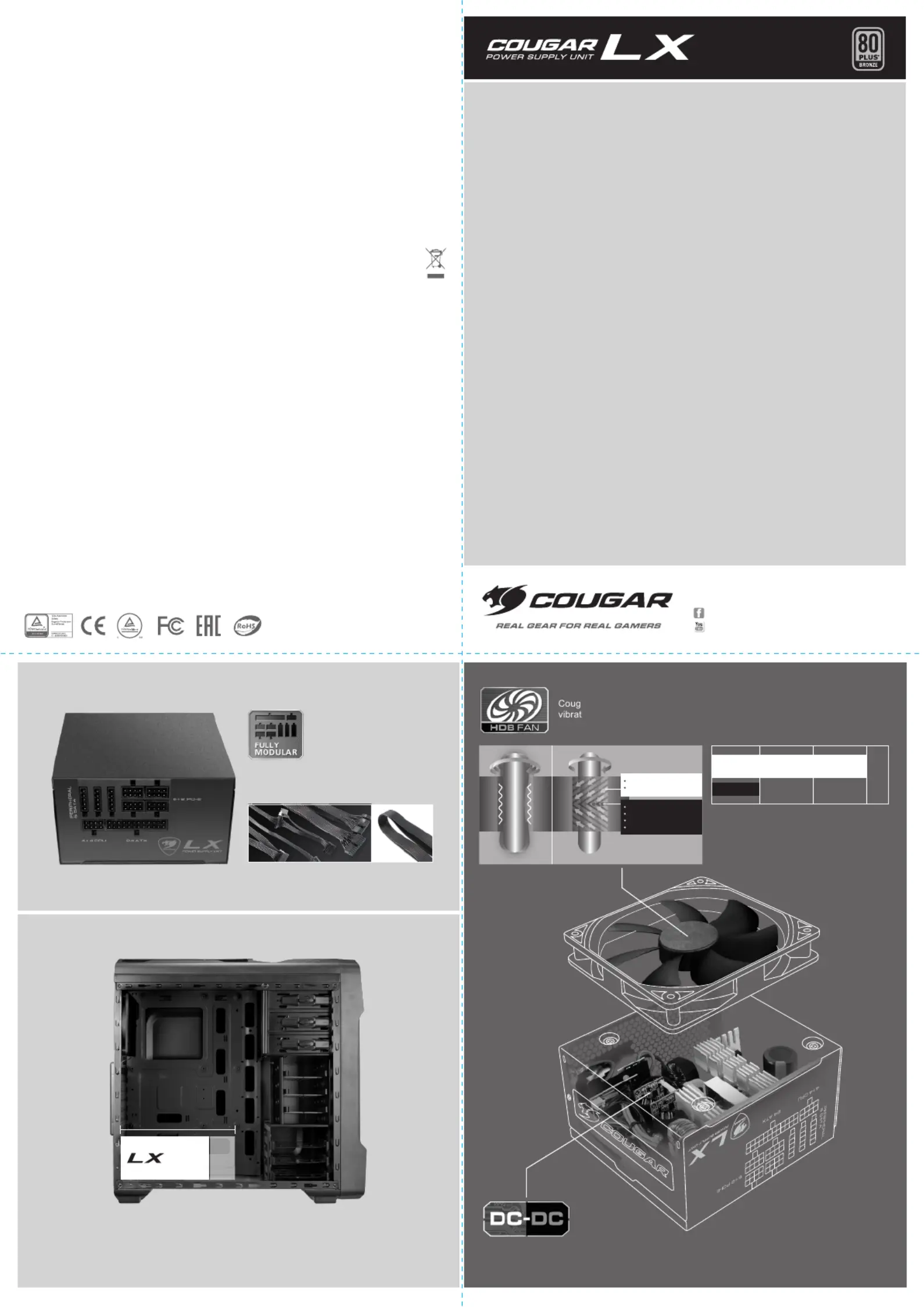

DC-DC power conversion technology to regulate a stable voltage output for your PC’s components.

At 140mm length, LX is one of the most compact fully modular PSUs you will find on the market.

This means it will fit in a wide range of cases, and give you additional flexibility for building your PC.

ar LX’s 120mm HDB fan provides an optimized airflow with reduced

ion noise and extends the unit’s lifespan.

150mm

140mm

86mm

BEST LIFESPAN

50000 100000 150000

40°C MTBF

LX HDB

(

HYDRO-DYNAMIC BEARING

)

3 TIMES THE STANDARD LIFESPAN

Standard

hrs

Other Fully Modular PSU

>140mm

140mm

ADVANCED FULLY MODULAR CABLES

Connect only the cables you need:

Less cable clutter and friction, better airflow.

HDB FAN

Others

Patented groove design

Centralized oil pressure

No oil leakage

Improved stability

Less friction and noise

Extended lifespan

Produkt Specifikationer

Mærke:	Cougar
Kategori:	Ikke kategoriseret
Model:	LX500
Tænd-/slukkontakt:	Ja
Vekselstrømsindgangsspænding:	100 - 240 V
Vekselstrømsindgangsfrekvens:	50 - 60 Hz
Bredde:	150 mm
Dybde:	140 mm
Højde:	86 mm
Brugervejledning:	Ja
Produktfarve:	Sort
Pakketype:	Kasse
Støjniveau:	- dB
Certificering:	OCP, OPP, OVP, UVP & SCP
Bæredygtighedscertifikater:	ENERGY STAR
Formål:	PC
Indgangsstrøm:	4 - 8 A
Total effekt:	500 W
Antal blæsere:	1 blæser(e)
Effektivitet:	88 %
Strømkorrektionsfaktor (PFC):	Aktiv
Kombineret effekt (+3,3 V):	120 W
Kombineret effekt (+12 V):	480 W
Kombineret effekt (+5 V):	120 W
Maks. udgangsstrøm (+3,3 V):	24 A
Maks. udgangsstrøm (+12 V):	40 A
Maks. udgangsstrøm (+5 V):	20 A
Maks. udgangsstrøm (-12V):	0.3 A
Maks. udgangsstrøm (+5 VSB):	3 A
80 PLUS certificering:	80 PLUS Bronze
Ventilator diameter:	140 mm
Motherboard, strømstik:	20+4 pin ATX
Antal SATA strømstik:	5
Perifere (Molex) strømstik (4-pin):	3
PCI ekspres strømforbindelser (6+2 pin):	2
CPU strømstik (4+4 pin):	Ja
CPU strømstik(8-pin):	1
Kabeltype:	Fuldt modulær
Antal SATA stik:	5
Antal PCI Express-slots:	2
PCI Express stik:	Ja
Farve på etui:	Sort
