Side 1/2
Warranty and information of the manufacturer
For further information of the warranty terms, please read the information of
“Guarantee Terms and conditions for COUGAR Power Supply Units (PSU) of the
POLAR-Series”.
This product is not to be disposed in the regular household waste and must be
brought to a collection-point for electrical and electronic devices for recycling. The
symbol to the left refers to that and can be found on the product, in the manual or on
the packaging. Materials can be recycled according to their description. With the
important contribution to the protection of our environment. Please inquire the
appropriate location of disposal from your local administration.
Trouble shooting
WARNING:
Never work on the PSU yourself. Even long time after its deactivation,
life-threatening voltages can still be present in the PSU. Repairs should only be made
by authorized specialists.
Working at power sources can lead to life-threatening injuries. If there is smoke,
cable damage or intrusion of liquids the PSU has to be immediately disconnected
from the power network and must not to be put into operation anymore afterwards.
Never open the PSU. It contains components, which can show high voltages even
after long periods of deactivation.
Again, repairs should only be done by authorized specialists!
Problem: After the installation of the new PSU the system does not start.
Possible solutions:
●
Check the power code and the power supply of the wall socket and/or multiple
socket strip. Also check whether the multiple socket strip can supply the
necessary power.
●
Check all connections within the PC; maybe not all cables are correctly connected.
●
Check the internal cable of the I/O-switch of the PC case to the mainboard.
●
Check the components for possible short-circuits or defects.
Please also check the other components for compatibility. Often mainboard chipsets
are not compatible with all memory and/or graphics card solutions. Contact the
manufacturer of the component to get more information.
If your PSU still does not function even though you have checked sources of errors
mentioned above, please get in touch with our customer service.
Introduction
Dear customer:
Thank you for choosing a COUGAR
®
power supply unit. Before the installation
please read the manual below carefully. If you have any questions, please contact
our customer service:
Warnings and safety notes
Never open the PSU cover. There is potential danger of life due to high voltage inside.
The PSU should only be opened by an authorized technician. The manufacture
warranty will be void, if the PSU is opened by an unauthorized person.
Do not work on the PSU or the PC as long as the main voltage is still connected.
Switch the I/O button to position "0" and disconnect the power plug from the power
network.
Protect the PSU against moisture.
The PSU is suitable for operation at 100-240V 47-63Hz.
The ambient temperature should not exceed 50°. Please pay attention to the power
de-rating on all models with a decrease of 1%/°C starting at an ambient temperature
of 25°C. Please ensure that there is sufficient ventilation of the entire system.
Make sure during the installation of the PSU that the ventilation slots are not covered.
Do not clog the ventilation slots of the PSU. Keep your PC away from direct heat
sources such as radiators.
When using an extension cord and/or multiple sockets pay attention to the maximum
through-connection ability in order to avoid short-circuits.
If you want to clean your PSU, disconnect the power plug from the power network
and remove it from the PC case. Before the removal make sure that you are not
statically charged, (e.g. through carpets or wool sweaters).Only clean the PSU on the
outside, always using dry cloth, never water or detergent.
During the operation of the PSU pay attention to the maximum loads. The single
loads and the total loads must not exceed to cross the values shown in output power
table. Avoid the use of adapters, such as 4Pin Molex to 6+2Pin PCI-Express.
Technical details and special features
●
80-PLUS
®
PLATINUM CERTIFIED
Up to 92% efficiency power conversion for reducing your electricity bill
●
FULLY MODULAR POWER SUPPLY UNIT
Connect only the cables you need for less clutter and better airflow
●
HDB FAN POWERED
Hydro Dynamic Bearing fan: Extended durability and lower noise levels
●
SUPERIOR FAN CURVE TUNING
Advanced tuning technologyy for noise minimization
●
FLAWLESS OPERATION AT 50°C
Powerful performance at 50°C ambient temperature
●
ULTRA-STABLE VOLTAGE OUTPUTS
DC to DC technology for enhanced voltage stability
●
SUPPORT FOR MULTI-GPU TECHNOLOGY
Supports PCI Express 4.0 graphic cards with 6+2pin PCI-E connectors
●
SINGLE +12V DC SOURCE
Massive outputs for high power devices
●
STRONG SAFEGUARDS: OCP, OPP, OVP, UVP, SCP & OTP
Maximum safety for your key system components
Installation/accessories
Before you begin with the installation, please read the section
”Warnings and safety notes.”For the arrangement only use the supplied screws since
these have the correct thread. You need a screwdriver for the correct arrangement.
The following parts are included within the delivery:
●
Screws for the PSU assembly
●
Power cord (Please only use the power cord which is included; low-quality cords can
damage your PSU and your PC-system.)
●
Brief instruction incl. Information about the warranty
●
Place the PSU into its designated place within the case and fix it with the supplied screws.
●
First insert the plugs for the mainboard supply (20/24 pin, 4 pin and possibly
8 pin – according to mainboard layout) into the respective slots.
●
Connect the disk drives and if necessary the graphics cards to the PSU.
●
Close the PC and ensure that the PSU power switch is set to the position "0".
●
Connect the PSU to the power network using the supplied power cord. Using only
the power cord provided in the package. Low quality power cord may damage the
PSU and PC system!
●
Turn on the PSU and then start your PC.
Safety functions
●
OVP (Overvoltage protection)
If the voltages increase above a certain tolerance value on the single lines, the PSU
automatically switches off.
●
SCP (Short-circuit protection)
In the case of a short-circuit this feature prevents damage to the core components
of the PSU and its system components.
●
OPP (Overload protection)
If the system is oversized and requires more power from the PSU than it can
perform, this protection function is activated.
●
OCP (Overcurrent protection)
If the current on a single line is higher than indicated,the PSU automatically switches off.
●
OTP (Over Temperature Protection)
If the temperature is too high, the PSU automatically switches off.
Specifications
●
Operating conditions
Working temperature: +10°C ~ +50°C
(Please note the de-rating condition in Warnings and safety notes)
Storage temperature: -40°C~+70°C
Operating humidity (without condensation water): 20%~85% relative humidity
Storage humidity (without condensation water): 5%~95% relative humidity
POL AR
●
Output power
●
Connectors
Main CPU
24(20+4) Pin 8(4+4) Pin
Peripheral S-ATA PCI-E
Pin
Connector
5 Pin 8(6+2) Pin4 Pin
1 4 12 91
8 Pin
1
POLAR 1050
1 4 12 91 1
POLAR 1200
+3.3V
20A
100W 1050W
0.3A 3A
3.6W 15W
1050W
20A 87.5A
+5V +12V Total
AC100-240V~
47-63Hz
15-7A
-12V +5Vsb
AC inputModel Name
DC output
POLAR
1050
CGR PR-1050
POLAR
1200
CGR PR-1200
20A
100W 1200W
0.3A 3A
3.6W 15W
1200W
20A 100A
AC100-240V~
47-63Hz
15-7A
Manufacturer contact:
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, Sec. 2 An Ho Road.,
749 Tainan City, Taiwan
Tel:+886-6-356-0606
Service E-Mail: service@cougargaming.com
More information you will find at
cougargaming.com
Compucase Enterprise Co.,Ltd.
All rights reserved.
Legal notices
This manual was created by COMPUCASE ENTERPRISE CO., LTD. and may not be
completely or partially copied, passed on, distributed or stored without written
consent by COMPUCASE ENTERPRISE CO., LTD.
COUGAR is a registered brand of COMPUCASE ENTERPRISE CO., LTD. Other
product and company names mentioned in this documentation may be brands or
trademarks of their respective owners.
COMPUCASE ENTERPRISE CO., LTD. reserves the right to make changes concerning
the contents of the manual and the technical data of the product without previous
announcement.
COUGAR provides a 10-year limited warranty on POLAR series against manufacturing defects
in materials and workmanship.
During this period, defects in material or workmanship will be repaired or restored with spare
parts. To make use of the warranty service, the customer contact the retailer where the PSU
was bought and provide a copy of the invoice and an error description.
Compucase will only support directly if the retailer is not reachable repeatedly.
In the case of direct support by Compucase, the end user shall be responsible for packing the
product properly and will assume all transportation costs.
Compucase’s warranty does not cover any of the following:
●
Damages due to acts of nature (e.g. Lightning, Water, Fire and so on)
●
Accessory or consequential damages that happened by using or not using the PSU
●
Damages caused by misuse of the PSU or caused by negligence
●
Loss of information or data, software or applications
●
Damages caused by opening or modifying the PSU without previous accordance
●
Damages caused by using or installing the PSU under conditions outside of the technical
●
Cryptocurrency mining may cause warranty void
specifications which are described in the attached manual
This warranty is valid only for the first end user or consumer and is restricted to the above
named period.
Guarantee Terms and conditions for
COUGAR Power Supply Units (PSU) of the POLAR Series

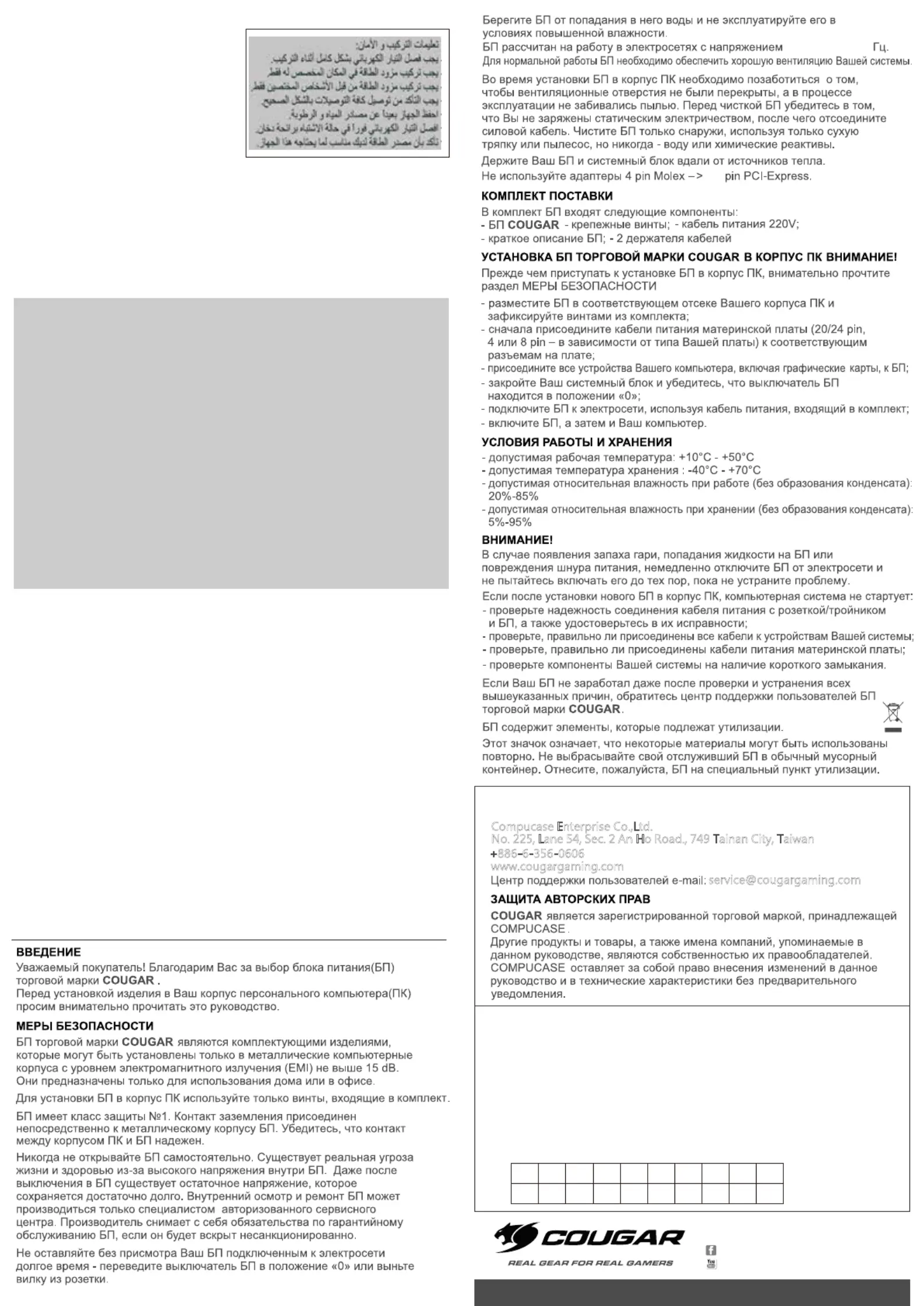

РУССКИЙ ЯЗЫК
www.cougargaming.com
facebook.com/cougargaming
youtube.com/user/COUGARGLOBAL
www.cougargaming.com
6+2
200-240V 47-63
www.cougargaming.com
service@cougargaming.com
Compucase Enterprise Co.,Ltd.
No. 225, Lane 54, Sec. 2 An Ho Road., 749 Tainan City, Taiwan
+886-6-356-0606
год и месяц изготовления продукции указаны в серийном номере продукта.
(существует 2 способа определения даты изготовления, оба способа описаны ниже)
A
После S/N: первые две цифры означают год, вторые две – месяц изготовления.
Например, S/N: H
1702000001 означает, что товар был произведен в
феврале 2017 года.
B
После S/N: если указаны буквы, то две буквы представляют цифры из
таблицы ниже, и означают год, последующие две цифры – месяц
изготовления.
Например, S/N: D
AG02
REVI000001 означает, что товар был произведен в
феврале 2017 года.
●
Например,
AG = 17 = 2017 год
Дата изготовления продукции
A B C D E F G H I J
1 2 3 4 5 6 7 8 9 0
ИНФОРМАЦИЯ О МЕЖДУНАРОДНОМ СЕРВИСНОМ ЦЕНТРЕ
ТОРГОВОЙ МАРКИ COUGAR:
PORTUGUÊS
●
EFICIÊNCIA EXTREMAMENTE ALTA - Até 92% de eficiência.
●
COMPATÍVEL COM A MAIS RECENTE TECNOLOGIA DE PC Criado para uso com
plataformas de CPU multi-core atuais e de próxima geração.
●
SUPORTE A TECNOLOGIA DE MULTI-GPU Oferece suporte a placas gráficas
PCI Express 4.0 de última geração com conector PCI-E de 8 (6 + 2) pinos.
●
Saída maciça única de + 12 Vcc - Desempenho extremo para sistemas gráficos poderosos
●
PROTEÇÕES COMPLETAS COM SCP, OCP, OVP, OPP, OTP
●
Correção do fator de potência ativa (PFC ativo) - valor de FP até 99%: energia limpa
e confiável
ESPAÑOL
●
EXTREMADAMENTE ALTA EFICIENCIA - Hasta 92% de eficiencia.
●
COMPATIBLE CON LA ÚLTIMA TECNOLOGÍA DE PC Creado para su uso con plataformas
de CPU de múltiples núcleos actuales y de próxima generación.
●
SOPORTE TECNOLOGÍA MULTI-GPU Admite tarjetas gráficas PCI Express 4.0 de
próxima generación con conector PCI-E de 8 (6 + 2) pines.
●
Salida única masiva de +12 V CC: rendimiento extremo para sistemas gráficos potentes
●
PROTECCIONES COMPLETAS CON SCP, OCP, OVP, OPP, OTP
●
Corrección del factor de potencia activa (PFC activo): valor de FP de hasta 99%:
energía limpia y confiable

Produkt Specifikationer

Mærke: Cougar
Kategori: Ikke kategoriseret
Model: POLAR

Har du brug for hjælp?

Hvis du har brug for hjælp til Cougar POLAR stil et spørgsmål nedenfor, og andre brugere vil svare dig


Ikke kategoriseret Cougar Manualer

Cougar

Cougar POLAR Manual

27 August 2025
Cougar

Cougar GR 1000 Manual

26 August 2025
Cougar

Cougar STC 700 Manual

26 August 2025
Cougar

Cougar ATLAS 650 Manual

26 August 2025
Cougar

Cougar GX-F Aurum Manual

26 August 2025
Cougar

Cougar ATLAS 850 Manual

26 August 2025
Cougar

Cougar GR 850 Manual

26 August 2025
Cougar

Cougar STC 750 Manual

26 August 2025
Cougar

Cougar GES 650 Manual

26 August 2025
Cougar

Cougar GEX PRO 850 Manual

26 August 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

Spirit Of Gamer

Spirit Of Gamer PRO-MK3 Manual

27 August 2025
Chief

Chief FHB-5147 Manual

27 August 2025
Showtec

Showtec IP Pixel Controller Manual

27 August 2025
Jøtul

Jøtul GZ 450 DV Manual

27 August 2025
Russell Hobbs

Russell Hobbs Desire 27151-56 Manual

27 August 2025
Kramer

Kramer RC-206/306-EU-PANEL-SET Manual

27 August 2025
Val Avionics

Val Avionics AWOS 2000 Manual

27 August 2025
Body Solid

Body Solid Powerline PVKC83X Manual

27 August 2025
Growatt

Growatt SPE 6000-12000US Manual

27 August 2025
Russell Hobbs

Russell Hobbs Colours Plus 21392-56 Manual

27 August 2025
