Cougar Royal 150 Manual

Cougar Skrivebord Royal 150

Læs gratis den danske manual til Cougar Royal 150 (2 sider) i kategorien Skrivebord. Denne vejledning er vurderet som hjælpsom af 2 personer og har en gennemsnitlig bedømmelse på 3.5 stjerner ud af 1.5 anmeldelser. Har du et spørgsmål om Cougar Royal 150, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/2

●

Read and understand this manual before attempting to install or operate.

●

This product is not intended for use by young children or for those who require supervision.

●

Do not sit or stand on the desk. Do not crawl or lie under the desk.

●

Do not place any objects taller than 20” underneath the desk.

●

Do not open any of the components – lifting columns, control box, or controller. There is a

risk of electric shock.

●

The desk must be INITIALIZED before first use.

CAUTION

Make sure no obstacles are in the desk’s path. Make sure the desk top is not touching any walls.

Make sure all cords are of appropriate lengths to accommodate the change in desk height.

USE & LIABILITY

This sit-to-stand adjustable desk has electric motors and is designed for use in an indoor environment

and dry work areas only. The desk height is adjustable so that it can be positioned at the most suitable

height. Any other use is at user’s risk. Under no circumstances does the manufacturer accept warranty

claims or liability claims for damages caused from improper use or handling of the desk.

CAUTION, USE & ABI TY LI LI

SPECIFICATION

PARTS & HARDWARE LIST FEATURES

TOOLS REQUIRED

Hex Wrench 5mm Hex Wrench 8mm

Desk Top

PARTS / COMPONENT LIST

Lifting Column

Foot

Under-Desk Cable Trays

Control Box

Power Strip

M10x15mm Hexagon Screw

M6x16mm Hexagon Screw

＊Listed qty included 2 extra screws in the package as spare parts

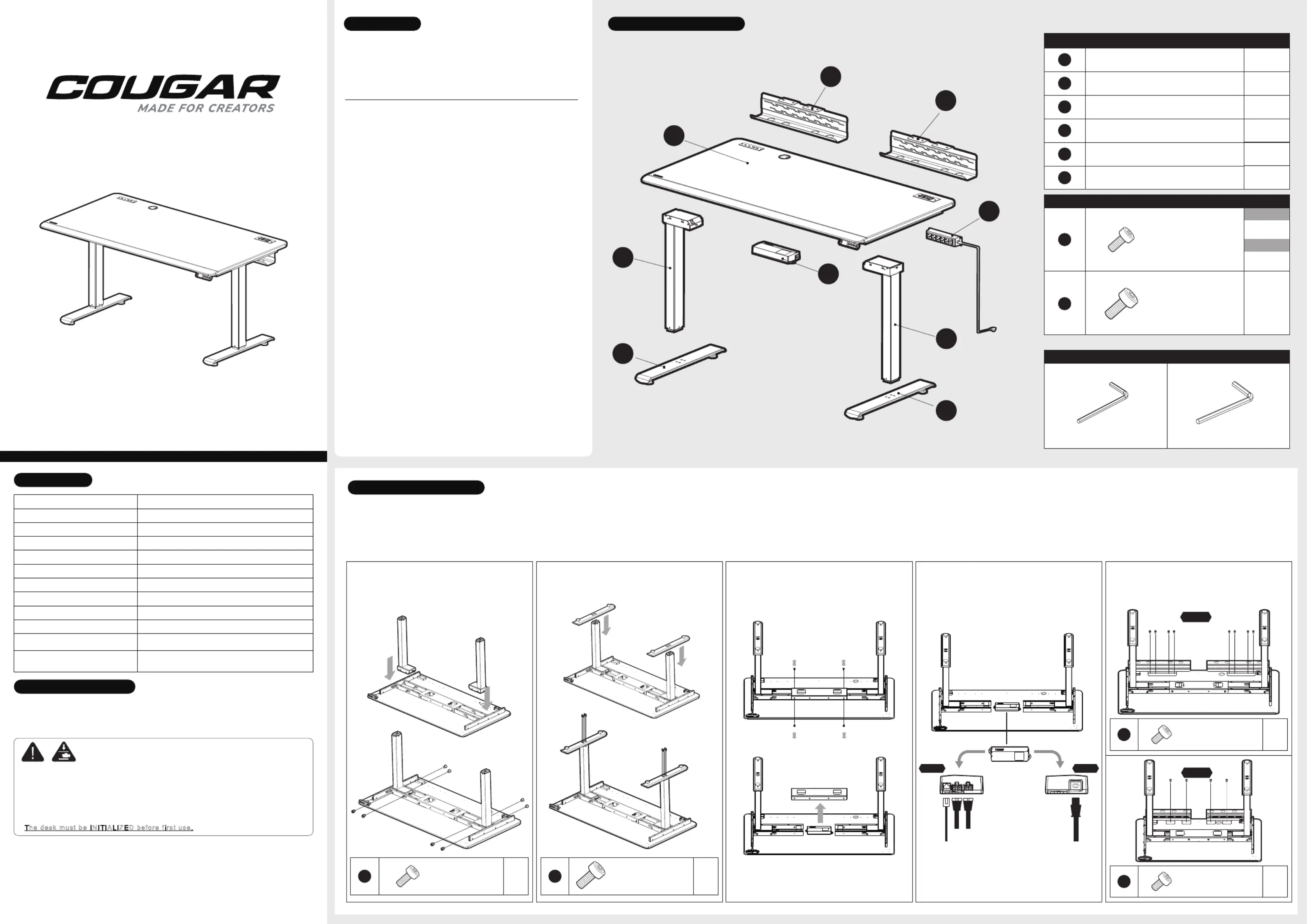

ASSEMBLY INSTRUCTIONS

BEFORE YOU BEGIN

1. Lay out all components and hardware to ensure that you have everything listed.

2. The desk weighs over 100 lbs. Two people are needed to turn or move desk top and some components.

When turning or moving the assembled desk, grab it by Lifting column (not the desk top).

3. Assemble on the soft and non-abrasive surface to avoid scratch or damage to the desk top.

Height Controller Cable Power Cable

Product Name

Preassembled Desk Frame

Desk Dimension

Height Range

Travel Speed

Noise Level

Lifting Capacity

Input

Quality Certifications

Desktop Chemical Test

Electronic Devices Safety Certifications

Built-in Docking Port (Optional)

COUGAR ROYAL ELECTRIC STANDING DESK

2 stage columns and dual motors desk frame

59”x31”x1” or 47”x31”x1”

27”- 47”(without desktop) / 28”- 48”(with desktop)

1.57”/second

≦50 decibels during motion

220 Ib

100-240VAC, 50/60Hz

ANSI/BIFMA X5.5-2014 Durability Certification

Meet RoHS, SGS & PROP 65 compliant

Lifting Column, Control Box & Power Strip– UL certification

Docking Station- FCC & CE certification

Input Type C x1, Type C USB 3.1 x1, Type A USB 3.1 x2

HDMI 2.0 x1, DP1.4 x1, Power in PD 3.0 x1

Cougar Electric Standing Desk chooses outstanding Timotion lifting

columns,control box and keypad with exceptional quality construction.

With cable management attached to preserve you the tidy desk.

Exclusively built-in 7-in-1 docking station let you expand the connectivity

options of laptop. We integrate all your needs into this desk.

ENGLISH

●

Premium Stylish Desktop

●

Dual Motor Desk for Extra Weight Capacity, Smooth Lifting and Reliability

●

Superior Knob Control Memory Keypad

●

World-Class Stability Frames

●

Convenient Cable Management Tools

●

Exclusive Built-in 7-in-1 Docking Station

РУССКИЙ

●

Стильный рабочий стол премиум-класса

●

Двухмоторный стол для большего веса, плавного хода и надежности

●

Первоклассная панель управления памятью высот

●

Устойчивая основа отменного качества

●

Удобный механизм укладки кабелей

●

Эксклюзивная встроенная док-станция «7 в 1»

●

Escritorio elegante de primera calidad

●

Teclado de memoria superior controlado por perilla

●

Marcos de estabilidad de clase mundial

●

Cómodas herramientas de gestión de cableado

●

Escritorio de motor dual para una capacidad de peso extra, elevación suave,

segura y fiable

●

Exclusiva estación de acoplamiento 7 en 1 incorporada

ESPAÑOL

●

Mesa ergonômica e confortável

●

Avançados botões de controle com apenas 1 toque

●

Estrutura de mesa estável de classe mundial

●

Design conveniente de gerenciamento de cabos

●

Elevação confiável e estável com acionamento por motor duplo

●

Exclusiva estação de conexão 7 em 1

PORTUGUÊS

●

舒适的人体工学桌版

●

稳定可靠的双马达驱动升降系统

●

高级拨杆式一键到位控制器

●

世界一流的稳定性桌架

●

便利收纳的理线设计

●

独家内崁式七合一多功能连接埠

中文

STEP 5

Install under-desk cable trays by using a 5mm hex wrench to

tighten four screw A (M6x16mm) on each side. Then, Plug

power cord of control box to 5-outlet power strip.

STEP 4

1. Connect height controller cable to the left plug on control box.

2. Connect motor cables to control box. Motor cables can be

connected interchangeably to either port.

3. Plug power cable to the right plug on control box.

4. Then put back the sheet metal and make sure well screwed

with four screws as original condition.

150cm

120cm

Left Right

Motor Cable

STEP 2

Use 8mm Hex wrench to secure foot to lifting column with

four screw B (M10x15mm) on each side.

STEP 3

Unfasten the connecting sheet metal above the control box

by using 5mm hex wrench. Then place the sheet metal on

side, ready for following step 4 to plug the cables to control

box.

STEP 1

Insert the lifting column so that the back of the lifting column

and the back of the crossbar end are flush. Use Hex wrench

5mm to tighten with 4pcs of screw A (M6x16mm) screws on

each side.

M6x16mm hexagon screw

M10x15mm hexagon screw

M6x16mm hexagon screw

Be aware of your hands

HARDWARE LIST

x18

x14

x10

150 Series

120 Series

ROYAL ELECTRIC STANDING DESK

LIFT DESK WITH CONTROLLER

Docking Station Spec sheet (Optional) Specification

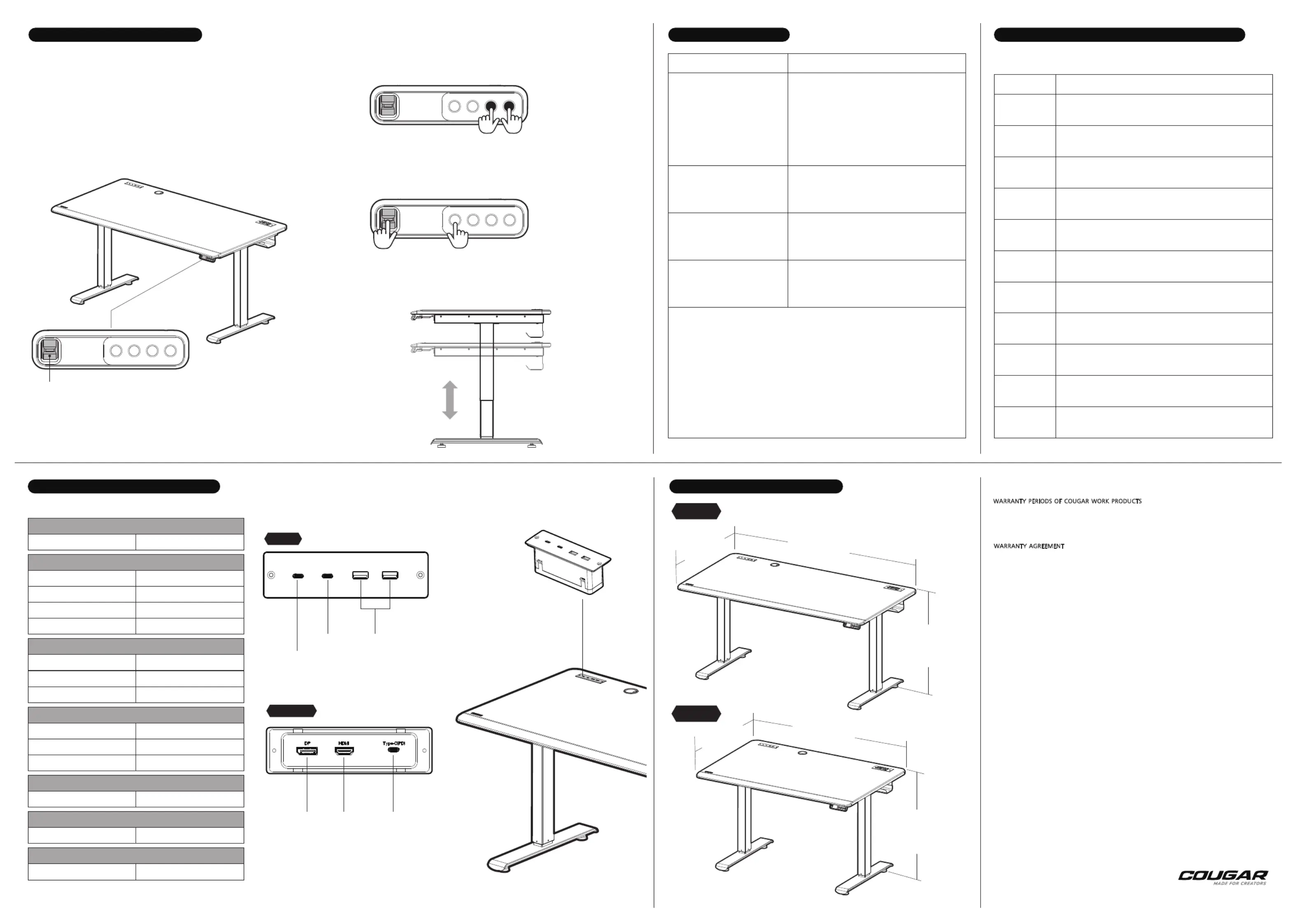

TROUBLESHOOTING

Issues(s)

Desk does not go up or down

Check all connections. Make sure power cord is

plugged into thecontrol box and a power outlet.

Unplug the power cord and replug after 10 seconds.

Re-initialize the desk. If the problem persists, switch

motor cables from one port to another at control

box and re-initialize one more time. If you have

been using the desk continuously for 2 minutes,

non-movement might be due to overheat. Stop

using the desk for 10 minutes and let it cool down.

Reset may be needed from time to time in events like non-movement, uneven movement,

sudden power outage, over-load, overheat and etc.

For most electronic devices, reset is simply a power-off and a power-on. This desk has

dual motors. The reset involves more than a conventional power-off and power-on as both

motors need to be synchronized. The reset process is the same as initialization. If your desk

has memory controller, press and hold both UP and DOWN arrow buttons, and release both

buttons when 000 appears. If your desk has basic 2-button controller, press and hold UP

and DOWN arrow buttons for 3 seconds, and then release both buttons. The desk will first

go to the lowest position, then the highest position and finally stops in between.

Unplug the power cord and re-plug after 10 seconds.

Re-initialize the desk. If the problem persists, switch

motor cables from one port to another at control box

and re-initialize one more time.

It is normal that desk wobbles slightly at standing

height when in use. Make sure all the screws are

tightened and adjust leveling studs if the floor is

uneven.

It is normal that the desk is noisier when one stage

extends into the other. Apply silicon based lubricant

if it is unusually noisy.

Columns do not go up evenly.

Desk wobbles pretty excessively.

Desk is unusually noisy

Solution

ERROR CODE FOR DESK WITH MEMORY CONTROLLER

The digital display shows the error code s below to suggest the issues that users may

encounter during the operation.

The controller is a simple yet classic hand control for height-adjustable desk. It allows the user to set four preferred heights and equipped with a three-digit height display.

You can preset up to four positions. Use knob switch to move the desk to your desired position.

•3-digit display shows the height of the desk.

•Memory functionality (4 settings)

•Mounted to the desk front side

•Knob switch for up and down

•Especially designed for adjustable height desk application.

Users must conduct a reset when the desk operated for the first time.

Simultaneously press button 3 and 4 for 8 seconds.

Continue pressing the buttons until both columns are in lowest position.

When finished with the reset, the control box makes a beep sound and

the buttons can be released. Then, the display will show starting height.

Top

Bottom

120cm

150cm

088

150cm (59”)

120cm (47”)

80cm (31”)

72cm (28”)

122cm (48”)

72cm (28”)

122cm (48”)

Type C

(With PD Function)

HDMI 2.0 TYPE-C

(PD Charge)

Type C

(Data only)

USB 3.1

Input Port

Type

Type C with PD Function

USB 2.0 Data

Speed 480Mb/S

Power Delivery Enable, PD 3.0

Type USB3.1 Gen 1

Speed 5Gb/S

Power Delivery Unable (Data Only)

Type USB3.1 Gen 1

Max. Resolution 4K@ 60Hz

Support Power Adapter Max 100W

Speed 5Gb/S

Battery Charging Enable

Type C (Power IN with PD Charge) x 1

Features

Type C (Data only) x 1

Type A x 2

HDMI HDMI 2.0

Power Request

DP 1.4

Not reset completely

Solution

Overuse protection

Unbalance protection

Anti-collision

M1 Motor over-current protection

M2 Motor over-current protection

No Hall sensor from M1

No Hall sensor from M2

No current from M1

Error Code

E00

E01

E02

E03

T-touch ProtectionE04

E11

E12

E21

E22

E31

E32 No current from M2

*Knob switch: Adjust the height adjustable desk to go up or down.

1 2 3 4

Simultaneously press the preferred memory buttons (1,2,3,4) with scrolling down

or up knob switch for 3 seconds, once the display shows P1 or P2 or P3 or P4,

means the position is memorized. Then, just press button 1,2,3 or 4 to move

desk to memorized position.

0P1

2 3 4

070

1 2

Note:

Final resolution of HDMI or DP output depends on your host devices.

System Requirements: The connected laptop must support Power

Delivery and DisplayPort Alt Mode via the USB-C port.

WARRANTY AGREEMENT

●

If the product has defects in material or manufacture, COUGAR will provide repair and replacement

service within the warranty period.

●

Our warranty service is based on the date of the invoice or warranty card.

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR WORK PRODUCTS

Product : COUGAR ROYAL ELECTRIC STANDING DESK

Warranty: 2-Year Warranty for COUGAR Electric Standing Desk / 5-Year Warranty for lifting column.

This warranty gives you specific legal rights. You may also have other rights granted under local law.

These rights may vary.

CONTACT INFORMATION

LOYALTY FOUNDER ENTERPRISE CO., LTD.

13F, NO.859, Jingguo Rd, Taoyuan Taiwan, R.O.C

TEL:+886-3-3269123

Service email : service@cougarwork.com

WARNING

●

Please wear protective gloves when assembling the Desk. It is your own responsibility to use appropriate protection

to prevent any physical damage.

●

Do not use abrasive products or scrub energetically when cleaning. Please stick to gentle products suitable for

delicate materials.

●

All parts should be checked monthly to confirm their integrity and to make sure that the screws are not loose.

●

If any part of the product is or appears to be damaged, missing or loose, please contact the local distributor and

do not use the product. WARNING

Produkt Specifikationer

Mærke:	Cougar
Kategori:	Skrivebord
Model:	Royal 150

Har du brug for hjælp?

Hvis du har brug for hjælp til Cougar Royal 150 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Skrivebord Cougar Manualer

Cougar Royal 150 Manual

27 August 2025

Cougar ROYAL MOSSA 150 Manual

27 August 2025

Cougar Royal Pure 150 Manual

26 August 2025

Cougar ROYAL ELITE 120 Manual

26 August 2025

Cougar Royal Pure 120 Manual

26 August 2025

Cougar E-DEIMUS 120 Manual

13 August 2025

Cougar E-GRAV 180 Manual

4 Juli 2025

Cougar E-STAR 120 Manual

3 Juli 2025

Cougar E-GRAV 160 Manual

3 Juli 2025

Cougar E-Odyssey Manual

3 Juli 2025

Skrivebord Manualer

Nyeste Skrivebord Manualer

Asus ExpertCenter Pro ET900A X9 Manual

26 August 2025

Asus Cepii PL64 Manual

26 August 2025

Asus E500 G5 SFF Manual

26 August 2025

Ikea BEKANT 102.530.25 Manual

25 August 2025

Ikea IDÅSEN 003.207.23 Manual

25 August 2025

ECS LIVA Z7 PLUS Manual

25 August 2025

Ikea BEKANT 902.529.70 Manual

25 August 2025

Ikea BEKANT 002.552.56 Manual

24 August 2025

Ikea BEKANT 802.552.57 Manual

24 August 2025

Ikea BEKANT 802.783.05 Manual

24 August 2025
