Read and understand this manual before attempting to install or operate.
●
This product is not intended for use by young children or for those who require supervision.
●
Do not sit or stand on the desk. Do not crawl or lie under the desk.
●
Do not place any objects taller than 20” underneath the desk.
●
Do not open any of the components – lifting columns, control box, or controller. There is a
risk of electric shock.
●
The desk must be INITIALIZED before first use.
CAUTION
Make sure no obstacles are in the desk’s path. Make sure the desk top is not touching any walls.
Make sure all cords are of appropriate lengths to accommodate the change in desk height.
USE & LIABILITY
This sit-to-stand adjustable desk has electric motors and is designed for use in an indoor environment
and dry work areas only. The desk height is adjustable so that it can be positioned at the most suitable
height. Any other use is at user’s risk. Under no circumstances does the manufacturer accept warranty
claims or liability claims for damages caused from improper use or handling of the desk.
CAUTION, USE & LIABILITY
SPECIFICATION
PARTS & HARDWARE LIST FEATURES
TOOLS REQUIRED
Hex Wrench 5mm Hex Wrench 8mm
2
1
Desk Top
PARTS / COMPONENT LIST
1
Lifting Column
2
Foot
3
Under-Desk Cable Trays
4
Control Box
5
Power Strip
6
M10x15mm Hexagon Screw
M6x16mm Hexagon Screw
A
B
＊Listed qty included 2 extra screws in the package as spare parts
3
4
4
6
3
2
5

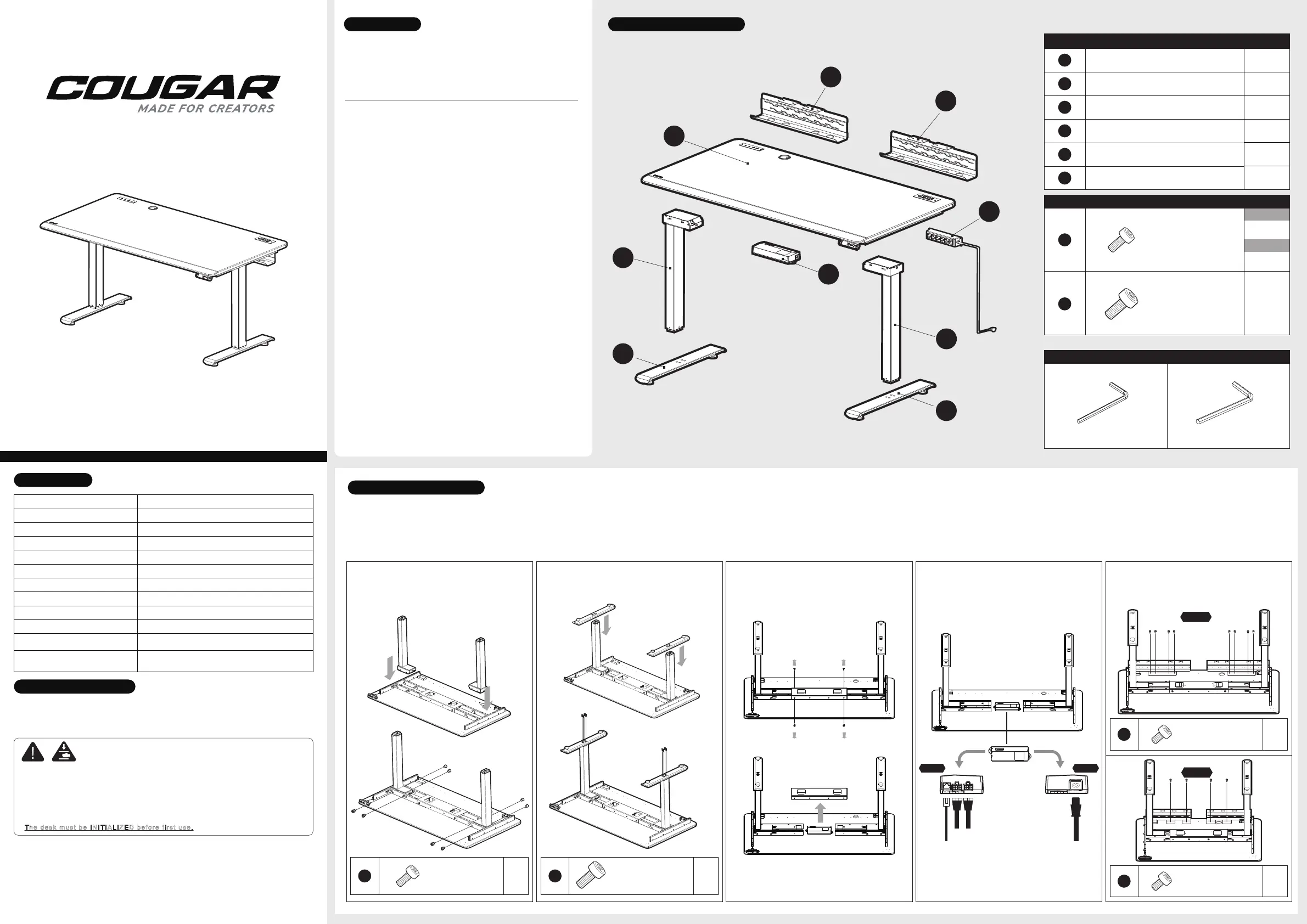

ASSEMBLY INSTRUCTIONS
BEFORE YOU BEGIN
1. Lay out all components and hardware to ensure that you have everything listed.
2. The desk weighs over 100 lbs. Two people are needed to turn or move desk top and some components.
When turning or moving the assembled desk, grab it by Lifting column (not the desk top).
3. Assemble on the soft and non-abrasive surface to avoid scratch or damage to the desk top.
Height Controller Cable Power Cable
Product Name
Preassembled Desk Frame
Desk Dimension
Height Range
Travel Speed
Noise Level
Lifting Capacity
Input
Quality Certifications
Desktop Chemical Test
Electronic Devices Safety Certifications
Built-in Docking Port (Optional)
COUGAR ROYAL ELECTRIC STANDING DESK
2 stage columns and dual motors desk frame
59”x31”x1” or 47”x31”x1”
27”- 47”(without desktop) / 28”- 48”(with desktop)
1.57”/second
≦50 decibels during motion
220 Ib
100-240VAC, 50/60Hz
ANSI/BIFMA X5.5-2014 Durability Certification
Meet RoHS, SGS & PROP 65 compliant
Lifting Column, Control Box & Power Strip– UL certification
Docking Station- FCC & CE certification
Input Type C x1, Type C USB 3.1 x1, Type A USB 3.1 x2
HDMI 2.0 x1, DP1.4 x1, Power in PD 3.0 x1
Cougar Electric Standing Desk chooses outstanding Timotion lifting
columns,control box and keypad with exceptional quality construction.
With cable management attached to preserve you the tidy desk.
Exclusively built-in 7-in-1 docking station let you expand the connectivity
options of laptop. We integrate all your needs into this desk.
ENGLISH
●
Premium Stylish Desktop
●
Dual Motor Desk for Extra Weight Capacity, Smooth Lifting and Reliability
●
Superior Knob Control Memory Keypad
●
World-Class Stability Frames
●
Convenient Cable Management Tools
●
Exclusive Built-in 7-in-1 Docking Station
РУССКИЙ
●
Стильный рабочий стол премиум-класса
●
Двухмоторный стол для большего веса, плавного хода и надежности
●
Первоклассная панель управления памятью высот
●
Устойчивая основа отменного качества
●
Удобный механизм укладки кабелей
●
Эксклюзивная встроенная док-станция «7 в 1»
●
Escritorio elegante de primera calidad
●
Teclado de memoria superior controlado por perilla
●
Marcos de estabilidad de clase mundial
●
Cómodas herramientas de gestión de cableado
●
Escritorio de motor dual para una capacidad de peso extra, elevación suave,
segura y fiable
●
Exclusiva estación de acoplamiento 7 en 1 incorporada
ESPAÑOL
●
Mesa ergonômica e confortável
●
Avançados botões de controle com apenas 1 toque
●
Estrutura de mesa estável de classe mundial
●
Design conveniente de gerenciamento de cabos
●
Elevação confiável e estável com acionamento por motor duplo
●
Exclusiva estação de conexão 7 em 1
PORTUGUÊS
●
舒适的人体工学桌版
●
稳定可靠的双马达驱动升降系统
●
高级拨杆式一键到位控制器
●
世界一流的稳定性桌架
●
便利收纳的理线设计
●
独家内崁式七合一多功能连接埠
中 文
STEP 5
Install under-desk cable trays by using a 5mm hex wrench to
tighten four screw A (M6x16mm) on each side. Then, Plug
power cord of control box to 5-outlet power strip.
STEP 4
1. Connect height controller cable to the left plug on control box.
2. Connect motor cables to control box. Motor cables can be
connected interchangeably to either port.
3. Plug power cable to the right plug on control box.
4. Then put back the sheet metal and make sure well screwed
with four screws as original condition.
150cm
120cm
Left Right
Motor Cable
STEP 2
Use 8mm Hex wrench to secure foot to lifting column with
four screw B (M10x15mm) on each side.
STEP 3
Unfasten the connecting sheet metal above the control box
by using 5mm hex wrench. Then place the sheet metal on
side, ready for following step 4 to plug the cables to control
box.
STEP 1
Insert the lifting column so that the back of the lifting column
and the back of the crossbar end are flush. Use Hex wrench
5mm to tighten with 4pcs of screw A (M6x16mm) screws on
each side.
x8
M6x16mm hexagon screw
A
x8
B
M10x15mm hexagon screw
M6x16mm hexagon screw
x8
A
M6x16mm hexagon screw
x4
A
Be aware of your hands
HARDWARE LIST
x1
x2
x2
x2
x1
x1
x18
x14
x10
150 Series
120 Series
ROYAL ELECTRIC STANDING DESK
LIFT DESK WITH CONTROLLER
Docking Station Spec sheet (Optional) Specification

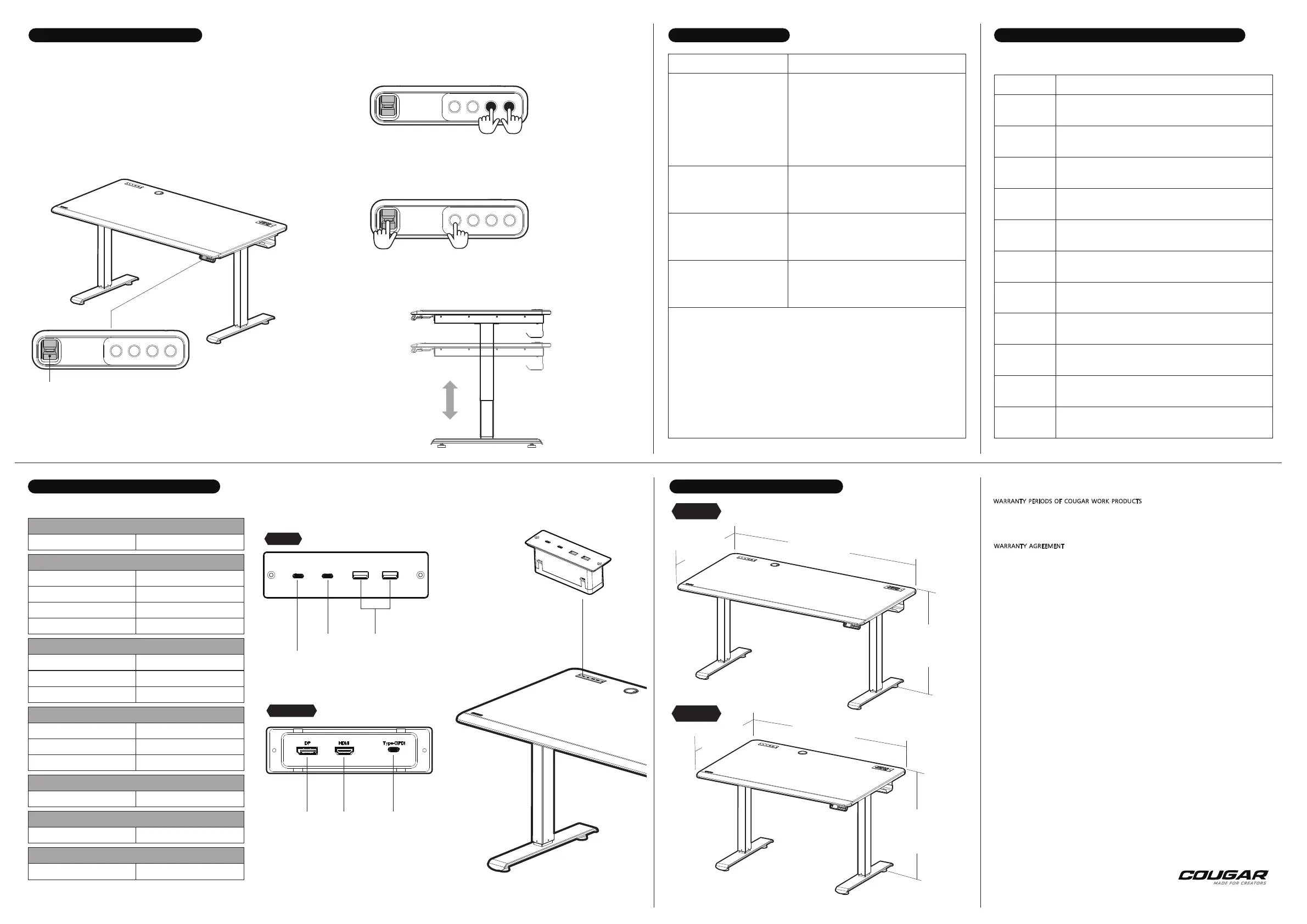

TROUBLESHOOTING
Issues(s)
Desk does not go up or down
Check all connections. Make sure power cord is
plugged into thecontrol box and a power outlet.
Unplug the power cord and replug after 10 seconds.
Re-initialize the desk. If the problem persists, switch
motor cables from one port to another at control
box and re-initialize one more time. If you have
been using the desk continuously for 2 minutes,
non-movement might be due to overheat. Stop
using the desk for 10 minutes and let it cool down.
Reset may be needed from time to time in events like non-movement, uneven movement,
sudden power outage, over-load, overheat and etc.
For most electronic devices, reset is simply a power-off and a power-on. This desk has
dual motors. The reset involves more than a conventional power-off and power-on as both
motors need to be synchronized. The reset process is the same as initialization. If your desk
has memory controller, press and hold both UP and DOWN arrow buttons, and release both
buttons when 000 appears. If your desk has basic 2-button controller, press and hold UP
and DOWN arrow buttons for 3 seconds, and then release both buttons. The desk will first
go to the lowest position, then the highest position and finally stops in between.
Unplug the power cord and re-plug after 10 seconds.
Re-initialize the desk. If the problem persists, switch
motor cables from one port to another at control box
and re-initialize one more time.
It is normal that desk wobbles slightly at standing
height when in use. Make sure all the screws are
tightened and adjust leveling studs if the floor is
uneven.
It is normal that the desk is noisier when one stage
extends into the other. Apply silicon based lubricant
if it is unusually noisy.
Columns do not go up evenly.
Desk wobbles pretty excessively.
Desk is unusually noisy
Solution
ERROR CODE FOR DESK WITH MEMORY CONTROLLER
The digital display shows the error code s below to suggest the issues that users may
encounter during the operation.
The controller is a simple yet classic hand control for height-adjustable desk. It allows the user to set four preferred heights and equipped with a three-digit height display.
You can preset up to four positions. Use knob switch to move the desk to your desired position.
•3-digit display shows the height of the desk.
•Memory functionality (4 settings)
•Mounted to the desk front side
•Knob switch for up and down
•Especially designed for adjustable height desk application.
Users must conduct a reset when the desk operated for the first time.
Simultaneously press button 3 and 4 for 8 seconds.
Continue pressing the buttons until both columns are in lowest position.
When finished with the reset, the control box makes a beep sound and
the buttons can be released. Then, the display will show starting height.
Top
Bottom
120cm
150cm
088
150cm (59”)
120cm (47”)
80cm (31”)
80cm (31”)
72cm (28”)
122cm (48”)
~
72cm (28”)
122cm (48”)
~
Type C
(With PD Function)
HDMI 2.0 TYPE-C
(PD Charge)
Type C
(Data only)
USB 3.1
Input Port
Type
Type C with PD Function
USB 2.0 Data
Speed 480Mb/S
Power Delivery Enable, PD 3.0
Type USB3.1 Gen 1
Speed 5Gb/S
Power Delivery Unable (Data Only)
Type USB3.1 Gen 1
Max. Resolution 4K@ 60Hz
Max. Resolution 4K@ 60Hz
Support Power Adapter Max 100W
Speed 5Gb/S
Battery Charging Enable
Battery Charging Enable
Type C (Power IN with PD Charge) x 1
Features
Type C (Data only) x 1
Type A x 2
HDMI HDMI 2.0
DP
Power Request
DP 1.4
DP 1.4
Not reset completely
Solution
Overuse protection
Unbalance protection
Anti-collision
M1 Motor over-current protection
M2 Motor over-current protection
No Hall sensor from M1
No Hall sensor from M2
No current from M1
Error Code
E00
E01
E02
E03
T-touch ProtectionE04
E11
E12
E21
E22
E31
E32 No current from M2
*Knob switch: Adjust the height adjustable desk to go up or down.
1 2 3 4
Simultaneously press the preferred memory buttons (1,2,3,4) with scrolling down
or up knob switch for 3 seconds, once the display shows P1 or P2 or P3 or P4,
means the position is memorized. Then, just press button 1,2,3 or 4 to move
desk to memorized position.
0P1
1 2 3 4
070
1 2 3 4
Note:
Final resolution of HDMI or DP output depends on your host devices.
System Requirements: The connected laptop must support Power
Delivery and DisplayPort Alt Mode via the USB-C port.
WARRANTY AGREEMENT
●
If the product has defects in material or manufacture, COUGAR will provide repair and replacement
service within the warranty period.
●
Our warranty service is based on the date of the invoice or warranty card.
GLOBAL WARRANTY POLICY
WARRANTY PERIODS OF COUGAR WORK PRODUCTS
Product : COUGAR ROYAL ELECTRIC STANDING DESK
Warranty: 2-Year Warranty for COUGAR Electric Standing Desk / 5-Year Warranty for lifting column.
This warranty gives you specific legal rights. You may also have other rights granted under local law.
These rights may vary.
CONTACT INFORMATION
LOYALTY FOUNDER ENTERPRISE CO., LTD.
13F, NO.859, Jingguo Rd, Taoyuan Taiwan, R.O.C
TEL:+886-3-3269123
Service email : service@cougarwork.com
COUGAR WORK. All Rights Reserved. Made in China
WARNING
●
Please wear protective gloves when assembling the Desk. It is your own responsibility to use appropriate protection
to prevent any physical damage.
●
Do not use abrasive products or scrub energetically when cleaning. Please stick to gentle products suitable for
delicate materials.
●
All parts should be checked monthly to confirm their integrity and to make sure that the screws are not loose.
●
If any part of the product is or appears to be damaged, missing or loose, please contact the local distributor and
do not use the product. WARNING

Produkt Specifikationer

Mærke: Cougar
Kategori: Skrivebord
Model: ROYAL PRO 120

Har du brug for hjælp?

Hvis du har brug for hjælp til Cougar ROYAL PRO 120 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Skrivebord Cougar Manualer

Cougar

Cougar ROYAL PRO 120 Manual

10 September 2025
Cougar

Cougar ROYAL ELITE 150 Manual

27 August 2025
Cougar

Cougar Royal 150 Manual

27 August 2025
Cougar

Cougar ROYAL MOSSA 150 Manual

27 August 2025
Cougar

Cougar Royal Pure 150 Manual

26 August 2025
Cougar

Cougar ROYAL ELITE 120 Manual

26 August 2025
Cougar

Cougar Royal Pure 120 Manual

26 August 2025
Cougar

Cougar E-DEIMUS 120 Manual

13 August 2025
Cougar

Cougar E-GRAV 180 Manual

4 Juli 2025
Cougar

Cougar E-STAR 120 Manual

3 Juli 2025

Skrivebord Manualer

Nyeste Skrivebord Manualer

EMachines

EMachines T2605 Manual

10 September 2025
EMachines

EMachines T3626 Manual

10 September 2025
EMachines

EMachines T2792 Manual

10 September 2025
EMachines

EMachines T3062 Manual

10 September 2025
EMachines

EMachines T2875 Manual

10 September 2025
EMachines

EMachines T3090 Manual

10 September 2025
HP

HP 202 G1 Manual

10 September 2025
EMachines

EMachines T2894 Manual

10 September 2025
EMachines

EMachines T3312 Manual

10 September 2025
HP

HP 200 G1 Manual

10 September 2025
