Side 1/2

Warranty and information of the manufacturer

For further information of the warranty terms, please read the information of

“Guarantee Terms and conditions for COUGAR Power Supply Units (PSU) of the

STC-Series”.

This product is not to be disposed in the regular household waste and must be

brought to a collection-point for electrical and electronic devices for recycling. The

symbol to the left refers to that and can be found on the product, in the manual or on

the packaging. Materials can be recycled according to their description. With the

reuse, the recycling or other forms of reutilization of old devices you make an

important contribution to the protection of our environment. Please inquire the

appropriate location of disposal from your local administration.

Trouble shooting

WARNING:

Never work on the PSU yourself. Even long time after its deactivation,

life-threatening voltages can still be present in the PSU. Repairs should only be made

by authorized specialists.

Working at power sources can lead to life-threatening injuries. If there is smoke,

cable damage or intrusion of liquids the PSU has to be immediately disconnected

from the power network and must not to be put into operation anymore afterwards.

Never open the PSU. It contains components, which can show high voltages even

after long periods of deactivation.

Again, repairs should only be done by authorized specialists!

Problem: After the installation of the new PSU the system does not start.

Possible solutions:

●

Check the power code and the power supply of the wall socket and/or multiple

socket strip. Also check whether the multiple socket strip can supply the

necessary power.

●

Check all connections within the PC; maybe not all cables are correctly connected.

●

Check the internal cable of the I/O-switch of the PC case to the mainboard.

●

Check the components for possible short-circuits or defects.

Please also check the other components for compatibility. Often mainboard chipsets

are not compatible with all memory and/or graphics card solutions. Contact the

manufacturer of the component to get more information.

If your PSU still does not function even though you have checked sources of errors

mentioned above, please get in touch with our customer service.

Introduction

Dear customer:

Thank you for choosing a COUGAR

power supply unit. Before the installation

please read the manual below carefully. If you have any questions, please contact

our customer service:

Warnings and safety notes

Never open the PSU cover. There is potential danger of life due to high voltage inside.

The PSU should only be opened by an authorized technician. The manufacture

warranty will be void, if the PSU is opened by an unauthorized person.

Do not work on the PSU or the PC as long as the main voltage is still connected.

Switch the I/O button to position "0" and disconnect the power plug from the power

network.

Protect the PSU against moisture.

The PSU is suitable for operation at 200-240V/50-60Hz.

The ambient temperature should not exceed 50°. Please pay attention to the power

de-rating on all models with a decrease of 1%/°C starting at an ambient temperature

of 25°C. Please ensure that there is sufficient ventilation of the entire system.

The leakage current must not exceed 3.5 mA.

Make sure during the installation of the PSU that the ventilation slots are not covered.

Do not clog the ventilation slots of the PSU. Keep your PC away from direct heat

sources such as radiators.

When using an extension cord and/or multiple sockets pay attention to the maximum

through-connection ability in order to avoid short-circuits.

If you want to clean your PSU, disconnect the power plug from the power network

and remove it from the PC case. Before the removal make sure that you are not

statically charged, (e.g. through carpets or wool sweaters).Only clean the PSU on the

outside, always using dry cloth, never water or detergent.

During the operation of the PSU pay attention to the maximum loads. The single

loads and the total loads must not exceed to cross the values shown in output power

table. Avoid the use of adapters, such as 4Pin Molex to 6+2Pin PCI-Express.

Technical details and special features

●

EXTREMELY HIGH EFFICIENCY

Up to 86% of efficiency.

●

COMPATIBLE WITH THE LATEST PC-TECHNOLOGY

Created for use with current and next-generation multi-core CPU platforms.

●

SUPPORT MULTI-GPU TECHNOLOGY

Supports PCI Express 3.0 next-generation graphics cards with 8(6+2) pin

PCI-E connector.

●

ULTRA-QUIET & TEMPERATURE-CONTROLLED 120mm FAN

Extremely Low Noise Level, fan speed automatically regulated according to the

temperature.

●

INTEGRATED AIR INLET DESIGN

Optimal aerodynamic design that provides more silent operation.

●

ACTIVE POWER FACTOR CORRECTION (ACTIVE PFC)

PF value up to 98%, provides clean and reliable power.

●

FULL PROTECTIONS WITH SCP, OVP, UVP, OPP & OCP

Installation/accessories

Before you begin with the installation, please read the section

”Warnings and safety notes.”For the arrangement only use the supplied screws since

these have the correct thread. You need a screwdriver for the correct arrangement.

The following parts are included within the delivery:

●

Screws for the PSU assembly

●

Power cord (Please only use the power cord which is included; low-quality cords can

damage your PSU and your PC-system.)

●

Brief instruction incl. Information about the warranty

●

Place the PSU into its designated place within the case and fix it with the supplied screws.

●

First insert the plugs for the mainboard supply (20/24 pin, 4 pin and possibly

8 pin – according to mainboard layout) into the respective slots.

●

Connect the disk drives and if necessary the graphics cards to the PSU.

●

Close the PC and ensure that the PSU power switch is set to the position "0".

●

Connect the PSU to the power network using the supplied power cord. Using only

the power cord provided in the package. Low quality power cord may damage the

PSU and PC system!

●

Turn on the PSU and then start your PC.

Safety functions

●

UVP (Undervoltage protection)

If the voltages fall below a certain tolerance value on the single lines, the PSU

automatically switches off.

●

OVP (Overvoltage protection)

If the voltages increase above a certain tolerance value on the single lines, the PSU

automatically switches off.

●

SCP (Short-circuit protection)

In the case of a short-circuit this feature prevents damage to the core components

of the PSU and its system components.

●

OPP (Overload protection)

If the system is oversized and requires more power from the PSU than it can

perform, this protection function is activated.

●

OCP (Overcurrent protection)

If the current on a single line is higher than indicated,the PSU automatically switches off.

Specifications

●

Operating conditions

Working temperature: +10°C ~ +40°C

(Please note the de-rating condition in Warnings and safety notes)

Storage temperature: -40°C~+70°C

Operating humidity (without condensation water): 20%~85% relative humidity

Storage humidity (without condensation water): 5%~95% relative humidity

●

Output power

●

Connectors

Main CPU

24(20+4) Pin 8(4+4) Pin

PeripheralS-ATAPCI-E

Connector

5 Pin 8(6+2) Pin 4 Pin

1 3641

STC750

+3.3V

20A

120W 720W 3.6W 15W

0.3A 3A

750W

20A 60A

+5V +12V Total

200-240V~

50-60Hz

-12V +5Vsb

AC inputModel Name

DC output

STC750

CGR ST-750

STC 750

SUPERIOR RELIABILITY AND SILENT OPERATION

Legal notices

This manual was created by COMPUCASE ENTERPRISE CO., LTD. and may not be

completely or partially copied, passed on, distributed or stored without written

consent by COMPUCASE ENTERPRISE CO., LTD.

COUGAR is a registered brand of COMPUCASE ENTERPRISE CO., LTD. Other

product and company names mentioned in this documentation may be brands or

trademarks of their respective owners.

COMPUCASE ENTERPRISE CO., LTD. reserves the right to make changes concerning

the contents of the manual and the technical data of the product without previous

announcement.

Where the product warranty according to local laws and regulations extends to less than 24

months after the date of purchase, Compucase will provide an extended limited warranty

starting the day in which the implied warranty (according to local laws and regulations) ends

and finishing 24 months after the date of purchase. If the local laws and regulations establish

a warranty period of 24 or more months, no extended limited warranty shall be provided.

During this period, defects in material or workmanship will be repaired or restored with

spare parts. In case of a guarantee service, the customer should claim the COUGAR PSU

at the retailer, where the PSU was bought, accompanied by a copy of the invoice and an

error description. Compucase will only support directly if the retailer is not reachable

repeatedly.

In case of direct support by Compucase , the end user has to assure that the goods are

packed properly and that p2-he is in charge of all transportation costs.

Compucase’s warranty does not cover any of the following:

●

Damages due to acts of nature (e.g. Lightning, Water, Fire and so on)

●

Accessory or consequential damages that happened by using or not using the PSU

●

Damages caused by misuse of the PSU or caused by negligence

●

Loss of information or data, software or applications

●

Damages caused by opening or modifying the PSU without previous accordance

●

Damages caused by using or installing the PSU under conditions outside of the technical

specifications which are described in the attached manual

This warranty is valid only for the first end user or consumer and is restricted to the above named period.

Guarantee Terms and conditions for

COUGAR Power Supply Units (PSU) of the STC Series

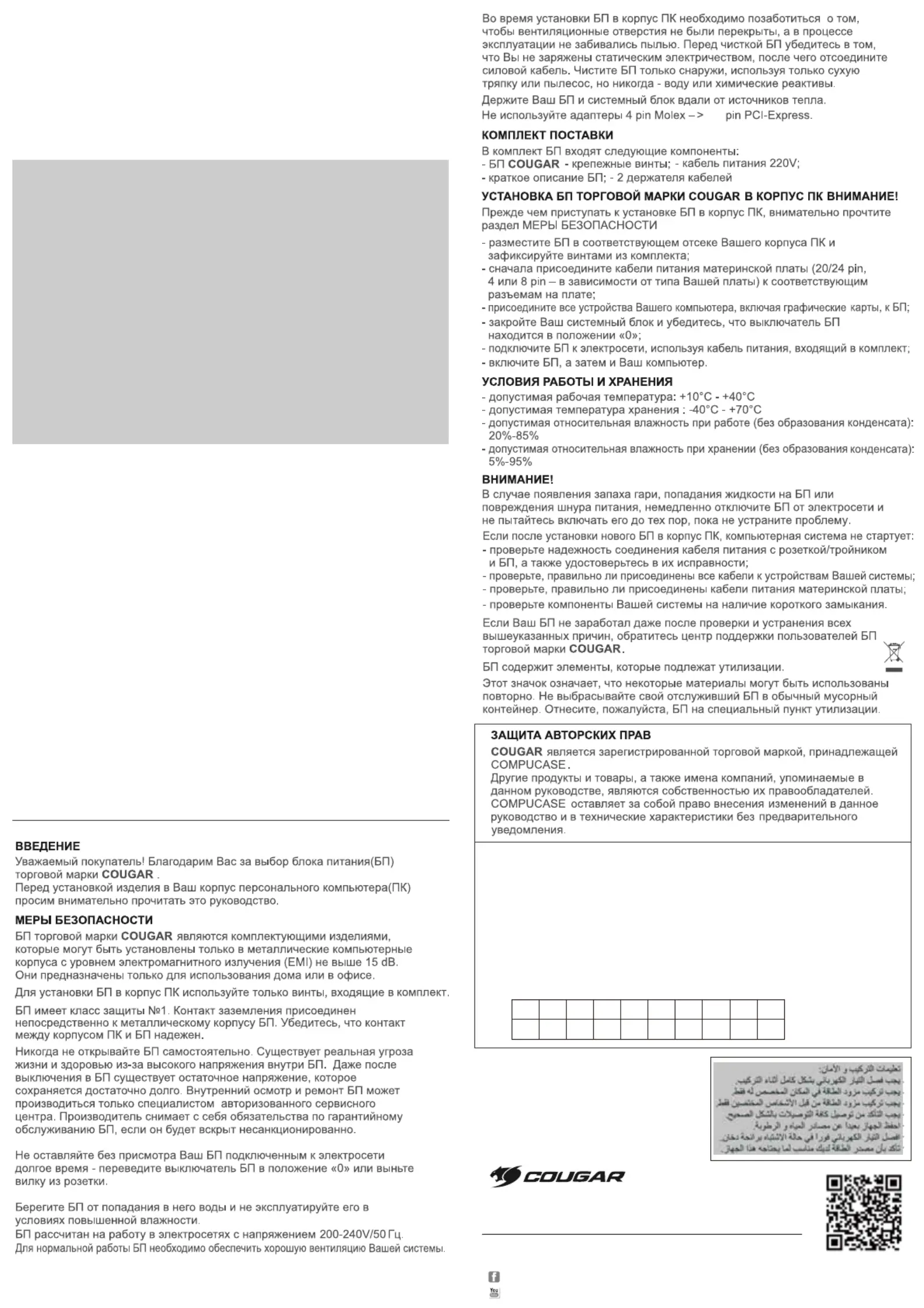

ÐÓÑÑÊÈÉ ßÇÛÊ

facebook.com/cougargaming

youtube.com/user/COUGARGLOBAL

6+2

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H

2307000001 означает, что товар был произведен в

феврале 2023 года.

После S/N: если указаны буквы, то две буквы представляют цифры из

таблицы ниже, и означают год, последующие две цифры – месяц

изготовления.

Например, S/N: D

BC07

REVI000001 означает, что товар был произведен в

феврале 2023 года.

●

Например,

BC = 23 = 2023 год

Дата изготовления продукции

A B C D E F G H I J

1 2 3 4 5 6 7 8 9 0

PORTUGUÊS

●

EFICIÊNCIA EXTREMAMENTE ALTA - Até 86% de eficiência.

●

COMPATÍVEL COM A TECNOLOGIA DE PC MAIS RECENTE

Criado para uso com as plataformas atuais e da próxima geração de CPU multi-core.

●

SUPORTE COM TECNOLOGIA MULTI-GPU

Suporta a próxima geração de placas de vídeo PCI Express 3.0 com

8(6+2) conectores pin PCI-E.

●

VENTILADOR DE 120mm ULTRA-SILENCIOSO E COM CONTROLE DE TEMPERATURA

Nível de ruído extremamente baixo, velocidade do ventilador regulada

automaticamente de acordo com a temperatura.

●

DESIGN DE ENTRADAS DE AR INTEGRADAS

Design aerodinâmico de excelência que fornece uma operação mais silenciosa.

●

FATOR DE CORREÇÃO DE FORÇA ATIVO (PFC ATIVO)

Eficiência de até 99%, fornece uma força limpa e confiável.

●

PROTEÇÕES COMPLETAS COM - OCP, SCP, OVP, UVP, OPP

ESPAÑOL

●

MUY ALTA EFICIENCIA - Hasta un 86% de eficiencia.

●

COMPATIBLE CON LAS ÚLTIMAS TECNOLOGÍAS DE CPU MULTI-CORE

●

SOPORTE PARA TECNOLOGÍA MULTI-GPU

Soporta tarjetas gráficas PCI-Express 3.0 con conectores PCI de 8 (6+2) pin.

●

VENTILADOR DE 120mm - Funcionamiento extraordinariamente silencioso y vida

útil mucho más prolongada.

●

DISEÑO AERODINÁMICO ÓPTIMO - Más silenciosa.

●

ACTIVE POWER FACTOR CORRECTION (ACTIVE PFC)

Factor de potencia hasta 99%, brinda energia limpia y fiable.

●

PROTECCIÓN TOTAL GRACIAS A LOS SISTEMAS - SCP, OCP, OVP, UVP Y OPP

Compucase Enterprise Co.,Ltd.

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail:rma@compucaseusa.com

www.cougargaming.com

Of fi ci al w eb si te

Produkt Specifikationer

Mærke:	Cougar
Kategori:	Ikke kategoriseret
Model:	STC 750

Har du brug for hjælp?

Hvis du har brug for hjælp til Cougar STC 750 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Ikke kategoriseret Cougar Manualer

Cougar ATLAS 650 Manual

26 August 2025

Cougar GX-F Aurum Manual

26 August 2025

Cougar ATLAS 850 Manual

26 August 2025

Cougar GR 850 Manual

26 August 2025

Cougar STC 750 Manual

26 August 2025

Cougar GES 650 Manual

26 August 2025

Cougar GEX PRO 850 Manual

26 August 2025

Cougar GR 750 Manual

26 August 2025

Cougar GX-S Manual

26 August 2025

Cougar STC 400 Manual

26 August 2025

Ikke kategoriseret Manualer

Nyeste Ikke kategoriseret Manualer

ErgoAV ERTFX5-01BB Manual

26 August 2025

Krups The Sub Heineken Edition VB650E Manual

26 August 2025

Krups Savoy EC3130 Manual

26 August 2025

Hoshizaki HS-5234 Manual

26 August 2025

Antelope Corefit II Manual

26 August 2025

Moulinex Subito FG5S2D Manual

26 August 2025

Siemens 3RW4027-1BB14 Manual

26 August 2025

Moulinex Simpleo FG121B Manual

26 August 2025

Sauermann Si-61 Manual

26 August 2025

Middle Atlantic SNE30D-4248-P2 Manual

26 August 2025
