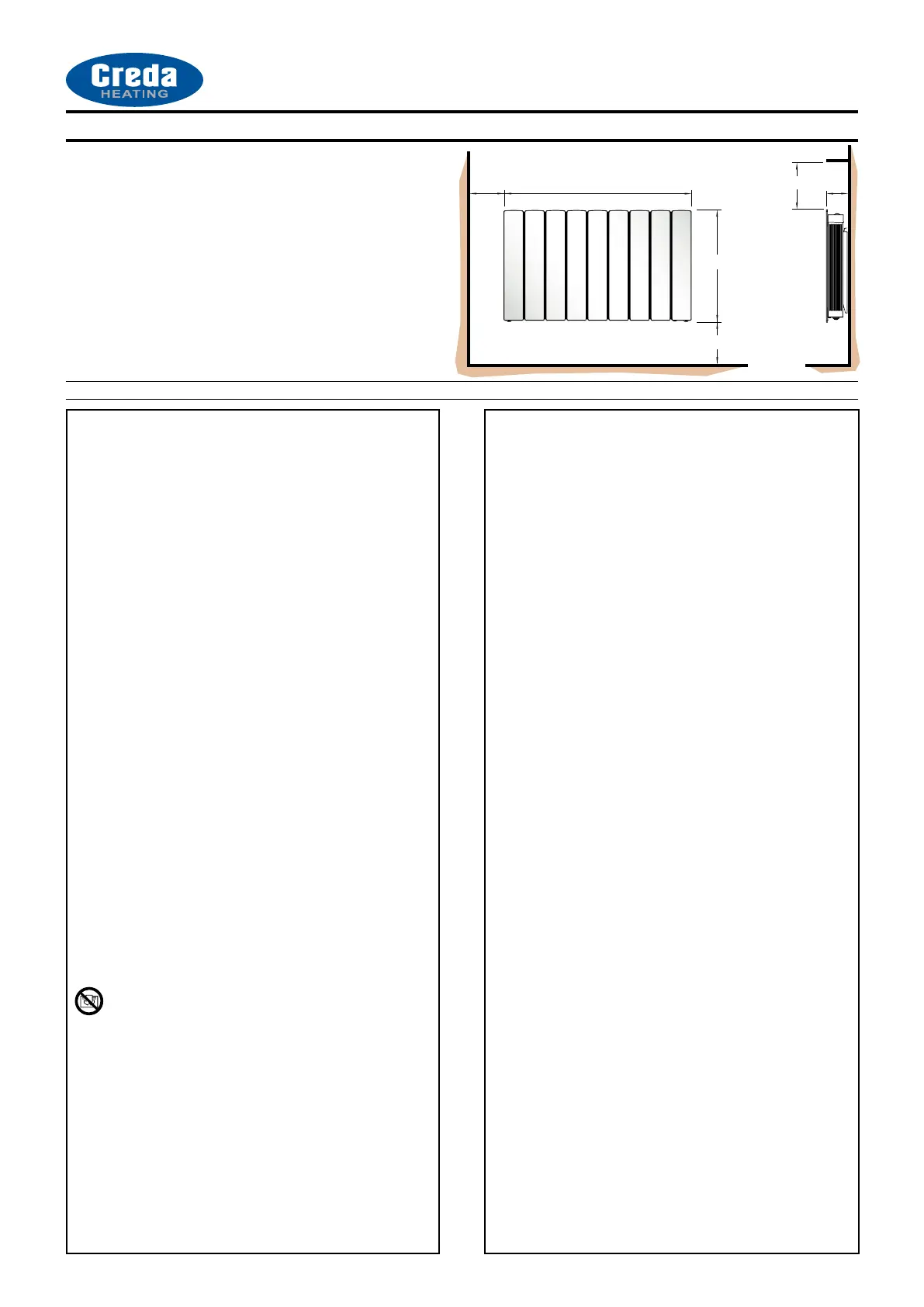

Side 1/4
Important Safety Advice
When using electrical appliances, basic
precautions should always be followed to
reduce the risk of re, electrical shock, and
injury to persons, including the following:
IMPORTANT – The wall bracket supplied
with the appliance must be used.
WARNING – DO NOT USE THIS HEATER
IN THE IMMEDIATE SURROUNDINGS OF
A BATH, A SHOWER OR A SWIMMING
POOL.
IMPORTANT – If the heater is installed in a
room containing a bath or shower, it must be
so installed that switches and other controls
cannot be touched by a person using a bath
or shower.
Do not use outdoors.
Do not locate the heater immediately below
a xed socket outlet or connection box.
WARNING: In order to avoid overheating, do
not cover the heater. Do not place material
or garments on the heater, or obstruct the
air circulation around the heater, for instance
by curtains or furniture, as this could cause
overheating and a re risk.
NEVER cover or obstruct in any way the heat
outlet slots at the top of the heater or the air
inlet slots in the base of the heater.
The heater carries the Warning symbol
indicating that it must not be covered.
CAUTION - Some parts of this product
can become very hot and cause burns.
Particular attention has to be given where
children and vulnerable people are present.
This appliance can be used by children
aged from 8 years and above and by
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use of
the appliance in a safe way and understand
Installation and Operating Instructions
INCMUKP7RG Issue 6
Contour 100 Electronic Panel Heaters
Dimensions
(millimetres)
Model s Watt A B ( )
CEP500E 0.5kW 503 104
CEP750E 0.75kW 503 104
CEP1000E 1.0kW 671 104
CEP1500E 1.5kW 741 104
CEP2000E 2.0kW 911 104
Fig. 1
IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE
the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintainance shall not
be made by children without supervision.
Children of less than 3 years should be kept
away unless continuously supervised.
Children aged from 3 years and less than 8
years shall only switch on/off the appliance
provided that it has been placed or installed
in its intended normal operating position
and they have been given supervision or
instruction concerning use of the appliance
in a safe way and understand the hazards
involved. Children aged from 3 years and
less than 8 years shall not plug in, regulate
and clean the appliance or perform user
maintainance.
Note that due care and consideration must
be taken when using this heater in series
with a thermal control, a program controller,
a timer or any other device that switches on
the heat automatically, since a re risk exists
when the heater is accidentally covered or
displaced.
If the supply cord is damaged it must be
replaced by the manufacturer or service
agent or a similarly qualied person in order
to avoid a hazard.
WARNING: Servicing and product
repairs should only be undertaken by the
manufacturers approved service agent or a
similarly qualied person, using only exact
manufacturer approved spare parts.
A means for disconnection must be
incorporated in the xed wiring of the
premises in accordance with the wiring
rules. The supply circuit to the heater must
incorporate a double pole isolating switch
having a contact separation of at least 3mm.
A
536
B
150
Min.
300 n.Mi
shelf
150 Min.
Operation
Switching On the Heater
The controls are located on the right hand side on top of the appliance.
The button marked ‘ ’ controls the electricity supply to the electronic
thermostat. An indicator beside the ‘ ’ button shows when the unit
is powered ‘ON’.
Electrical
WARNING – THIS APPLIANCE MUST BE EARTHED
The electrical installation must be carried out by a competent
electrician, and be in strict accordance with the current I.E.E.
regulations for Electrical Equipment in Buildings.
The wires in this mains lead are coloured in accordance with the
following code:
GREEN AND YELLOW : EARTH
BLUE : NEUTRAL
BROWN : LIVE
BLACK : PILOT WIRE
- see also ‘Pilot Wire Connection’.
The heater is tted with a length of exible cable type H05VV-F size 4
x 1.0mm2 for connection to the xed wiring of the premises through a
suitable connection box positioned adjacent to the heater.
The supply circuit to the heater must incorporate a double pole isolating
switch having a contact separation of at least 3mm.
Pilot Wire Connection
The BLACK control wire is designed to carry a signal from slot in or
wall mounted Creda programmers. If, however a programmer is not
being used, the pilot wire should be isolated in accordance with the
current IEE Wiring Regulations.
IMPORTANT - connect the BLACK pilot wire to earth. Care DO NOT
should be taken with the installation of the pilot wire(s) as when
switching to background (set back) they become energised at 240V
although only at a current of less than 100mA. In every case a suitable
means of isolation must be provided for the pilot wire and marked
to indicate that two sources of supply may be present at the heater.
Where pilot wires are installed separately from the heater nal sub-
circuit they should be protected, double insulated and carry their own
integral earth continuity conductor.
Supplementary Earth Bonding
Should Equipotential Earth Bonding be required the earthing conductor
in the supply cord is deemed to provide the supplementary bonding
connection (see Regulation 544.2.5, 17
th Edition I.E.E. Wiring
Regulations).
General
The heater is designed for wall mounting on the wall bracket supplied.
It should only be operated when in the upright position as shown -
see .Fig. 1
All models are splashproof to IPX4 standard and may be used in
bathrooms, however not in the immediate vicinity of baths, showers,
water connections, wash basins or swimming pools.
Before connecting the heater check that the supply voltage is the same
as that stated on the heater.
NOTE - Lit cigarettes, candles and oil burners, combined with the
convection effect of electric heaters can cause soot deposits to build
up on the surface directly above and to the sides of the heater. This
is not a fault of the heater. Extensive burning of candles or smoking
in the operating environment of this product can produce heavy
discolouration within a few months of use.
Wall Mounting
IMPORTANT – The wall bracket supplied with the appliance must
be used. The heater should be positioned observing the minimum
clearances stated around the heater - see and .Fig. 1 Fig. 2
DO NOT locate the heater immediately below a xed socket outlet
or connection box.
1. Remove wall mounting bracket from the back of the heate r
by depressing the spring latch at the top of each bracket - see
Fig. 2.
2. Fix the wall bracket securely to the wall through the four screw
holes provided.
3. Present the heater to the wall bracket, and engage lower slots
in the back with bracket.
4. Raise the heater to upright position and push the heater onto
the bracket to engage the top latch.
Fig. 2
MAX
MIN
Fig. 3
Turn on the heater using the ‘ ’ button and rotate the thermostat knob
to the desired position. When the room temperature has reached the
desired level, the power to the elements will be reduced, the heater
will then maintain the room temperature at the chosen level.
NOTE - Should your heater fail to come on when the thermostat knob
is at a low setting, this may be due to the room temperature being
higher than the thermostat setting.
Background Temperature
When used in conjunction with a remote programming device
supporting a background/setback setting, the heater will automatically
operate at a room temperature setting of 5
0C less than the thermostat
setting when the programme is in background/setback mode.
Limiting the thermostat setting
Before wall mounting the product the installer may wish to limit the
heat selection knob movement for the operator. This may be achieved
by unclipping the knob and removing the two plastic pins (see Fig. 4)
using pliers and inserting them in the preferred holes to limit the knob
movement. Replace the plastic cap.
Setting Desired Temperature Fig. 3(see )
The heater is tted with an adjustable thermostat enabling the room
temperature to be controlled by rotating the knob accordingly. The min
setting ‘ ’ represents a room temperature of approximately 5
0C and
may be used for protection against frost. The ‘MAX’ setting represents
a room temperature of approximately 30
0C. The ‘ ’ symbol glows when
the elements are actually heating.
D
255 Min.
C
C D
CEP500E 390 300
CEP750E 390 300
CEP1000E 560 300
CEP1500E 630 300
CEP2000E 800 300
