Drip Shields for Lighting Enclosures

Crestron Electronics, Inc. Installation Guide – DOC. 7172B

15 Volvo Drive Rockleigh, NJ 07647 (2030547)

Tel: 888.CRESTRON 08.13

Fax: 201.767.7576 Specifications subject to

www.crestron.com change without notice.

Introduction

The drip shields prevent condensation from dripping into lighting enclosures. There are two drip shield models to

accommodate different lighting enclosure widths: CAEN/GLEX- - - - DRS 1W and CAEN DRS 2W. Refer to the table

below for more information.

DRIP SHIELD MODEL

LIGHTING ENCLOSURE

MODEL

LIGHTING ENCLOSURE

SIZE

CAEN/GLEX- - DRS 1W

CAEN 2x1 4x1 7x1

CAEN- MLO 3x1 5x1

GLEX- FT 24 56

CAEN- - DRS 2W

CAEN

4x2

7x2

CAEN- MLO 5x2

NOTE: Drip shield does not make enclosure suitable for outdoor installation.

Physical Description

This section shows the dimensions of the CAEN/GLEX- DRS Series drip shield.

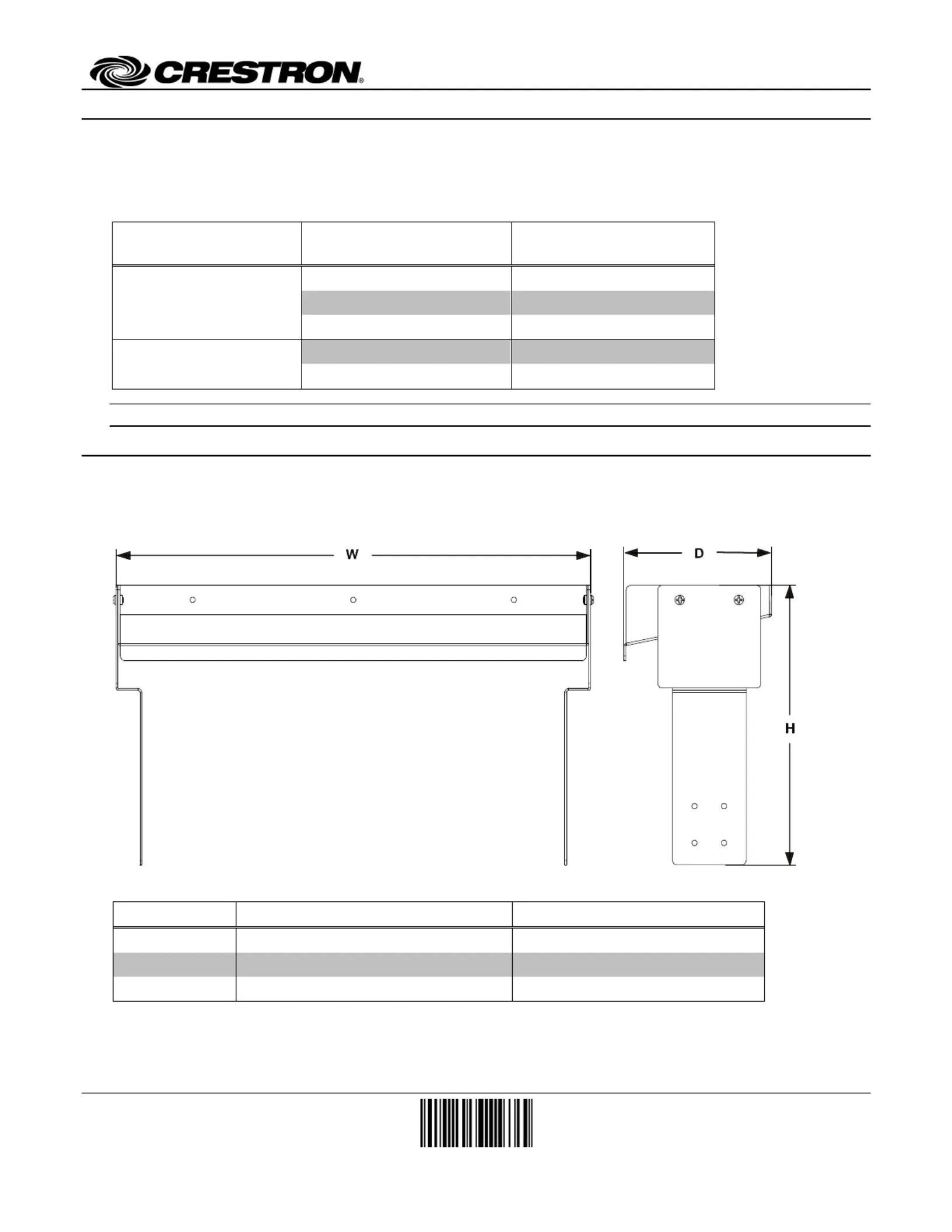

CAEN/GLEX- DRS Overall Dimensions (Front and Side Views)

External Dimensions of DRS Series Drip ShieldCAEN/GLEX- s

DIMENSION

CAEN/GLEX- - DRS 1W

CAEN- -DRS 2W

Width (W) 16 1/16 (409 mm) 1/4 in in 27 (693 mm)

Depth (D) (127 mm) (127 mm) 5 in 5 in

Height (H) (242 mm) (242 mm) 9 1/2 in 9 1/2 in

Drip Shields CAEN/GLEX- Series for Lighting Enclosures DRS

2 s •

•

•• Drip Shield for Lighting Enclosures: CAEN/GLEX- DRS Series Installation Guide – DOC. 7172B

Installation

Use the following procedure to install the drip shield on a

CAEN, CAEN-MLO, or GLEX lighting enclosure (refer

to the illustrations below).

1. Attach the two side brackets to the drip shield using

(4) #8- 32 x 1/4 inch screws (included) as shown

below.

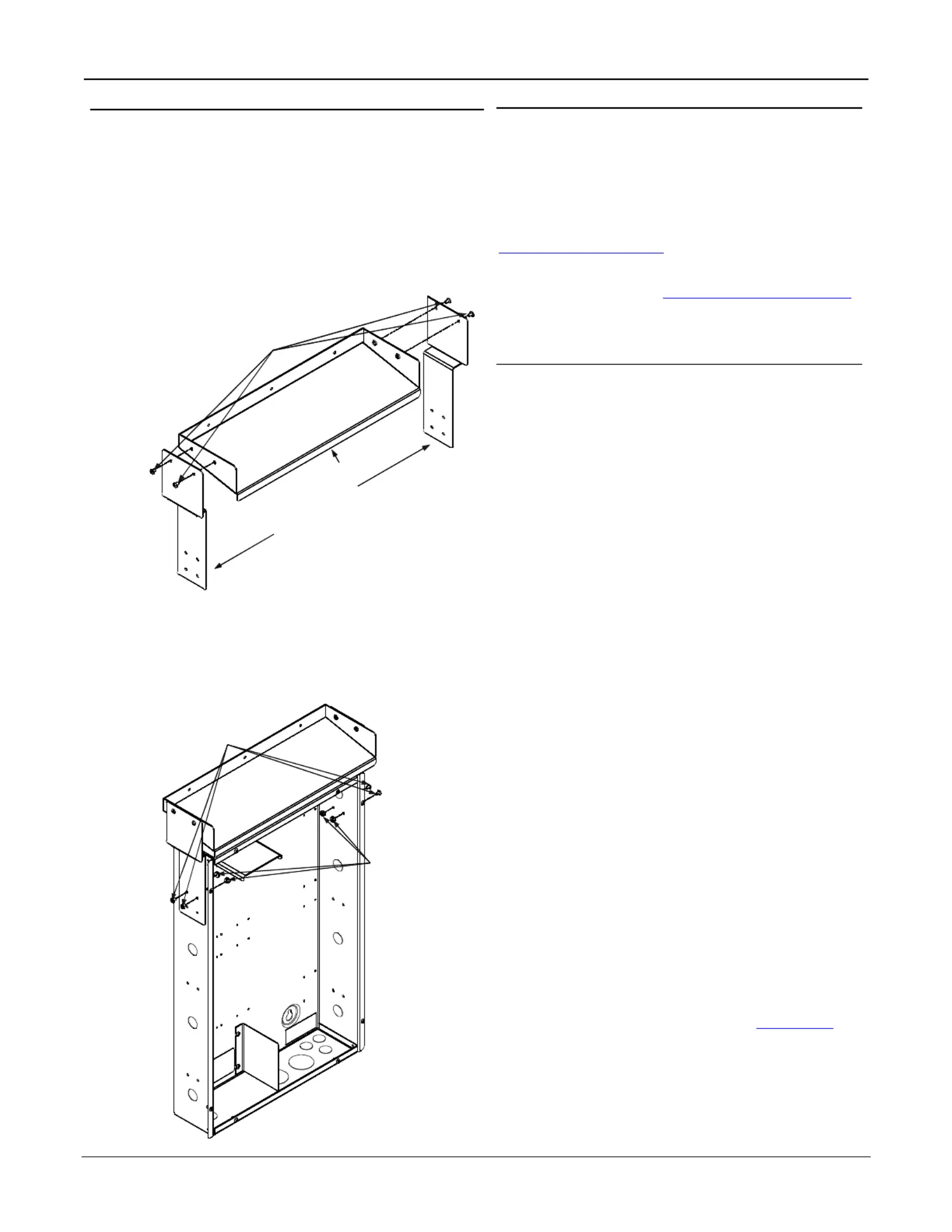

Assembling the Drip Shield

2. Locate the appropriate mounting holes on the

lighting enclosure and attach the drip shield using (4)

#8-32 x ) and (4) #8¼ inch screws (included -32 hex

nuts (included) as shown below.

Installing the Drip Shield

Further Inquiries

To locate specific information or resolve questions after

reviewing this guide, contact Crestron's True Blue

Support at 1-888-CRESTRON - - -[1 888 273 7876] or, for

assistance within a particular geographic region, refer to

the listing of Crestron worldwide offices at

www.crestron.com/offices.

To post a question about Crestron products, log onto

Crestron’s Online Help at

www.crestron.com/onlinehelp.

First-time users must establish a user account to fully

benefit from all available features.

Return and Warranty Policies

Merchandise Returns / Repair Service

1. No merchandise may be returned for credit, exchange or service without ,

prior authorization from Crestron. To obtain warranty service for Crestron

products, contact an authorized Crestron dealer. Only authorized Crestron

dealers may contact the factory and request an RMA (Return Merchandise

Authorization) number. Enclose a note specifying the nature of the problem,

name and phone number of contact person, RMA number and return address.,

2. Products may be returned for credit, exchange or service with a Crestron ,

Return Merchandise Authorization (RMA) number. Authorized returns must

be shipped freight prepaid to Crestron,

6 Volvo Drive, Rockleigh, N.J. or its authorized subsidiaries, with RMA

number clearly marked on the outside of all cartons. Shipments arriving

freight collect or without an RMA number shall be subject to refusal.

Crestron reserves the right in its sole and absolute discretion to charge a 15%

restocking fee plus shipping costs on any products returned with an RMA.

3. Return freight charges following repair of items under warranty shall be paid

by Crestron, shipping by standard ground carrier. In the event repairs are

found to be non- warranty, return freight costs shall be paid by the purchaser.

C restron Limited Warranty

Crestron Electronics, Inc. warrants its products to be free from manufacturing defects in

materials and workmanship under normal use for a period of three (3) years from the date

of purchase from Crestron, with the following exceptions: disk drives and any other

moving or rotating mechanical parts, pan/tilt heads and power supplies are covered for a

period of one (1) year; touch screen display and overlay components are covered for 90

days; batteries and incandescent lamps are not covered.

This warranty extends to products purchased directly from Crestron or an authorized

Crestron dealer. Purchasers should inquire of the dealer regarding the nature and extent

of the dealer's warranty, if any.

Crestron shall not be liable to honor the terms of this warranty if the product has been

used in any application other than that for which it was intended or if it has been

subjected to misuse, accidental damage, modification, or improper installation

procedures. Furthermore, this warranty does not cover any product that has had the serial

number altered, defaced or removed.,

This warranty shall be the sole and exclusive remedy to the original purchaser. In no

event shall Crestron be liable for incidental or consequential damages of any kind

(property or economic damages inclusive) arising from the sale or use of this equipment.

Crestron is not liable for any claim made by a third party or made by the purchaser for a

third party.

Crestron shall, at its option, repair or replace any product found defective, without charge

for parts or labor. Repaired or replaced equipment and parts supplied under this warranty

shall be covered only by the unexpired portion of the warranty.

Except as expressly set forth in this warranty, Crestron makes no other warranties,

expressed or implied, nor authorizes any other party to oer any warranty, including any

implied warranties of merchantability or fitness for a particular purpose. Any implied

warranties that may be imposed by law are limited to the terms of this limited warranty.

This warranty statement supersedes all previous warranties.

The s . pecific patents that cover Crestron products are listed at patents.crestron.com

Crestron and the Crestron logo are either trademarks or registered trademarks of Crestron

Electronics, Inc. in the United States and/or other countries. Other trademarks, registered

trademarks, and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Crestron disclaims any proprietary

interest in the marks and names of others. Crestron is not responsible for errors in

typography or photography.

This document was written by the Technical Publications department at Crestron.

Scre

)

#8-32

1/4 in

hill

an Hea

SideBrackets

ipShield

Screws (4) #8-32 x 1/4 in

Ph Pillips an Head

Nu (4)ts

#8-32 in

Hex
